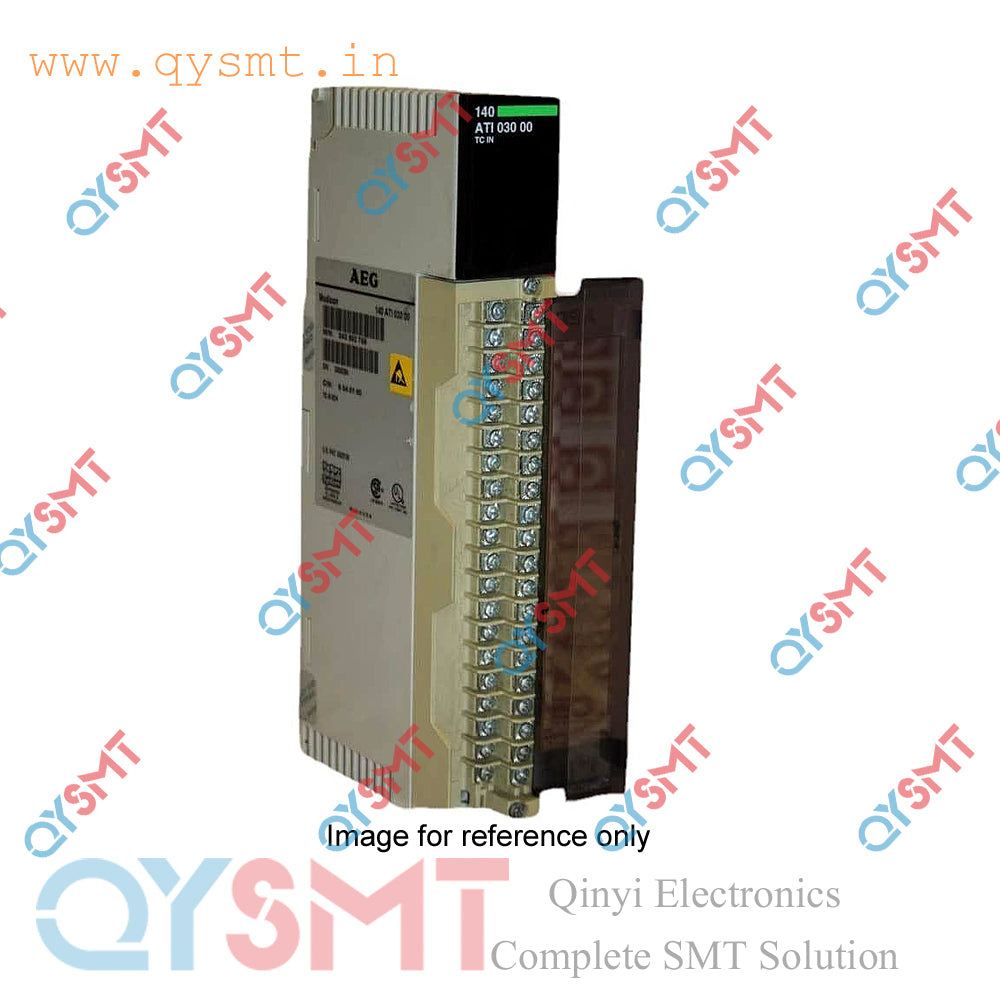

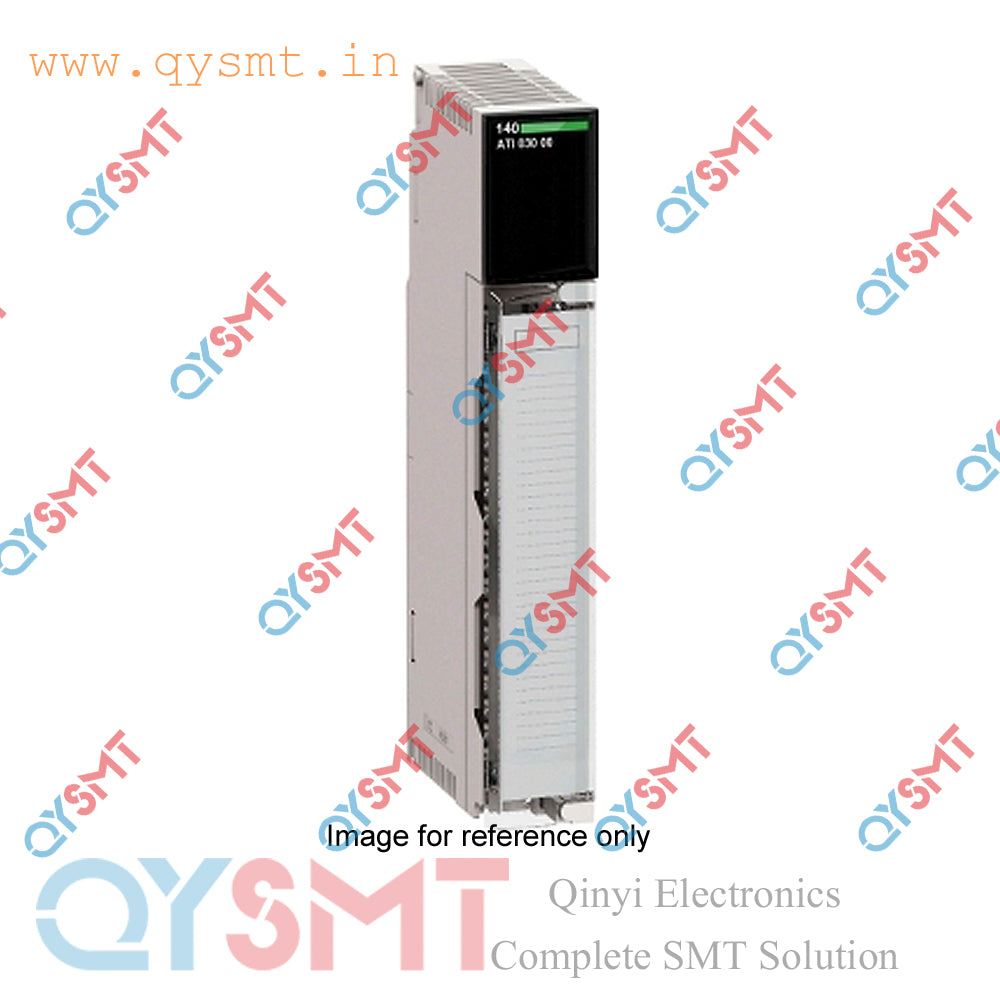

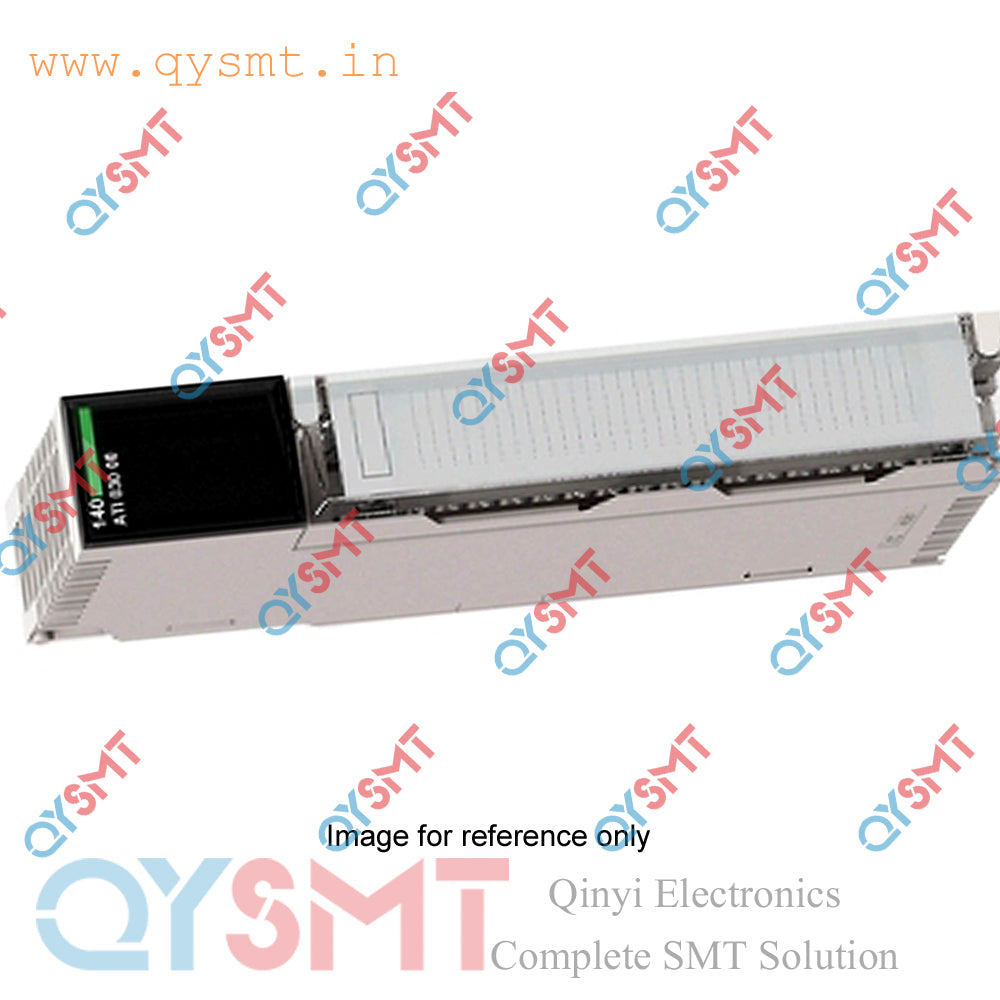

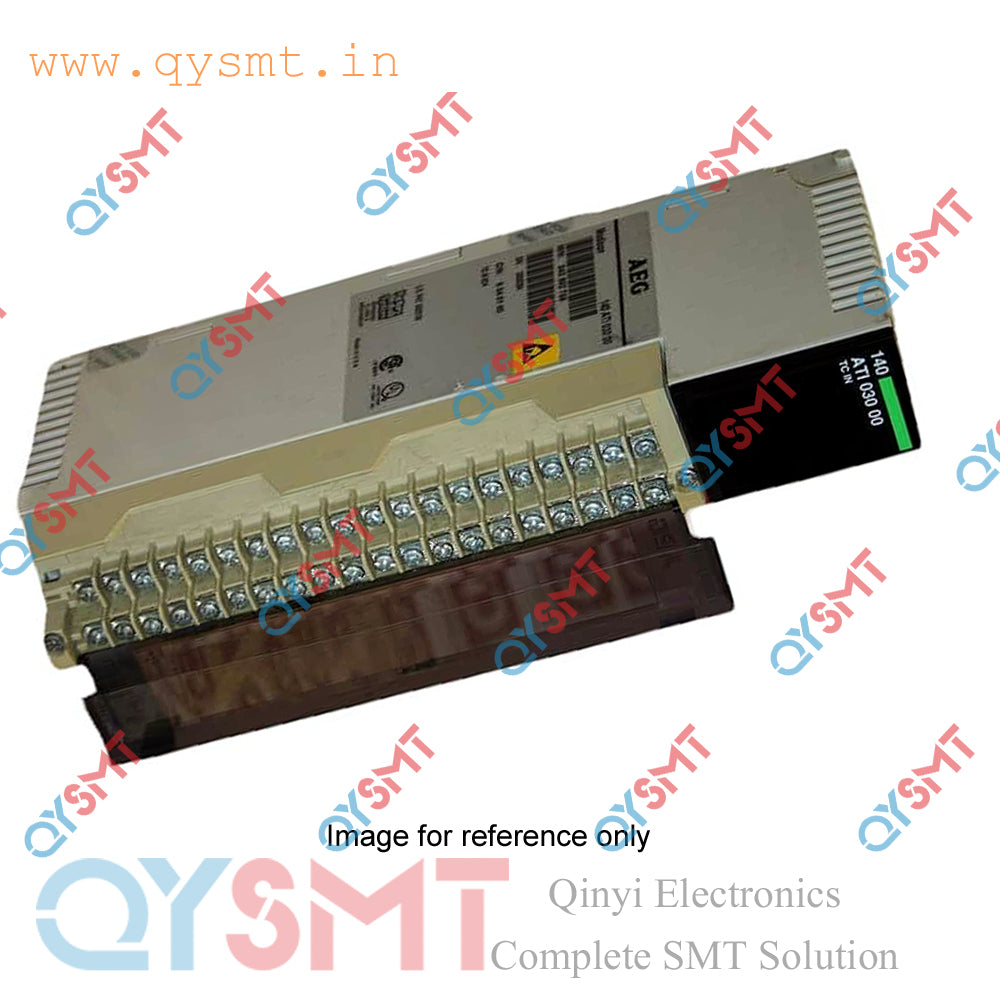

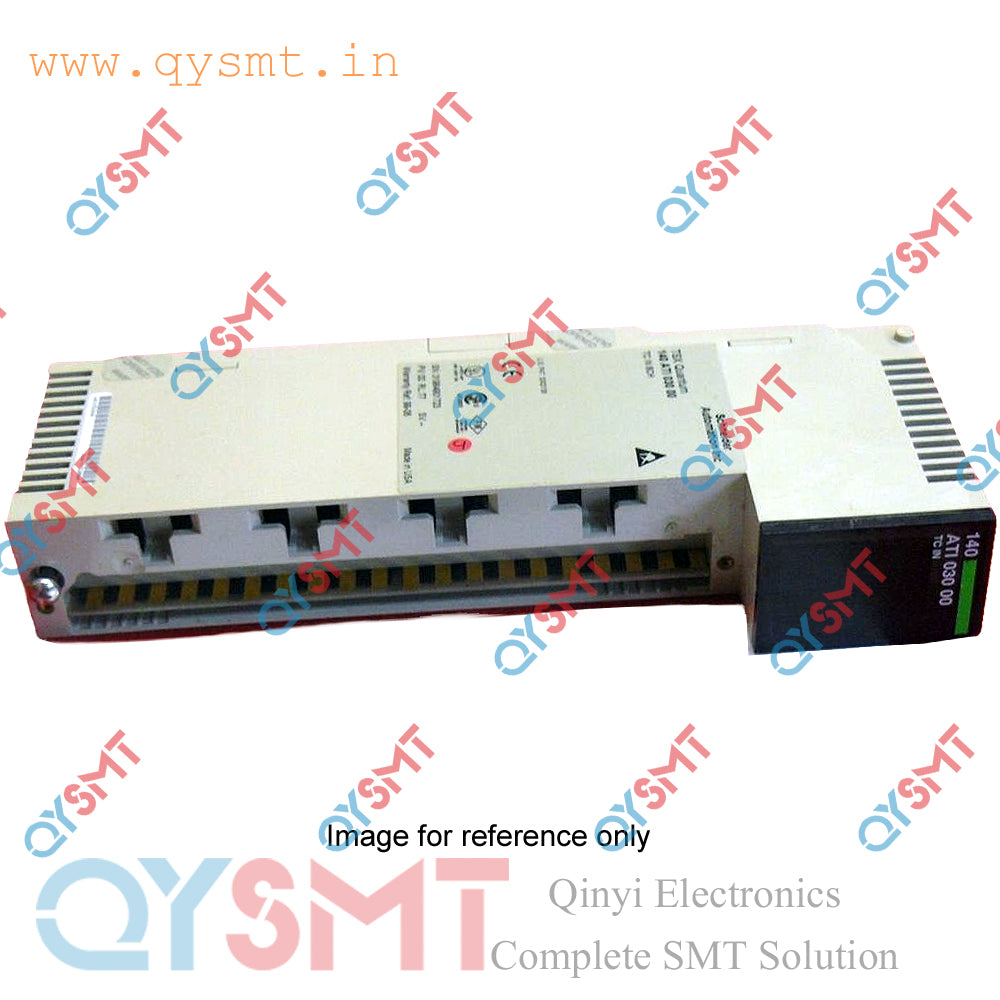

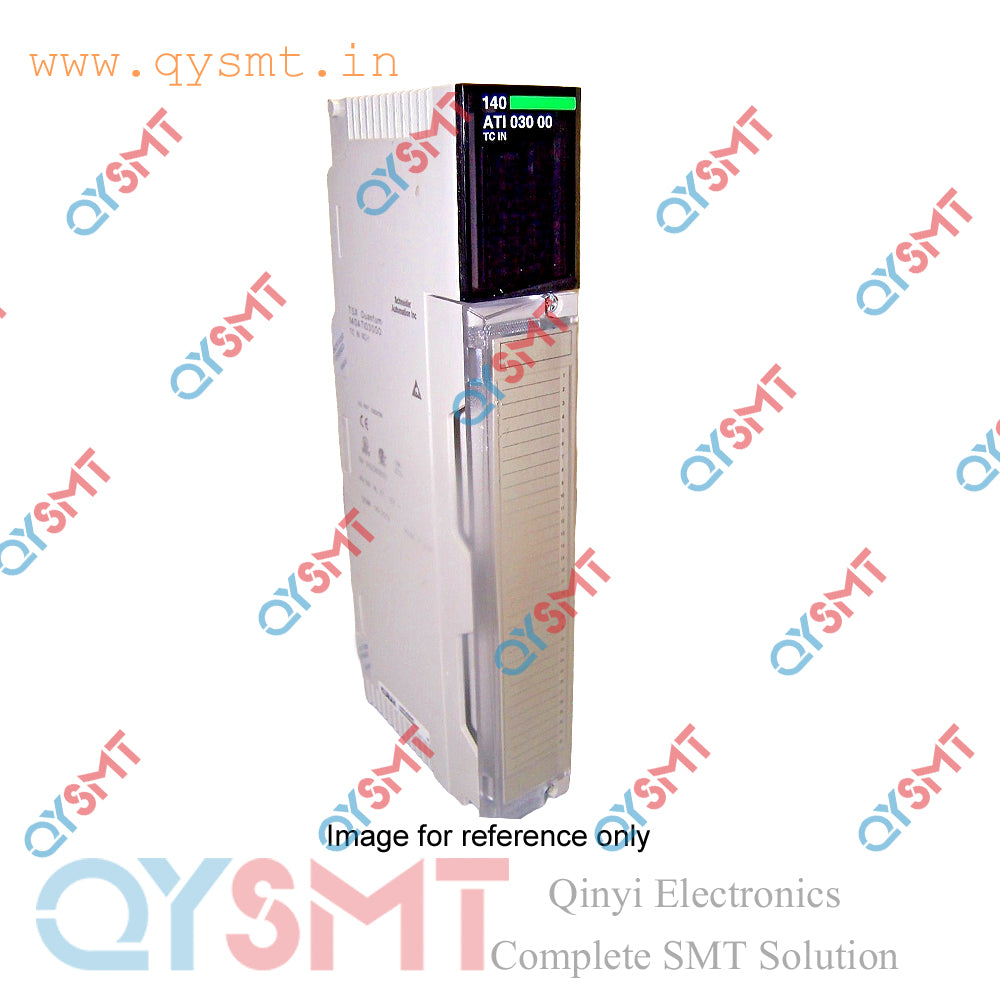

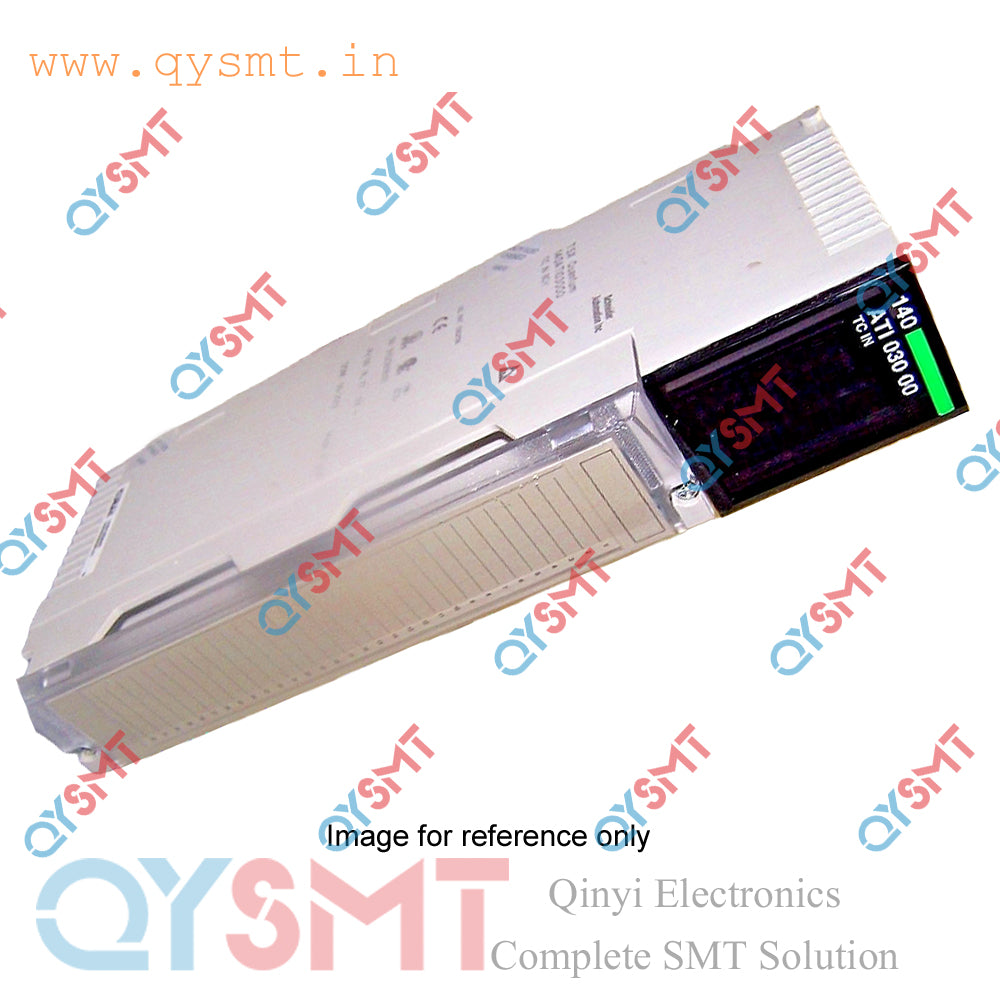

Schneider Automation 140ATI03000 Analog Input Module

Schneider 140 ATI 030 00 8CH Analog Input Module 140ATI03000 Modicon Quantum - 8 I Thermocouple,
Schneider Automation 140ATI03000 140-ATI-030-00 TC Input Module 8ch

Specification/Additional Details

• Brand : Schneider Automation
• Usage/Application : Industrial
• Model Name/Number : 140ATI03000 (140 ATI 030 00)
• Product Type : Analog Input Module
• Type of filter : Notch filter - 3 dB at 50/60 Hz Single pole low pass - 3 dB at 20 Hz
• Analogue input number : 8
• Addressing requirement : 10 input words

• Analogue input resolution : 16 bits

• Common mode rejection : > - 120 dB 50/60 Hz

• Isolation between channels and bus : 1780 V AC for 60 s 2500 V DC for 60 s

• Isolation between channels : 300 V DC 220 V AC

• Update time : 1000 ms

• Fault type : Broken wire Overtacking scale

• Cold junction compensation : Internal 0 To 60  DegreeC

• Bus current requirement : 280 mA

• Power dissipation in W : 1.5 W

• Module format : Standard
