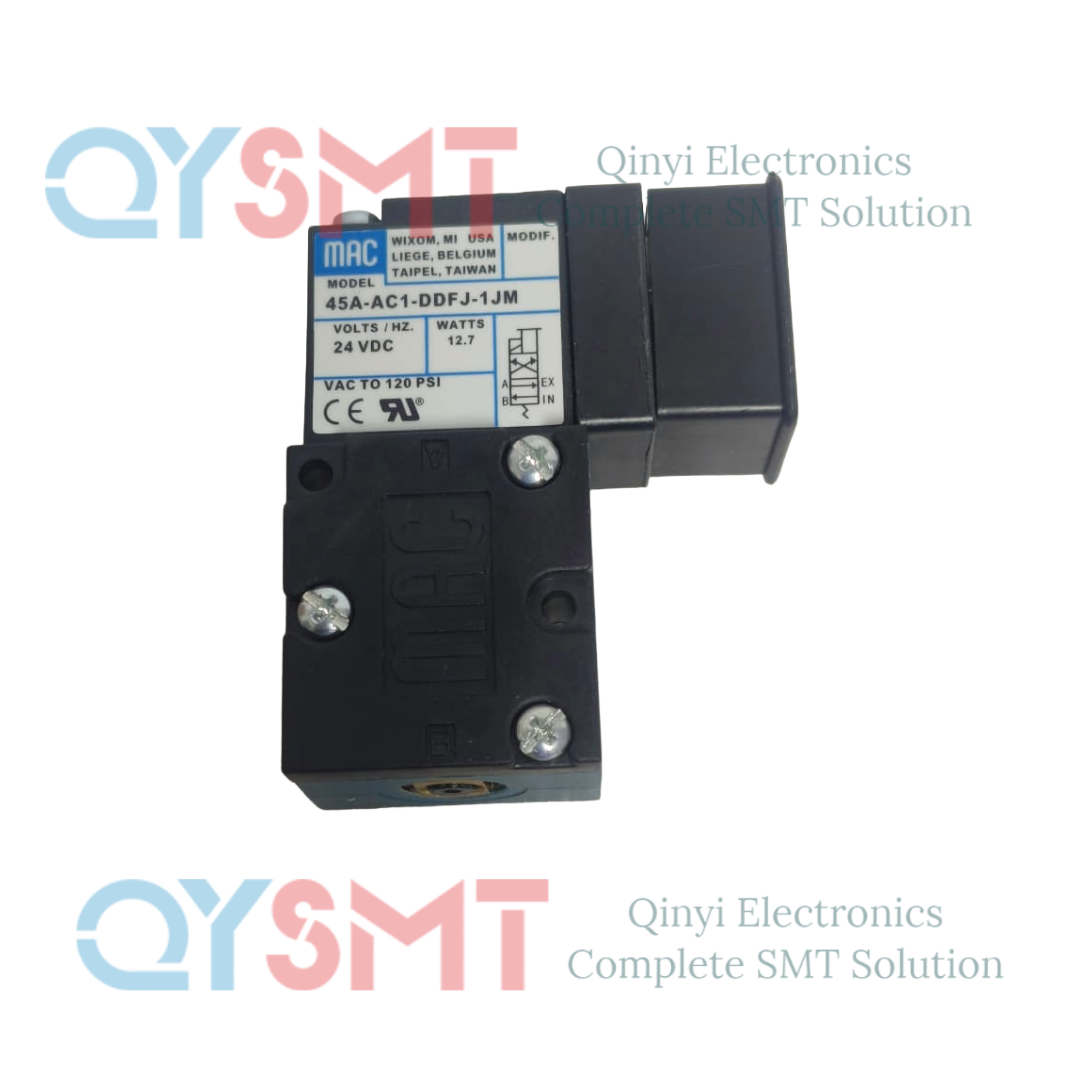

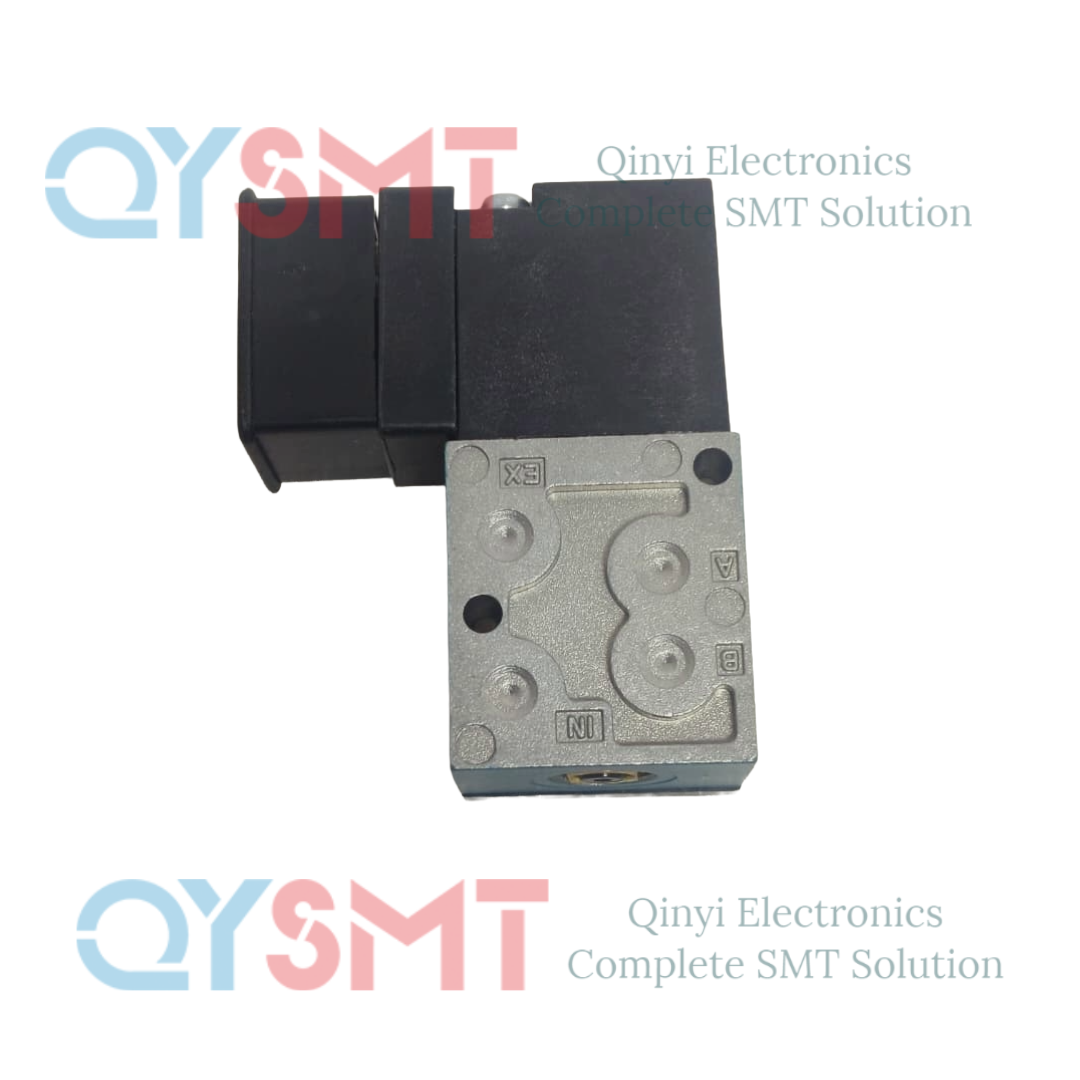

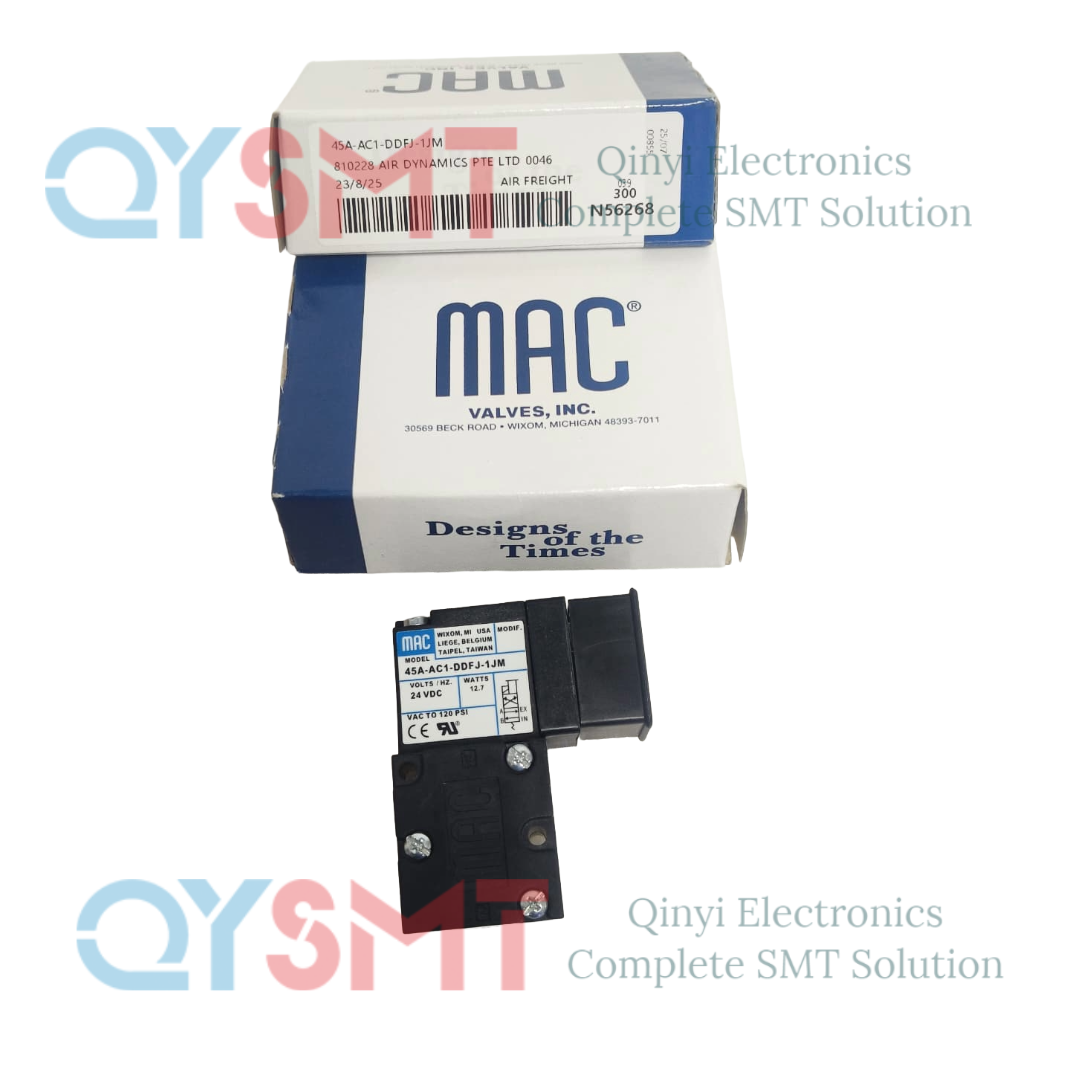

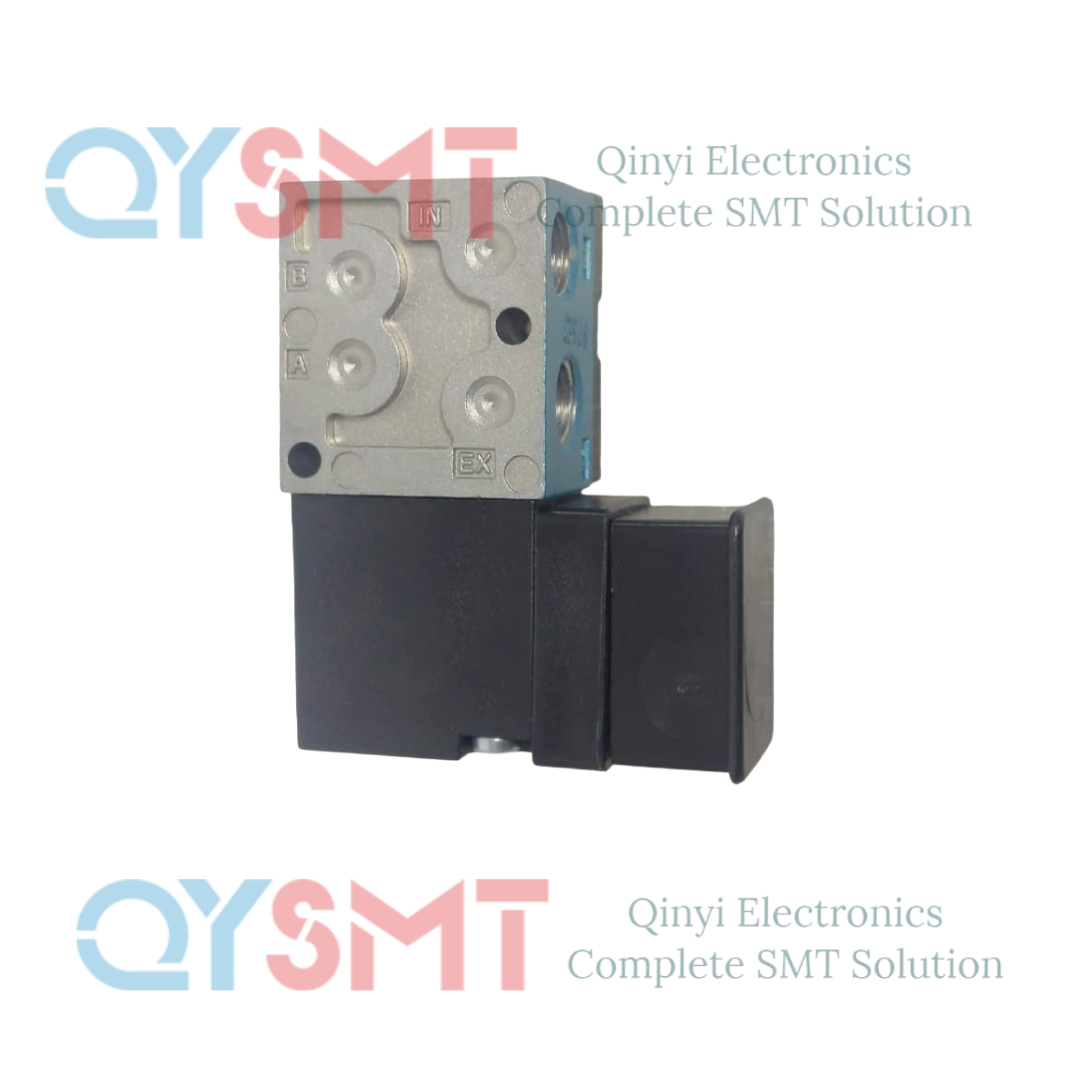

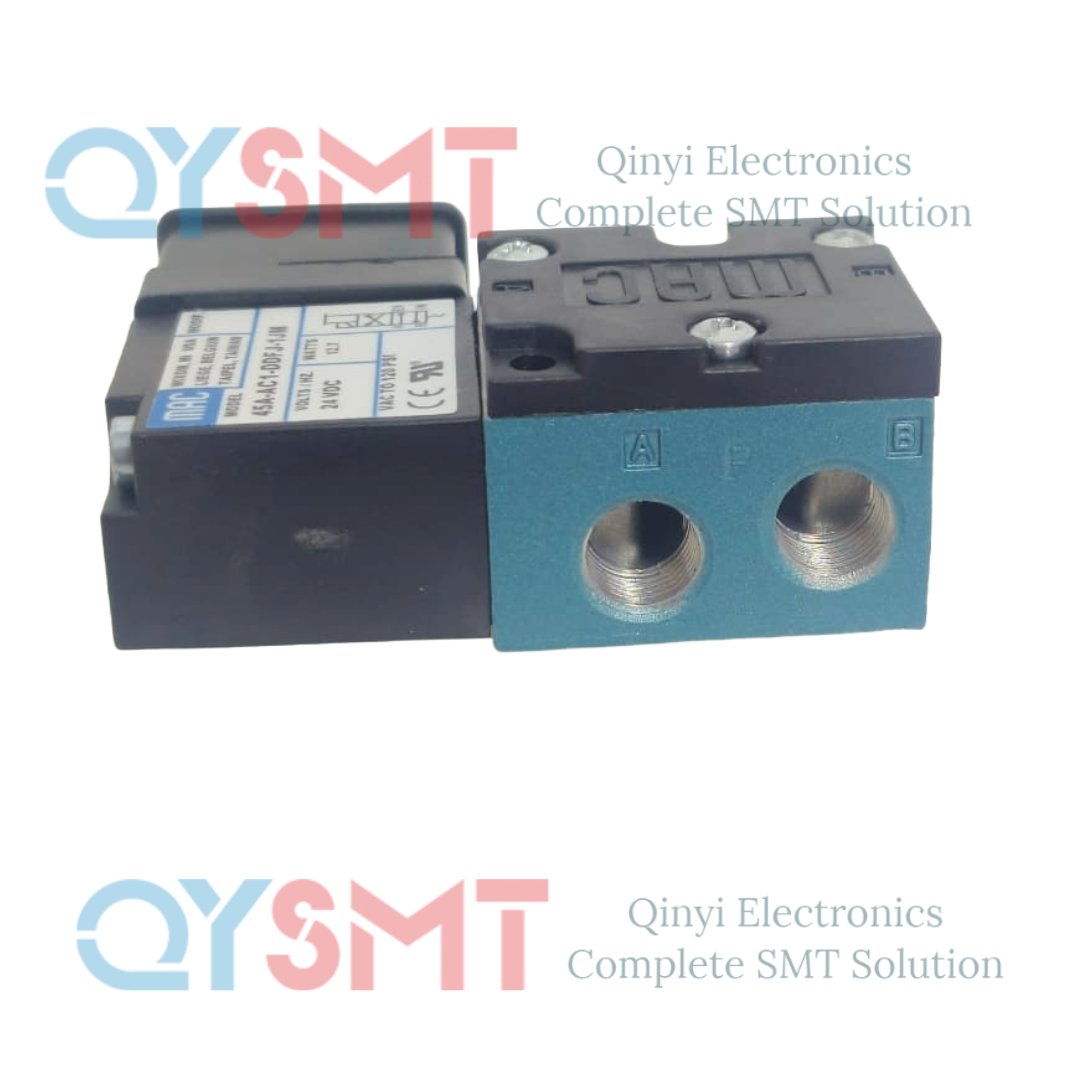

45A-AC1-DDFJ-1JM MAC Solenoid Valve
Technical Specifications

• Valve Type: 4-way, 2-position single direct solenoid poppet valve.
• Voltage: 24V DC (rated at approximately 12.7 Watts).
• Pressure Range: Vacuum to 120 PSI (approx. 0 to 10 bar).
• Flow Capacity: Cv 0.15.
• Port Size: 1/8" BSPP (or NPT depending on the exact regional variant).
• Connector: Rectangular male plug-in DIN 43650 connector.
• Manual Operator: Non-locking recessed manual override.
• Special Features: Features a high-temperature AC/DC coil and a balanced poppet design that allows for versatile piping (can be used as 4-way, 3-way, or 2-way).
