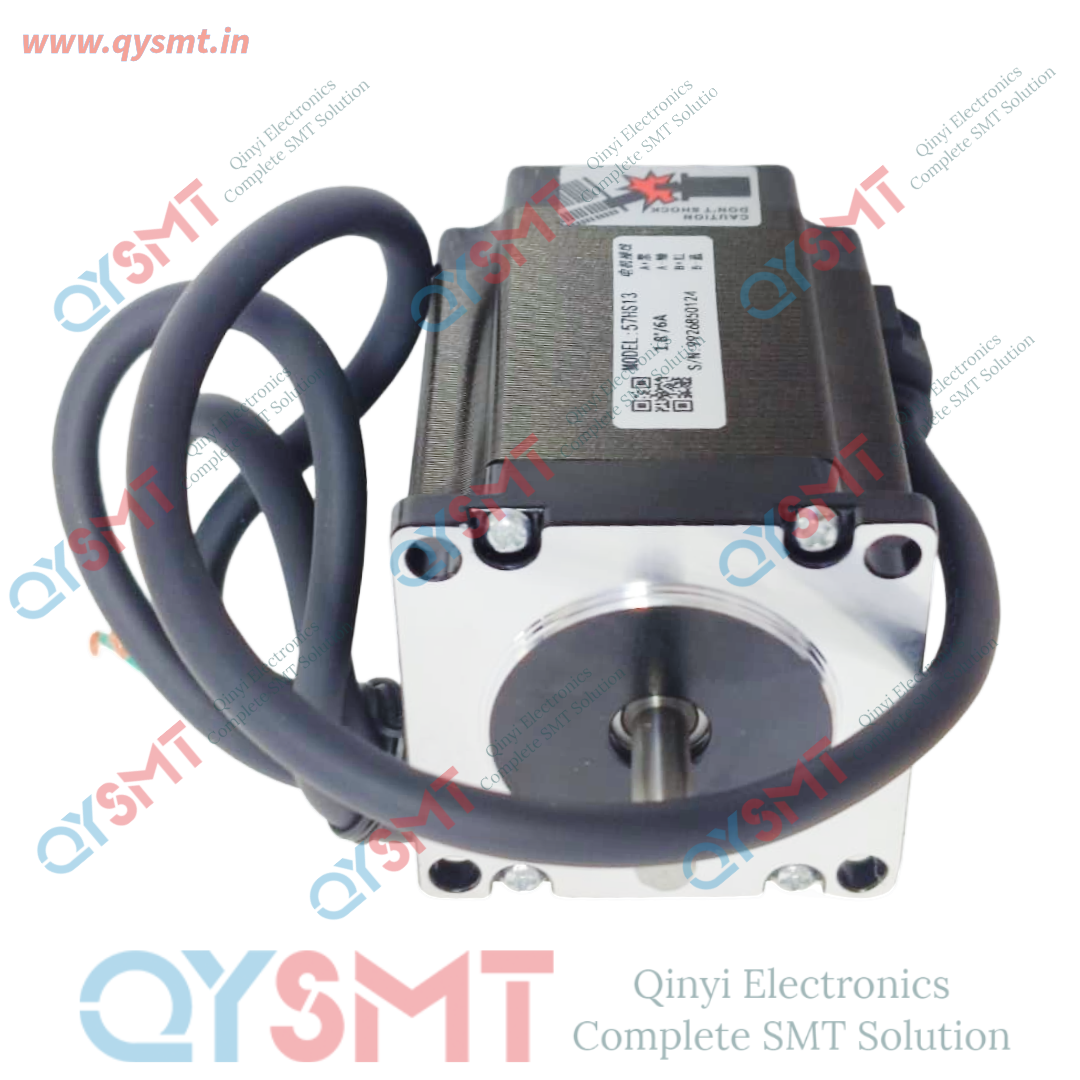

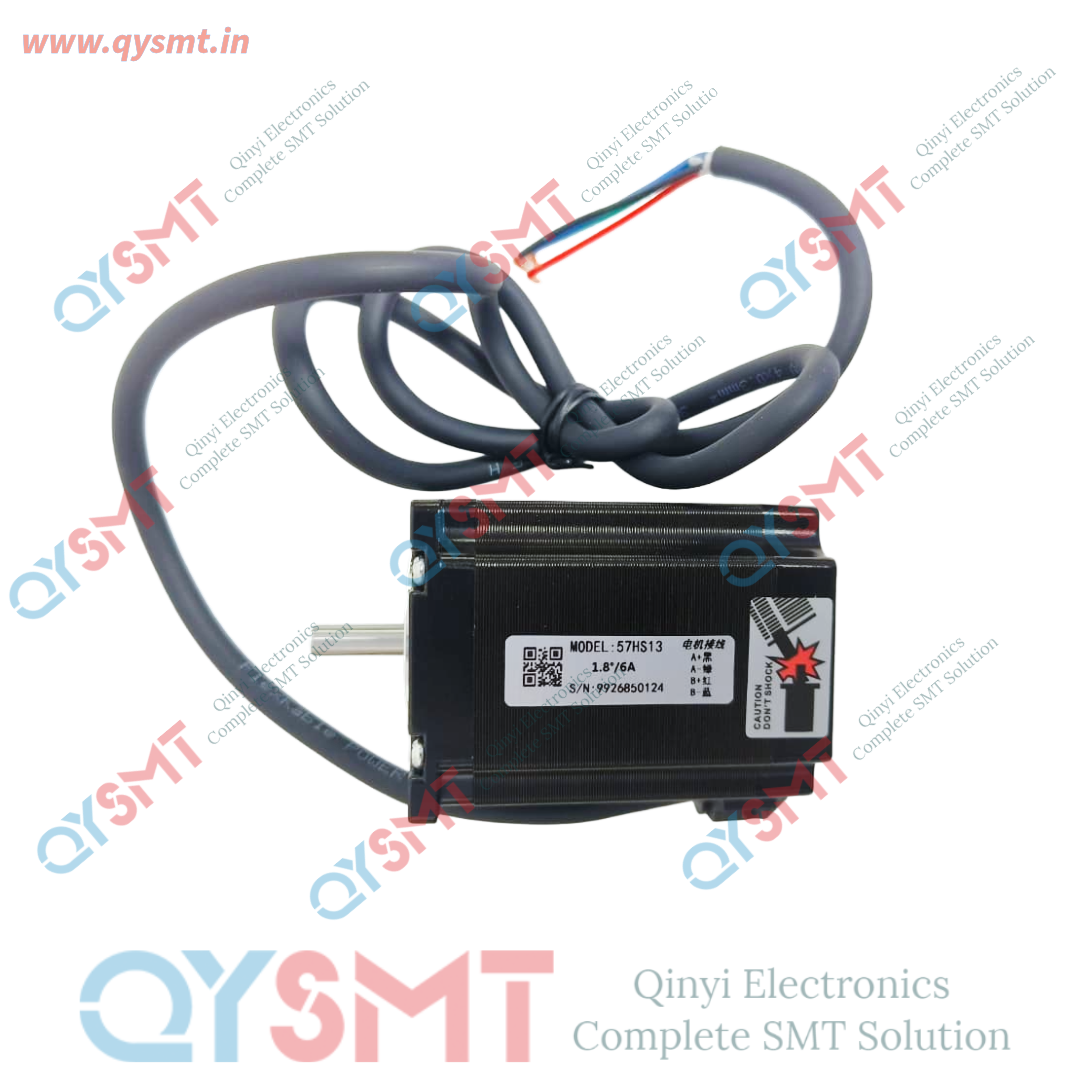

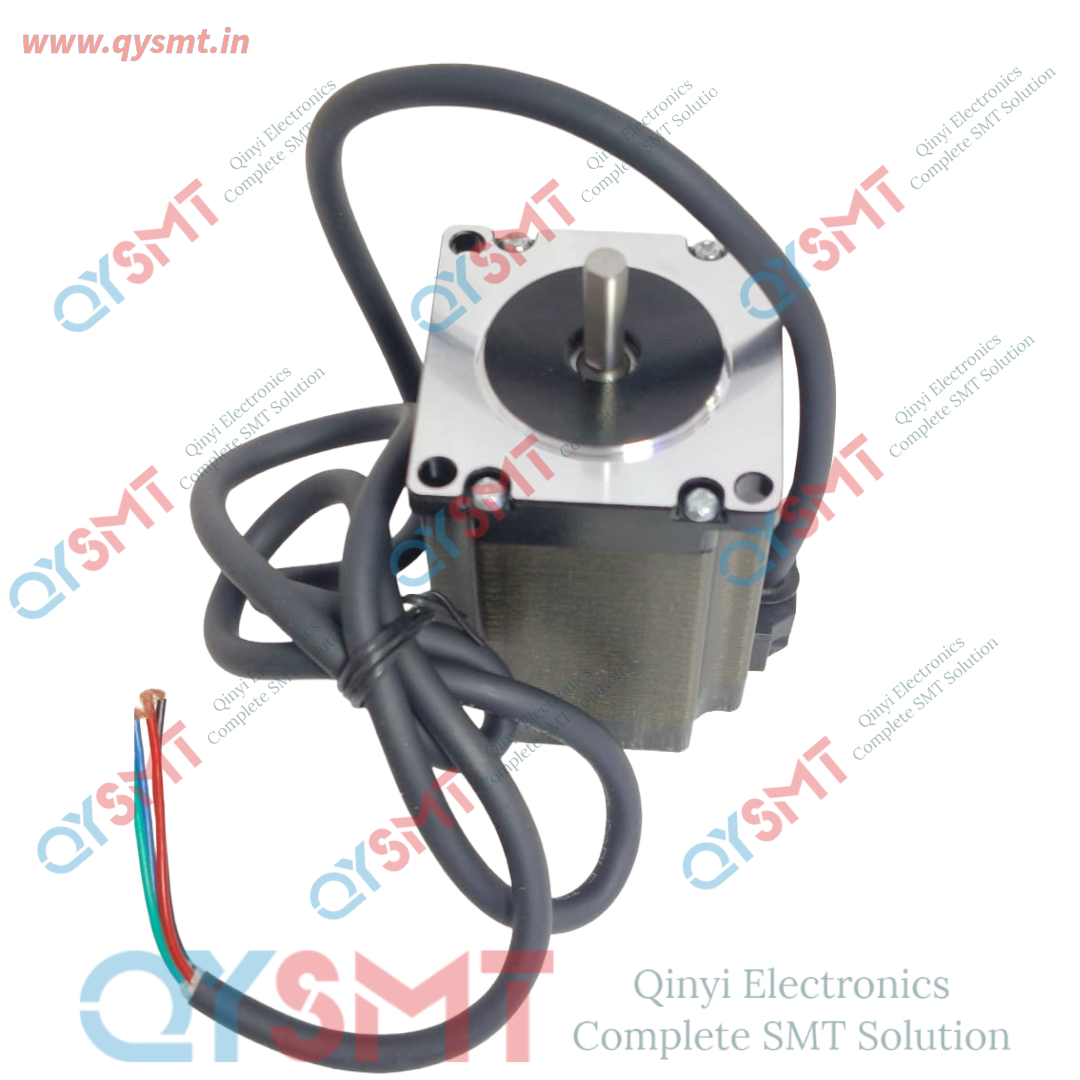

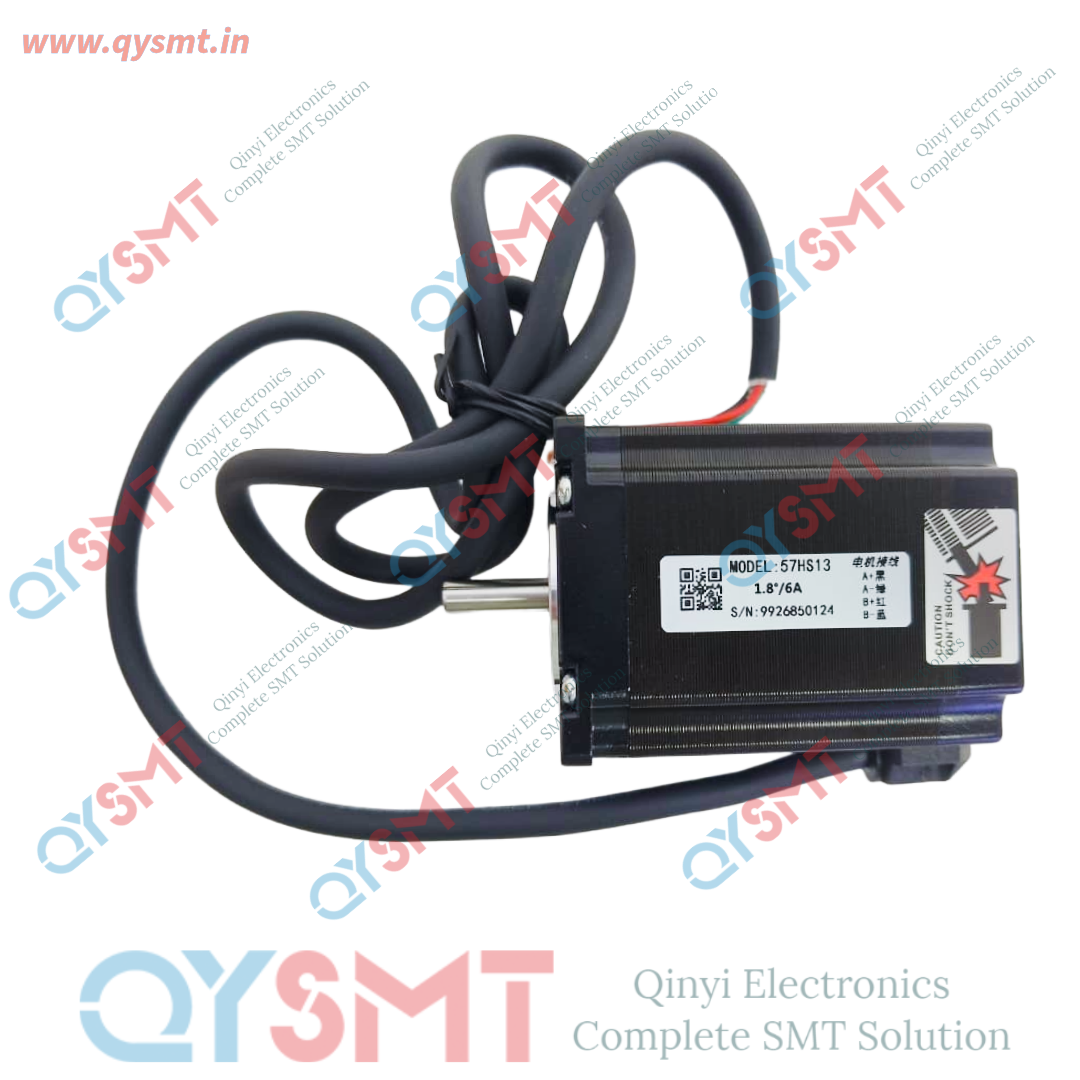

57HS13 stepper motor

57HS13 stepper motor
Technical Specifications

• Frame Size: NEMA 23 (57 mm x 57 mm)
• Step Angle: 1.8° (200 steps per revolution)
• Phase Current: 2.8A to 4.0A per phase (depending on wiring configuration/driver match)
• Holding Torque: 1.3 N·m – 1.8 N·m
• Shaft Diameter: 6.35 mm (1/4 inch) or 8 mm depending on exact sub-model
• Weight: Approx. 1.0 kg
• Wiring Leads: 4 or 8 leads (supports unipolar, bipolar series, or bipolar parallel connections)

Compatibility and Applications

• Recommended Drivers: Compatible with microstepping controllers like the DM542, DM556, or MD556
• Input Voltage: Frequently paired with 24V to 36V DC power supplies via the motor driver
• Common Uses: CNC routers, milling machines, laser cutters, 3D printers, and industrial automation equipment
