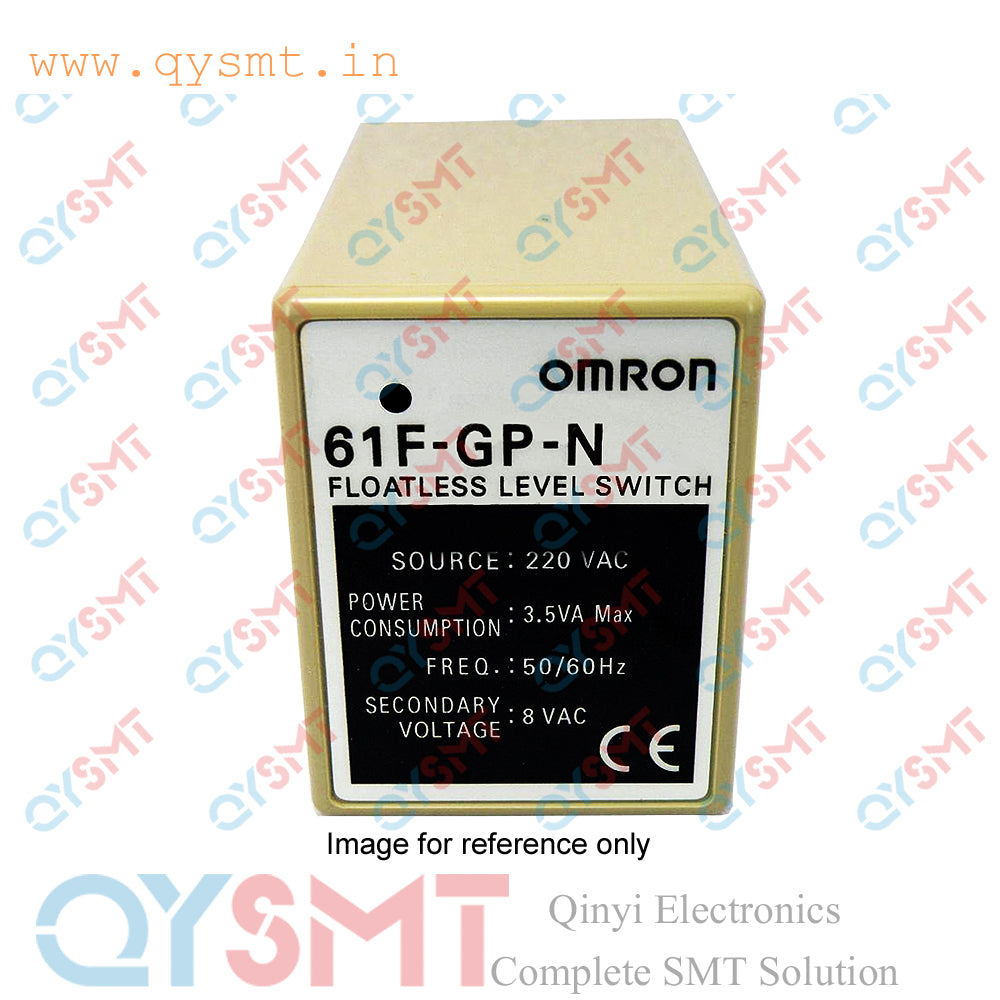

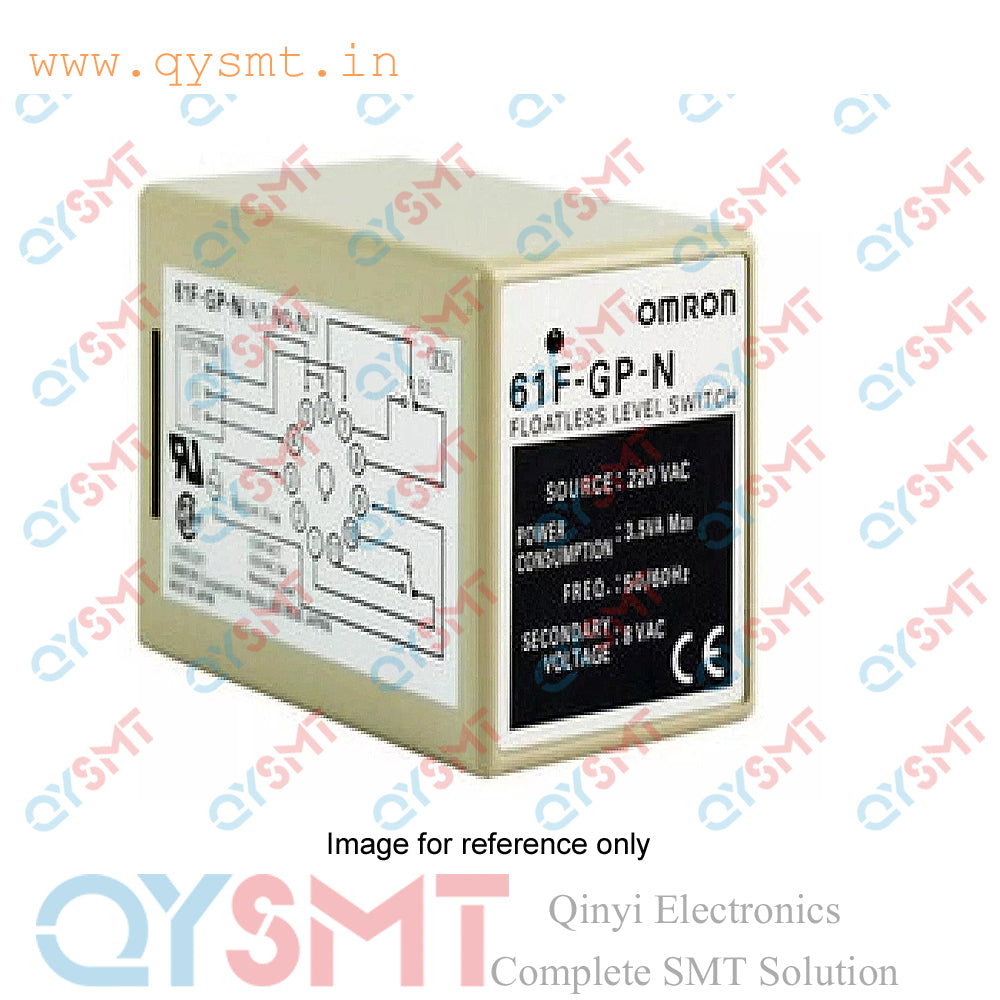

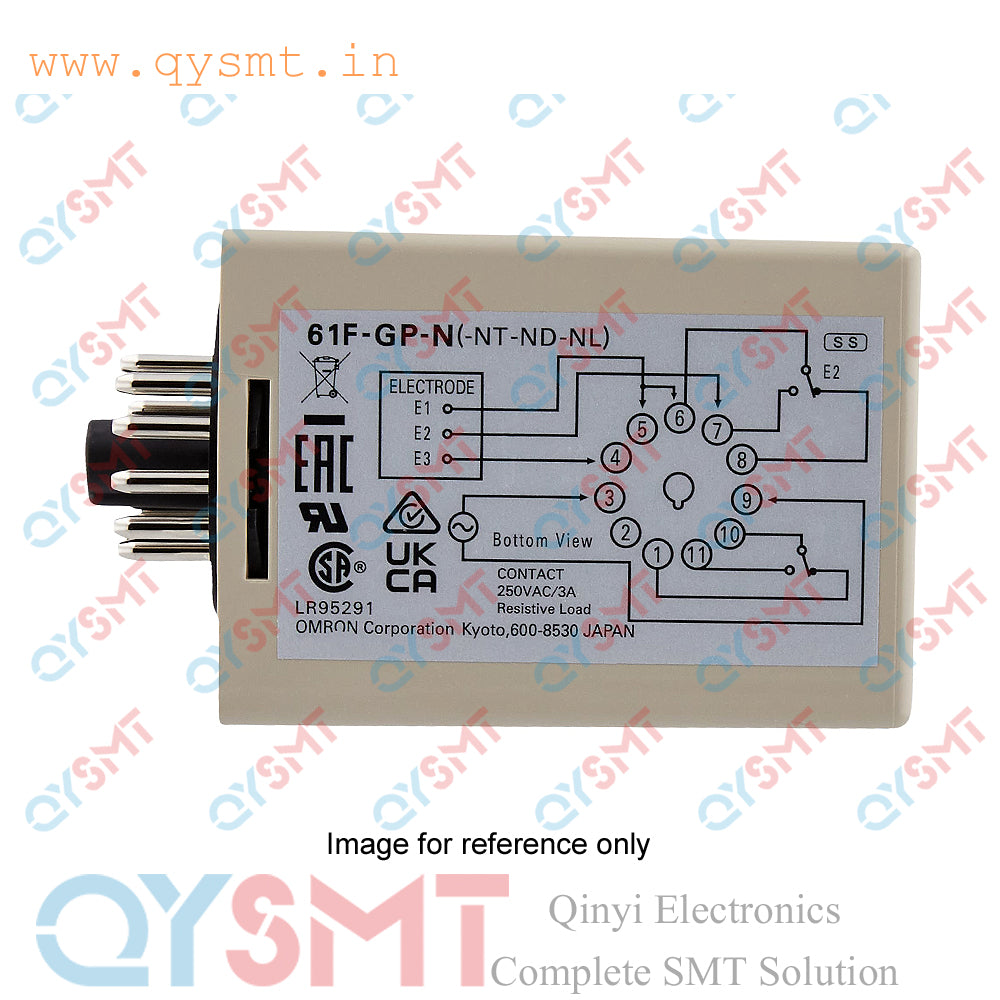

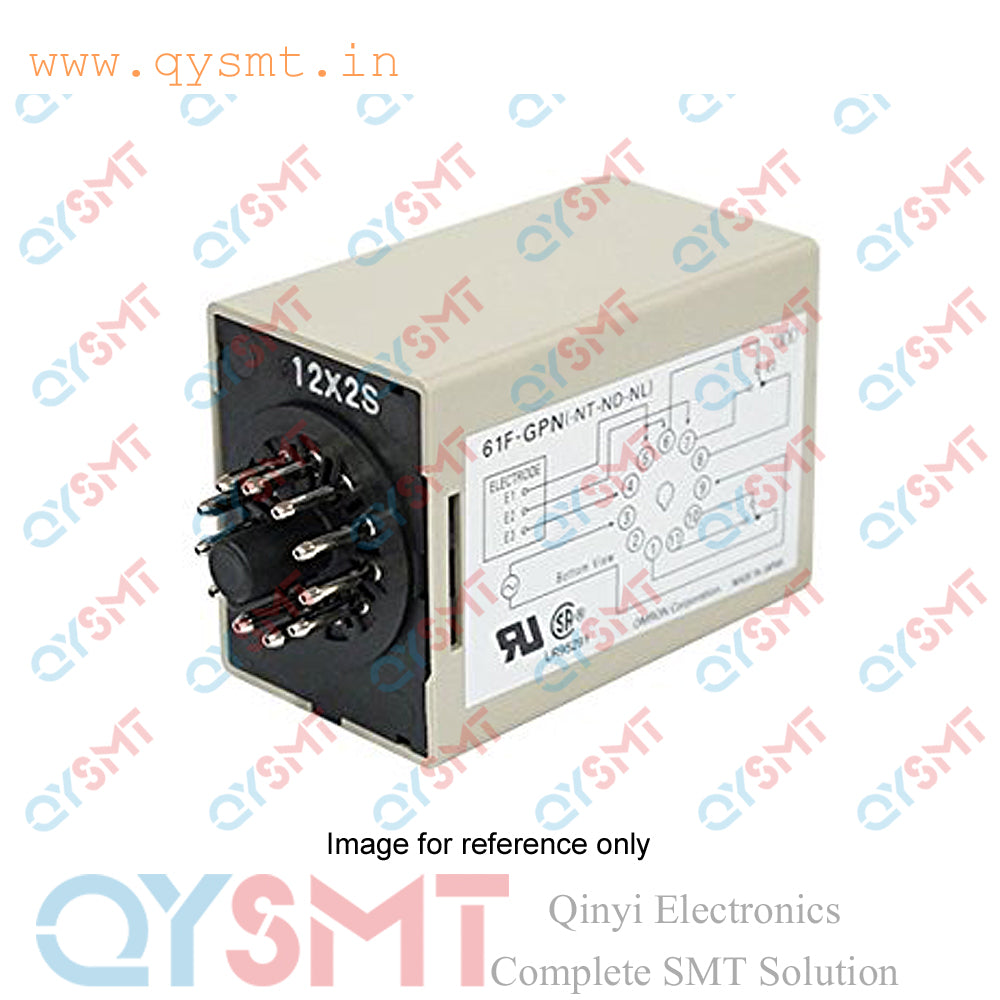

Omron General-purpose Floatless Level Switch 61F-GP-N

Compact, Plug-in Type Floatless Level Switch 61F-GP-N Omron

The OMRON 61F-GP-N is a general-purpose floatless level switch, designed for automatic water supply and drainage control in industrial applications. It is a compact, plug-in type controller that works by using electrodes to detect the presence or absence of conductive liquids like purified or sewage water.

General specifications

• Brand: Omron Automation and Safety
• Type: Compact, plug-in floatless level switch
• Controlling materials: Ordinary purified water or sewage water
• Operating status: Indicated by an LED
• Design: Space-saving design ideal for control panel downsizing
• Socket: Can be mounted with a PF113A(E) socket
• Dimensions: 49.4 × 38 × 84 mm (H×W×D)
• Weight: Approximately 155 g

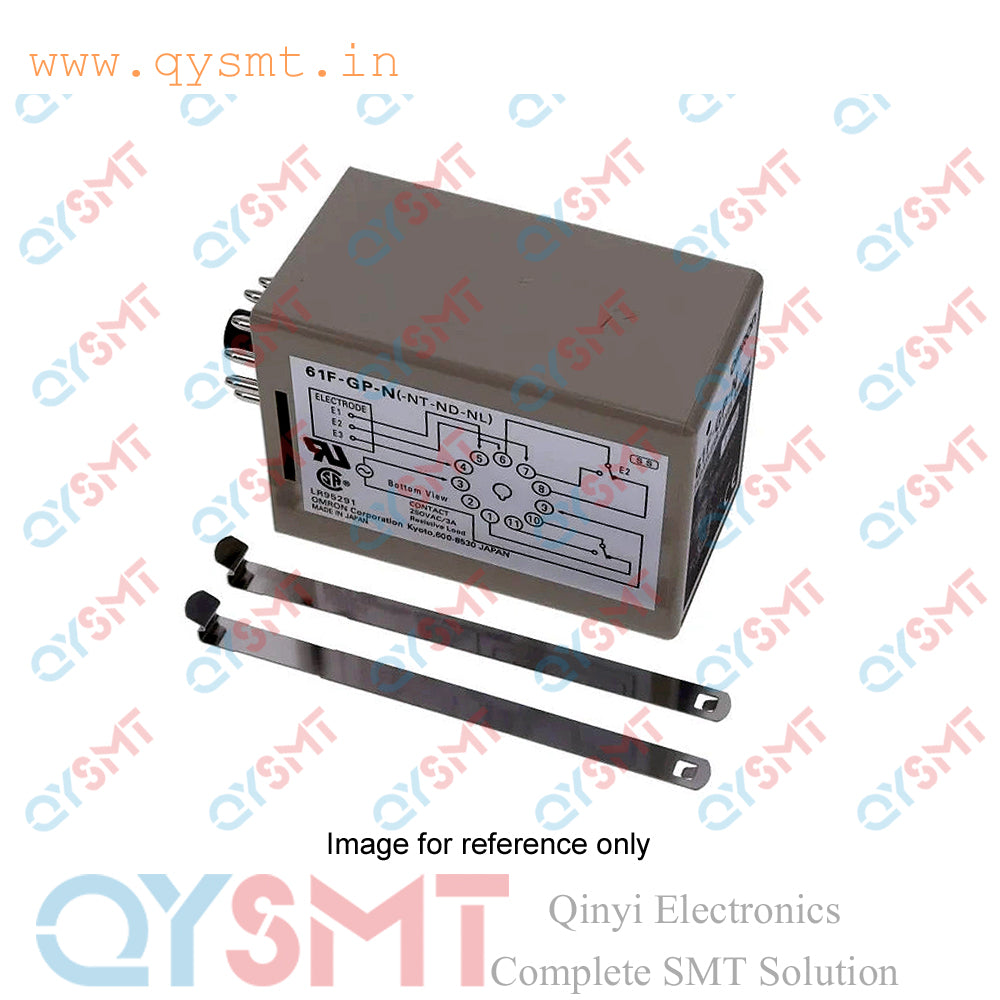

• Accessories: Includes a hold-down clip PFC-N8
• Standards: Compliant with UL508, CSA C22.2 No.14, and EN61010-1

Technical specifications

The exact supply voltage will need to be specified when ordering the product. For the general-purpose, 11-pin model:

• Supply voltage: 24, 100, 110, 120, 200, 220, 230, or 240 VAC; 50/60 Hz
• Operating voltage range: 85% to 110% of the rated voltage
• Interelectrode voltage: 8 VAC
• Interelectrode current: Approx. 1 mA AC max.
• Power consumption: Approx. 3.5 VA max.
• Interelectrode operate resistance: 0 to approx. 4 kΩ
• Control output: 1 A, 250 VAC (Inductive load: cosφ = 0.4) or 3 A, 250 VAC (Resistive load)
• Cable length: 1 km max.
