Chisel-shaped Soldering Iron Tip/Bit 900M-T-2.4D

Hakko Soldering Tips 900M-T-2.4D for Hakko Soldering Station, 900M-T-2.4D Soldering Iron Replacement Tip Chisel Shape Bit

The 900M-T-2.4D is a chisel or bevel-shaped soldering iron tip used for general-purpose electronic soldering tasks. It is known for its versatility and is compatible with many popular soldering stations like the Hakko 936, 937, and 907 series.

Key Details

• Shape: It has a chisel (D-type) or bevel shape. This shape is considered very useful as it offers both a wide flat area for efficient heat transfer to larger pads and components, and a narrower edge for more detailed work.

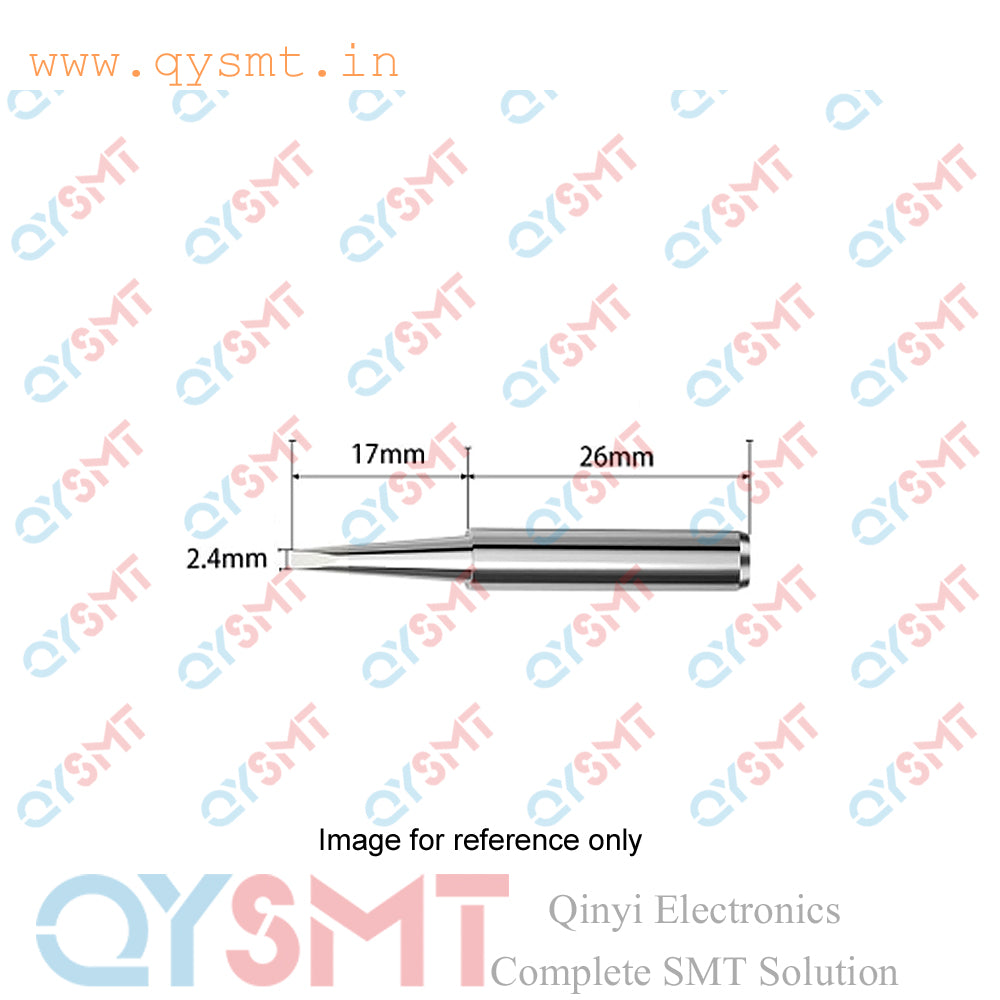

• Dimensions: The tip typically has a width (or diameter, in the case of a D-shape) of 2.4 mm. The outer diameter of the shank is around 6.5 mm and the inner diameter is around 4.2 mm, allowing it to fit into compatible soldering iron handles.
• Material: These tips are generally constructed with a highly conductive copper core for fast heat transfer, which is then multi-layer plated with iron, nickel, and a final tin layer for durability and resistance to oxidation and corrosion.
• Application: It is suitable for a wide range of applications, including general electronics assembly, PCB soldering, repairing large ICs, and correcting solder bridges.
• Compatibility: The 900M-T-2.4D tip is compatible with many different brands of soldering stations and irons that use the 900M series tips, including those from Hakko, Bakon, Quick, Aoyue, Yihua, and more.
