Bevel-shaped Soldering Iron Tip/Bit 900M-T-3C

900M T-3C Soldering Bit, Soldering Bit 900-M-T-3C for Soldering Station and Irons

The 900M-T-3C is a bevel-shaped soldering iron tip, commonly used with Hakko and other 900-series soldering stations for general-purpose work. It features a 3 mm wide chisel surface with a 45-degree angle, making it versatile for various applications.

Product features

• Tip shape: Bevel/chisel with a 45-degree angle. This shape allows you to use it from any direction and provides a wide surface for heating larger components, as well as a narrow edge for more precise tasks.

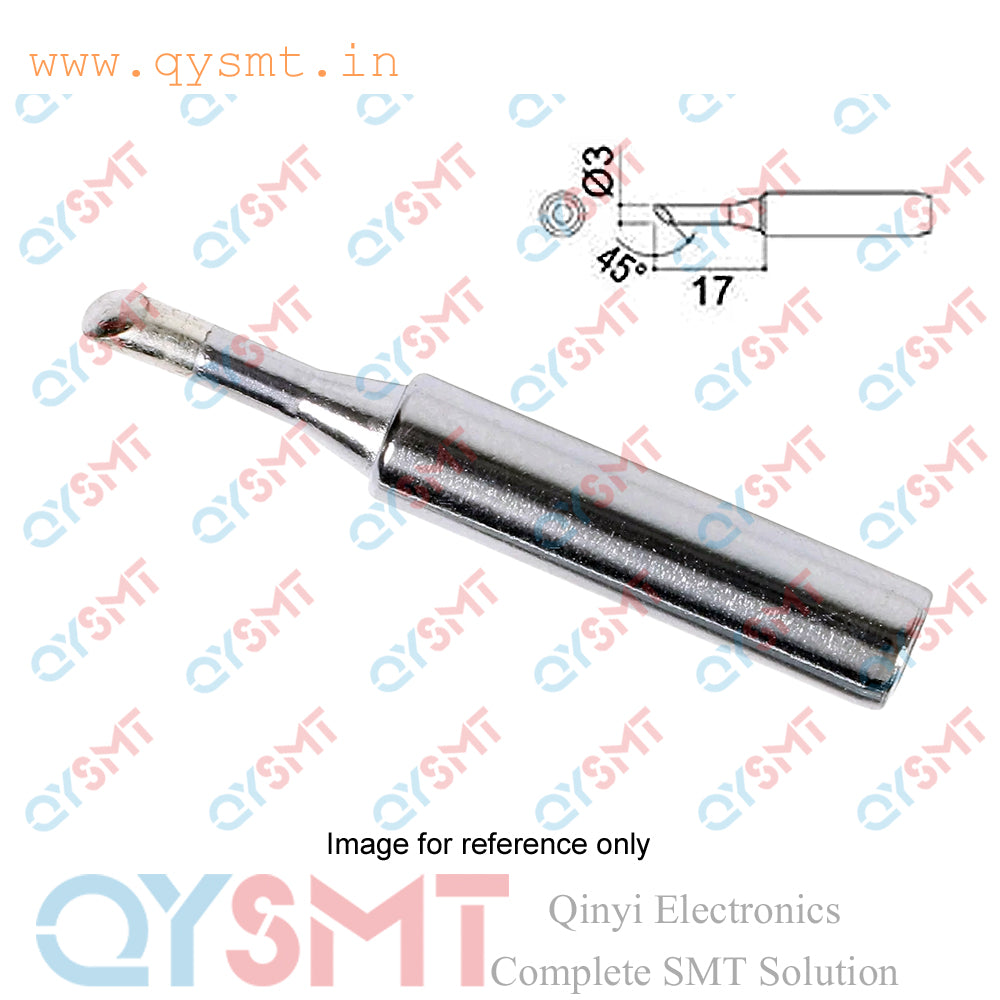

• Dimensions: The tip has a width of 3 mm and a working length of 17 mm.
• Material: The tips are typically constructed from high-quality, professional-grade materials, with a copper core for excellent thermal conductivity and iron plating for durability.
• Purpose: It is suitable for drag soldering, working on large integrated circuits (ICs), thick terminals, and correcting solder bridges. It is also effective for general soldering tasks and working with both lead and lead-free solder.

Compatibility

The 900M-T-3C tip is designed to be compatible with a number of popular soldering stations and irons.

• Hakko series: It is compatible with Hakko soldering stations, including the 900M, 900M-ESD, 907, and 907-ESD irons, as well as the popular 936 and 937 soldering stations.
• Quick stations: The tip is compatible with Quick 900-series soldering stations, such as the 936A/B, 907A, and 963A.
• Bakon stations: It is also used with various Bakon soldering stations.
• Other 900-series clones: The tip is compatible with many other brands that use the standard 900M series interchangeable tips.
