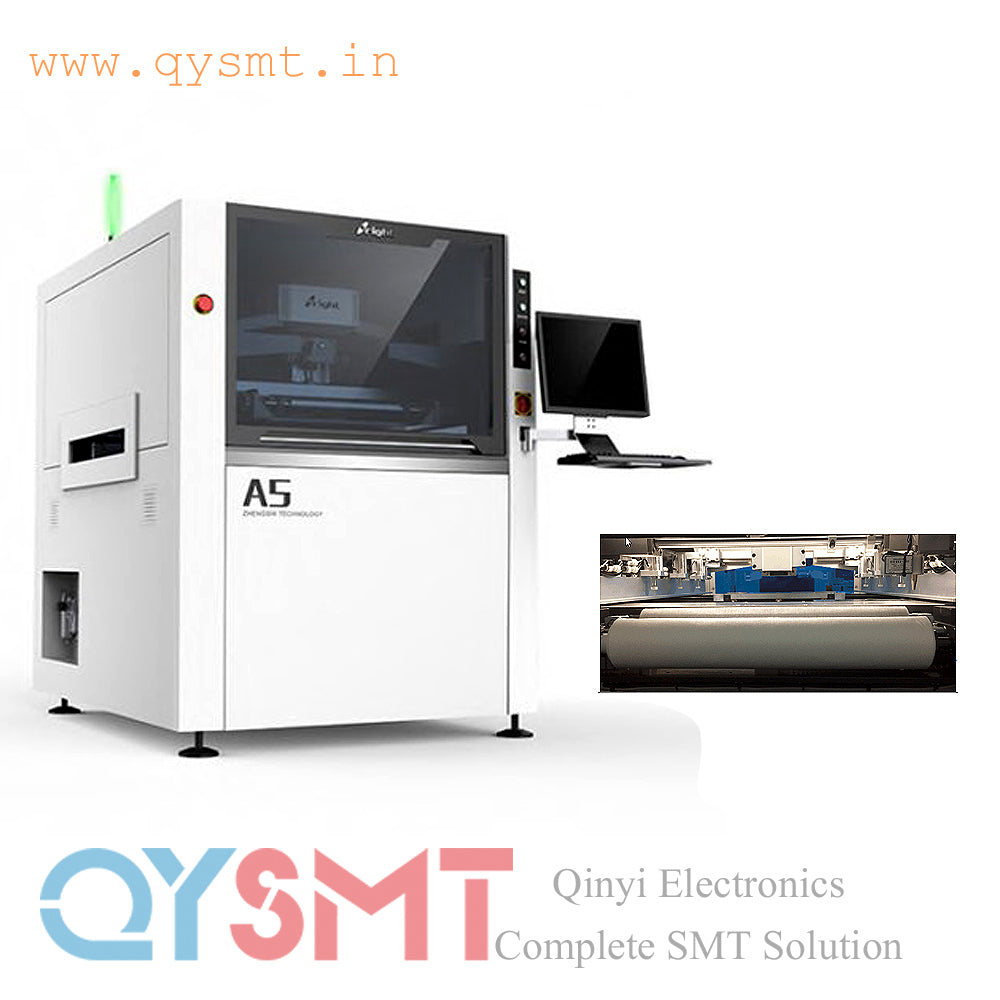

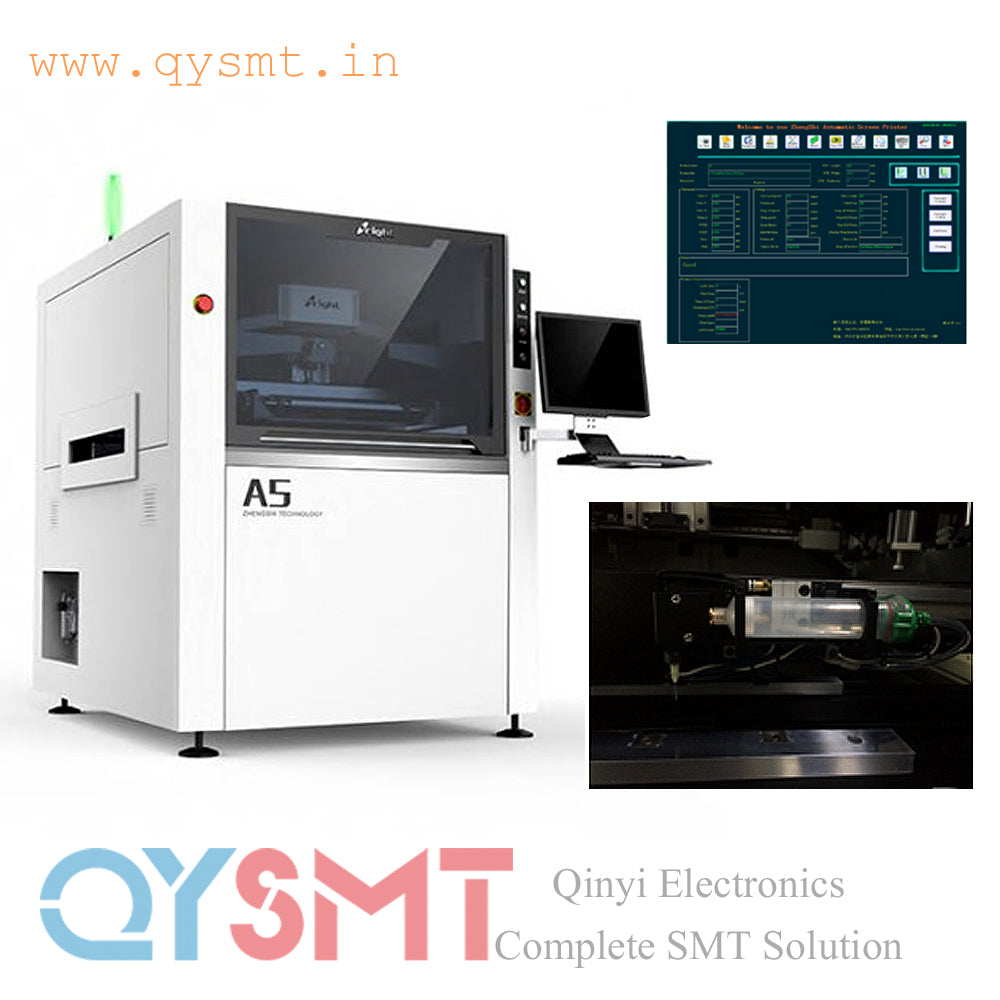

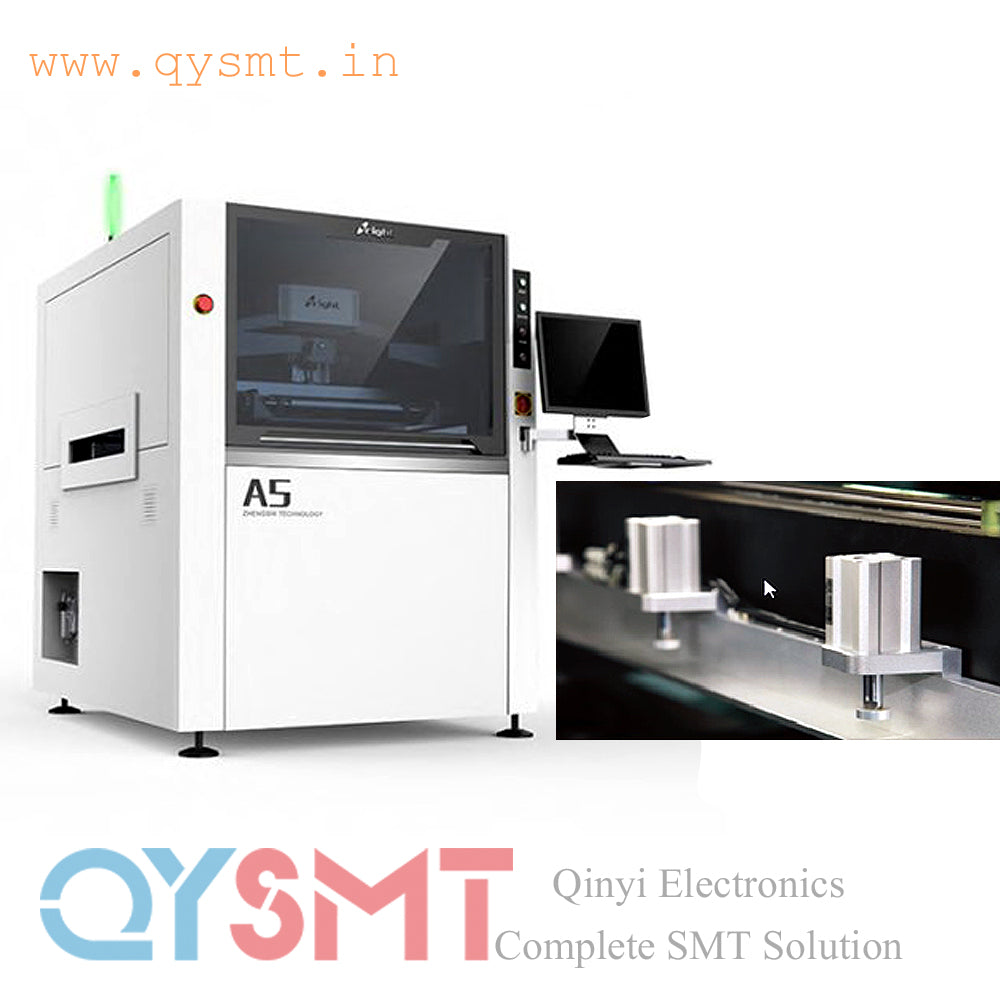

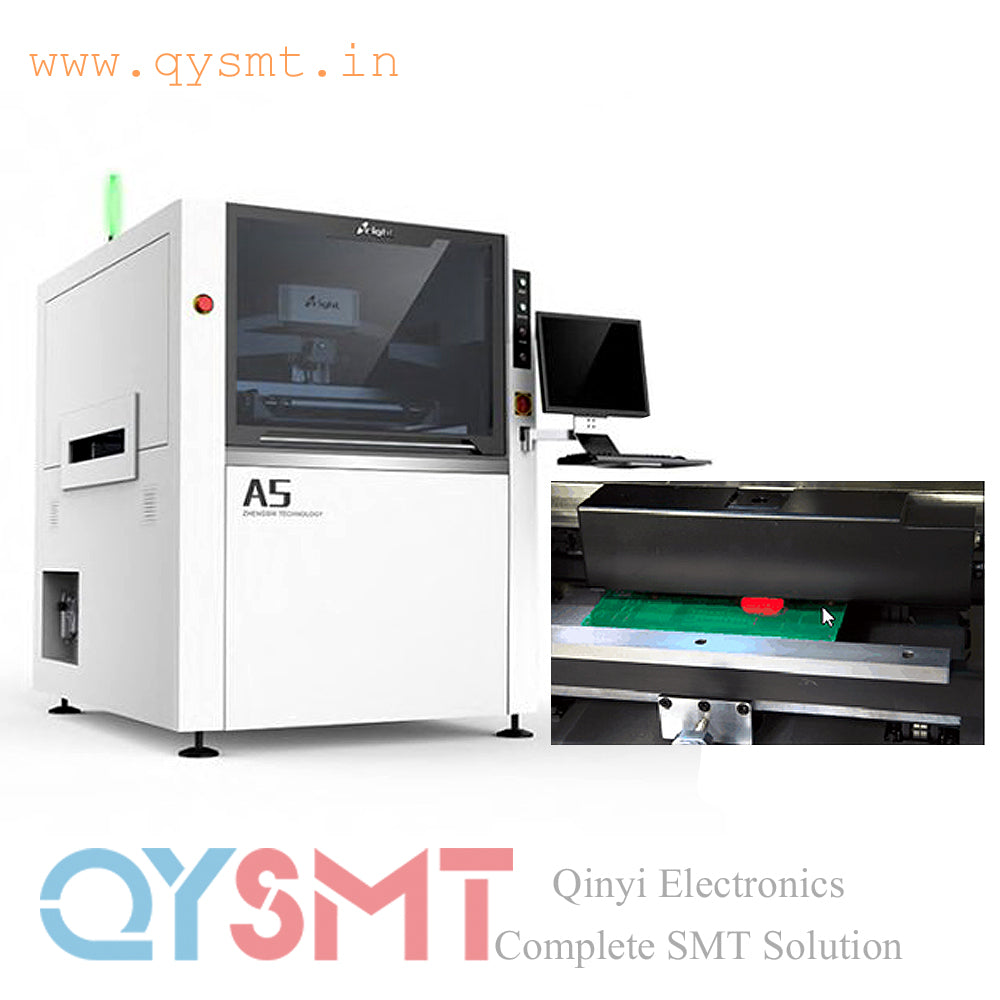

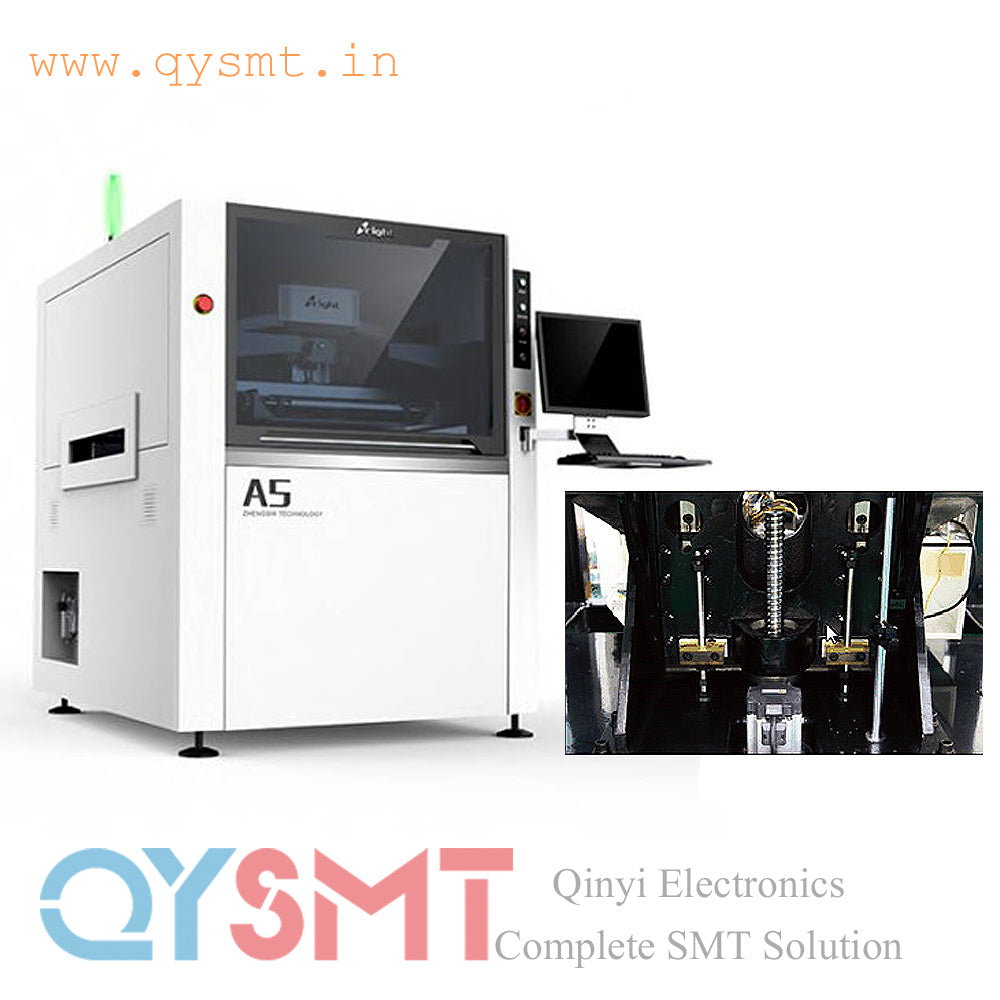

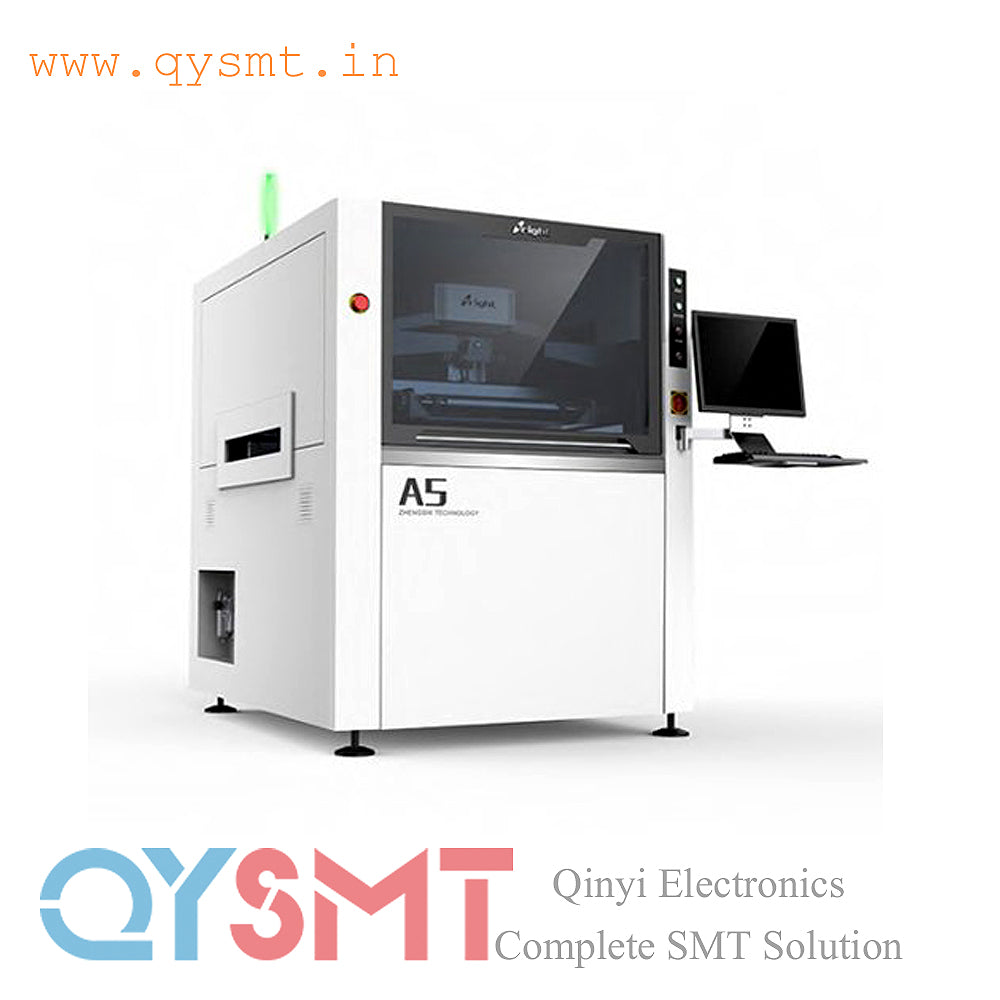

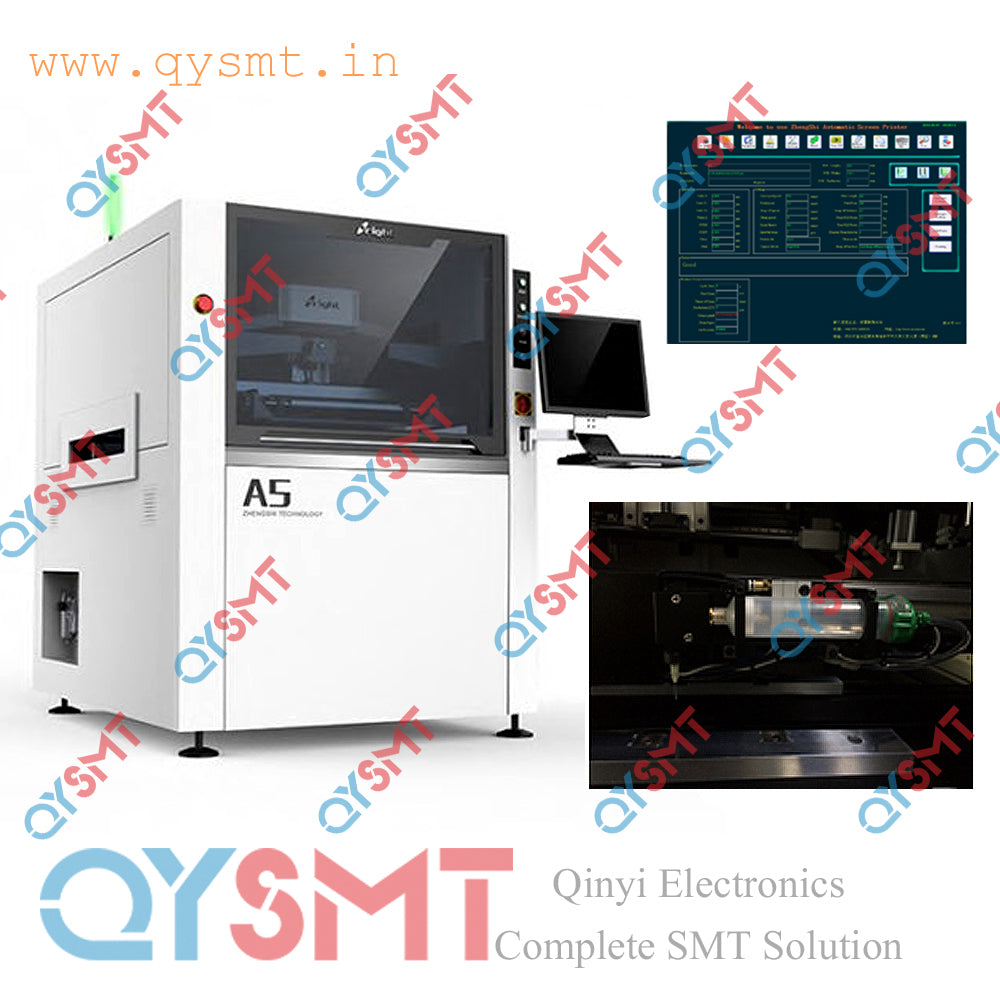

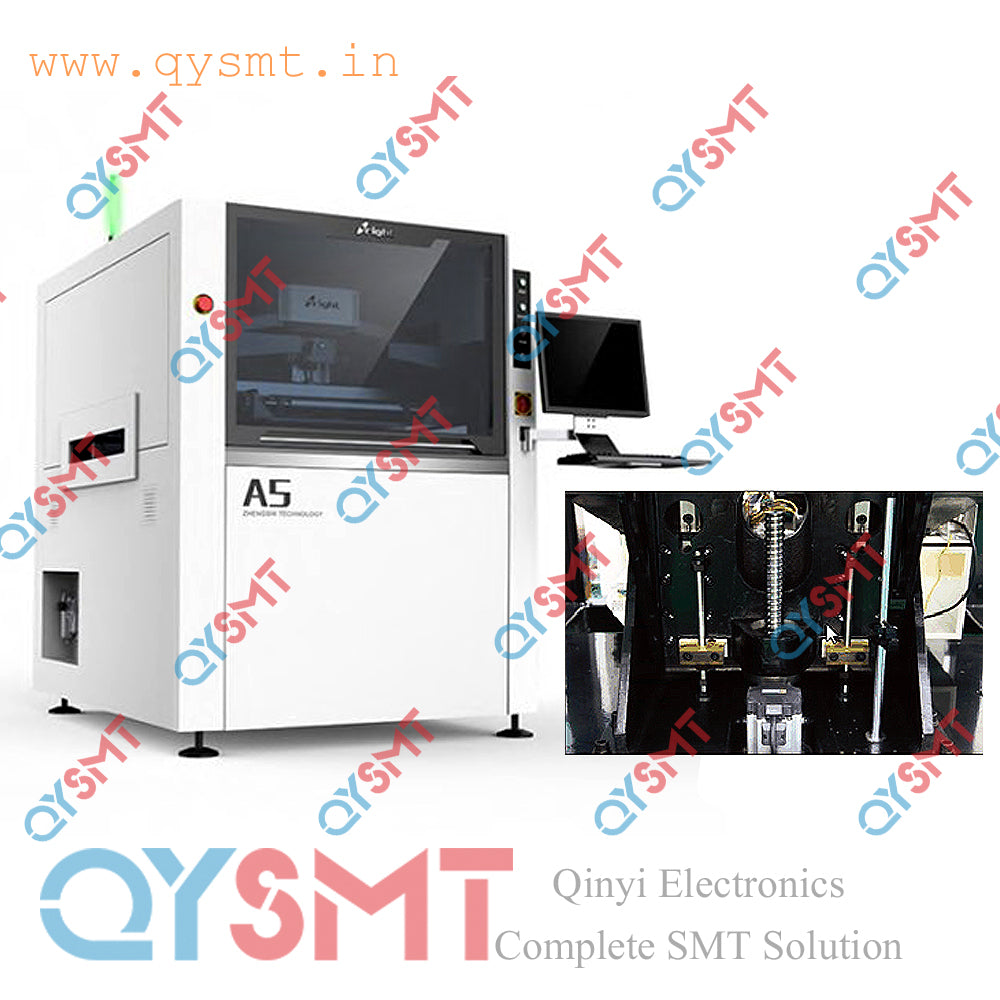

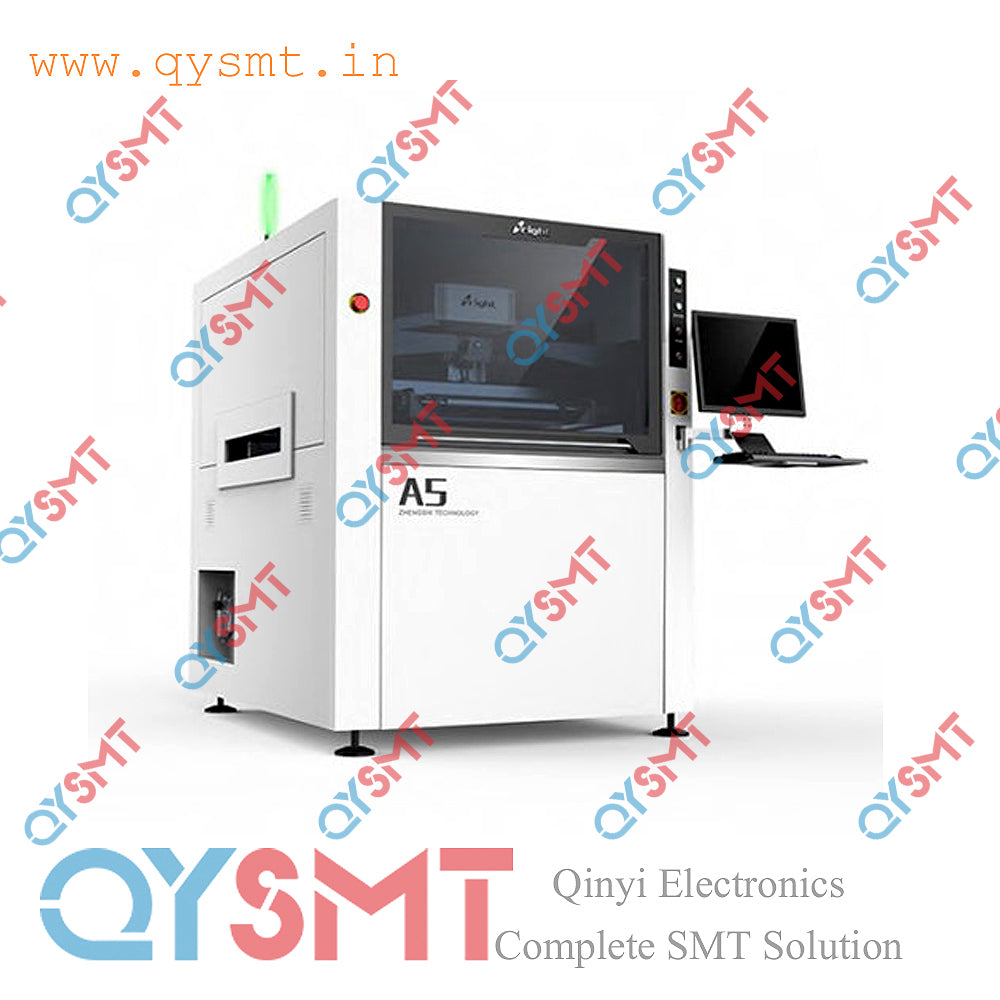

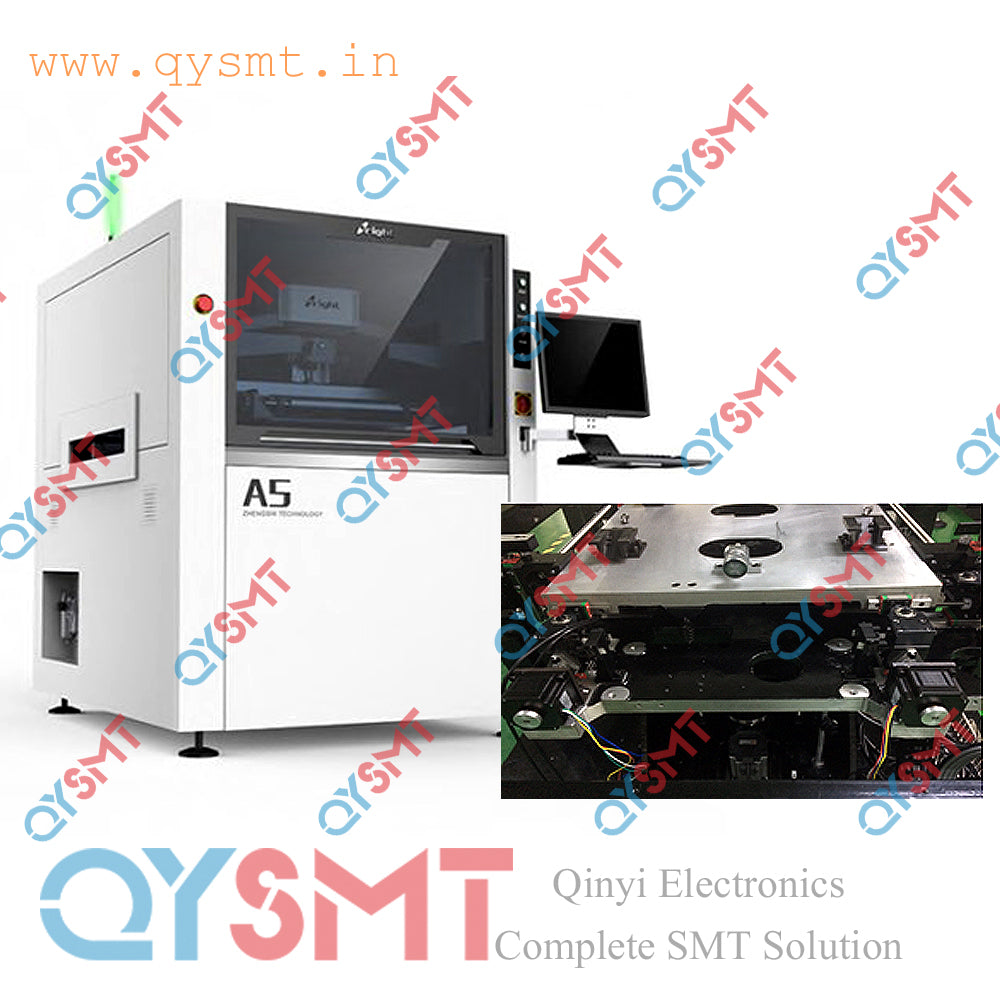

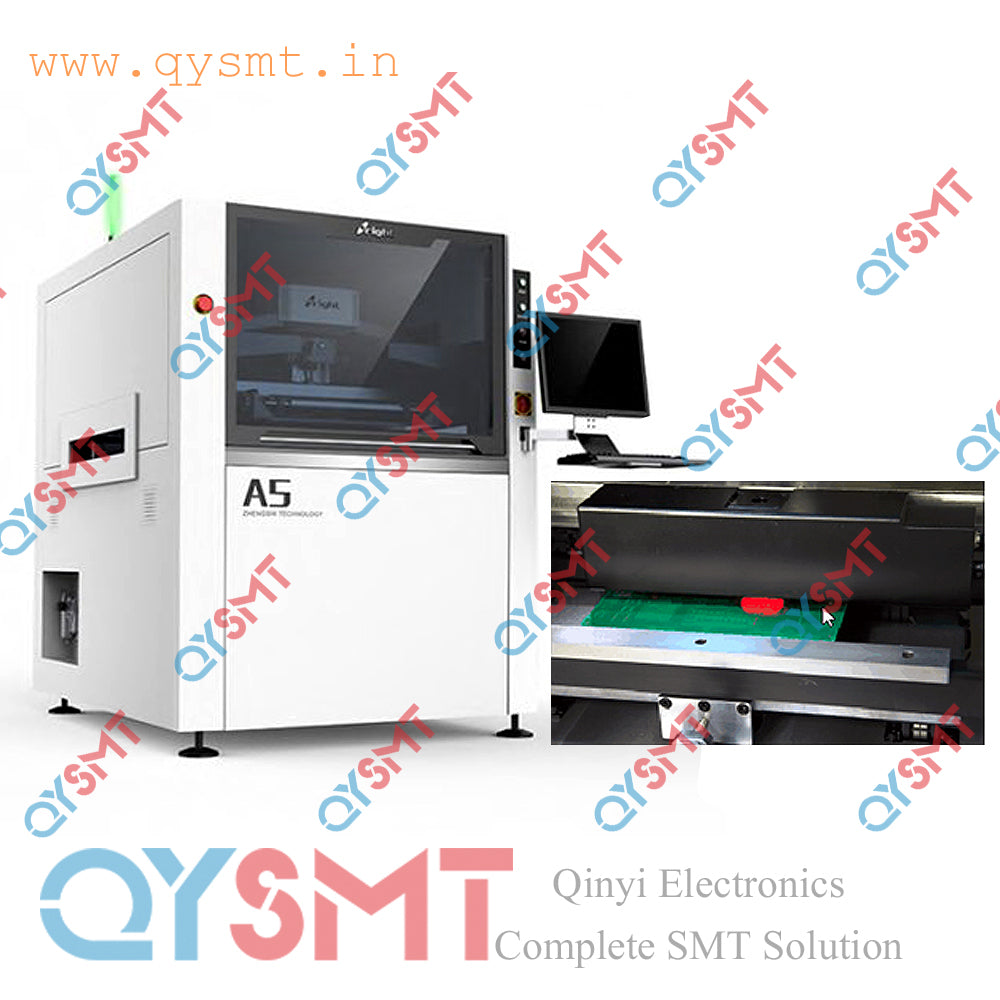

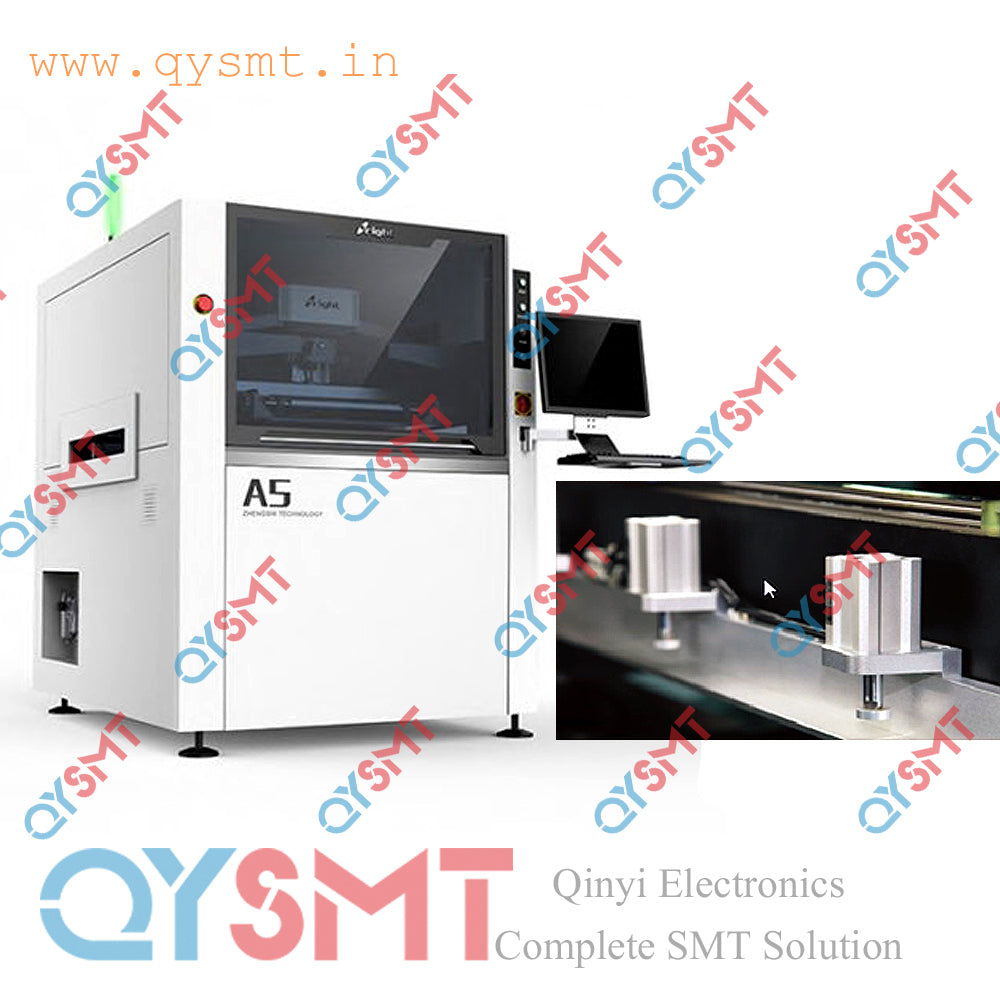

A5 Automatic Screen Printer

A5 Automatic SMT Screen Printer

PCB Min Size: 50X50mm

PCB Min Size: 50X50mm

PCB Max Size: 400X340mm

PCB Thickness: 0.4~6mm

PCB Warpage: less than 1%

Transport Height: 900±40mm

Transport Direction: Left-> Right; Right->Left; Left-> Left; Right->Right

Transport Speed: Max 1500mm/S Programmable Printhead: Two independent motorized printheads

Squeegee Speed: 6~200mm/sec

Squeegee Pressure: 0~15Kg

Squeegee Angle: 60°/55°/45°

Squeegee Type: Stainless steel(Standard), plastic

Stencil Separation Speed: 0.1~20mm/sec Programmable

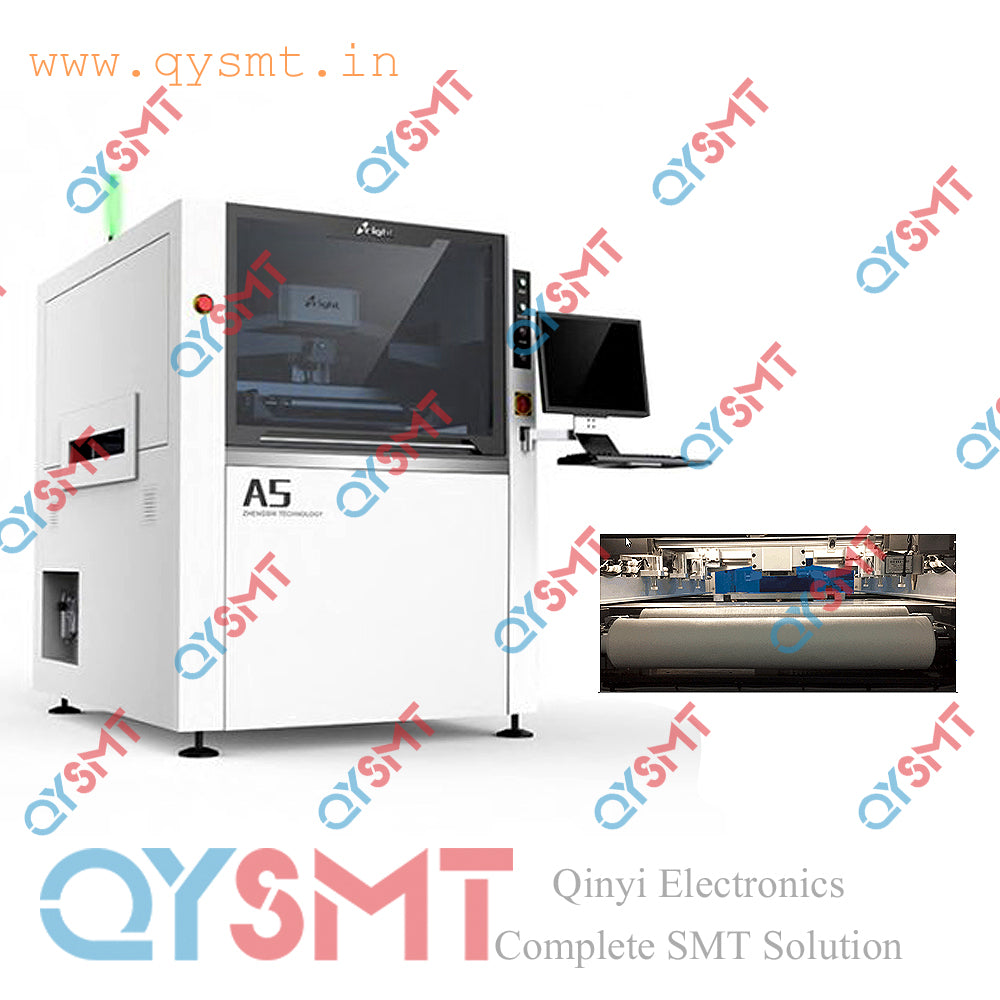

Cleaning System: Dry / Wet / Vacuum (Programmable)

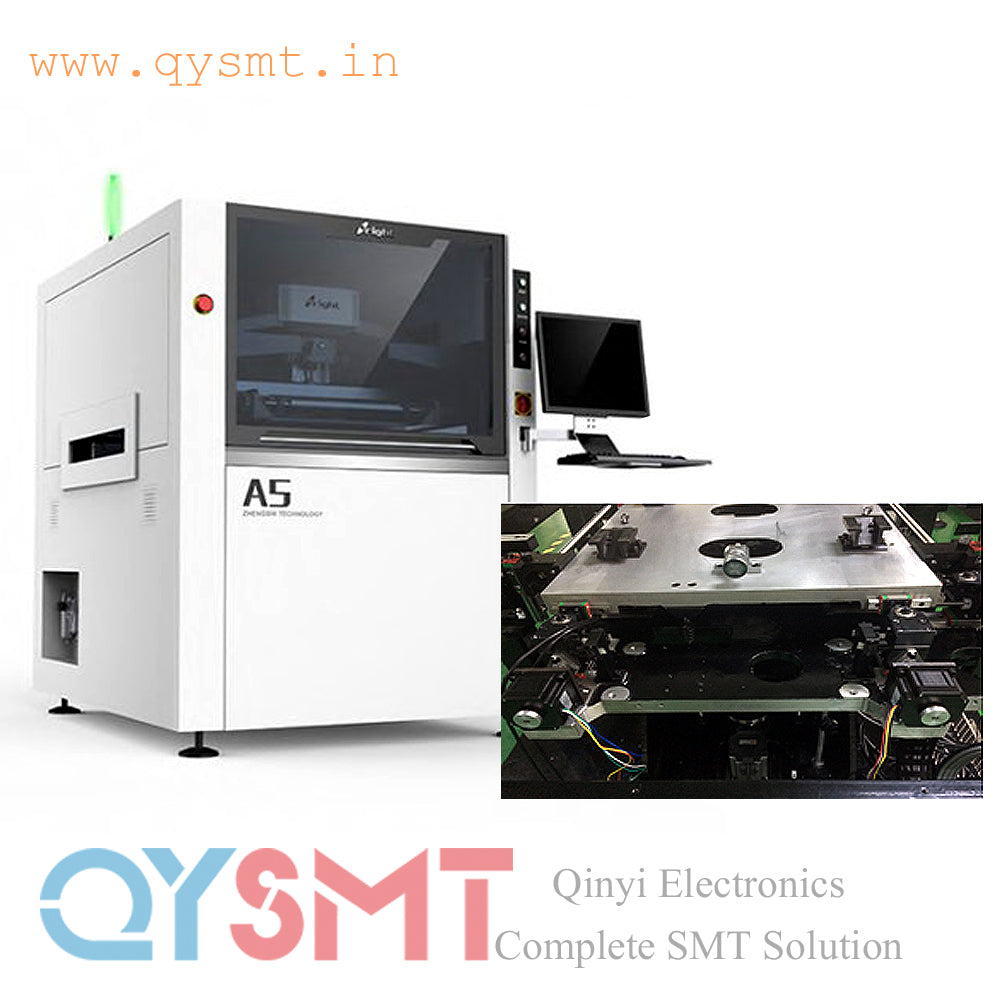

Table Adjustment ranges: X: ±10mm; Y:±10mm;θ:±2°

CCD FOV: 8×6 mm

Solder Paste Inspection: 2D Inspection ( Standard )

Repeat Position Accuracy: ±0.01mm

Printing Accuracy: ±0.025mm

Cycle Time: less than 7s (Exclude Printing & Cleaning)

Product Changeover: less than 5Min

Air Required: 4.5~6Kg/cm2

Power Input: AC:220±10%,50/60HZ 1Φ 3KW

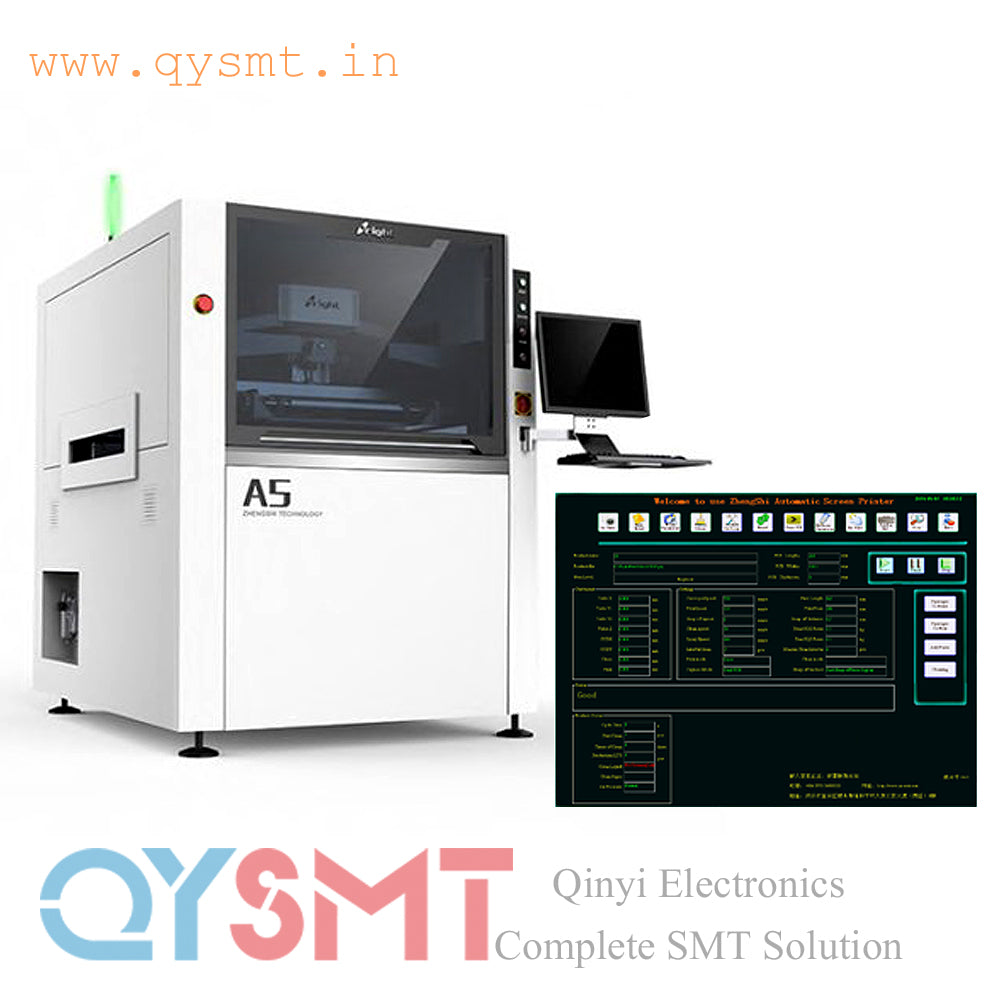

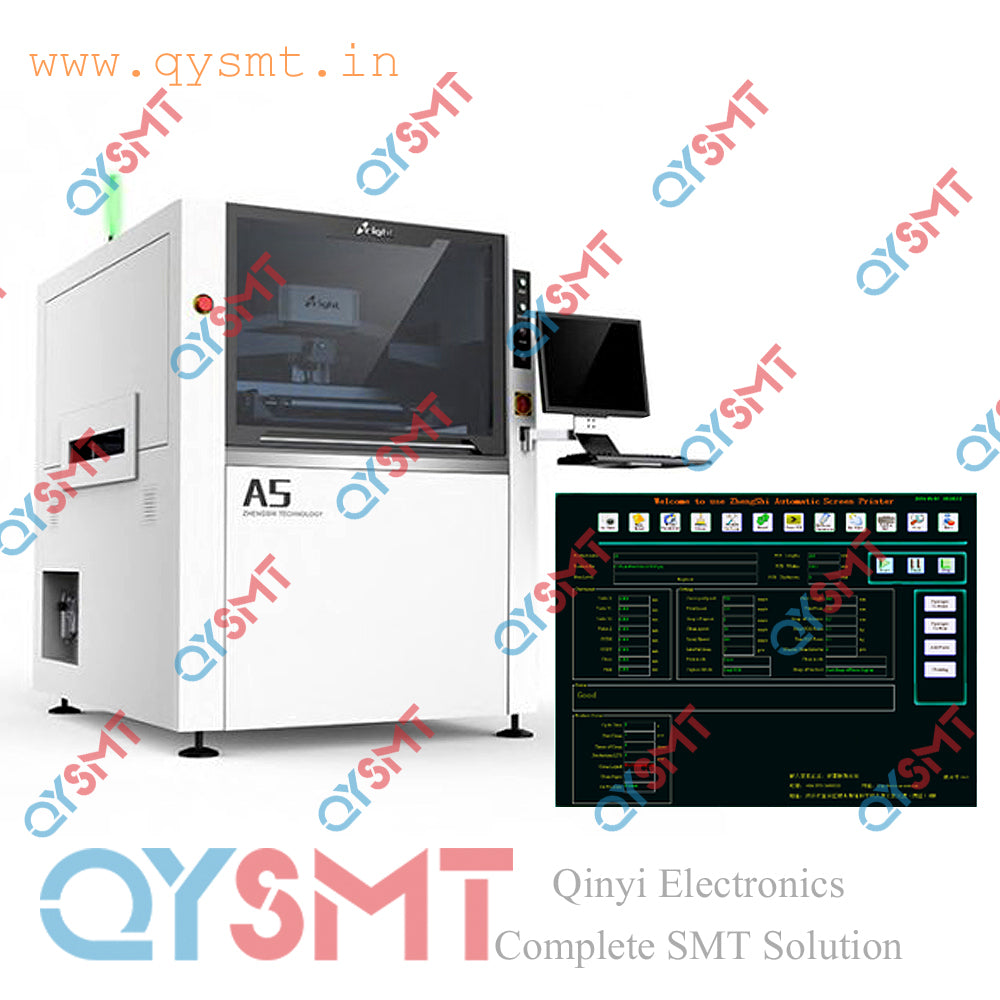

Control Method: PC Control

Machine Dimensions: 1220(L)X1355(W)X1500(H)mm

Machine Weight: Approx:1000Kg

Product Video: https://youtu.be/V2H1n8Ocn6w
