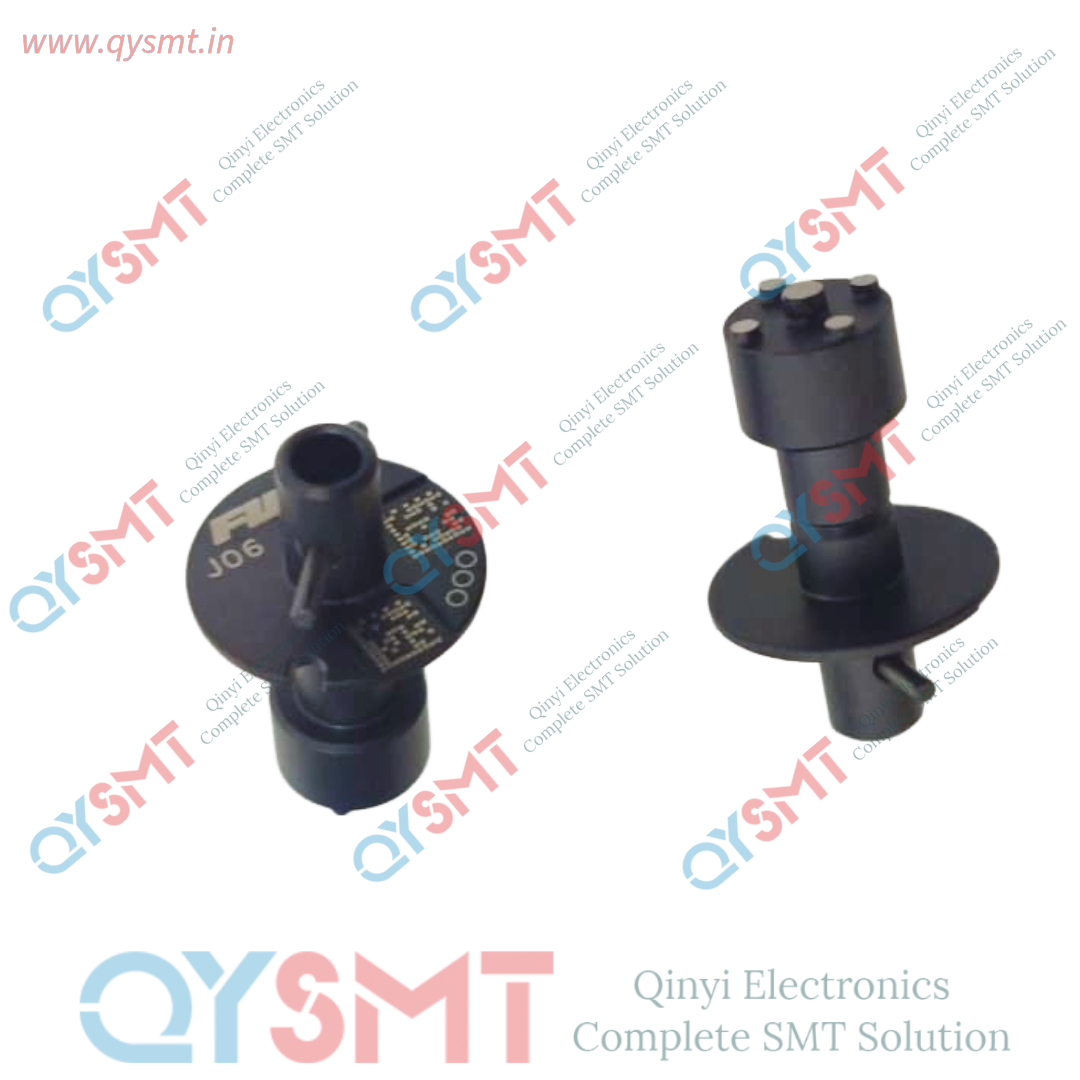

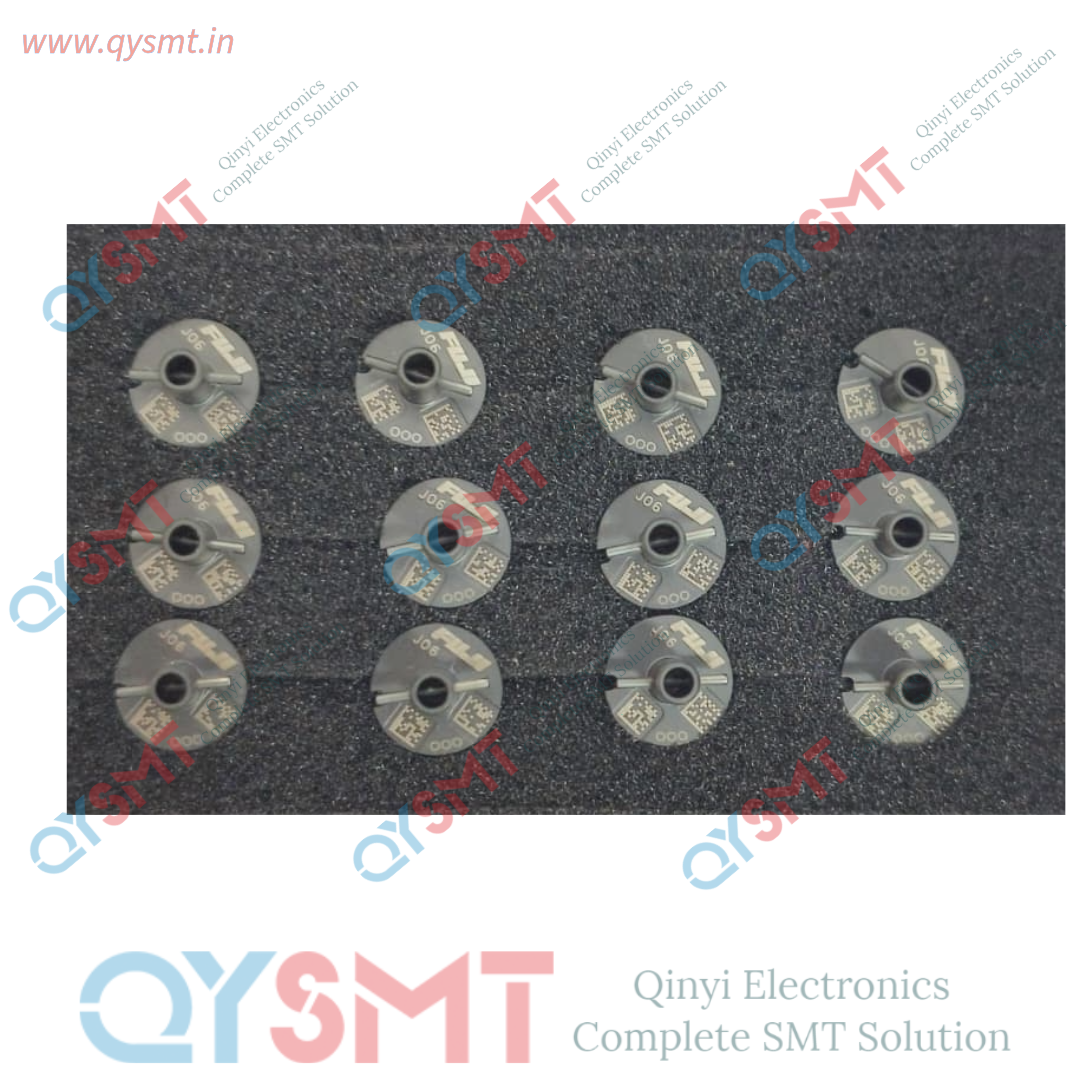

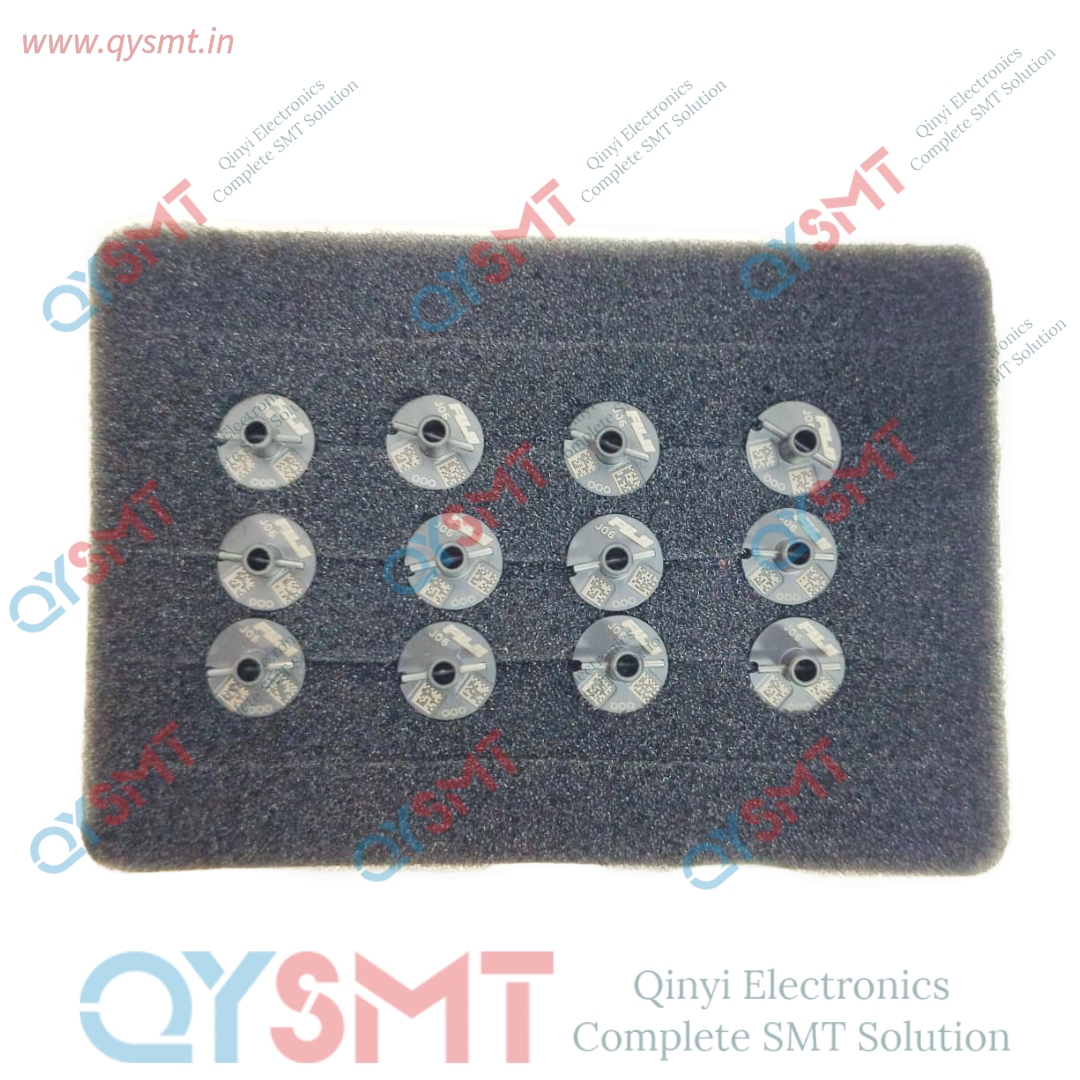

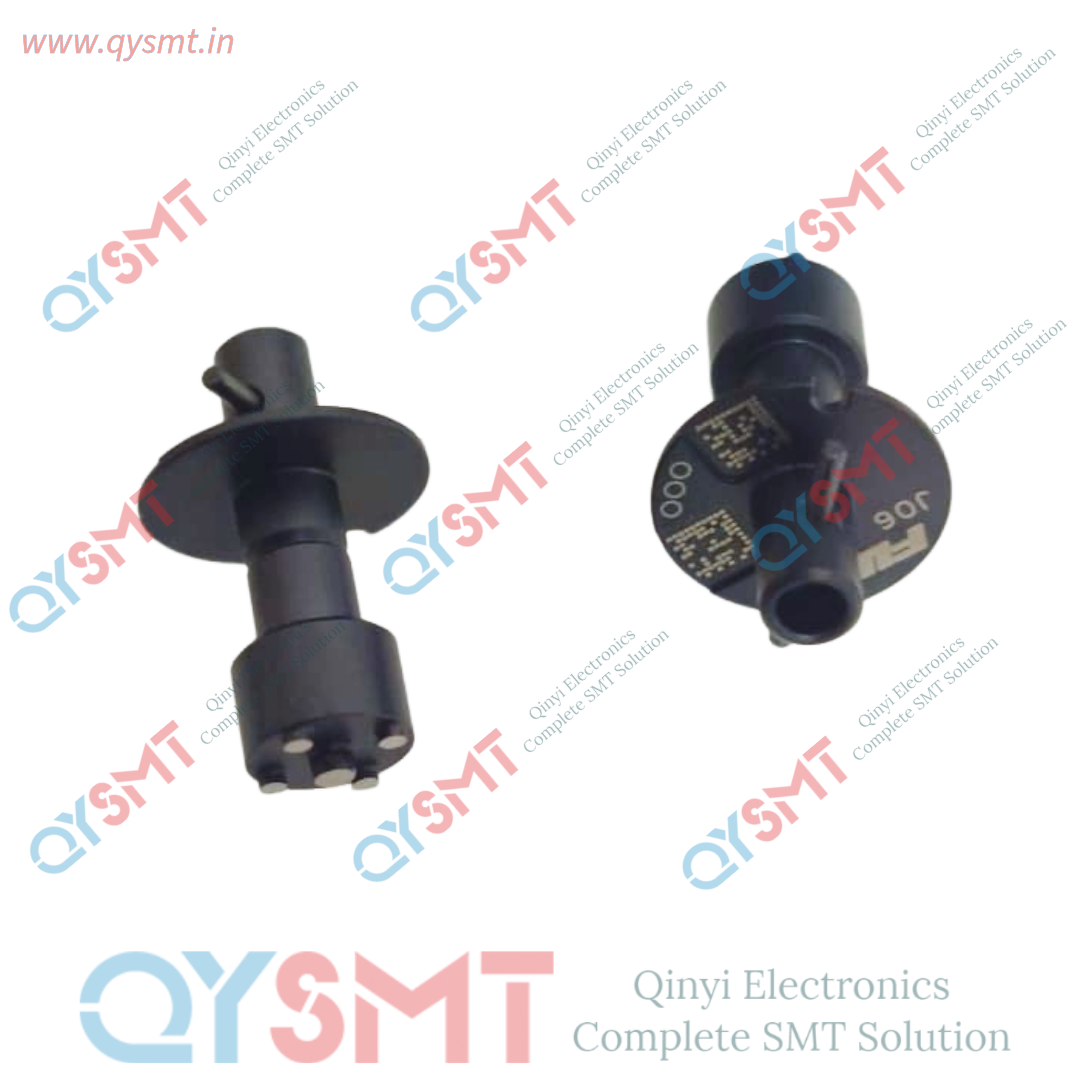

AA4ZL00 SMT vacuum nozzle tip

AA4ZL00 SMT vacuum nozzle tip
Technical Specifications

• Brand Compatibility: [Fuji Machine Manufacturing](0.5.2, 0.5.4)
• Equipment Line: Fuji NXT series (including NXT II and NXT III modular pick-and-place platforms)
• Working Heads: Specifically designed to interface with high-precision placement heads such as the H08, H12, and V12
• Part Number (P/N): AA4ZL00 (frequently interchangeable or grouped with similar variants like AA4ZL09)
• Primary Function: Angle correction, machine head jig setting, and vision alignment/inspection

Key Purpose & Industrial ApplicationUnlike standard vacuum nozzles that physically lift and place components (like capacitors, resistors, or ICs) using vacuum suction, the AA4ZL00 acts as a master reference tool.

• Calibration: It is loaded onto the placement head during maintenance cycles to verify positional accuracy, calibrate the Z-axis height, and correct the rotary (θ) angle of the nozzles.
• Wear Reduction: Proper utilization of calibration jigs directly prevents pick-and-place errors, component misalignments, and premature nozzle wear on production lines.
