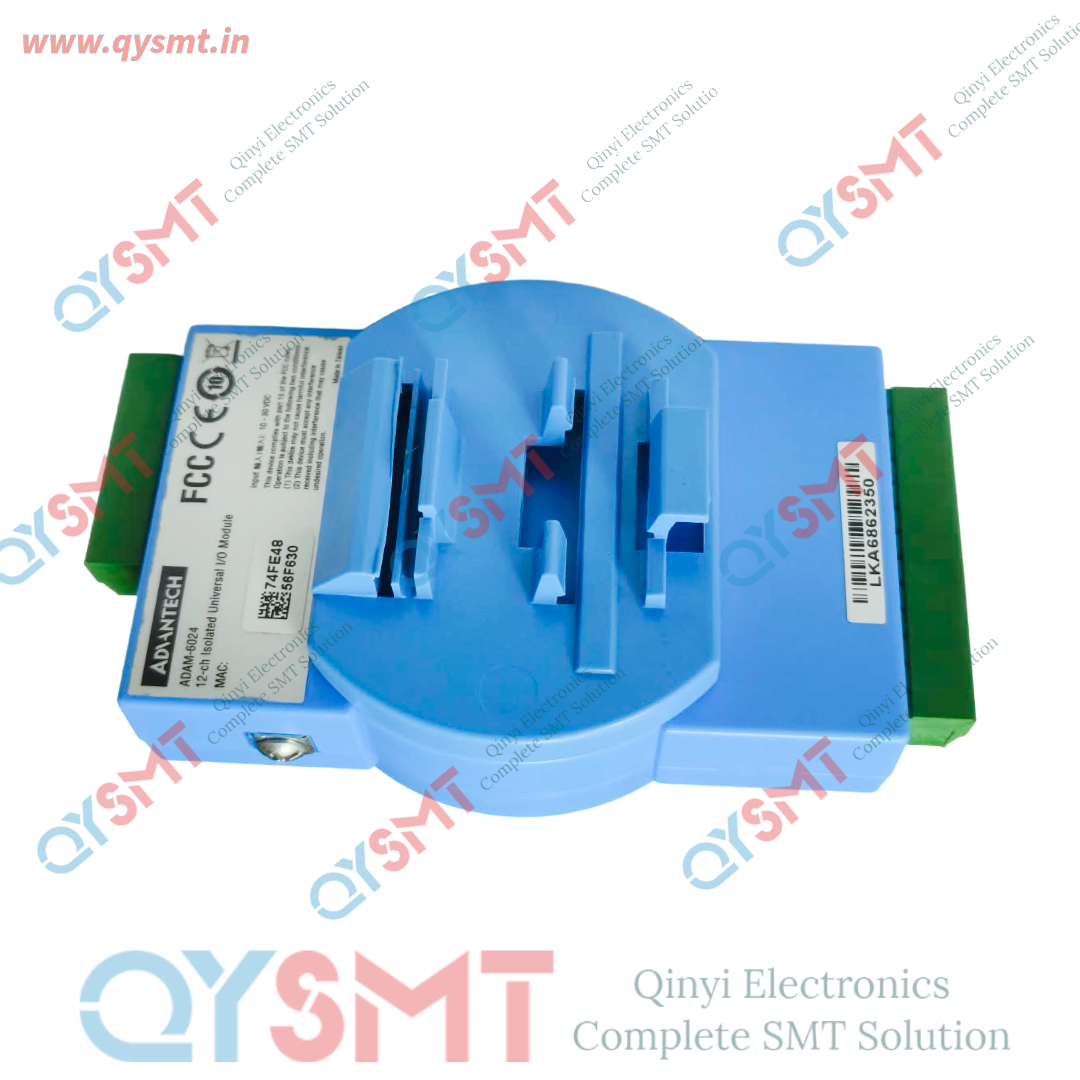

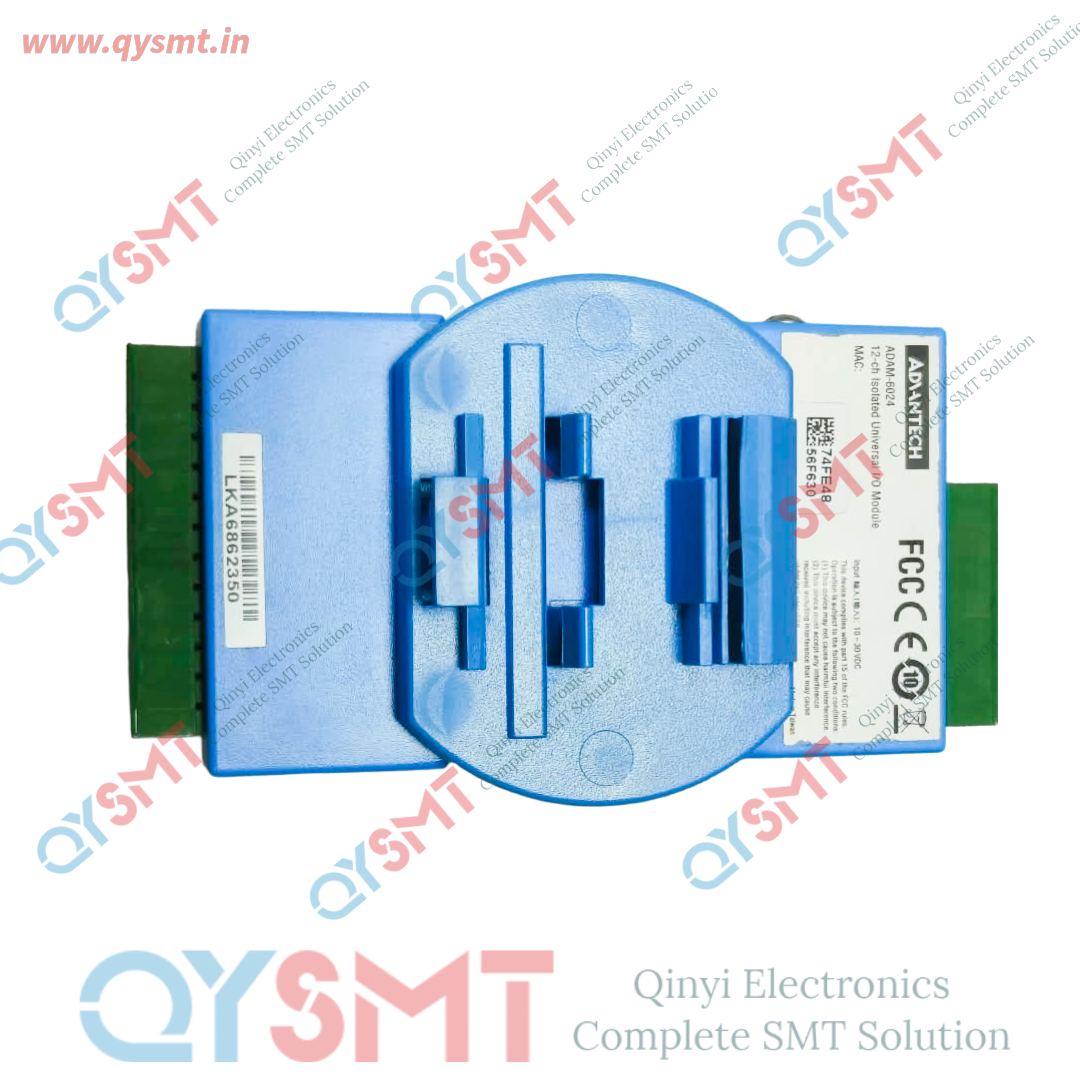

ADAM-6024 Power Module power supply

ADAM-6024 Power Module power supply
Power Specifications

• Input Voltage: 10 to 30 VDC
• Power Consumption: About 4 W at 24 VDC
• Protection: Includes power reversal protection and over-voltage protection up to ±35 VDC
• Isolation: 2,000 VDC isolation protection

Module Channels

• Analog Inputs: 6 differential channels (16-bit resolution)
• Analog Outputs: 2 channels (12-bit resolution)
• Digital Inputs: 2 channels (supports dry and wet contact)
• Digital Outputs: 2 channels (open collector to 30V, 100 mA max load)

Watch this overview to see how the features and industrial design of the Advantech ADAM series work in real setups:
