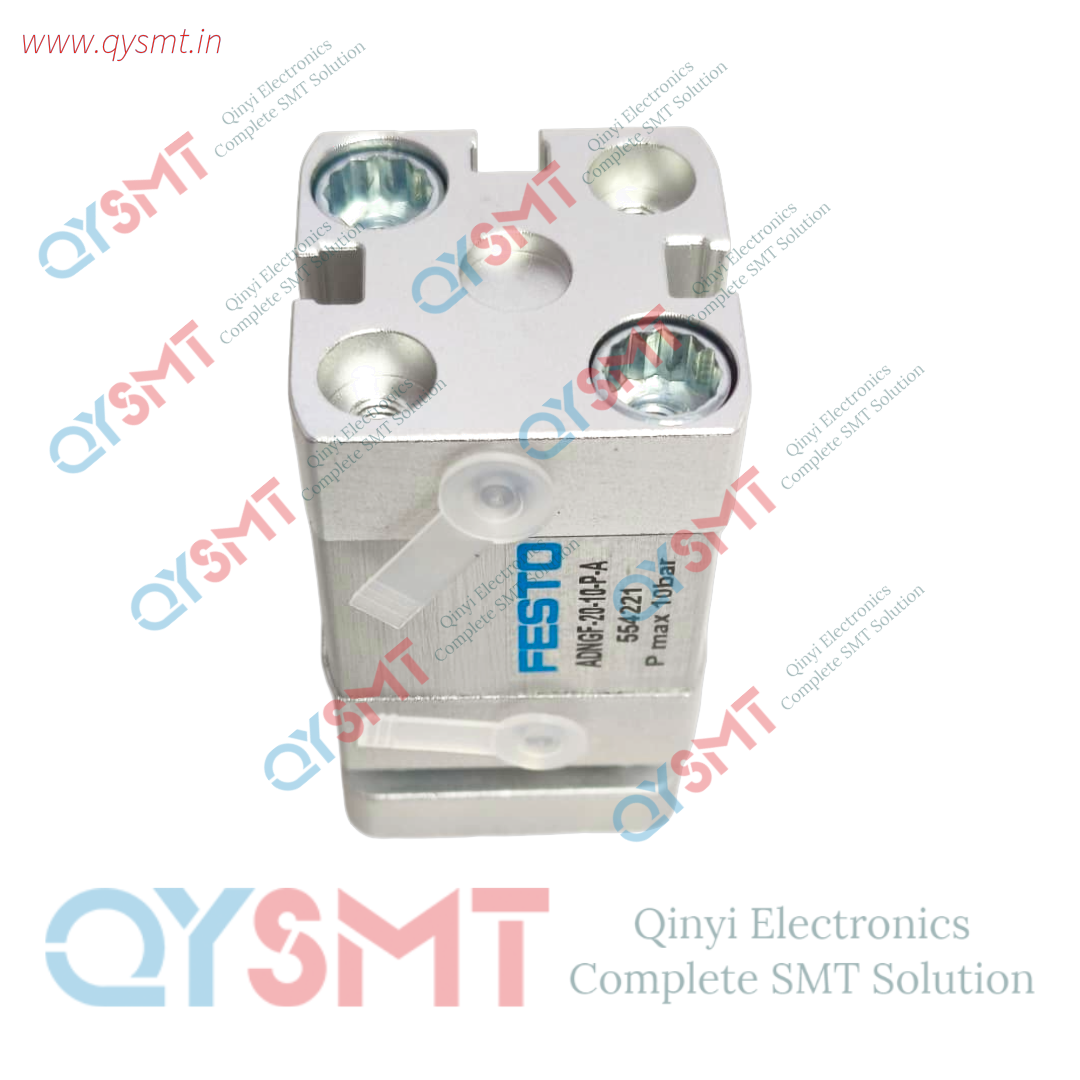

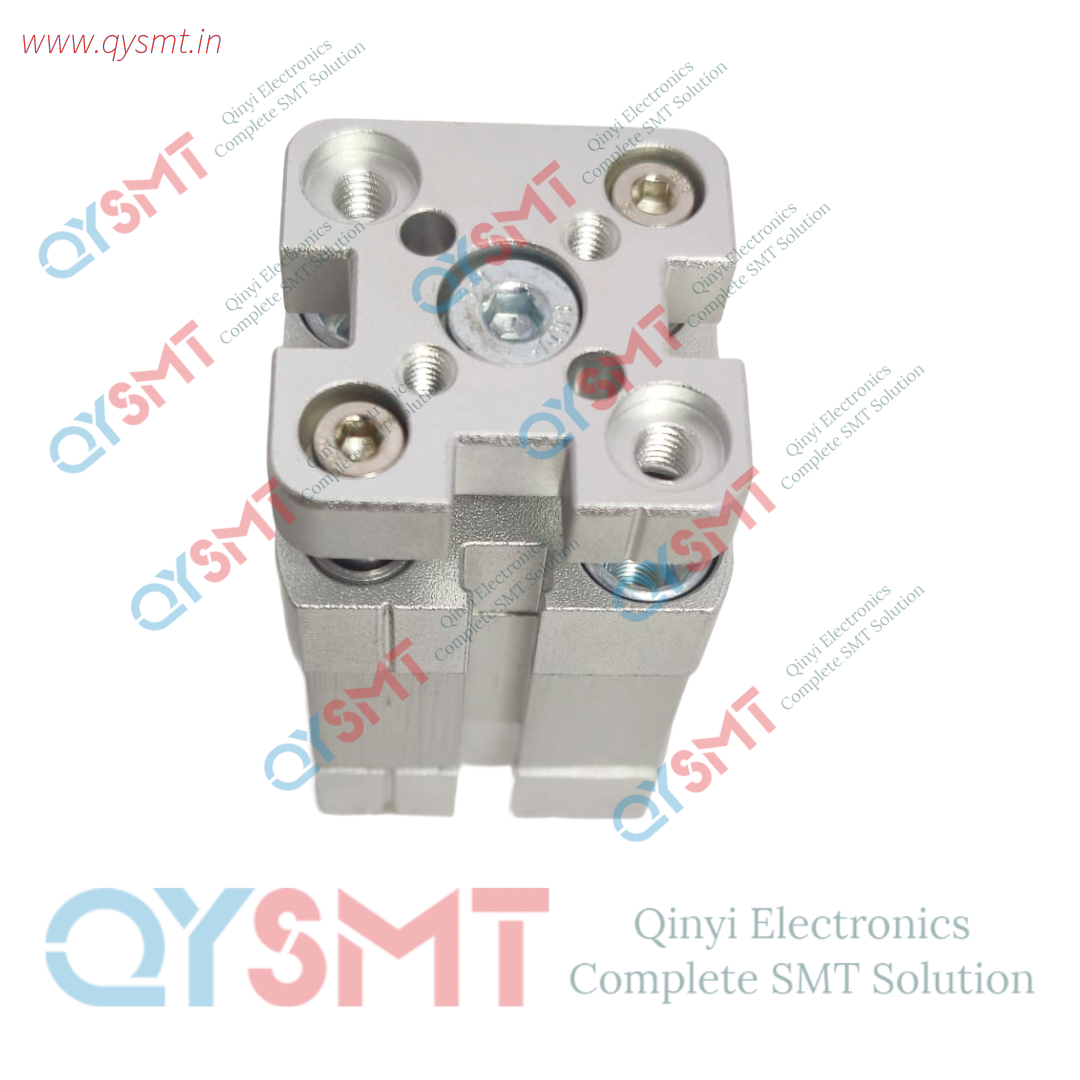

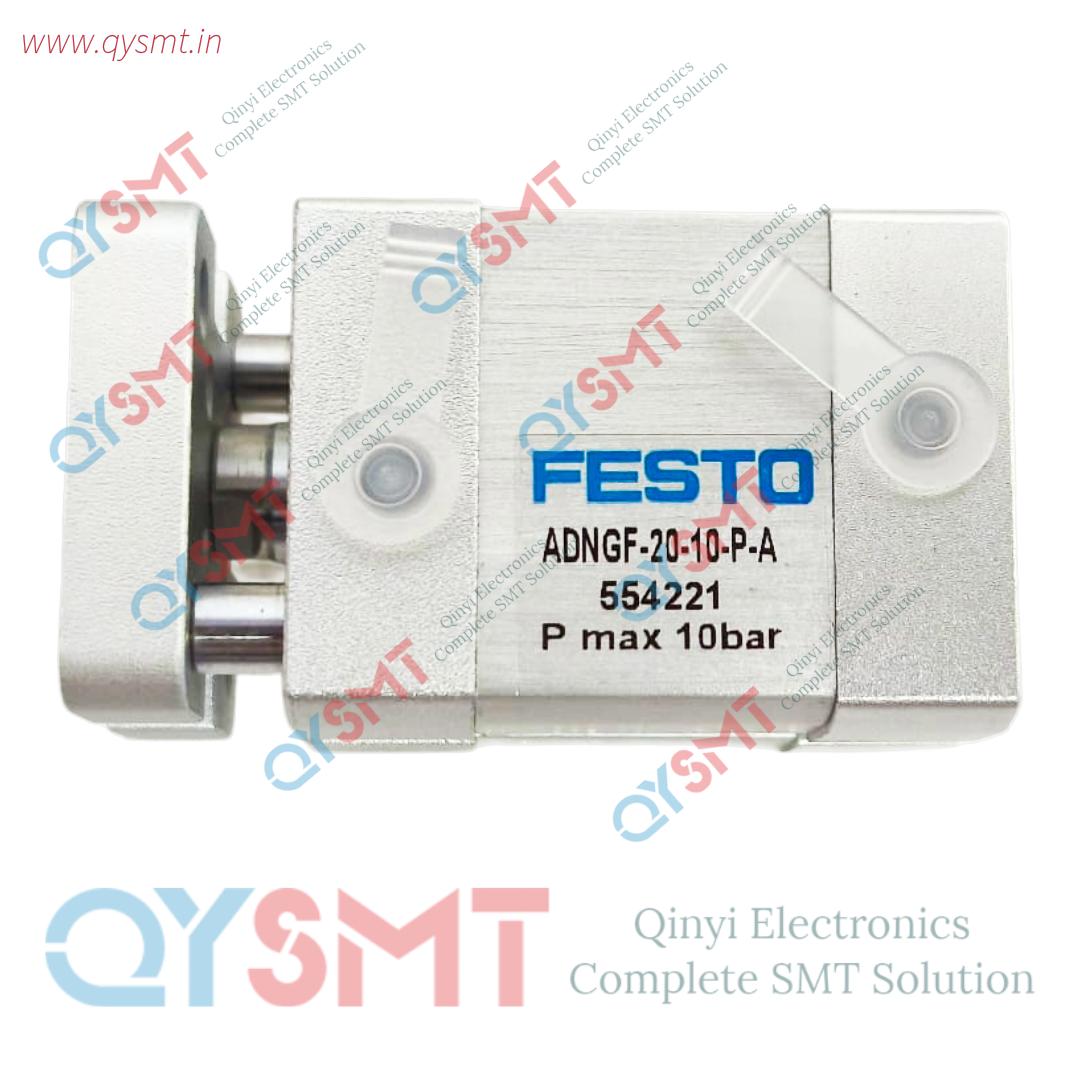

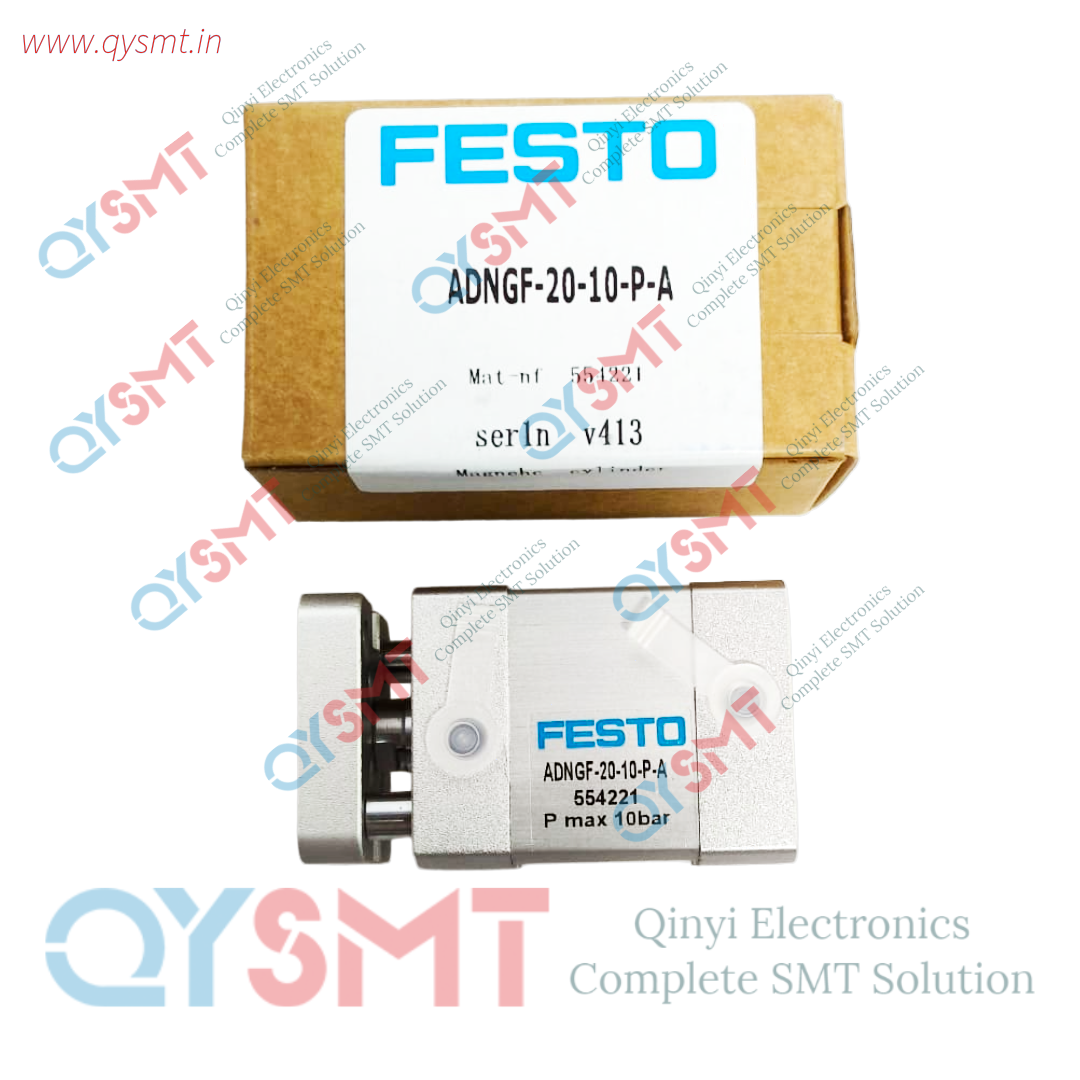

ADNGF-20-10-P-A MAKE FESTO
Technical Specifications
| Feature | Value |
|---|---|
| Piston Diameter | 20 mm |
| Stroke Length | 10 mm |
| Operating Pressure | 1.5 bar to 10 bar (0.15 MPa to 1 MPa) |
| Theoretical Force (at 6 bar) | Advance: 188 N / Return: 141 N |
| Cushioning | [P] Elastic cushioning rings/plates at both ends |
| Position Detection | Via proximity switch (magnetic piston included) |
| Pneumatic Connection | M5 |
| Ambient Temperature | -20 °C to +80 °C |
Key Features
- Anti-Rotation Design: The guide rod and yoke plate assembly reliably prevent the piston rod from rotating, ensuring torsional stability and precision.
- Space-Efficient: Part of the Festo ADN series, it requires up to 50% less installation space than comparable ISO 15552 cylinders.
- Durable Construction: Features an anodised wrought aluminium alloy barrel and cover with a high-alloy steel piston rod and TPE-U(PUR) seals.
- Corrosion Resistance: Rated at CRC 2 (moderate corrosion stress), making it suitable for standard industrial environments
