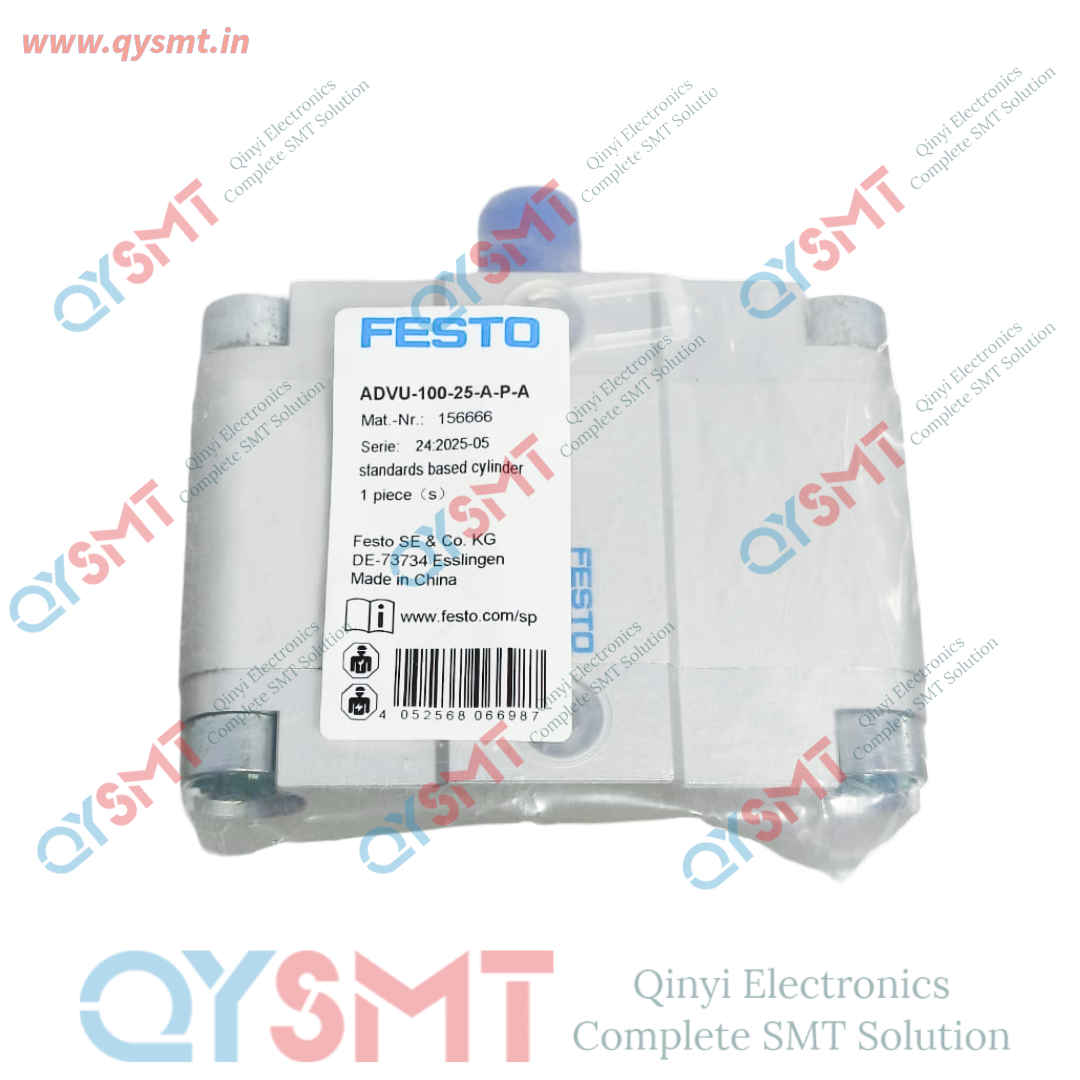

ADVU-100-25-A-P-A Pneumatic cylinder
Part Number Breakdown

• ADVU: Series designation for Festo's standard compact cylinder line.
• 100: 100 mm piston diameter, which dictates the high force output capability.
• 25: 25 mm stroke length, providing short, high-precision linear movement.
• A: Designed with a male piston rod thread (M20x1.5).
• P: Features flexible, elastic cushioning rings/plates at both ends to reduce impact wear.
• A: Equipped for position detection via standard magnetic proximity sensors.

Core Technical SpecificationsAccording to official documentation from the Festo Technical Datasheet and industrial catalogs like RS Components:

• Operating Pressure: 0.6 bar to 10 bar (8.7 psi to 145 psi)
• Theoretical Output Force (at 6 bar):
  • Advance Stroke: 4,712 N
  • Return Stroke: 4,418 N
• Pneumatic Connection Port: G1/4 female thread.
• Ambient Temperature Range: -20 °C to 80 °C.
• Material Composition: High-alloy steel piston rod, wrought aluminum alloy cylinder barrel/cover, and NBR/TPE-U (PU) dynamic seals.
• Space Saving: Offers up to 50% less installation space compared to traditional ISO 15552 standards-based cylinders
