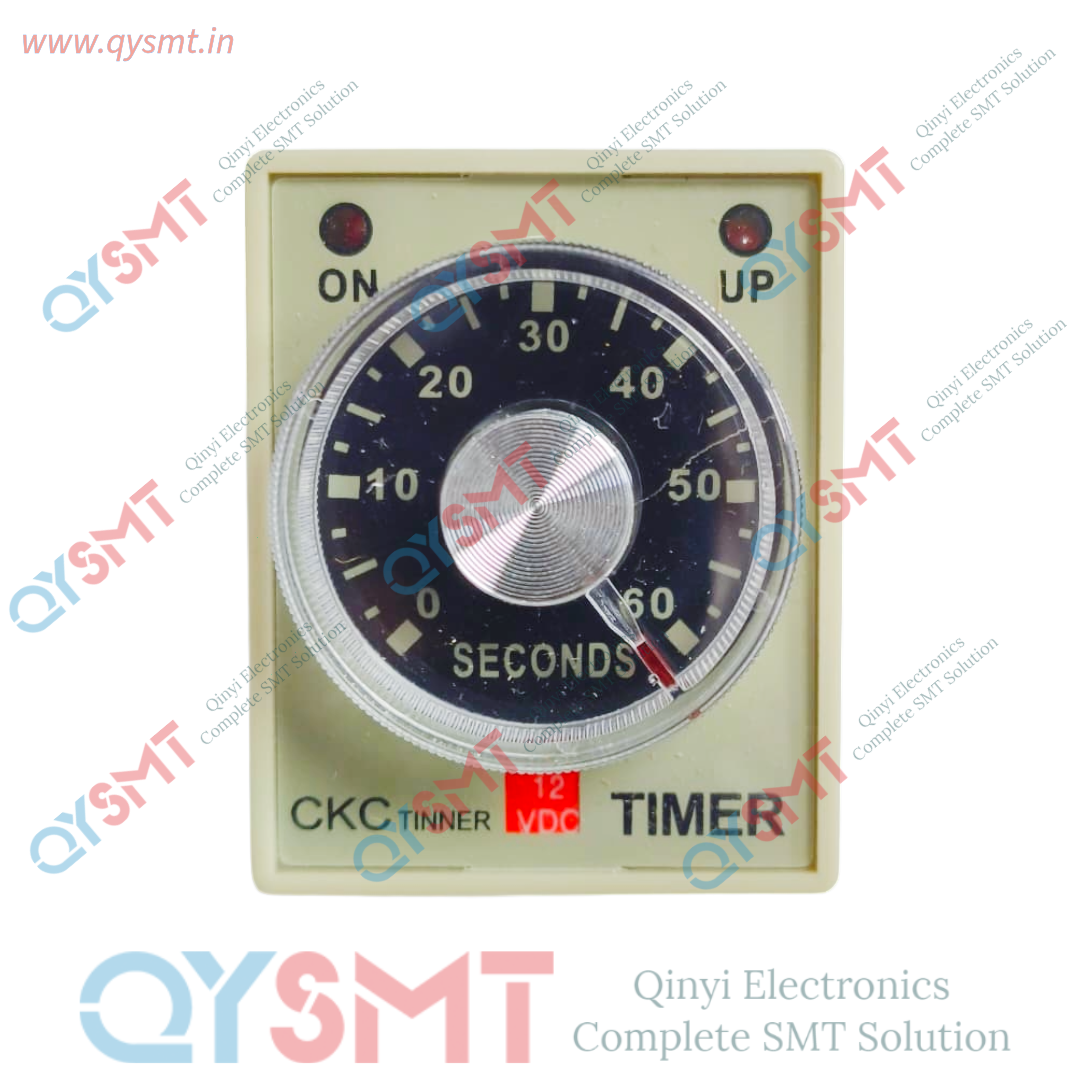

AH3-3 (220V) 8-pin, analog time-delay relay commonly used in industrial automation and control panels
Key Specifications
- Voltage Rating: 220V AC
- Contact Configuration: 1 set of On-Delay contacts + 1 set of Instantaneous contacts
- Contact Rating: 5A at 250V AC (Ohmic load)
- Pin Type: 8-pin base (compatible with standard PF083A sockets)
- Operating Temperature: \(-10^{\circ}C\) to \(50^{\circ}C\)
Time Ranges
The AH3-3 comes in various pre-configured maximum time ranges. Standard variants include:
- 0 to 10 Seconds
- 0 to 30 Seconds
- 0 to 60 Seconds
- 0 to 60 Minutes

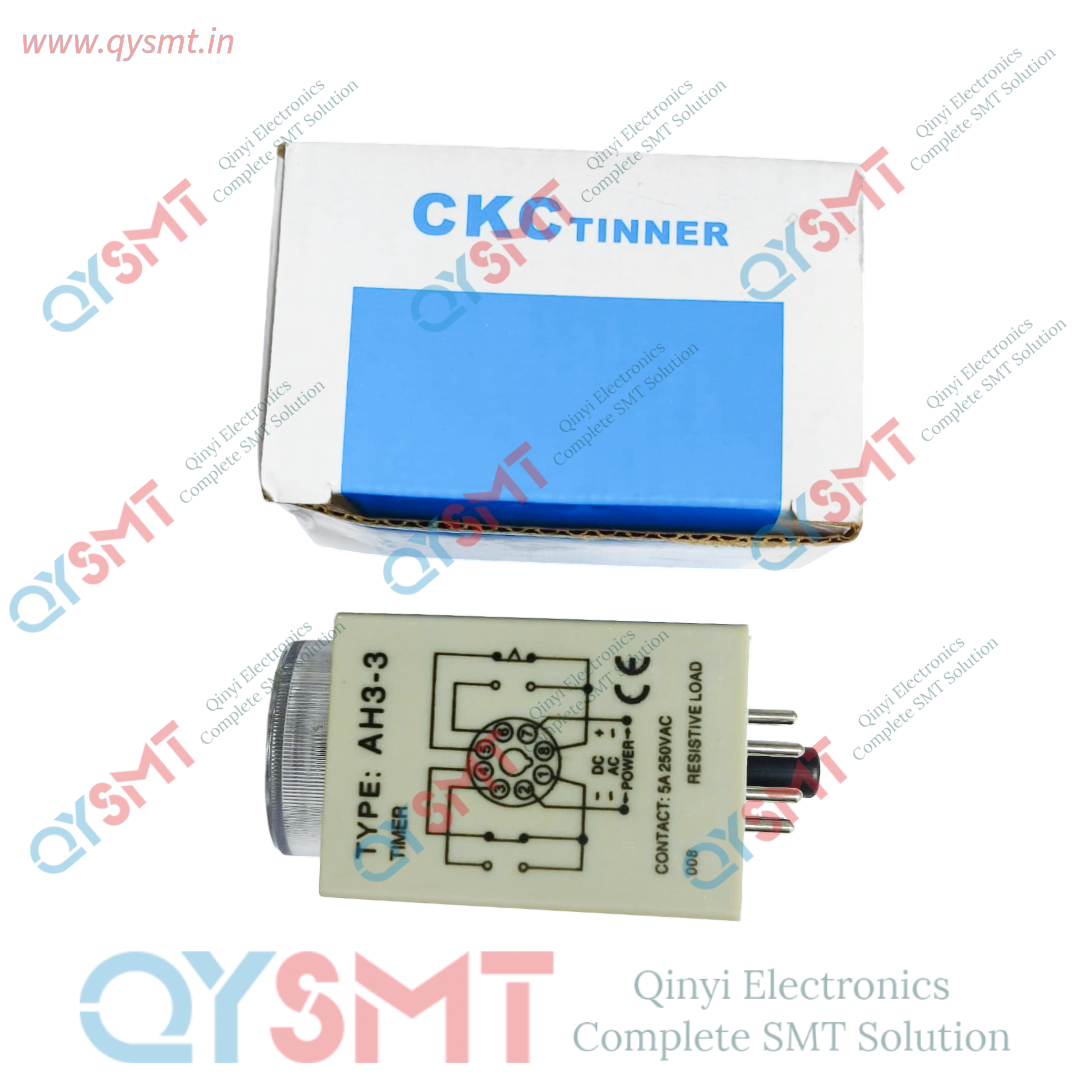

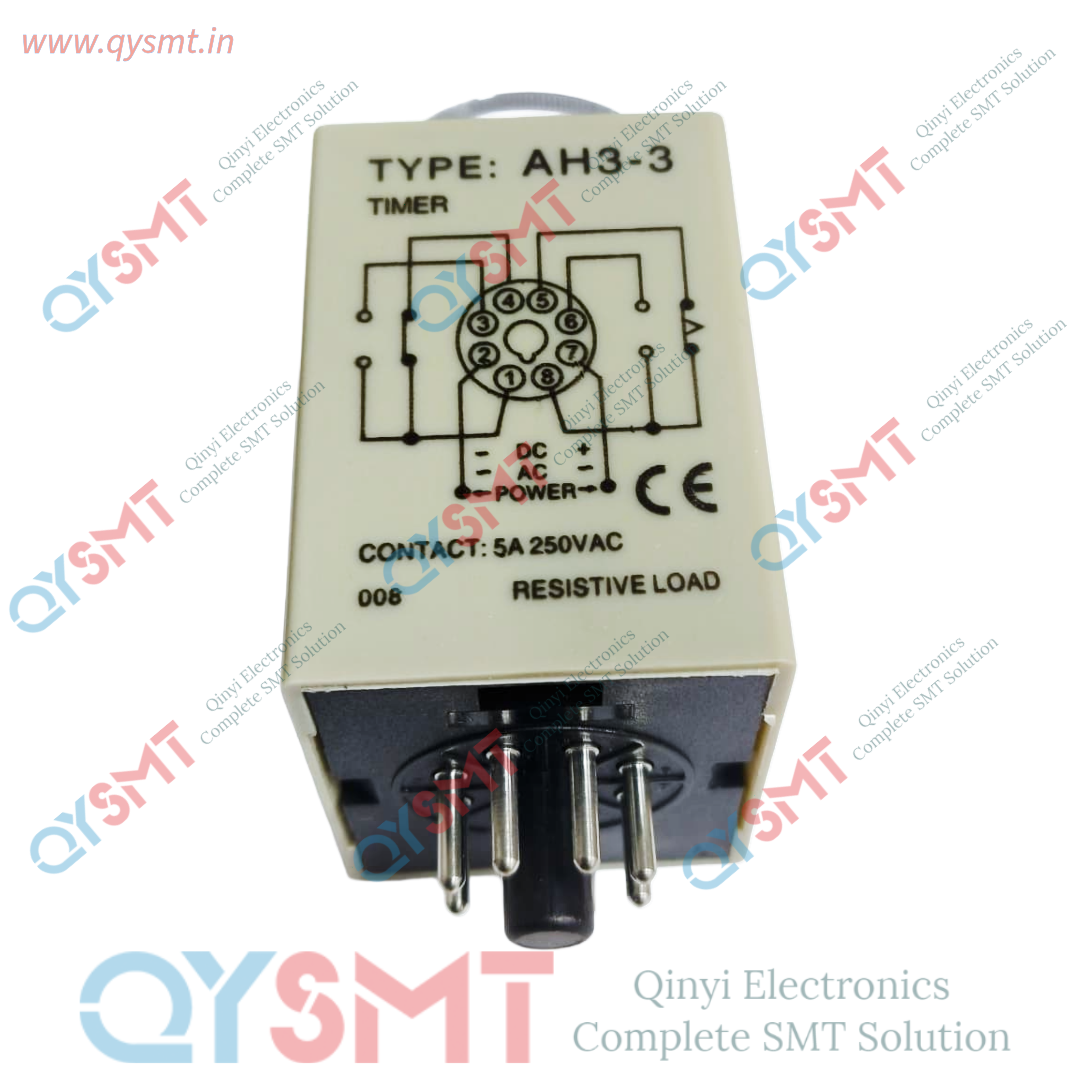

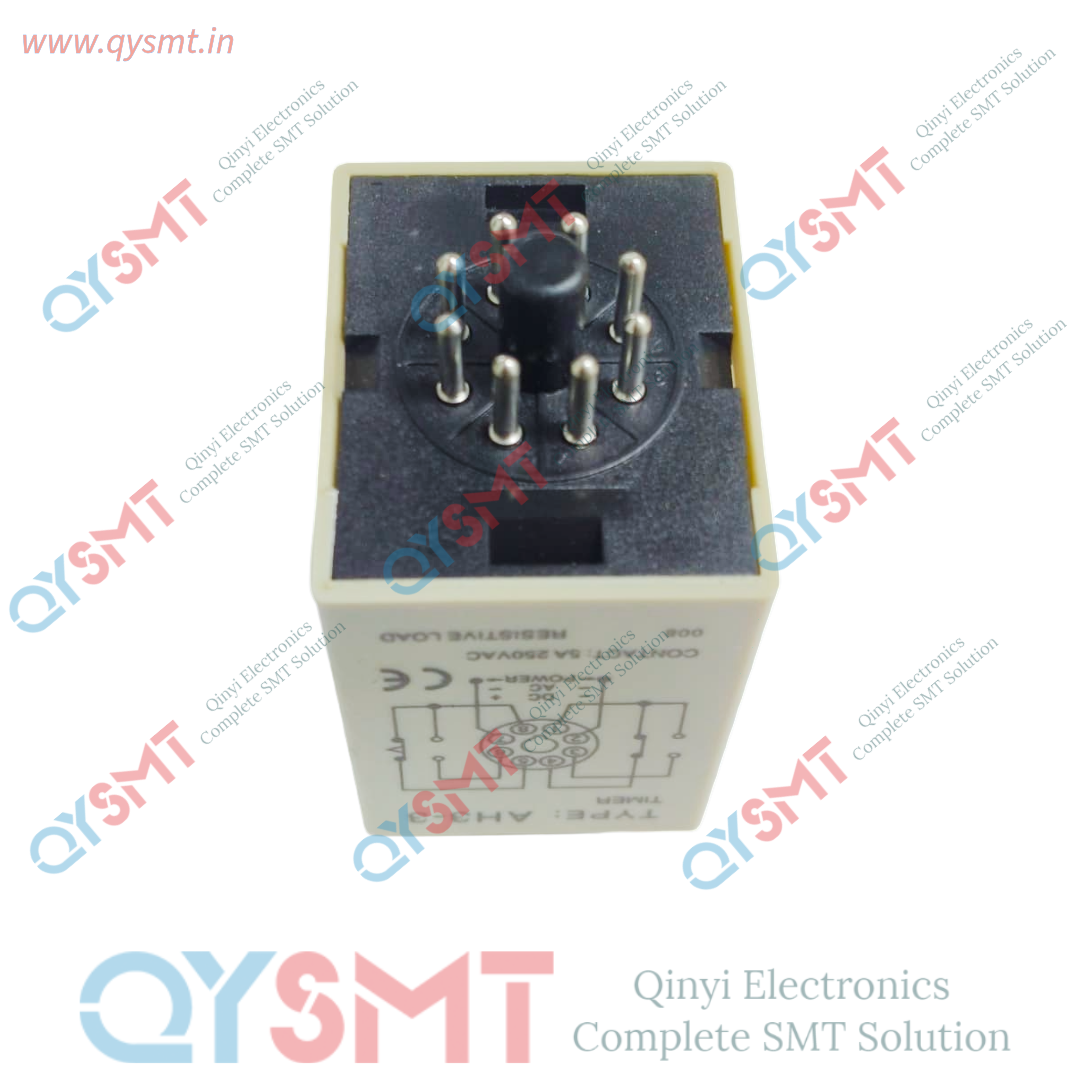

Pinout Configuration (Bottom View)
- Pins 2 & 7: Power supply / Coil voltage (220V AC)
- Pins 1 & 3: Instantaneous Output contacts (1 = Common, 3 = Normally Open)
- Pins 8 & 6: On-Delay Output contacts (8 = Common, 6 = Normally Open)
- Pins 8 & 5: On-Delay Output contacts (8 = Common, 5 = Normally Closed) [1]
