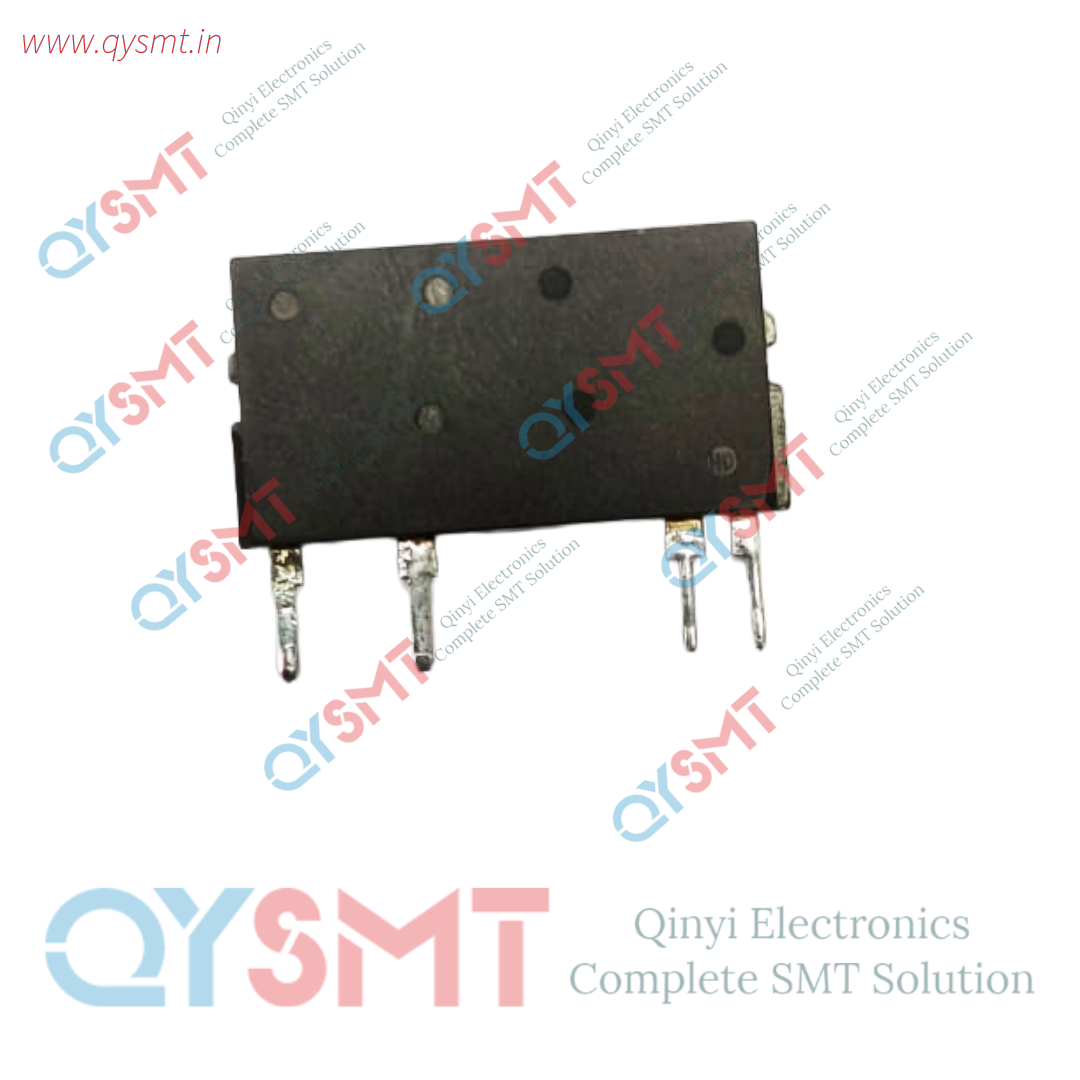

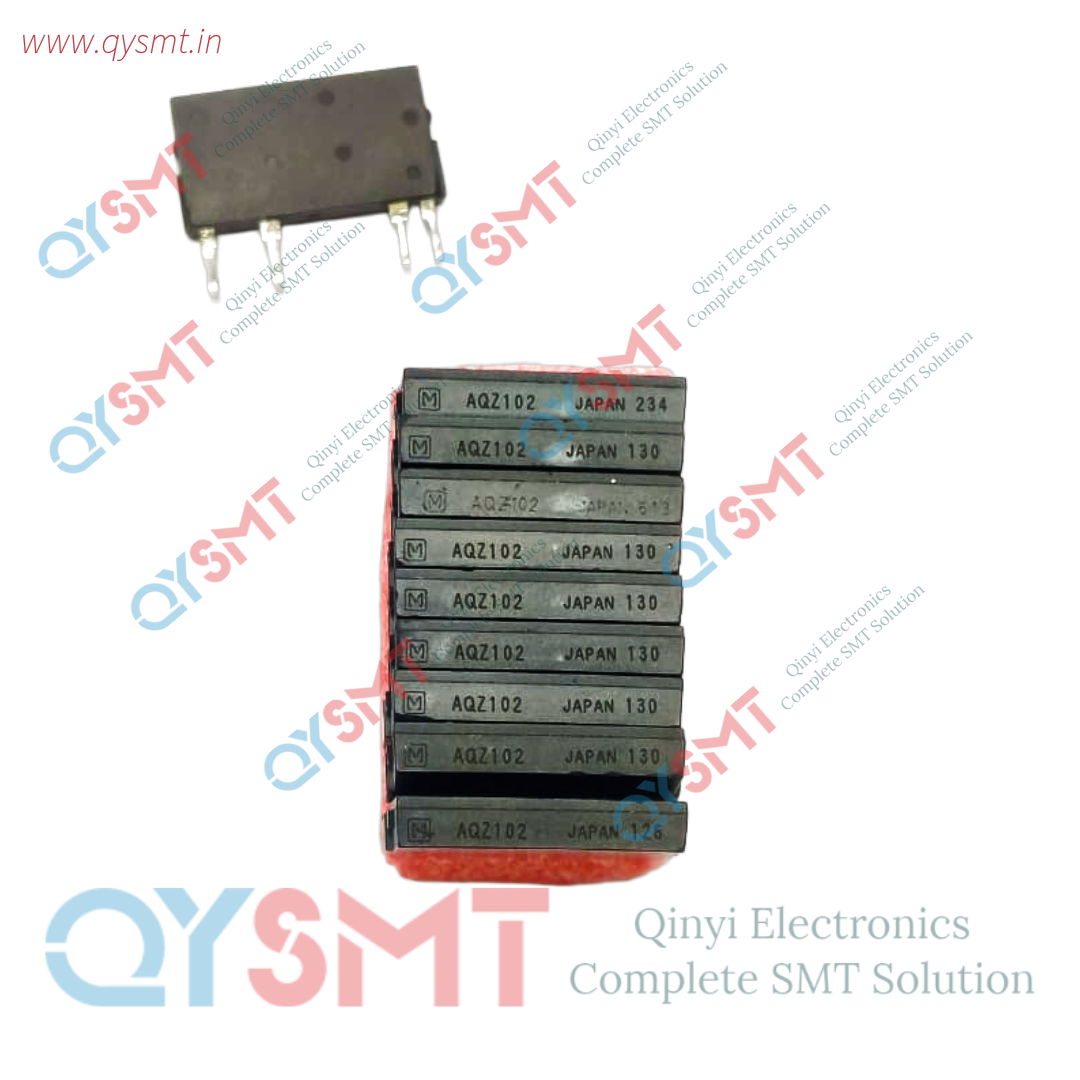

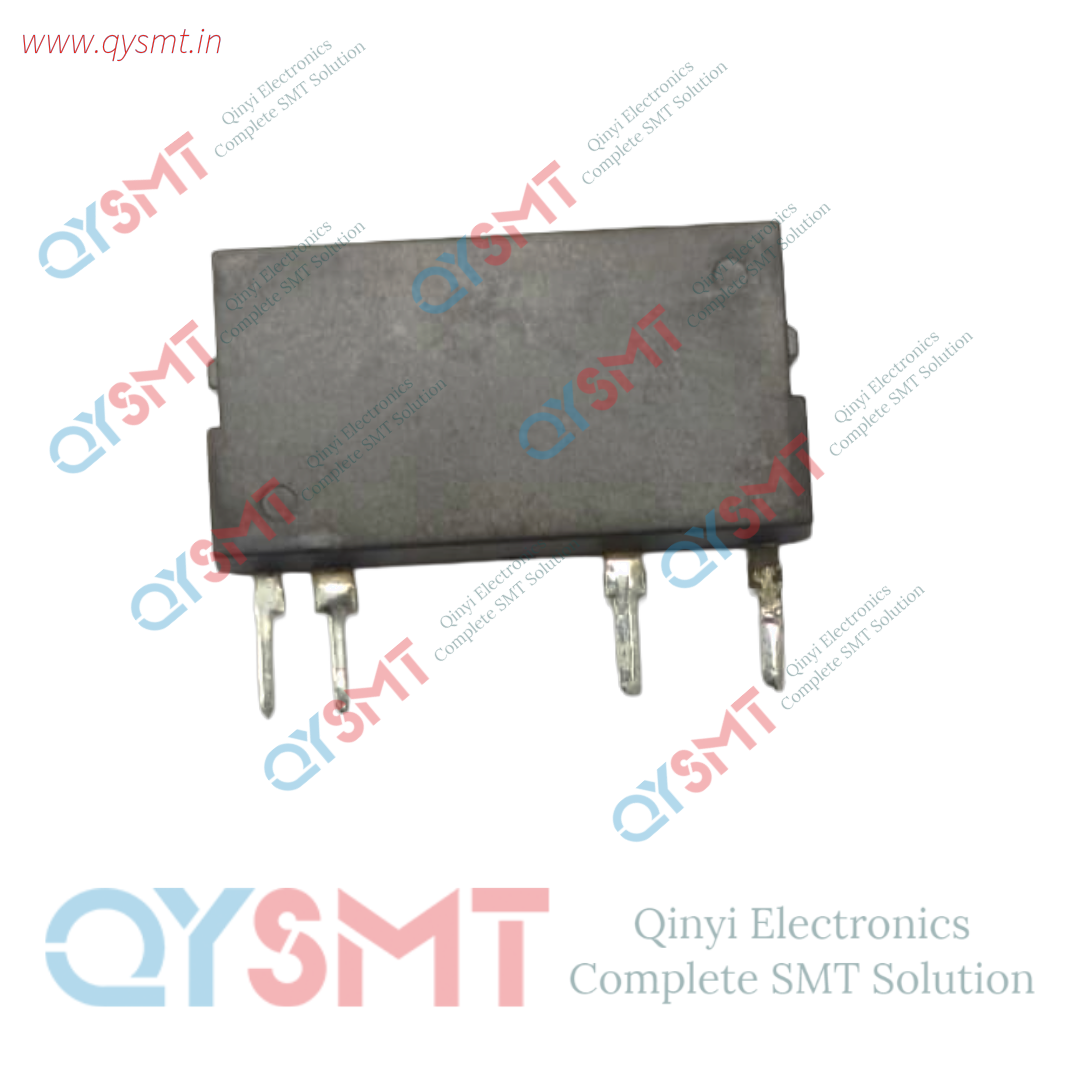

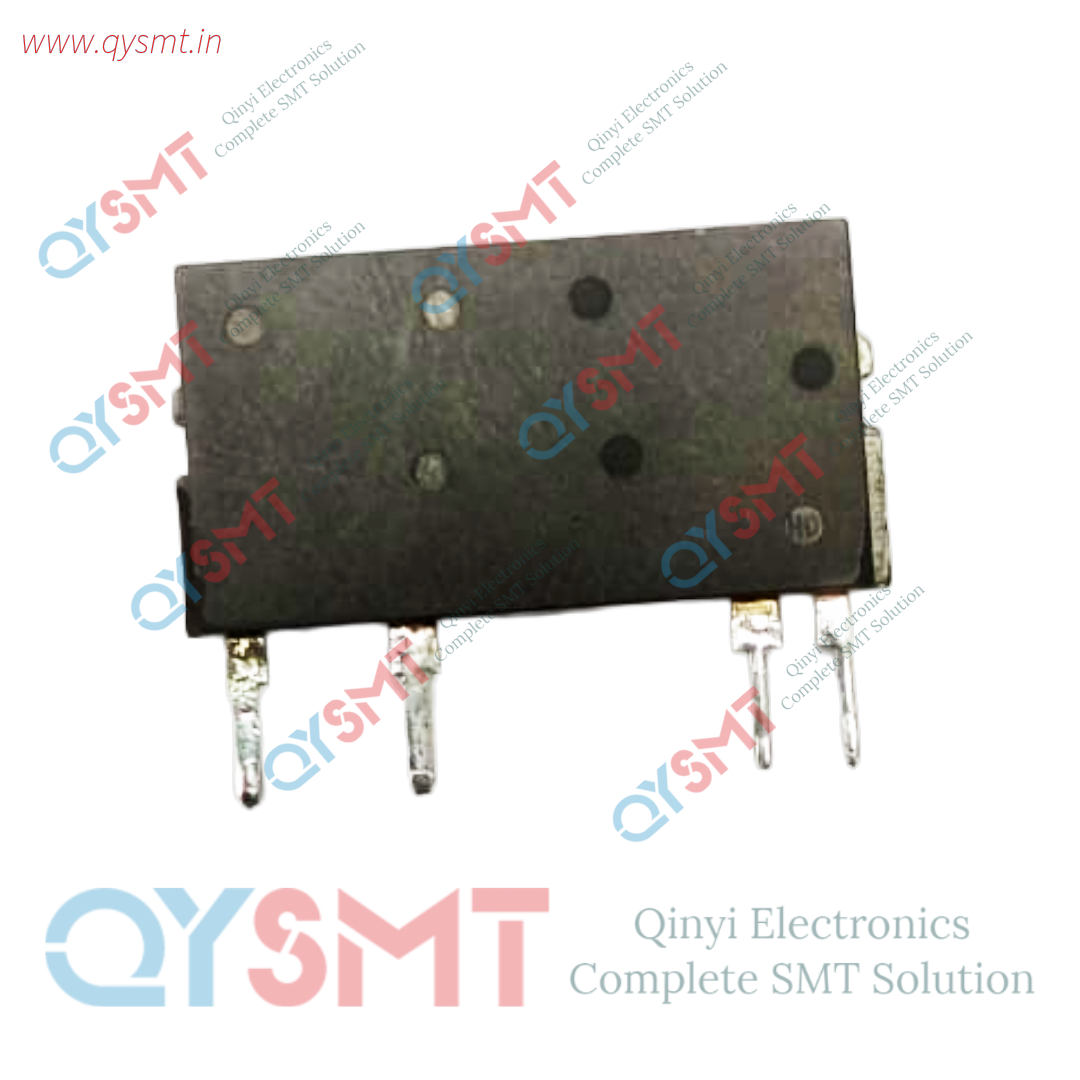

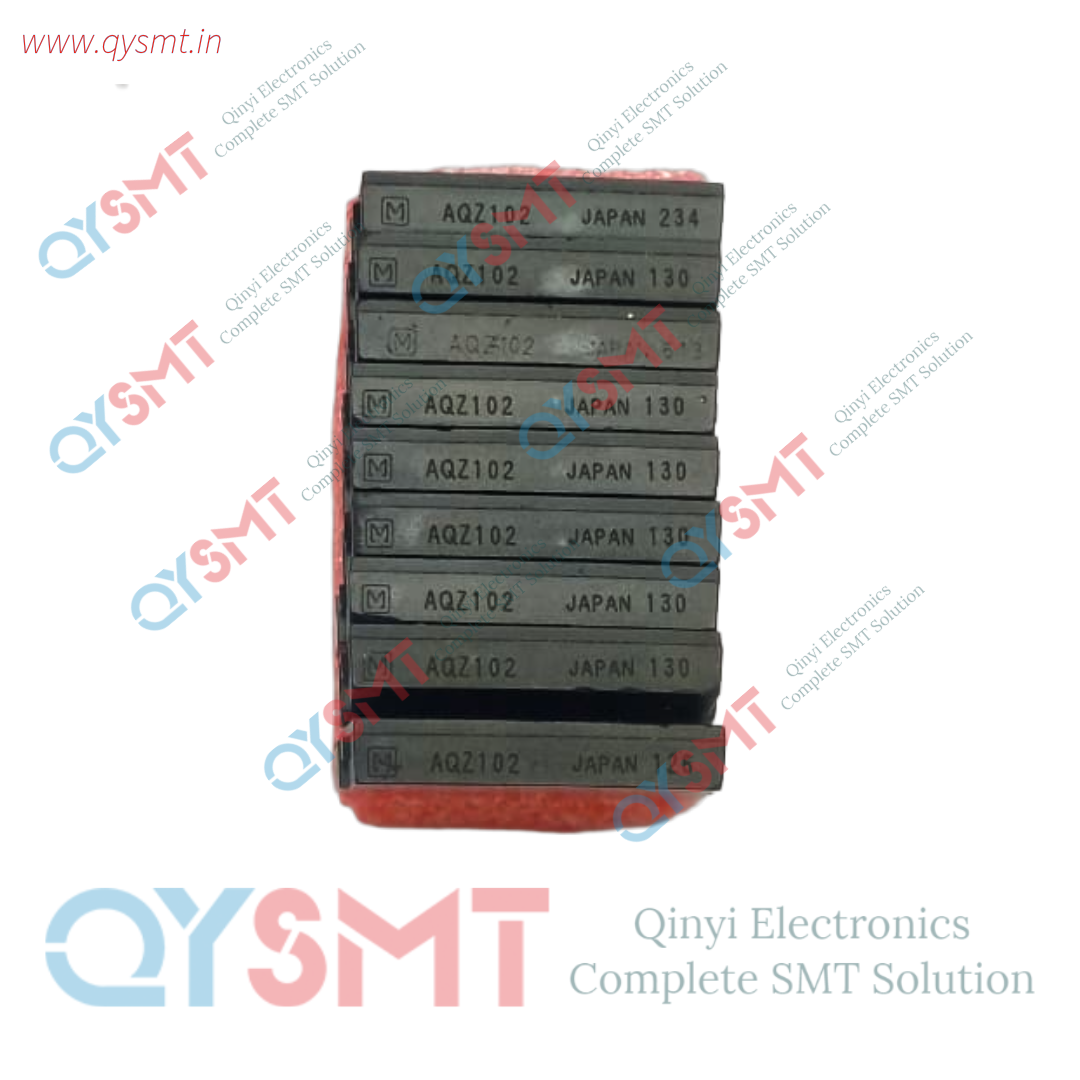

AQZ102 Panasonic Solid State Relay

AQZ102 Panasonic Solid State Relay
Key Specifications

• Contact Form: SPST-NO (1 Form A).
• Load Rating: Maximum load voltage of 60V DC and a continuous load current of 4.0A.
• On-Resistance: Extremely low typical resistance of 0.05 Ω (Max 0.09 Ω).
• Isolation: High I/O isolation voltage of 2,500 Vrms.
• Control Voltage: Typical LED forward voltage of 1.25V (Max 1.5V).
• Switching Speed: Typical turn-on time of 1.66 ms and turn-off time of 0.15 ms.

Features & Applications

• Compact Design: The slim SIL4-pin package (approx. 21 x 3.5 x 12.5 mm) saves space on printed circuit boards.
• Low Distortion: Enables control of low-level analog signals without distortion due to extremely low closed-circuit offset voltage.
• Reliability: No moving parts means no contact noise or arcing, and it eliminates the need for counter electromotive protection diodes on the input side.
• Common Uses: Used in industrial machines, robotics, telecommunications, automotive systems, and measuring instruments.
