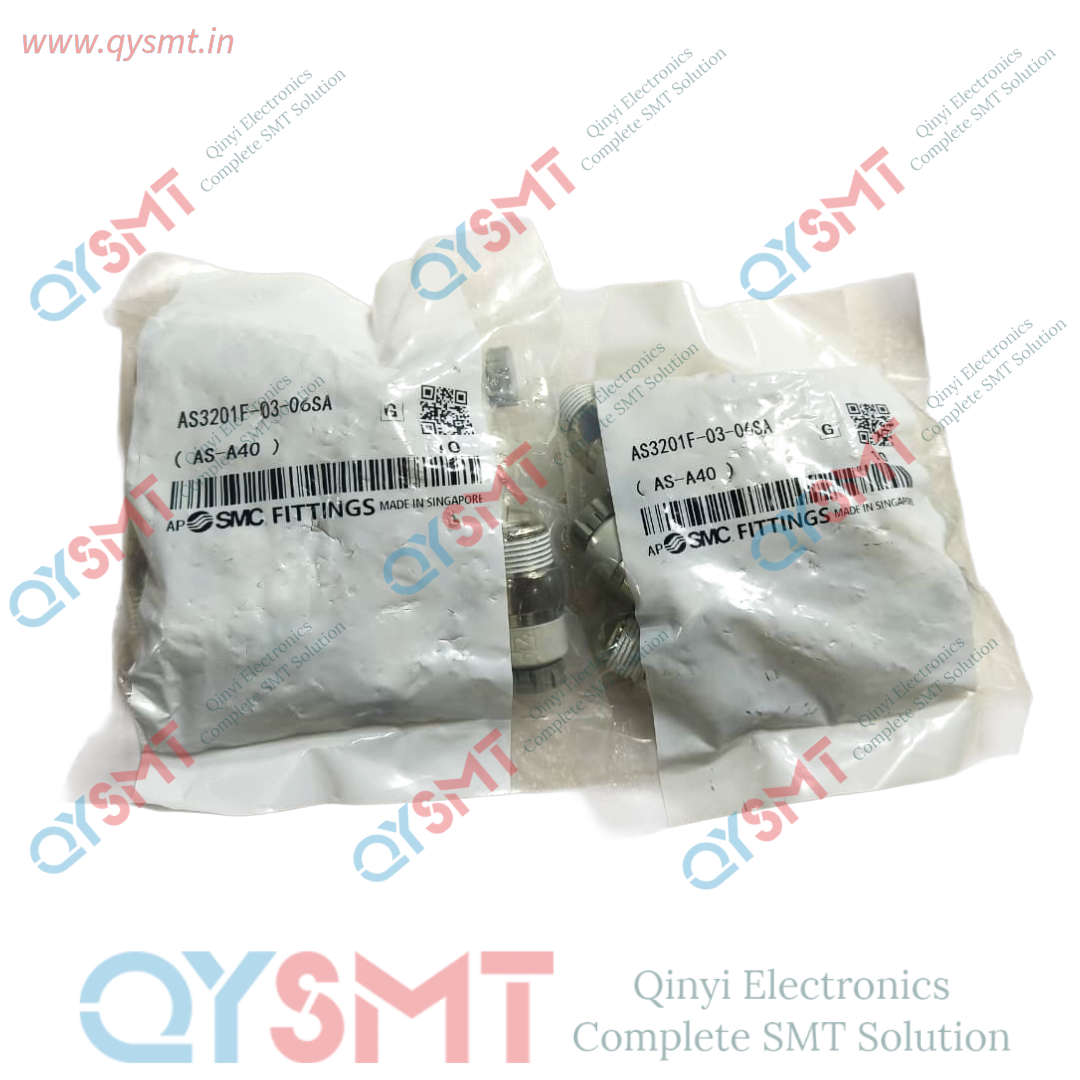

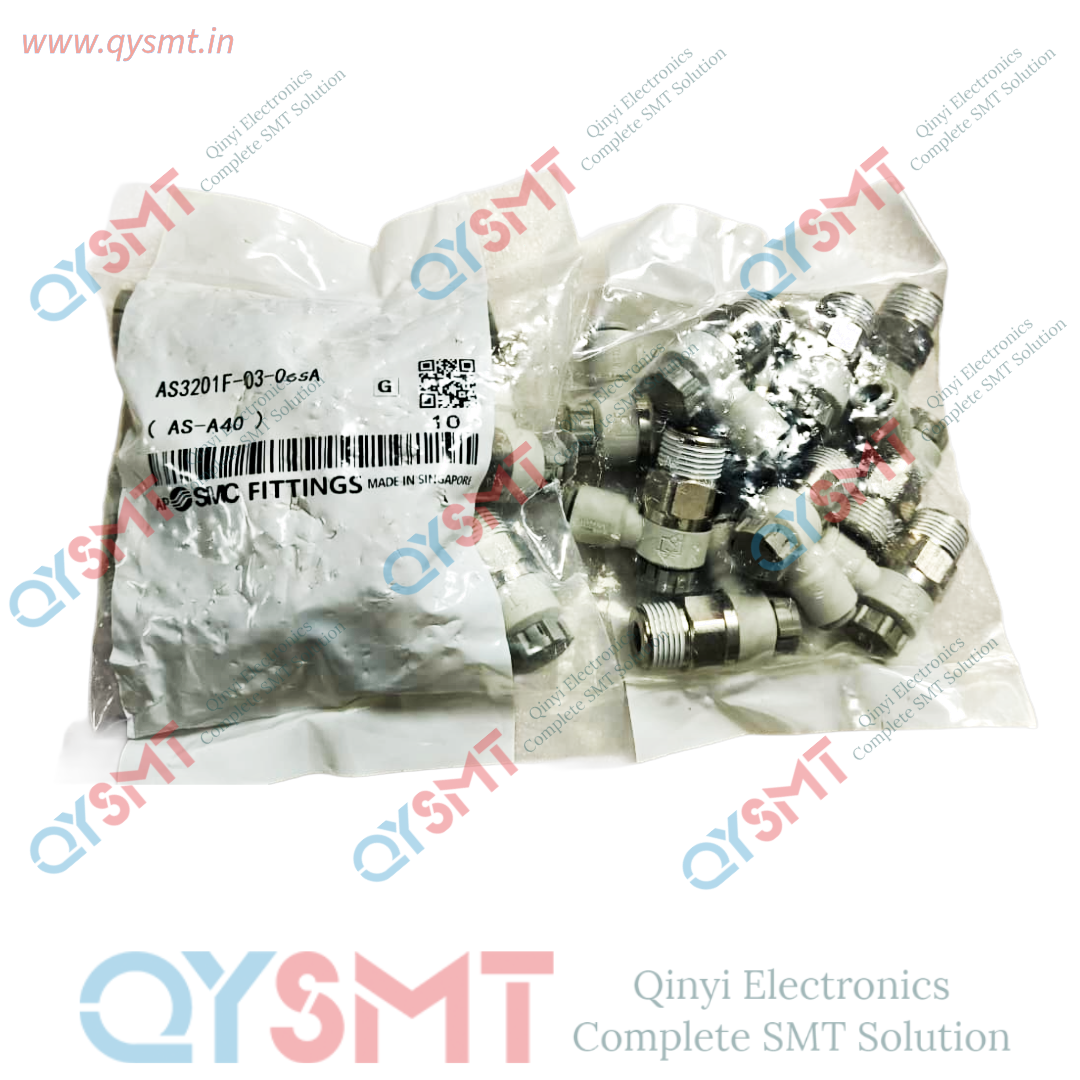

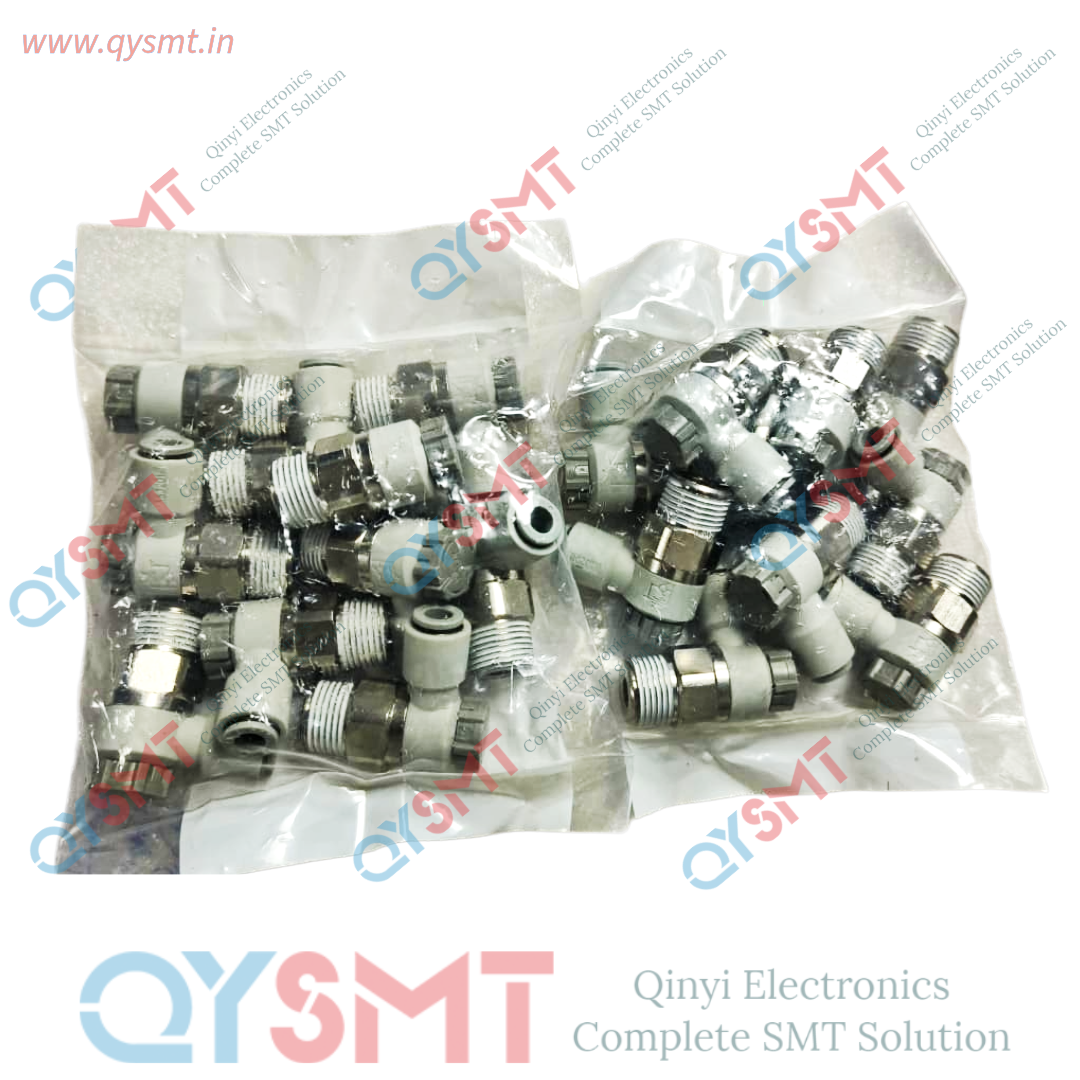

AS3201F-03-06SA smc fitting

AS3201F-03-06SA smc fitting
Key Specifications

• Body Type: Elbow (allows 360° swivelling for easy installation).
• Port Size: 3/8 R (Metric PT thread) with sealant.
• Applicable Tubing O.D.: 6 mm.
• Adjustment Mechanism: Push-lock type needle valve (no tools required for locking).
• Operating Pressure Range: 0.1 to 1.0 MPa.
• Control Type: Meter-out (indicated by a gray handle).
• Materials: PBT and Brass body with electroless nickel plating as standard.

Features & Benefits

• Tool-less Adjustment: The improved, larger push-lock handle simplifies flow rate settings and prevents accidental adjustments.
• Space-Saving Design: Minimises mounting height and enables a more compact machine layout.
• Easy Maintenance: Features a significant reduction in the force required for tube insertion (30%) and removal (20%) compared to older models.
• Compatibility: Suitable for use with nylon, soft nylon, and polyurethane tubing.
