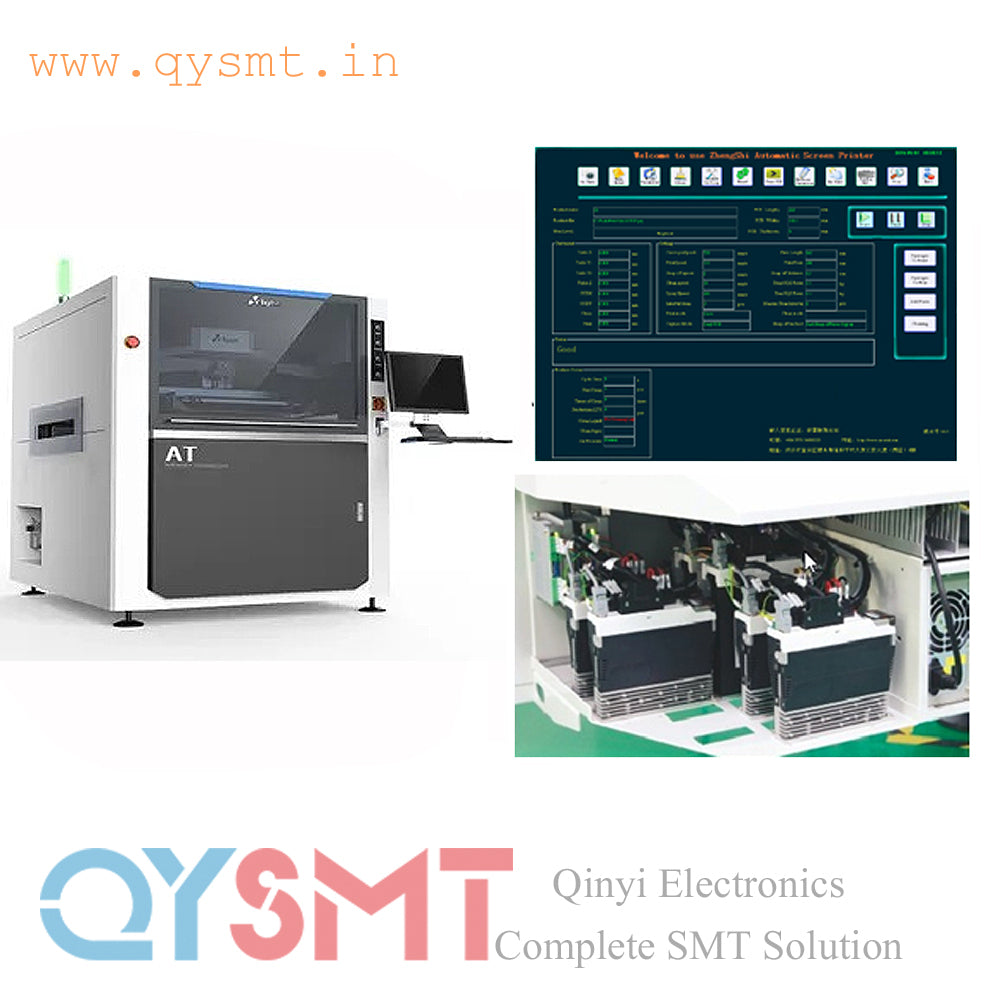

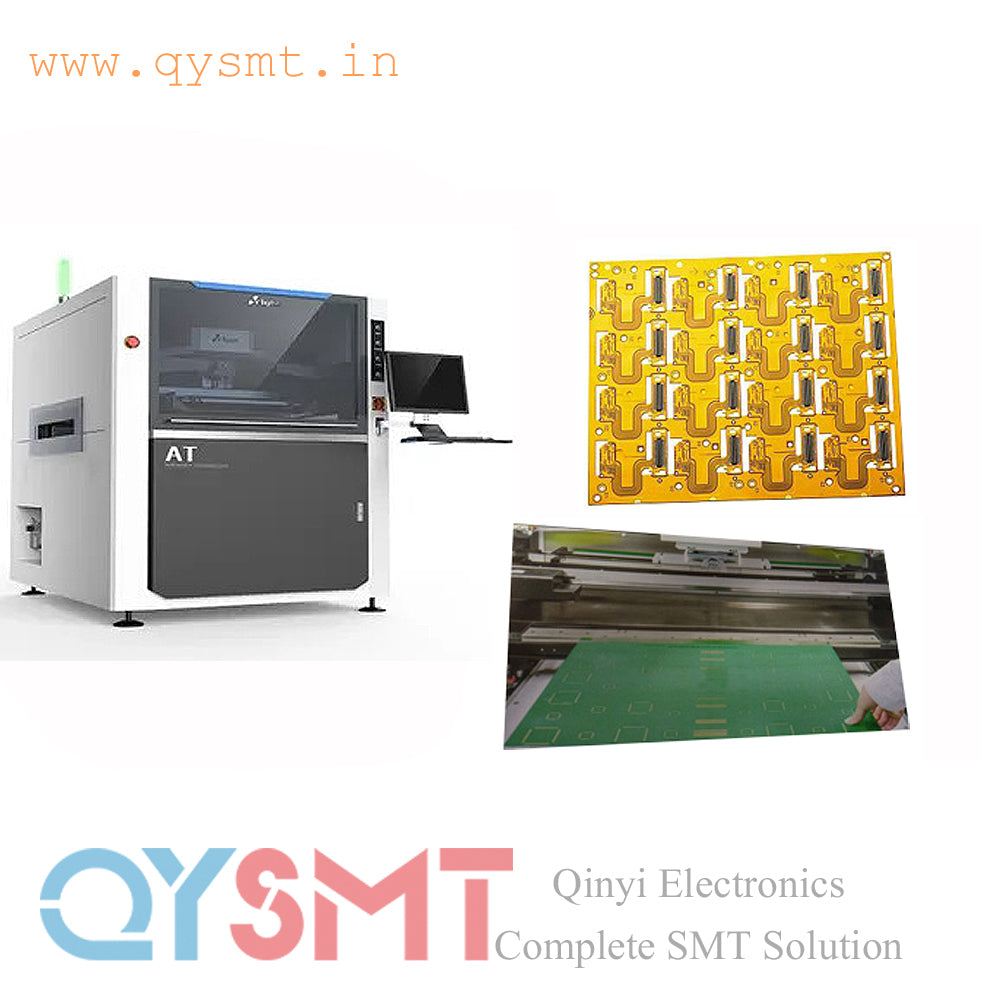

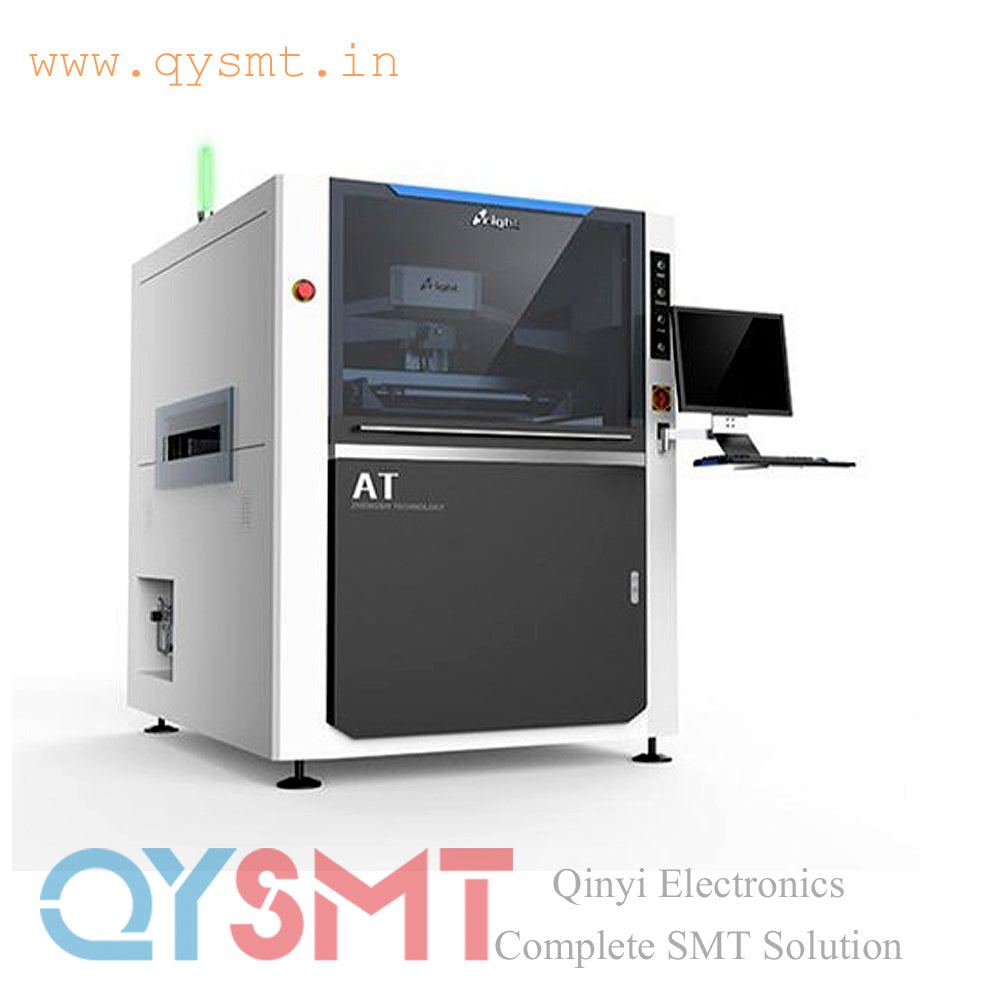

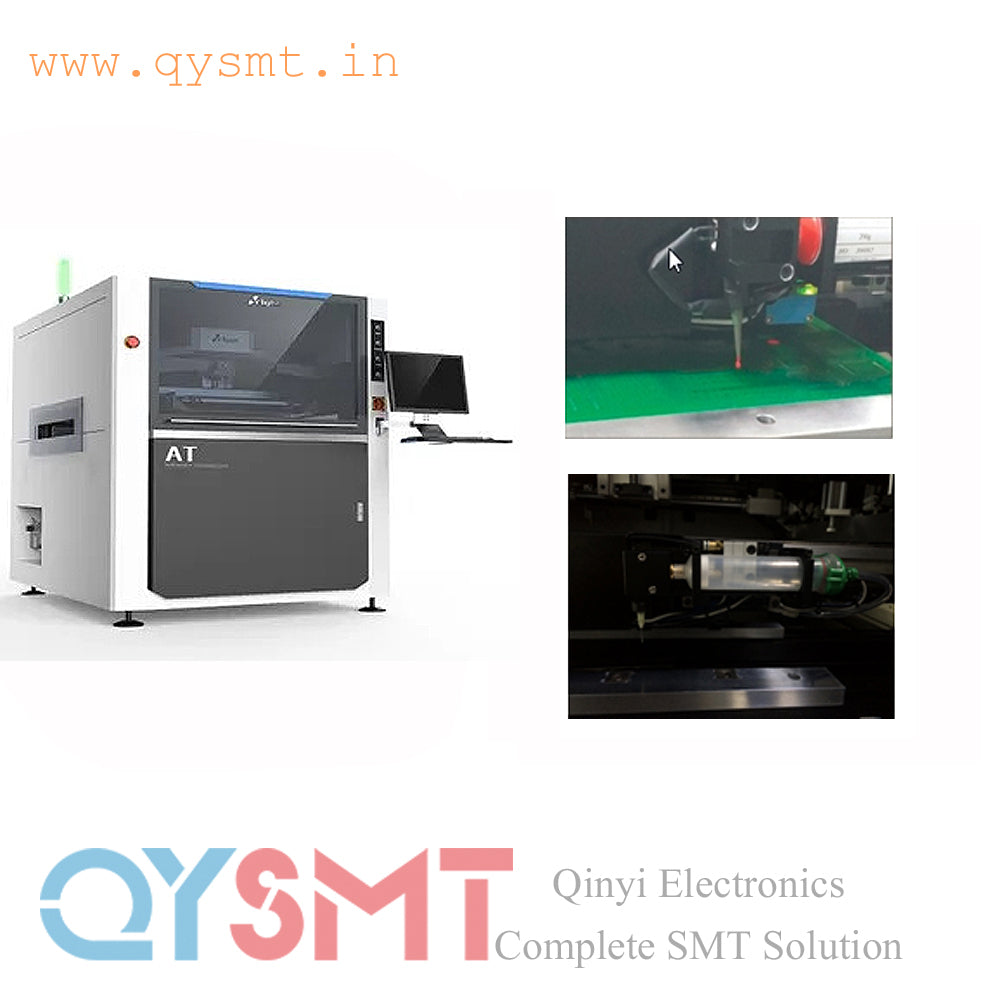

AT Automatic Screen Printer

Model

AT

Item

Screen Frames

Min Size

470X370mm

Max Size

737X737mm

Thickness

25~40mm

PCB Min Size

50X50mm

PCB Max Size

510X510mm

PCB Thickness

0.4~6mm

PCB Warpage

＜1%

Transport Height

900±40mm

Transport Direction

Left-Right;Right-Left;Left-Left;Right-Right

Transport Speed

Max 1500mm/S Programmable

Board Location
PCB

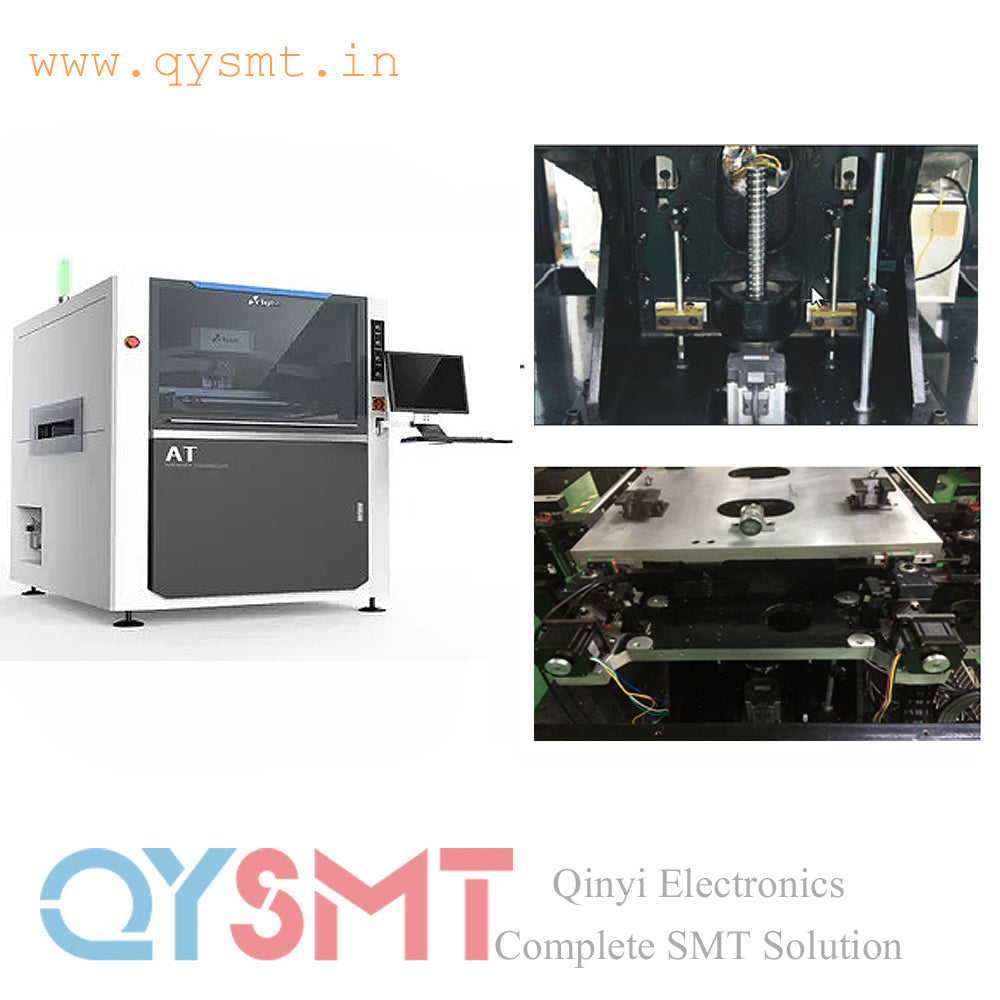

Support System

Magnetic Pin/Up-down table adjusted/supportblock
by hand Magnetic thimble / adjustable jacking platform / contour block

Clamping System

side clamping,vacuum nozzle,

Print head

Two independent motorised printheads

Squeegee Speed

6~200mm/sec

Squeegee Pressure

0~15Kg

Squeegee Angle

60°/55°/45°

Squeegee Type

Stainless steel(Standard), plastic

Stencil Separation Speed

0.1~20mm/sec Programmable

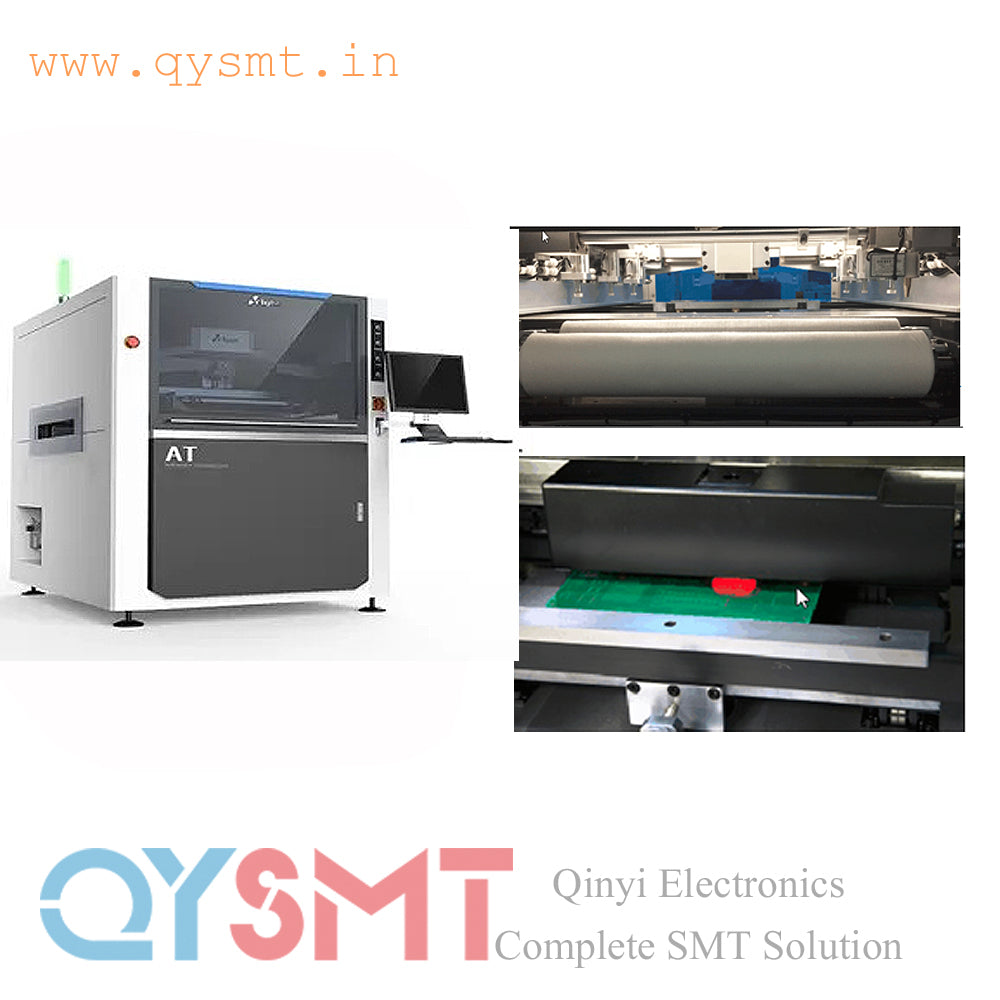

Cleaning System

Dry,Wet,Vacuum (Programmable)

Table Adjustment ranges

X:±10mm;Y:±10mm;θ:±2°

Machine

Repeat Position Accuracy

±0.007mm

Printing Accuracy

±0.015mm

Cycle Time

<8s (Exclude Printing & Cleaning)

Product Changeover

<5Min

Air Required

4.5~6Kg/cm2

Power Input

AC:220±10%,50/60HZ 1Φ 3KW

Control Method

PC Control
