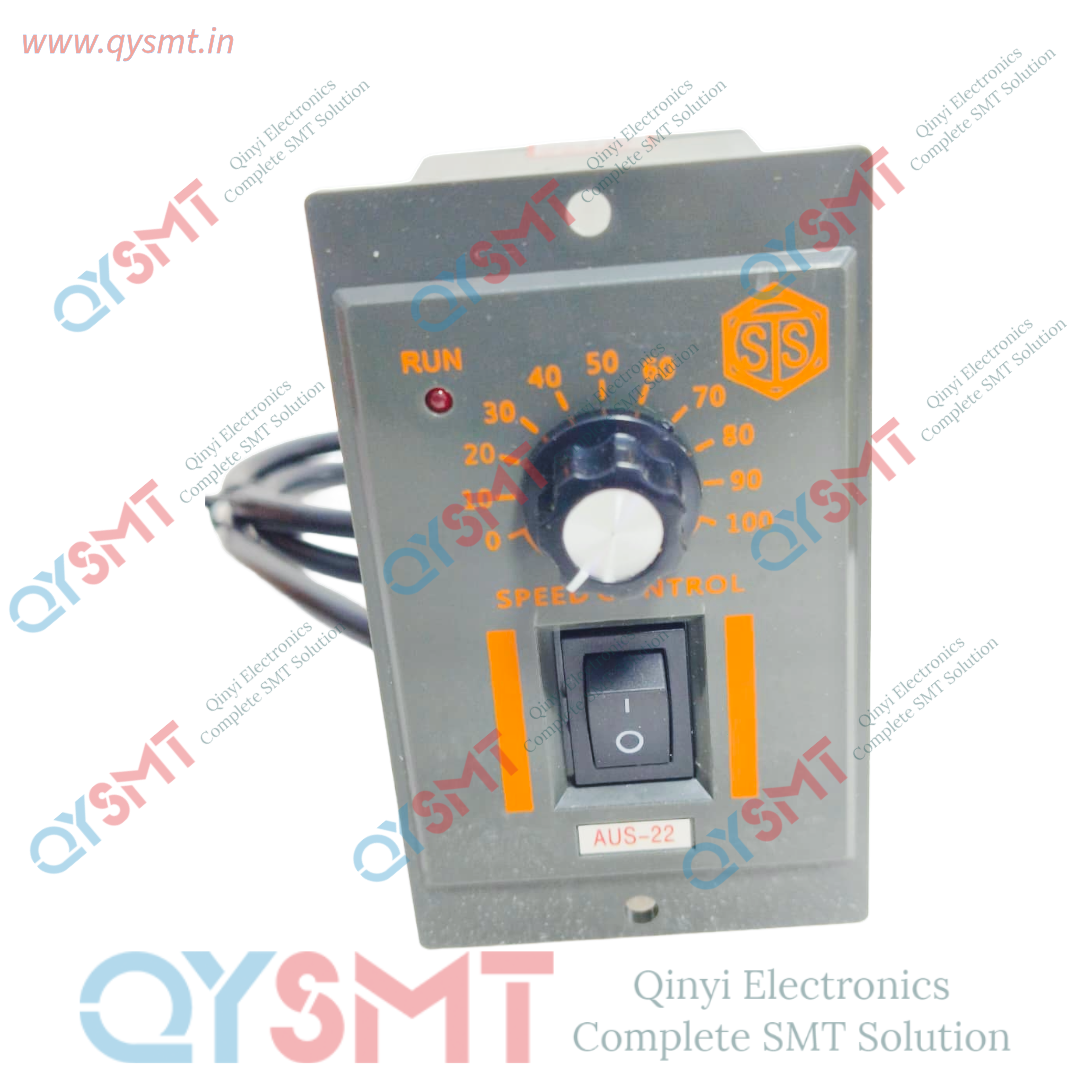

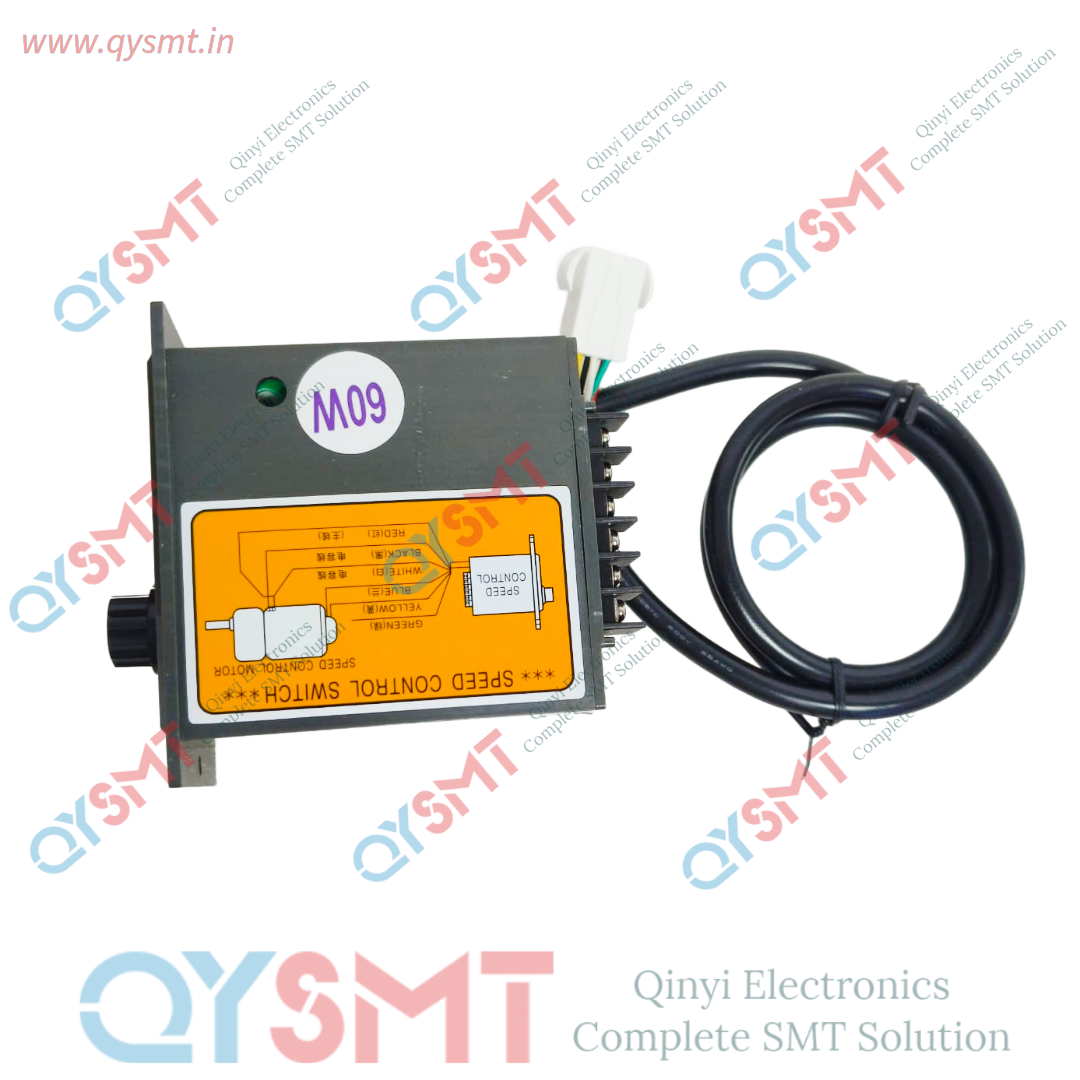

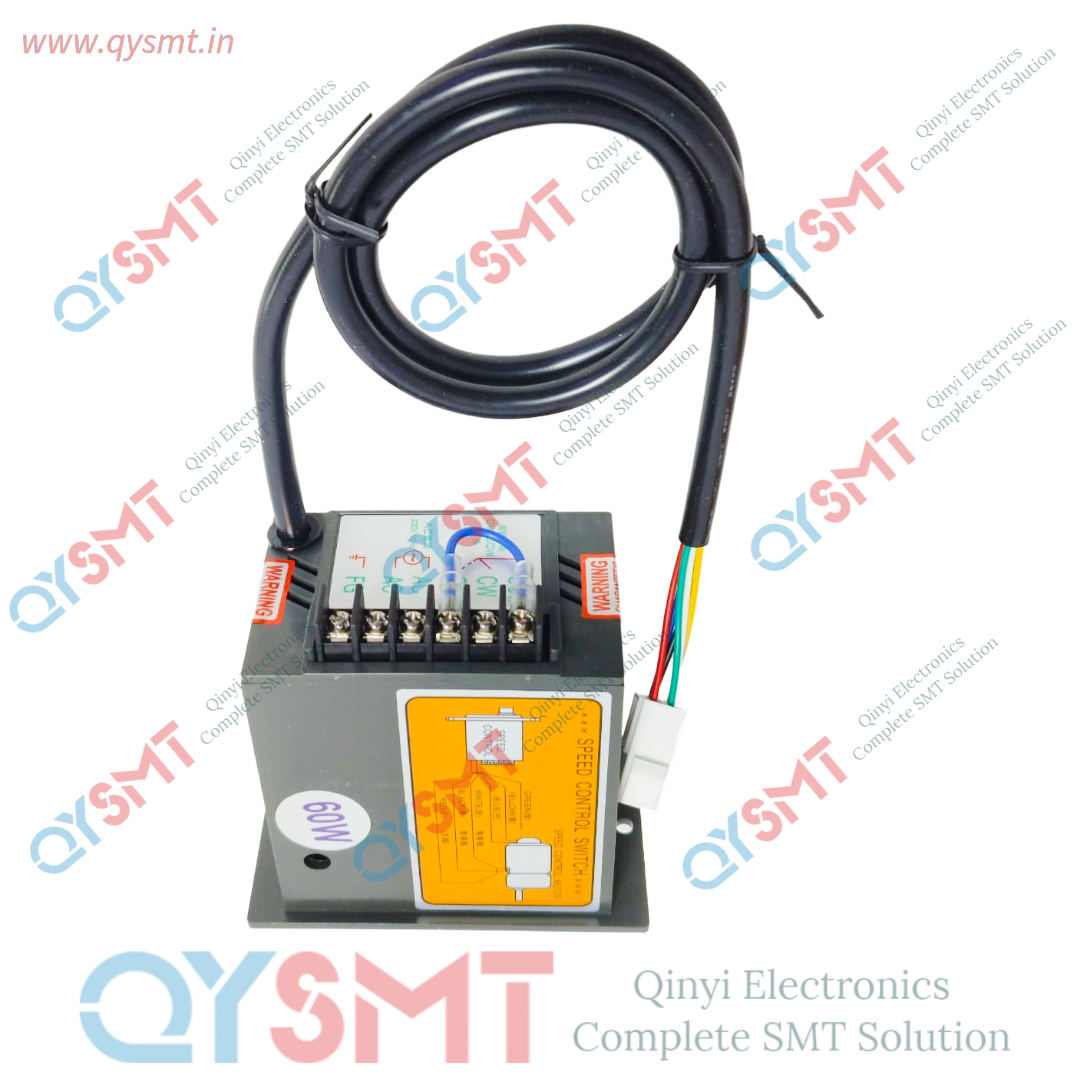

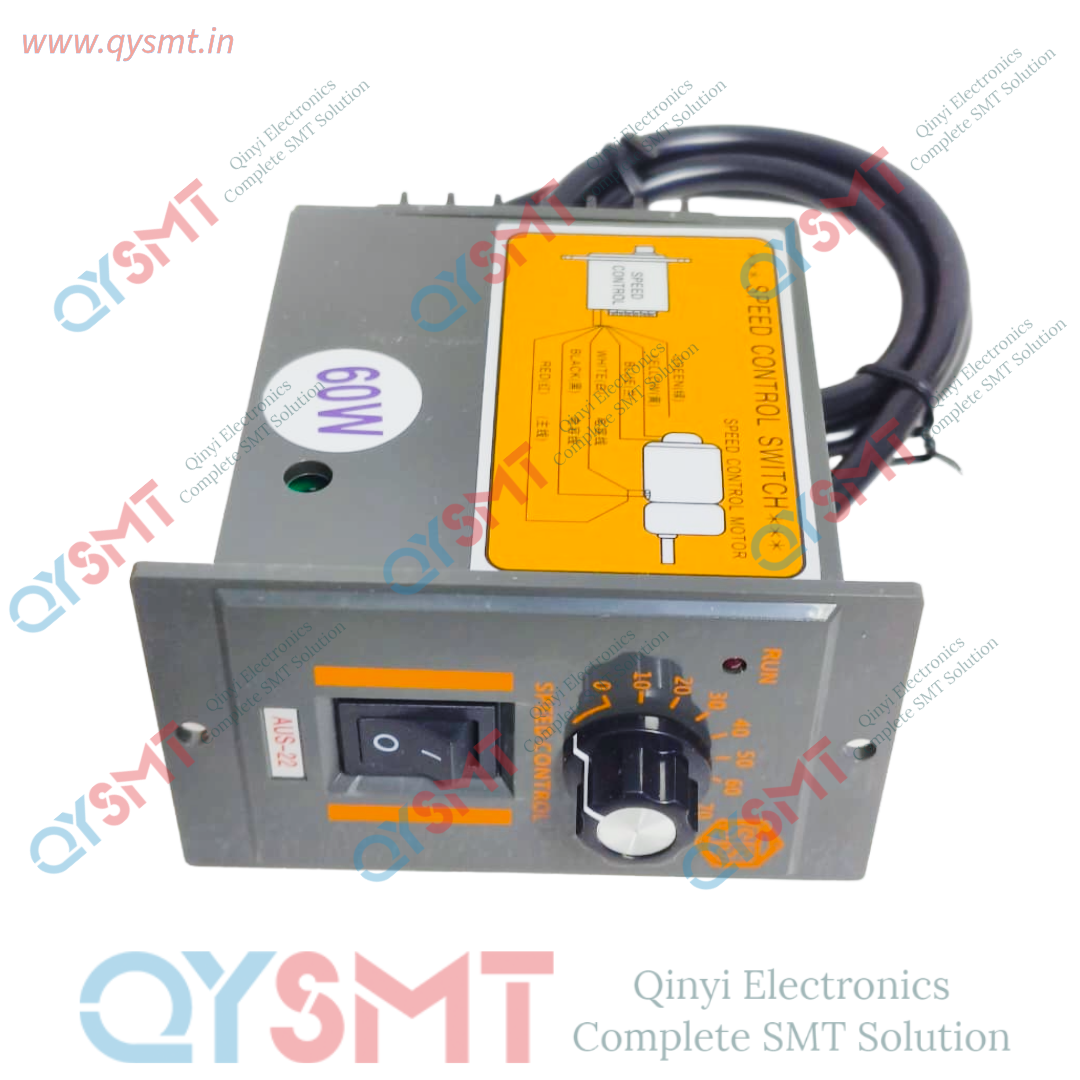

AUS22-60W Speed Controller

AUS22-60W Speed Controller

• Model Number: AUS22-60W (frequently listed as SPC-AUS22-60W)
• Operating Voltage: 220V / 230V AC Single Phase (\(\pm 10\%\)) at 50/60 Hz
• Motor Power Handling: Supports AC speed-controllable motors up to 60W
• Control Mechanism: Manual potentiometer-controlled knob for variable speed adjustments
• Connectivity: Features a standard 5-core wire terminating in a 6-pin connector block
• Rotation Support: Accommodates both Clockwise (CW) and Counter-Clockwise (CCW) rotation setups
• Environmental Tolerance: Optimal operation between \(-10^{\circ}\text{C}\) to \(+40^{\circ}\text{C}\) with non-condensing humidity under 85%

• Compatibility Only: This unit must only be paired with specific AC speed-controllable motors equipped with internal tacho-generators. It will not function with standard fixed-speed induction motors.
• No Instant Stop: This electronic governor is built for variable speed profiles. It does not natively support an instantaneous safety brake/stop feature unless an external mechanical brake motor is integrated.
