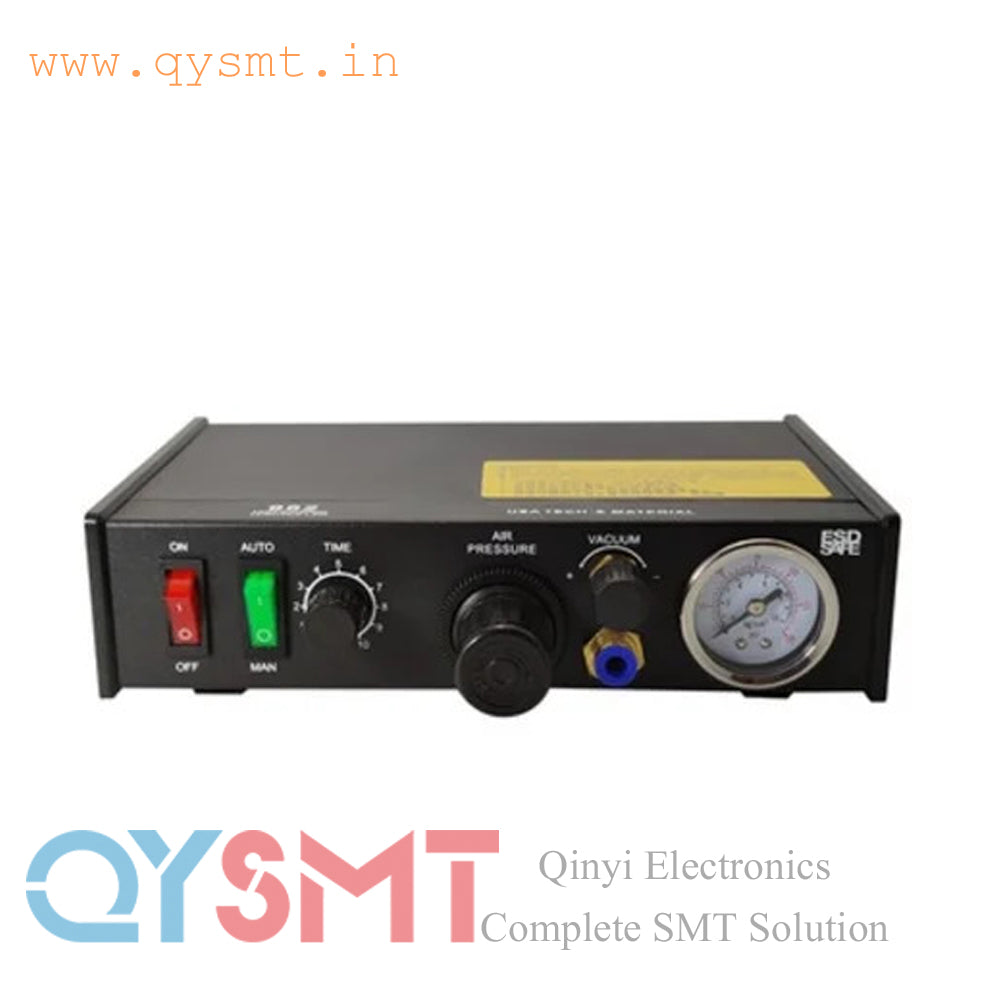

Automatic Glue Dispensing Machine AD982, AD983

Automatic Glue Dispensing Machine AD982, AD983

Automatic Glue Dispensing Machine AD982, AD983
Semi automatic glue dispensing machine
Complete solution for Dispensing machine
with accessories

• with foot pedal switch
• with hand operate switch
• With multiple dispensing needles

Technical Parameters
Power supply: AC 220V ± 10% / 50HZ
Power consumption: <8w
Air source: up to 0.99MPA (clean, dry, non-lubricated air)
Discharge pressure adjustment range: 0.05MPa-0.7MPa
Outstanding time adjustment range: 0.01S-30S, adjustable DIP switch combination, available to a variety of time mode.
Function mode: manual mode adjustable negative pressure control to 600 mm Hg repetition accuracy and spit frequency
Accuracy: ± 0.05% Frequency: 600 beats / min
The minimum spit volume: 0.01ml
Dimensions: 235mm * 225mm * 63mm
Weight 2.9KG

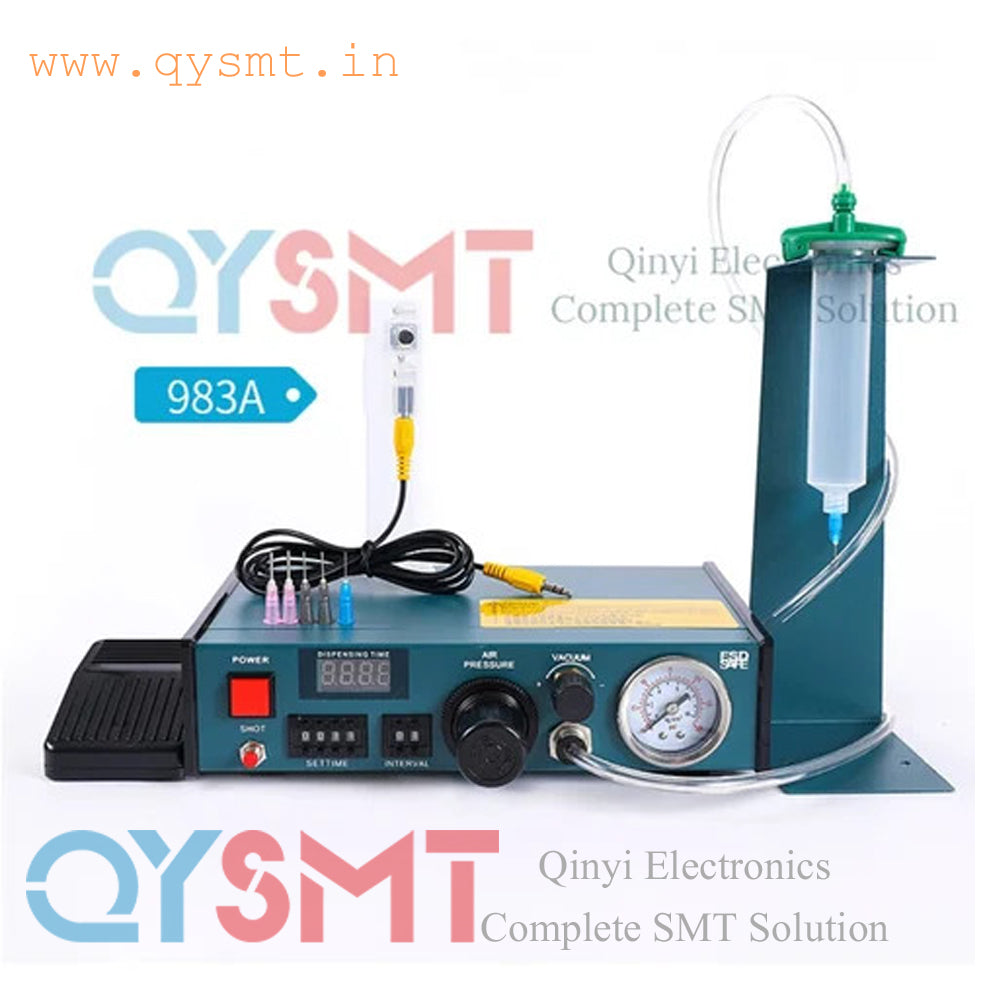

JND-983A Glue Machine Features
Dial the code control out of the quantity of cement and time interval between, digital shows dispensing quantity, the be clear at a glance.
The constant flow control valve CV 0.18 electromagnetic Indicator light switch Can adjust the town for up to 15 inches air suction/mercury (Hg)
Exquisite pedal switch Could purchase all kinds of spare parts.

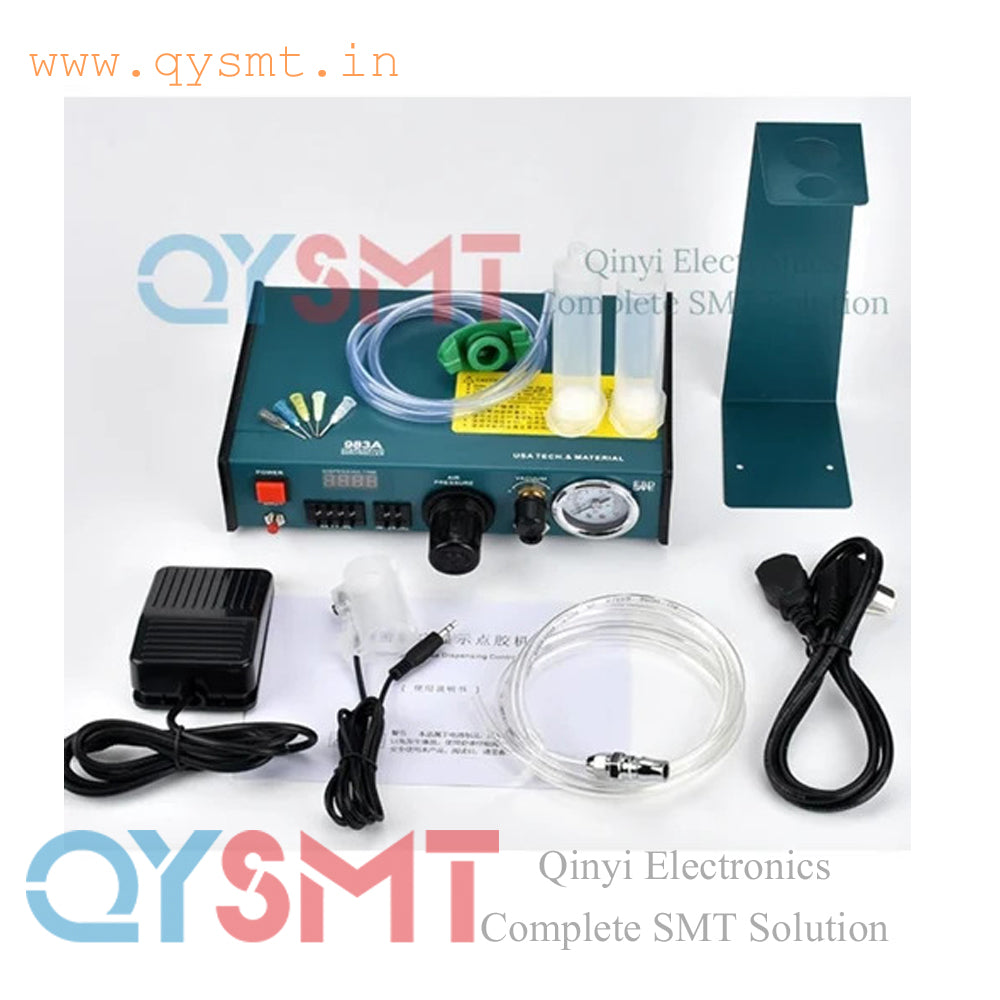

Send accessories:12 needle, needle tube 3, Transfer block 1, Bracket 1, 1 manual switch, 1 foot switch, power cord 1.
Technical Parameters
Power supply: 220V 10%/50Hz + AC 110V 10%/60Hz + AC (internal conversion)
Power consumption:12W
Air source: maximum 0.99MPa (clean dry air)
Spit pressure regulation range: 0.05MPa--0.99MPa
Function mode: manual mode and 16 kinds of free setting mode
Spit time adjustment: automatic timing spit out 9.999S 0.01S-99.99S/0.001S- two group
Spit time display: four LED display, can be free to fine tune the amount of spit
Time regulation: 0.1-9.9S
Vacuum back suction function: adjustable negative pressure control to 600 mm Hg
Repeat accuracy and frequency of spit: accuracy: +0.01% frequency: >800/min
Minimum spit amount: 0.0001ml
Dimension: 235mmx225mmx63mm
Weight: 3kg Volume Weight: 7KG
