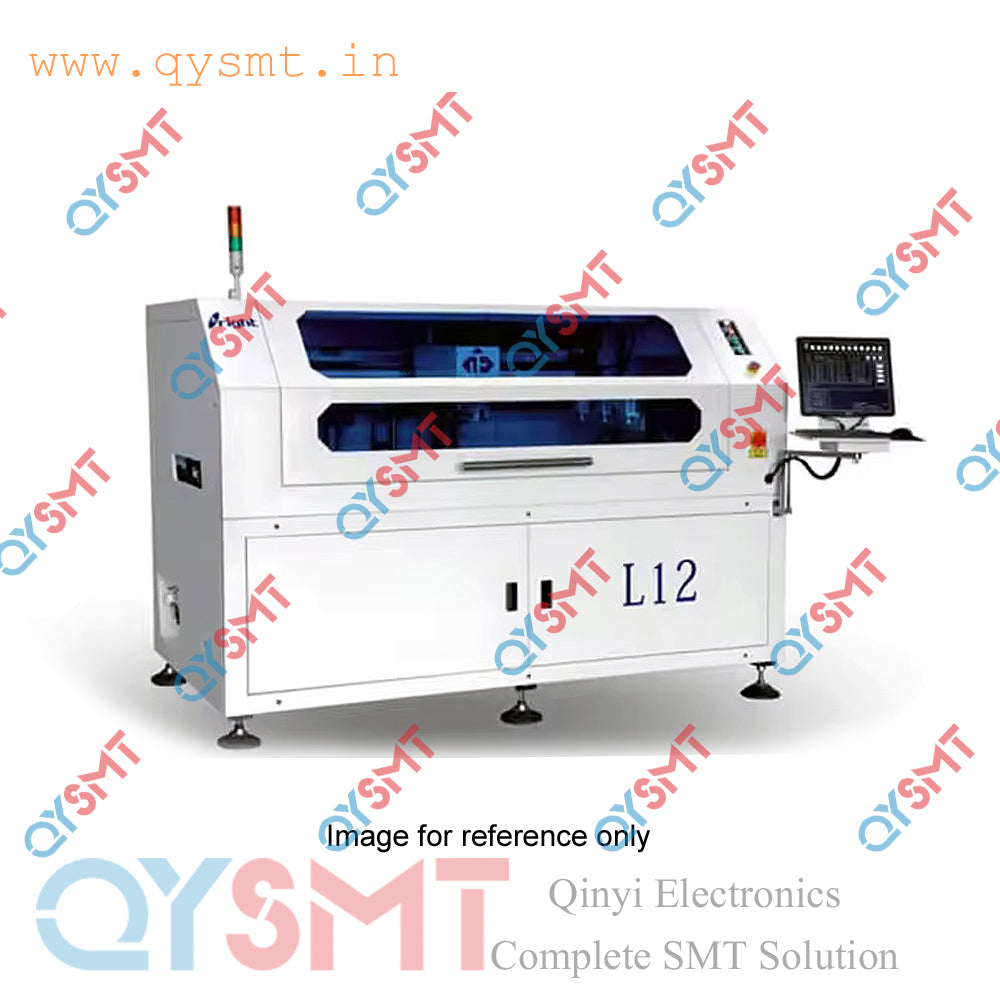

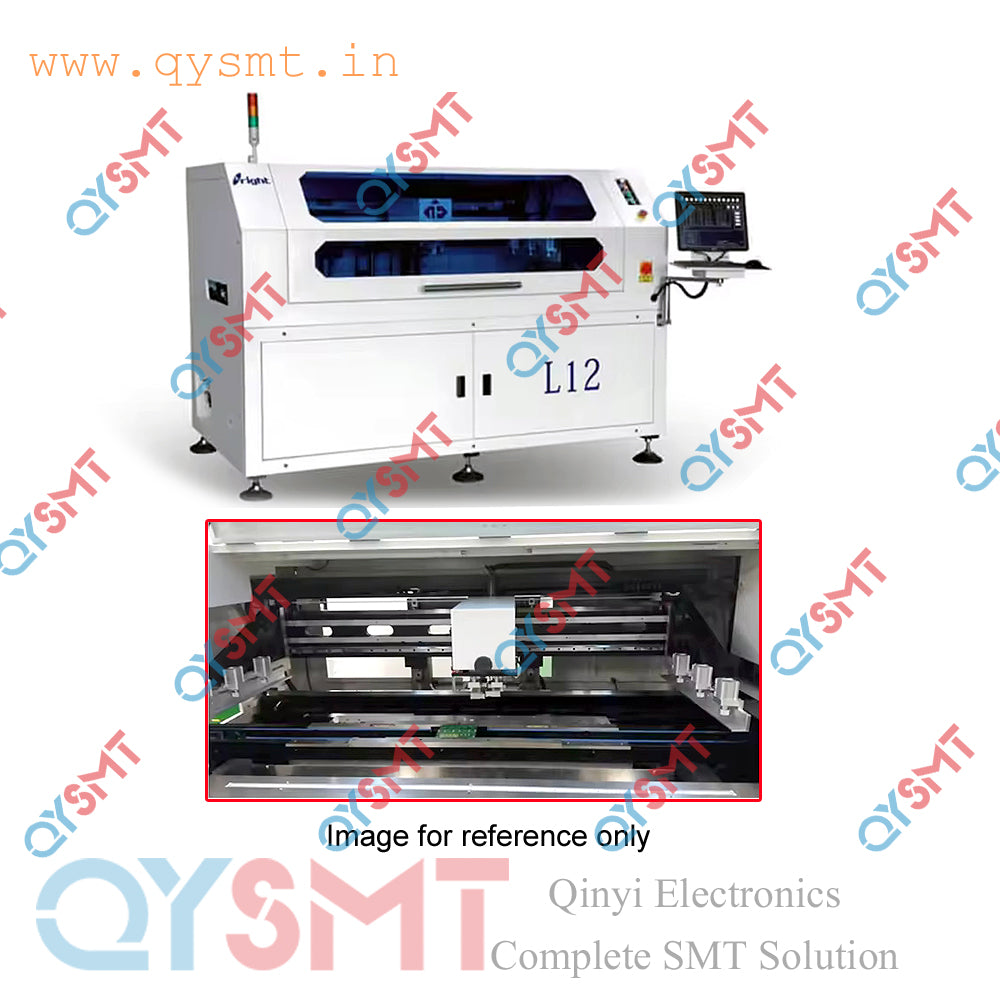

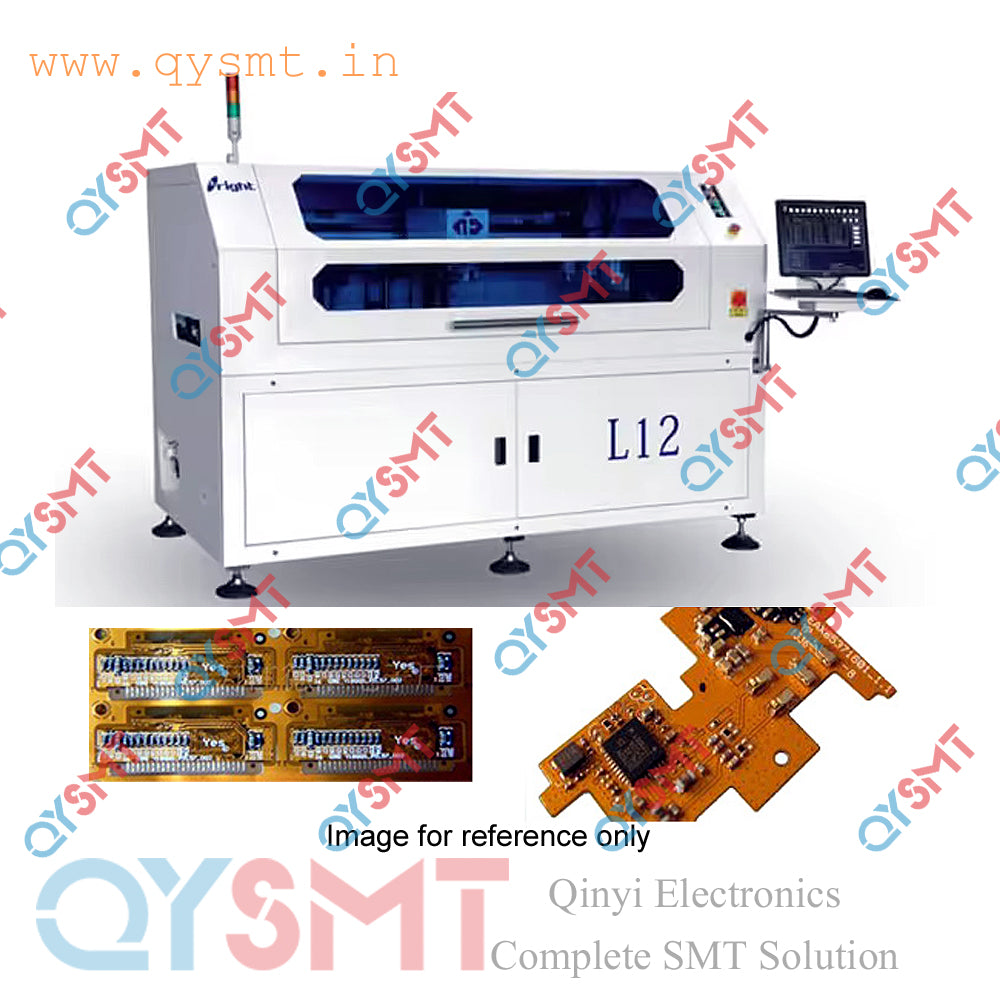

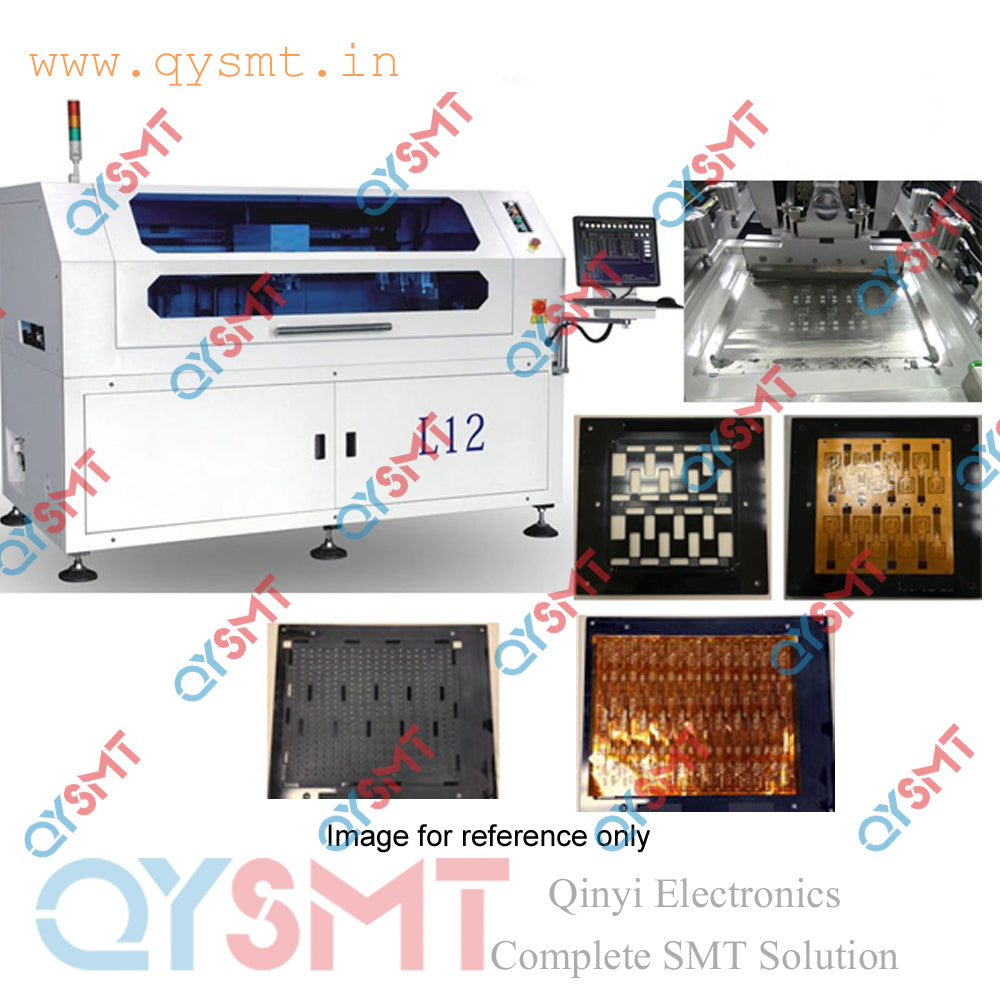

Automatic FPC PCB Screen Printer Stencil Solder Paste Printer Machine CW-L12

FPC PCB Screen Printer Stencil Solder Paste Printer Machine CW-L12

Specification/Additional Details

• Application/Usage : FPC PCB Printing
• Model : CW-L12
• Screen Frames : 737x300mm ~ 1500x750mm
• Screen Frames Thickness : 25~40mm
• PCB Size : 80x50mm ~ 1200x350mm
• PCB Thickness : 0.4~6mm

• PCB Warp age : <1%

• Transport Height : 900+-40mm

• Transport Direction : Left-Right; Right-Left; Left-Left; Right-Right

• Transport Speed : Max 1500mm/S Programmable

• PCB Support System : Magnetic Pin/Up-down table adjusted/support block by hand

• PCB Clamping System : Side clamping, vacuum nozzle

• Print head : Two independent motorised print heads

• Squeegee Speed : 6~200mm/sec Motor Control

• Squeegee Pressure : 0~15Kg Motor Control

• Squeegee Angle : 60 Degree/55 Degree/45 Degree

• Squeegee Type : Stainless steel(Standard), plastic

• Stencil Separation Speed : 0.1~20mm/sec Programmable

• Cleaning System : Dry, Wet, Vacuum (Programmable)

• Repeat Position Accuracy : +-0.015mm

• Printing Accuracy : +-0.03mm

• Cycle Time : <15s (Exclude Printing & Cleaning)

• Product Changeover : <5Min

• Air Required : 4.5~6Kg/cm2

• Power Input : AC:220+-10%,50/60HZ  3KW

• Control Method : PC Control

• Machine Dimensions : 2200(L)X1200(W)X1500(H)mm

• Machine Weight : Approx:1500Kg
