JTS-560 Automatic Screw Feeder Machine
Screw machine:

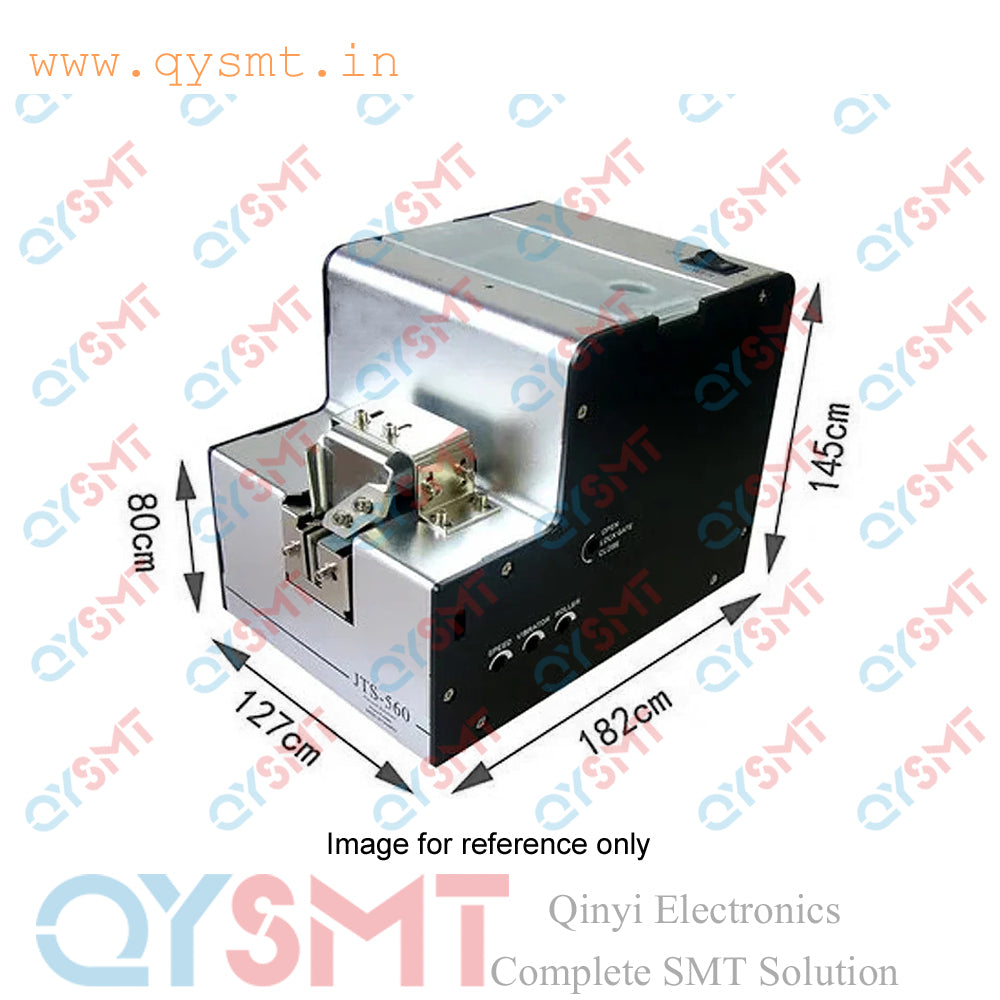

  Dimensions: 123(W)*181(D)*145(H)mm

  Track adjustable range: 1.0mm-5.0mm

  Net weight: 2.5kg

  Thread shape: Machine teeth. Self-tapping screws

  DC power supply: input AC100-220V, output DC15V 1.5A

  Screw material: ferrous metal

  Screw length range: less than or equal to 20mm

  Continuous pick-up speed: 1.5 seconds/1 piece

  Suitable types of screws: standard screws (M1.0-M5.0), special screws, 1:1 short screws, screws with washers, etc. The vibration intensity can be adjusted.

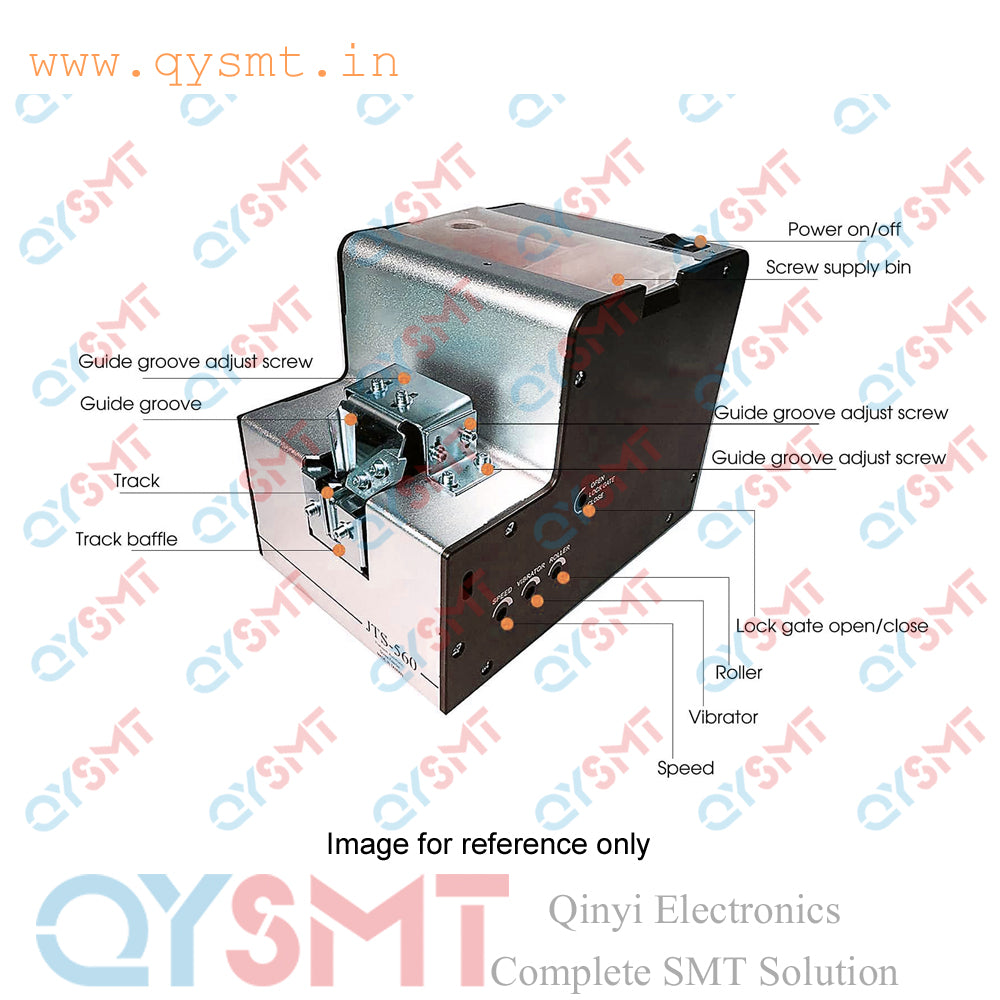

  The track (remove) is adjustable, and one machine can be used for various specifications of screws.

 Reasonable design, strong and reliable.

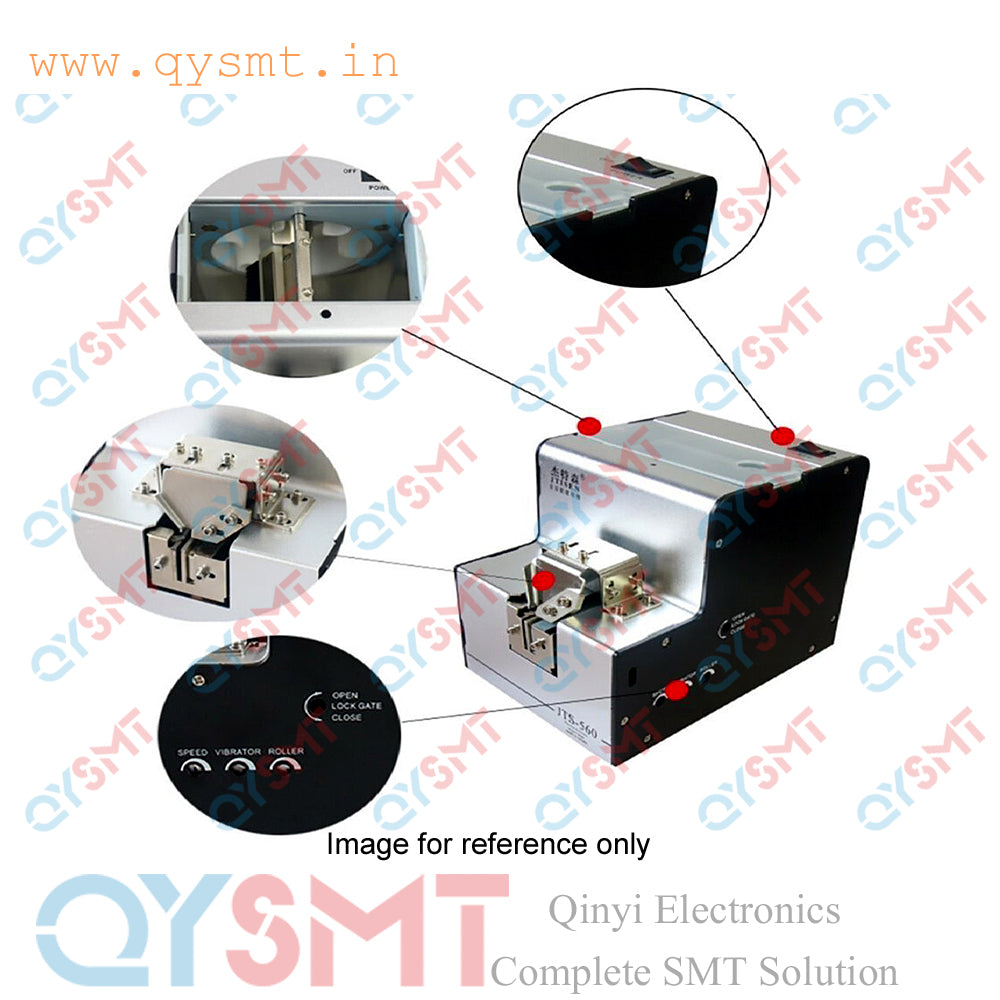

 The guide nozzle is adjusted up and down with a screw, which is more convenient.

  The brush is adjusted up and down with a screw, which is more convenient
This screw machine is guaranteed for 1 year, and the quality problem can be replaced for free within 3 months. This screw machine is of good quality and price
product specification

 1. One machine can be applied to various specifications of screws1.0--5.0 adjustable ( 1.0 1.2 1.4 1.7 2.0 2.3 2.6 3.0 3.5 4.0 5.0 )
2. You can use special screws1 : 1 short screws, and screws with gaskets can be used universally!The track is easy to adjust ! The track of the screw machine can be pulled out and adjusted freely! Easy to understand and easy to operate! 3. No stuck screw phenomenon The screw moves in the drum and falls into the bucket, and all the screws that do not enter the track are cleared into the drum to enter the next cycle. The working speed can be adjusted freely, and the speed can be changed by adjusting the vibration intensity. The screw will not shake back and forth when it reaches the pick-up position, which will affect the work efficiency!

 Suitable for various types of screws including screws with washers (the longest L=20MM )
output speed
 2 capsules / second
Input voltage
 AC 220V 110v
the weight
 Approx. 2.3 kg (net weight)
Accessories
 DC power supply (input 110-220V output DC 12V )
physical dimension
 180mm*125mm*150mm (length * width * height)
******************************************
