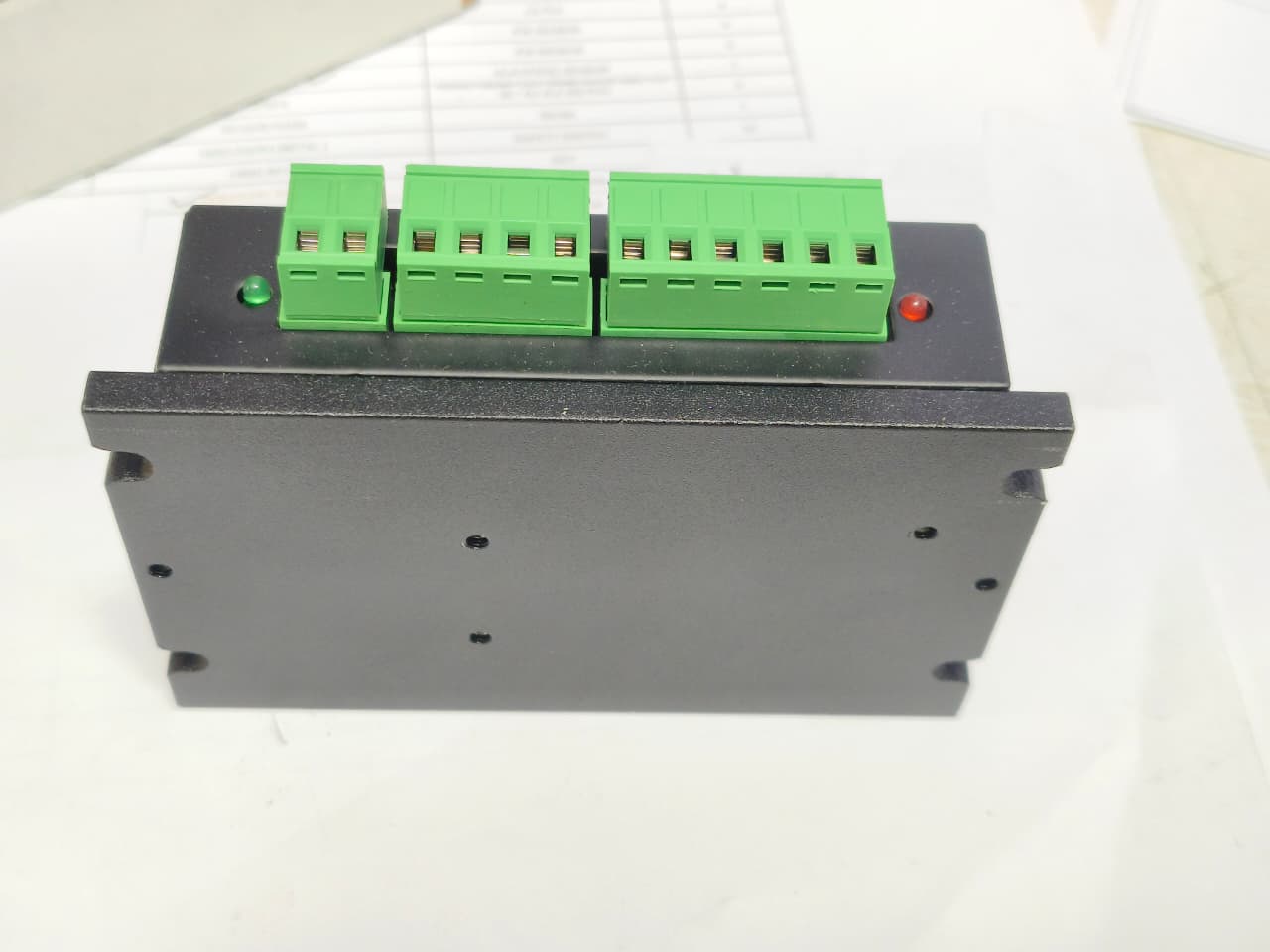

B804 STEPPER MOTOR DRIVE
B804 STEPPER MOTOR DRIVE
Contact Seller :- Call or Whatsapp +91 9319902096 harshita@qysmt.in
Contact Seller :- Call or Whatsapp +91 9319902096 harshita@qysmt.in
Call or Whatsapp
+91 9319902096
Email: harshita@qysmt.in
B804 STEPPER MOTOR DRIVE
Key Technical SpecificationsWhile specifications can vary slightly by manufacturer (such as Excella Electronics or MS Motor), the standard technical parameters for the B804 drive include:
| Feature | Specification |
|---|---|
| Supply Voltage | 12V to 60V DC (Some versions support up to 75V DC) |
| Output Current | 1.8A to 4.0A (Peak values can reach up to 6.0A) |
| Step Modes | Full step, Half step (1/1, 1/2) |
| Pulse Frequency | 0 to 400 kHz |
| Control Logic | Single/Double pulse settings via DIP switches |
| Motor Compatibility | 4-wire, 6-wire, and 8-wire 2-phase motors |
Features and Protection
- Protection Systems: Includes built-in safeguards against overcurrent, overvoltage, undervoltage, and fault phases to prevent motor damage.
- Operational Smoothness: Features "Soft Start" technology to prevent sudden motor jumps upon power-up and optical isolation for signal inputs to reduce interference.
- Adjustability: Current and micro-step settings are easily adjustable via on-board DIP switches or potentiometers depending on the specific model.
- Applications: Commonly used in terminal machines, wire strippers, and small-to-mid-size CNC machinery where high-speed requirements are critical.
