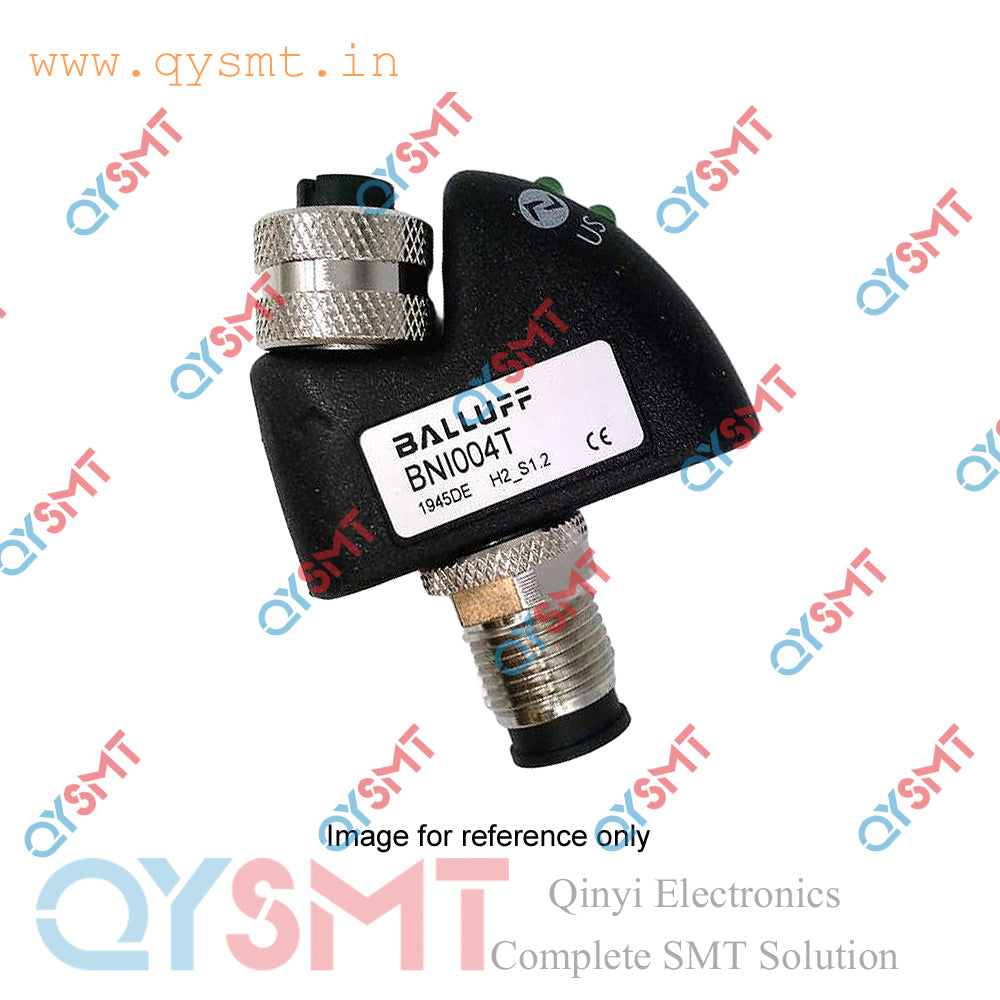

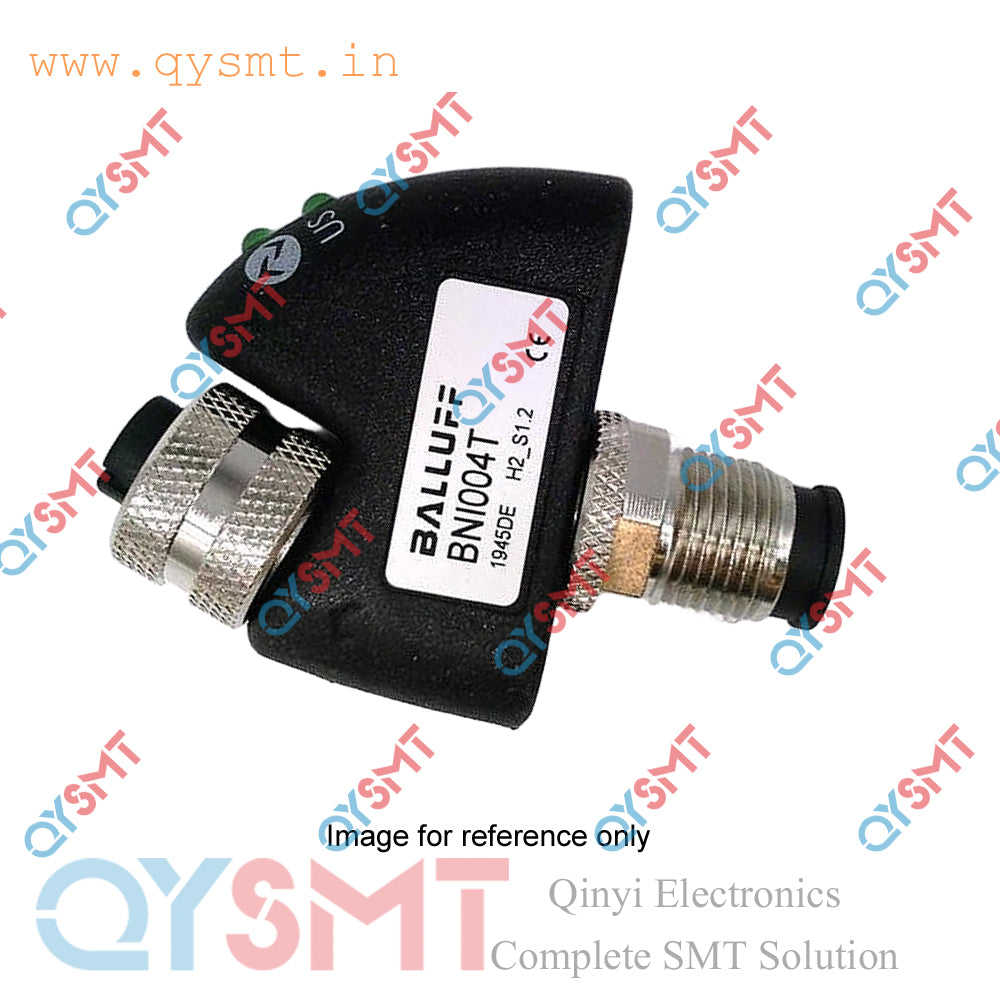

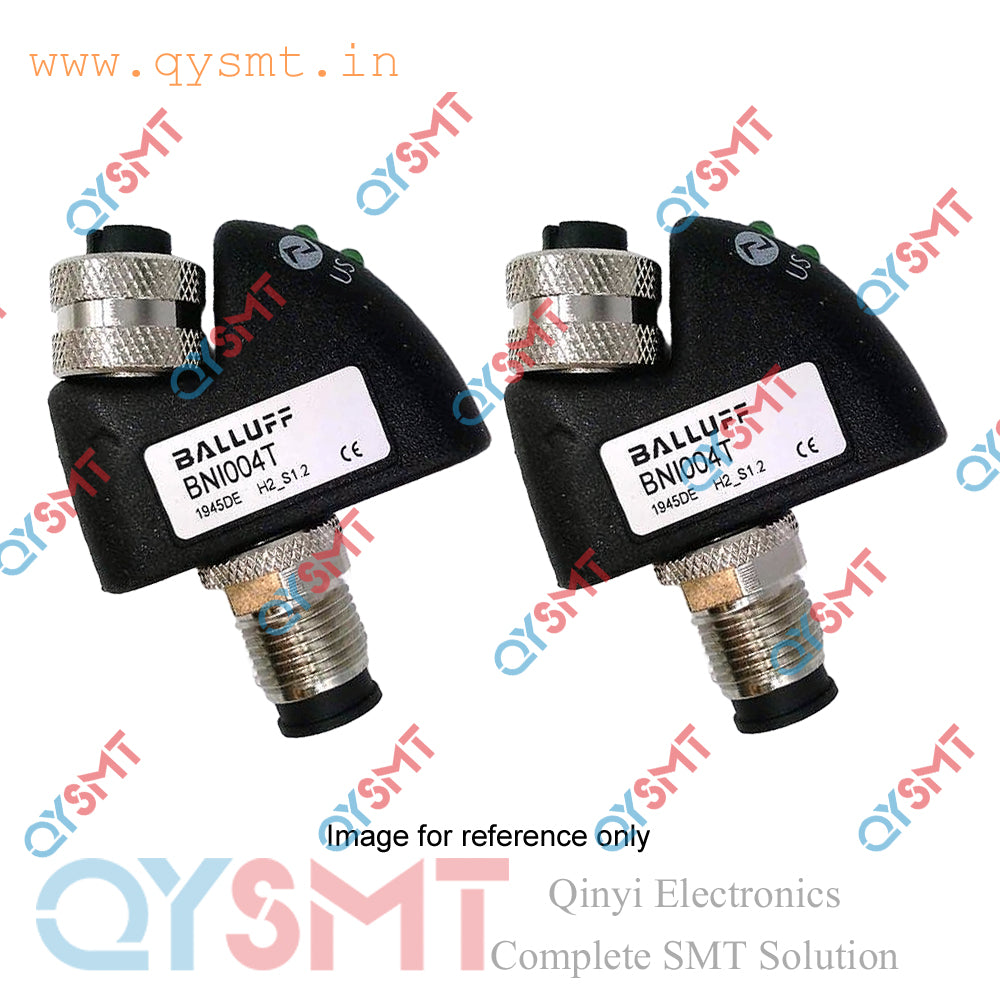

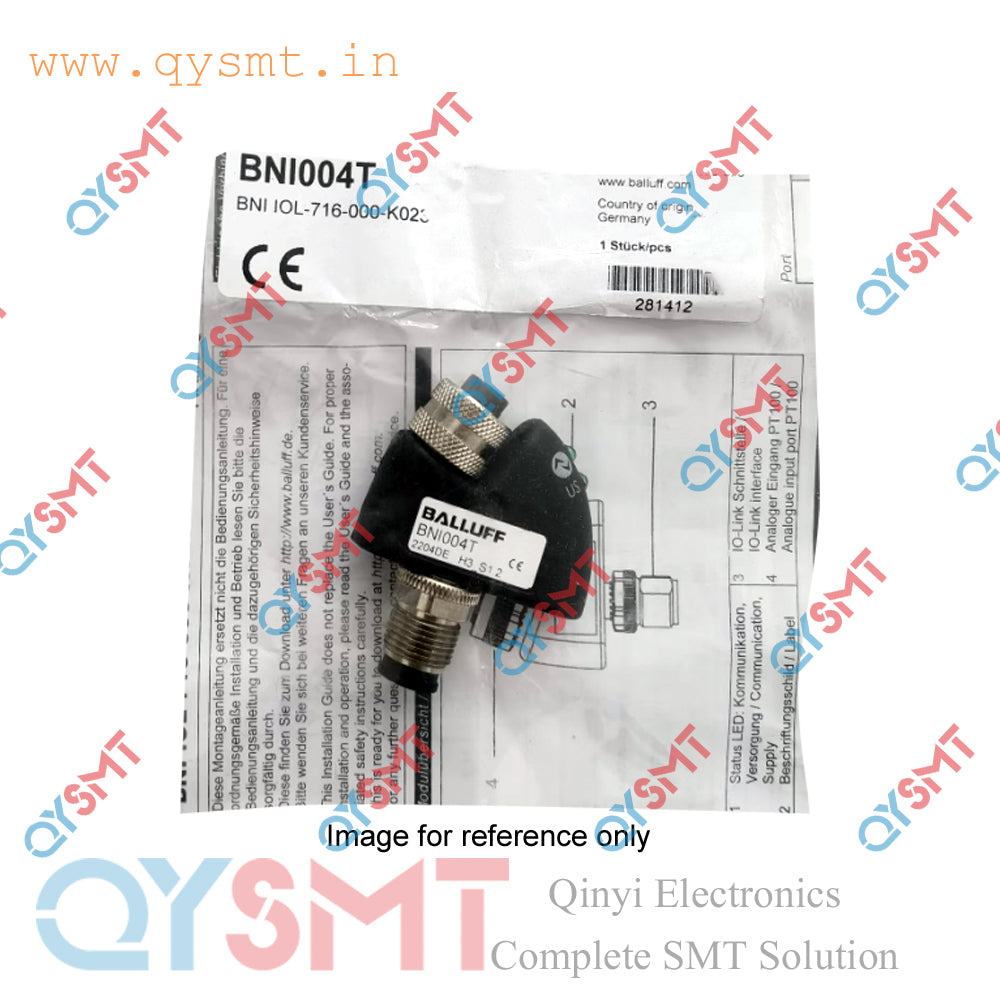

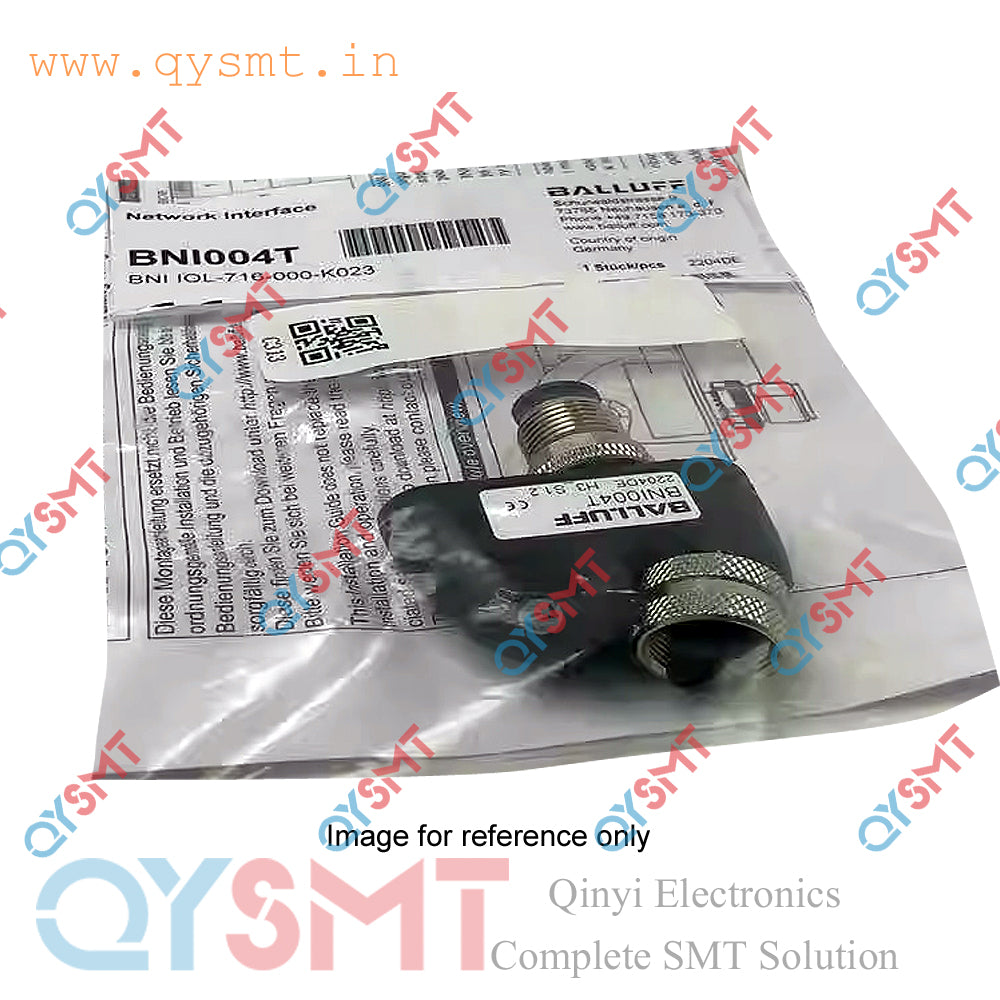

BALLUFF BNI IOL-716-000-K023 BNI004T Signal Converter

BALLUFF BNI IOL-716-000-K023 BNI004T Active Splitter,
IO-Link Function Device BNI004T Signal Converter -Balluff,
BNI IOL-716-000-K023 Analog converter IO-Link 1.0 18 To 30.2 VDC

Specification/Additional Details

• Usage/Application : Industrial
• Input Voltage : 18 To 30.2V DC
• Model Name/Number : BNI004T
• Brand : BALLUFF
• Material : PA

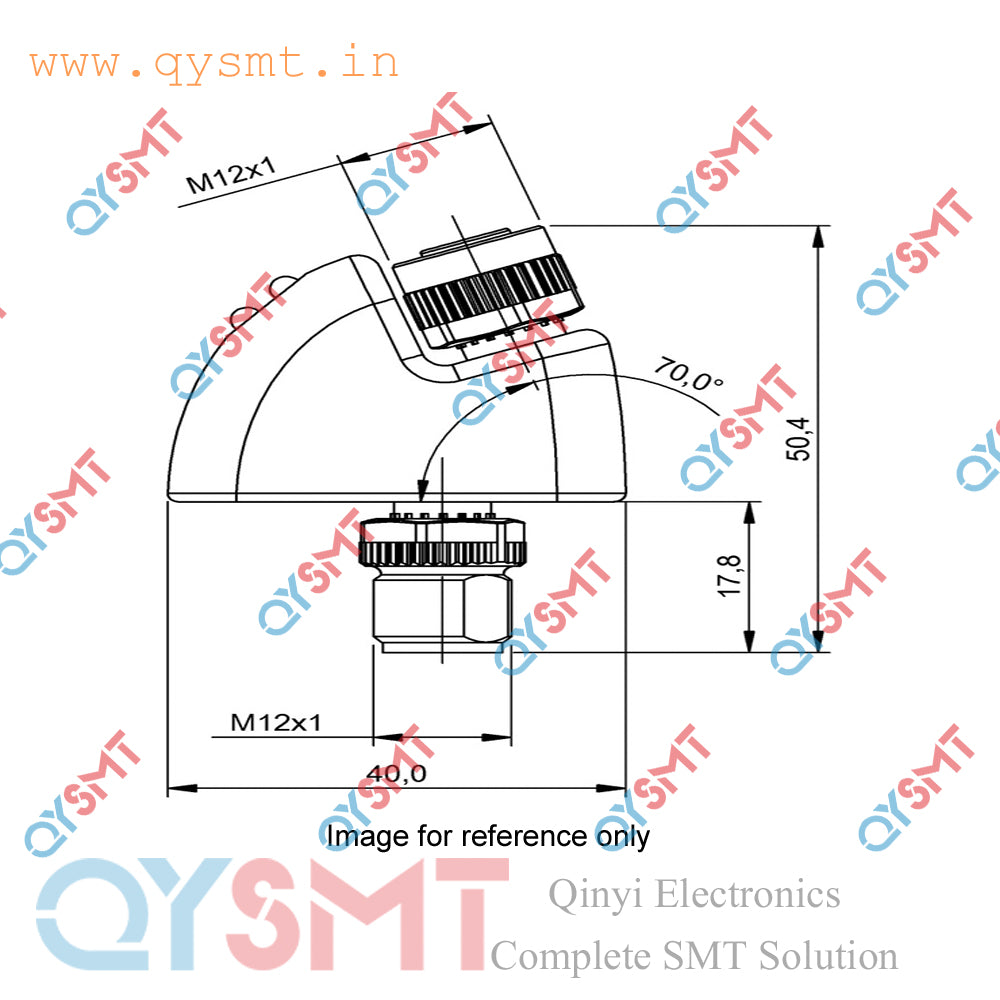

• Dimensions mm : 14.2 x 50.4 x 40
• Ip Level : IP67, when threaded in

• Connection : M12x1-Male, 4-pin, A-coded

• Connection for sensor :M12x1-Female, 4-pin, A-coded

• Process data cycle min. : 12 ms

• Process data IN : 2 bytes
