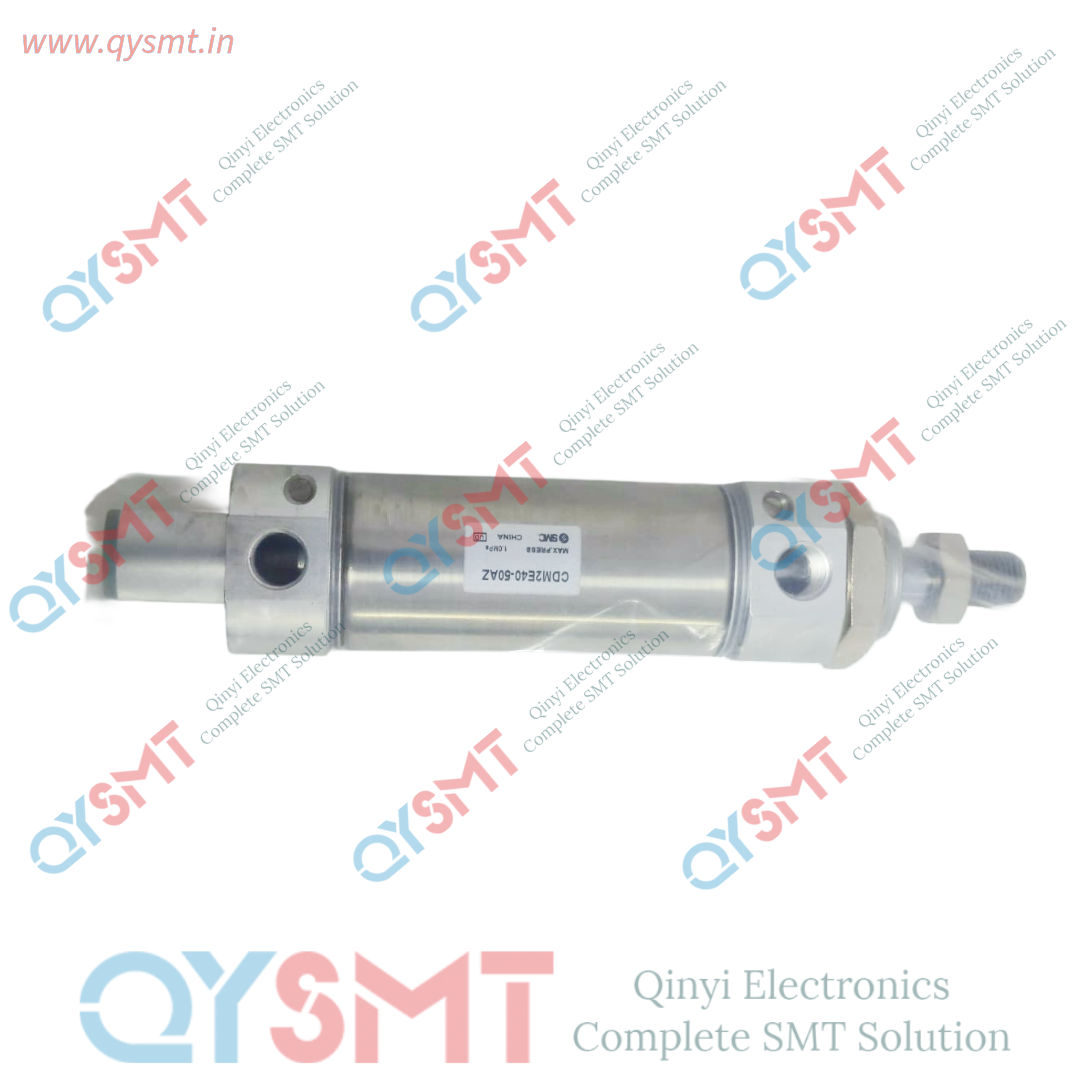

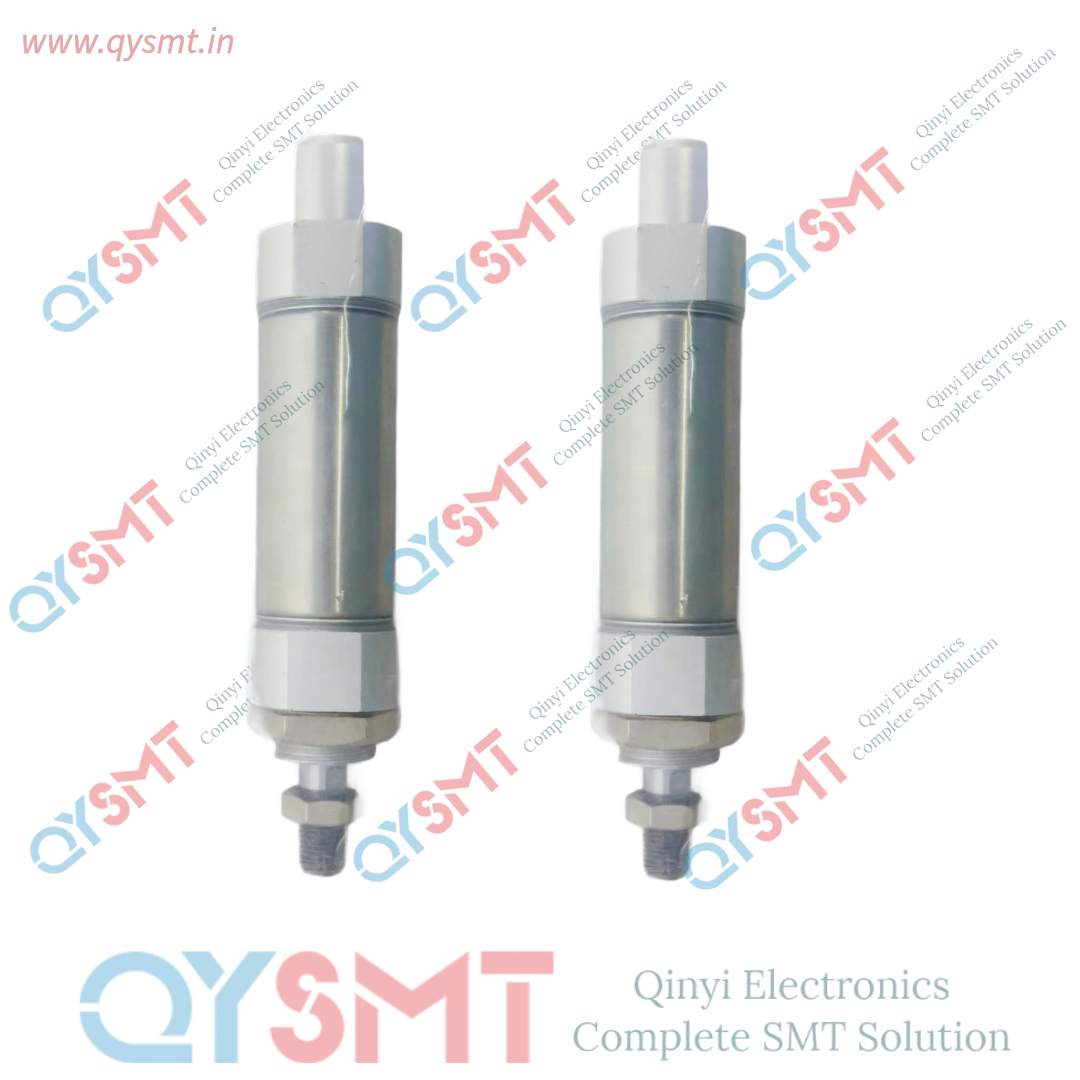

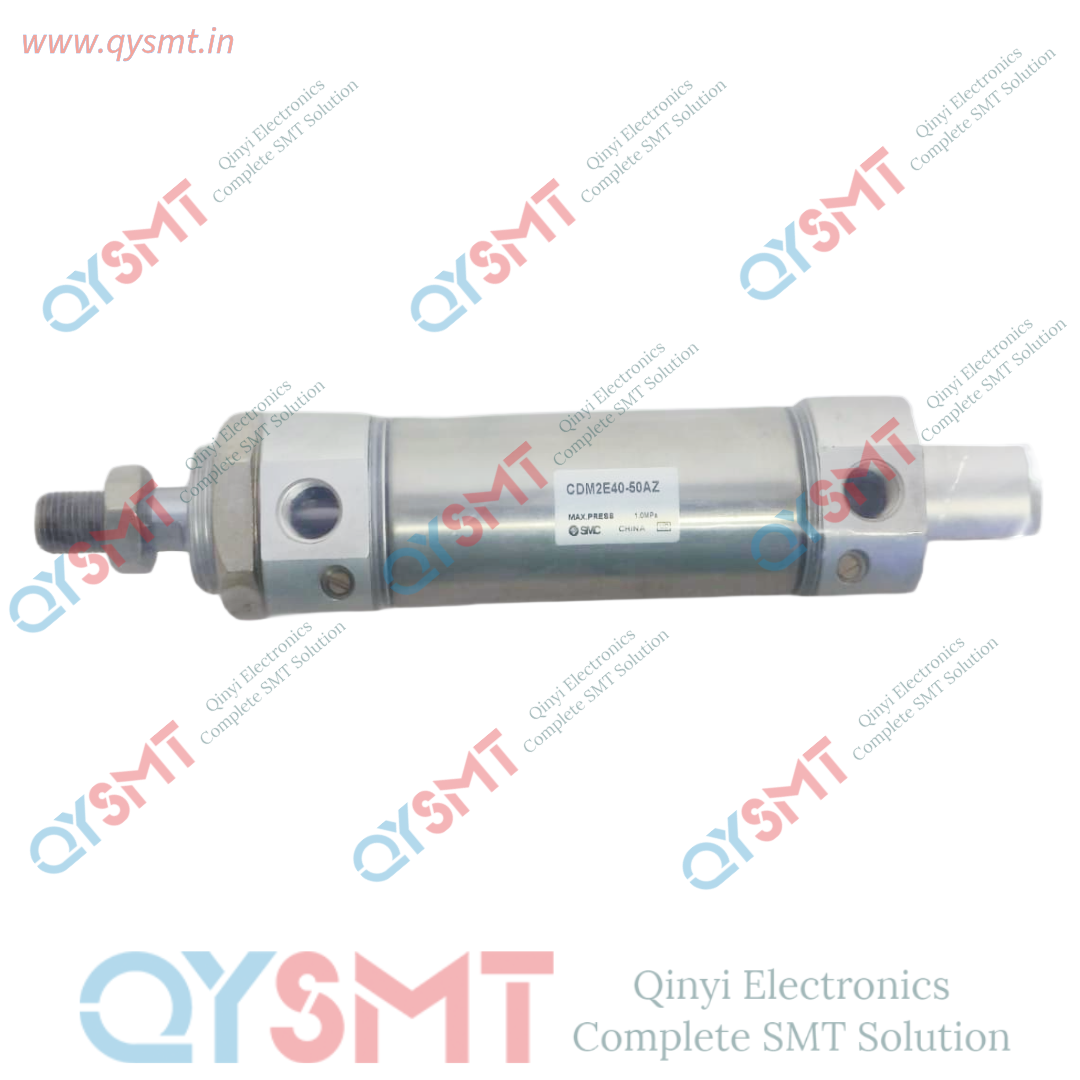

CDM2E40-50AZ Pneumatic CYLINDER

CDM2E40-50AZ Pneumatic CYLINDER
Key Features

• Action: Double acting. Air pressure extends and retracts the cylinder.
• Bore Size: 40 mm. This determines how much pushing force the cylinder creates.
• Stroke Length: 50 mm.
• Auto Switch Ready: The "M" in the part number means it has a magnet. You can add sensors to tell a computer when the shaft reaches the end of its travel.
• Integral Clevis: The "E" means the cylinder comes with a built-in U-shaped mount. This lets the cylinder pivot while in motion.

How It WorksInside the metal tube, there is a round rubber seal called a piston. Air pushes on one side of the piston. The formula for the pushing force is: Force = Pressure × Area

• Pressure: The air compressor's push.
• Area: The surface size of the piston inside the tube.

How to Calculate ForceBecause the piston rod takes up space on one side, it has two forces:

1. Extend Force: Pushes with the full area.
2. Retract Force: Pushes with less area (because the metal rod blocks some air).

For example, if you run standard air pressure at 6 bar (about 87 psi), the 40 mm bore pushes with roughly 75 kg (750 Newtons) of force.If you need to replace or set up your cylinder, let me know:

• What accessories do you need (e.g., auto-switches, mounting brackets)?
• What is your application (what are you pushing or pulling)
