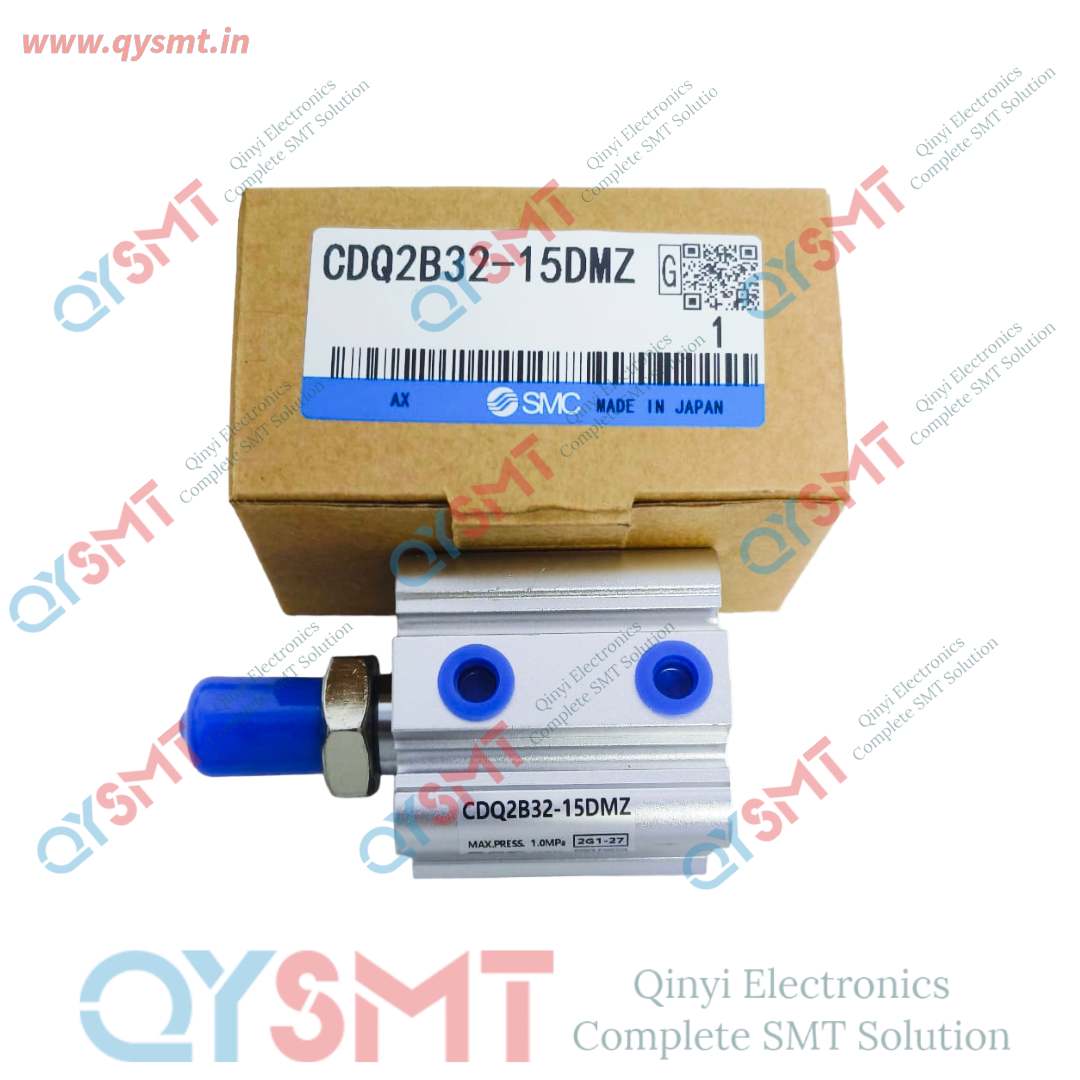

CDQ2B32-15DMZ cylinder SMC

CDQ2B32-15DMZ cylinder SMC
Part Number Breakdown

• C: Auto-switch capable (built-in magnet)
• D: Double acting
• Q2: Compact Cylinder series
• B: Through-hole mounting style
• 32: 32 mm bore diameter
• 15: 15 mm stroke length
• D: Double acting action
• M: Male rod end thread (Standard option is female)
• Z: New, redesigned body type

Technical Specifications

• Action: Double acting, single rod
• Fluid: Air
• Maximum Operating Pressure: 1.0 MPa (145 psi)
• Proof Pressure: 1.5 MPa
• Ambient and Fluid Temperature: -10°C to 60°C (with no freezing)
• Cushion Type: None (Rubber bumpers are available as options)
• Port Size: 1/8" Rc
• Body Material: Aluminum alloy
