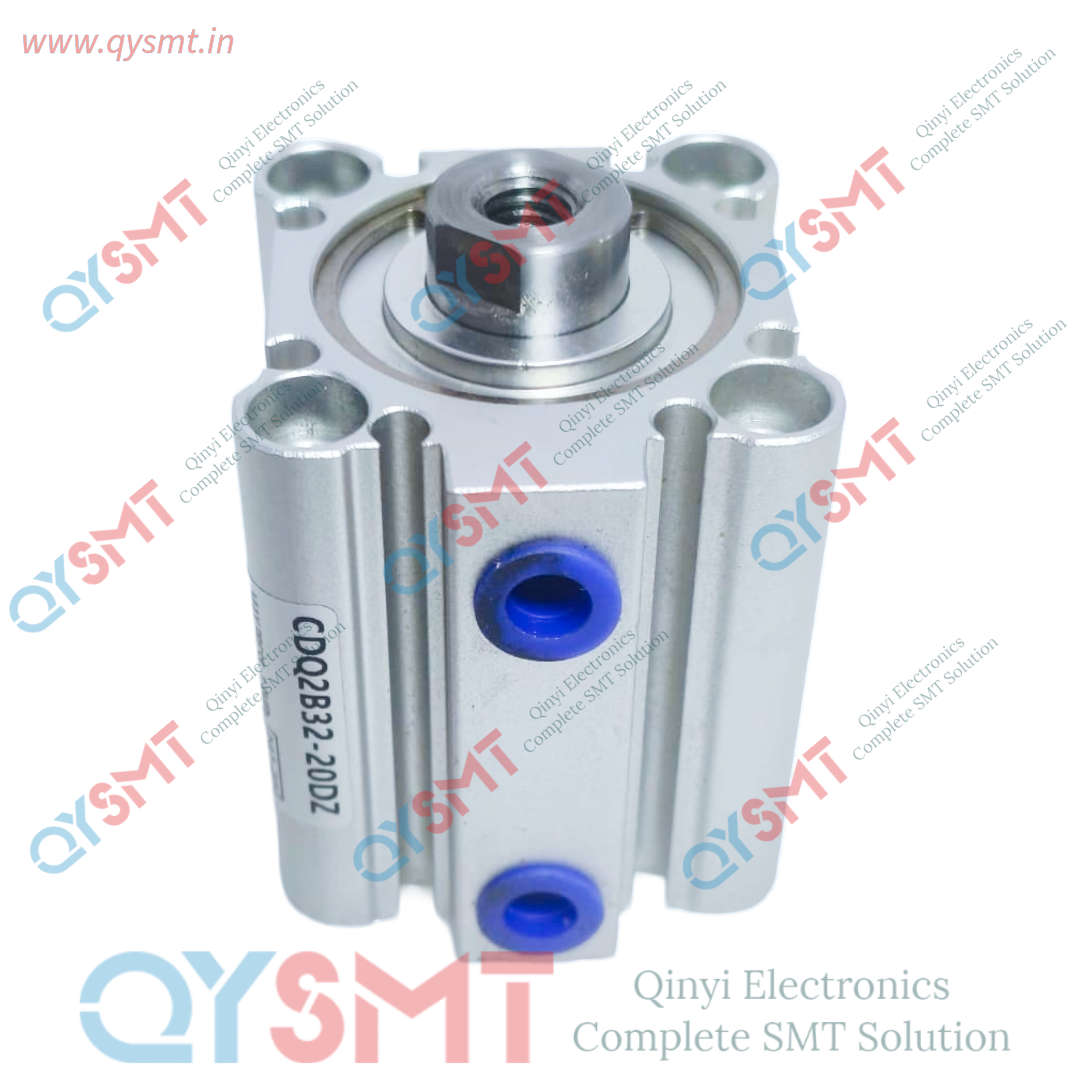

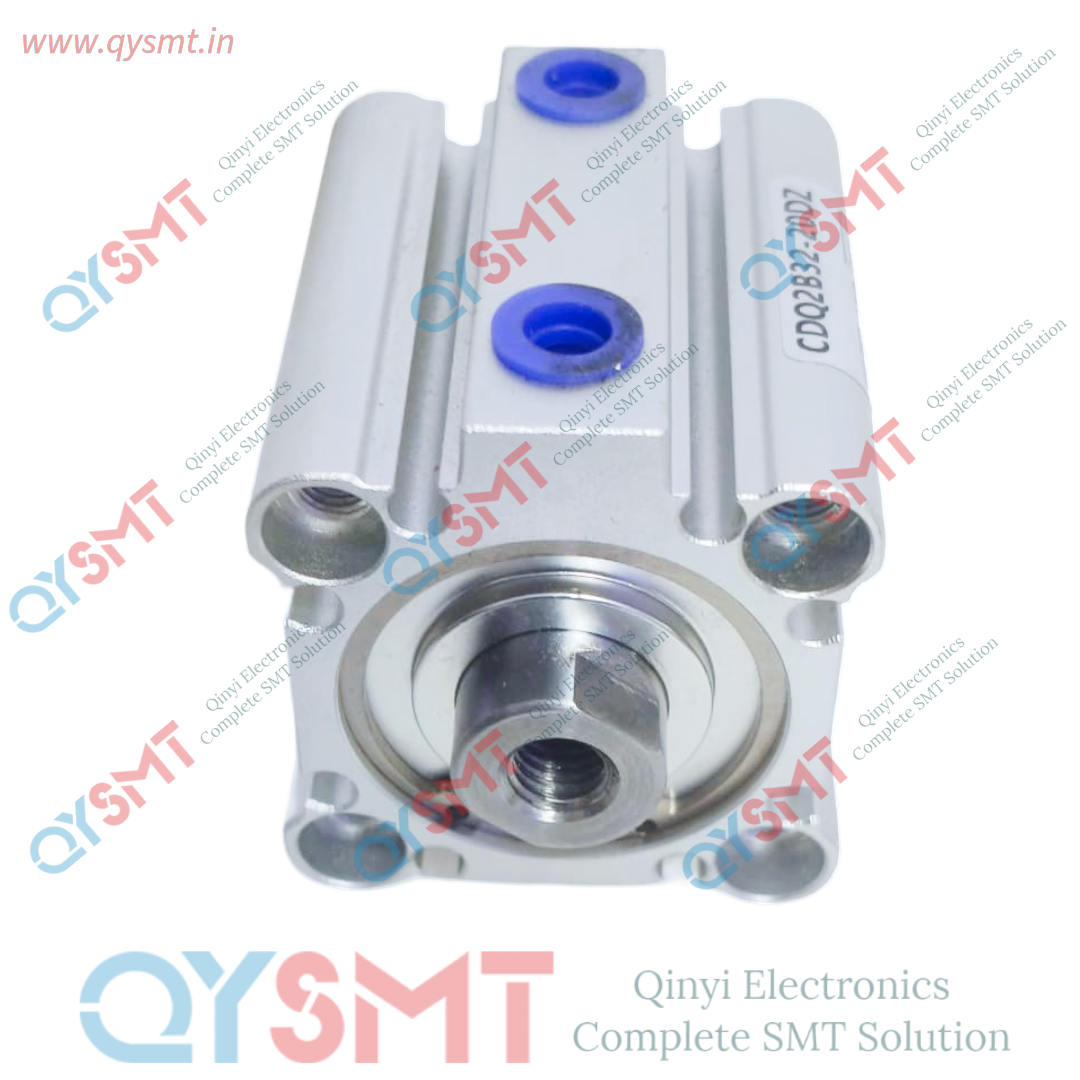

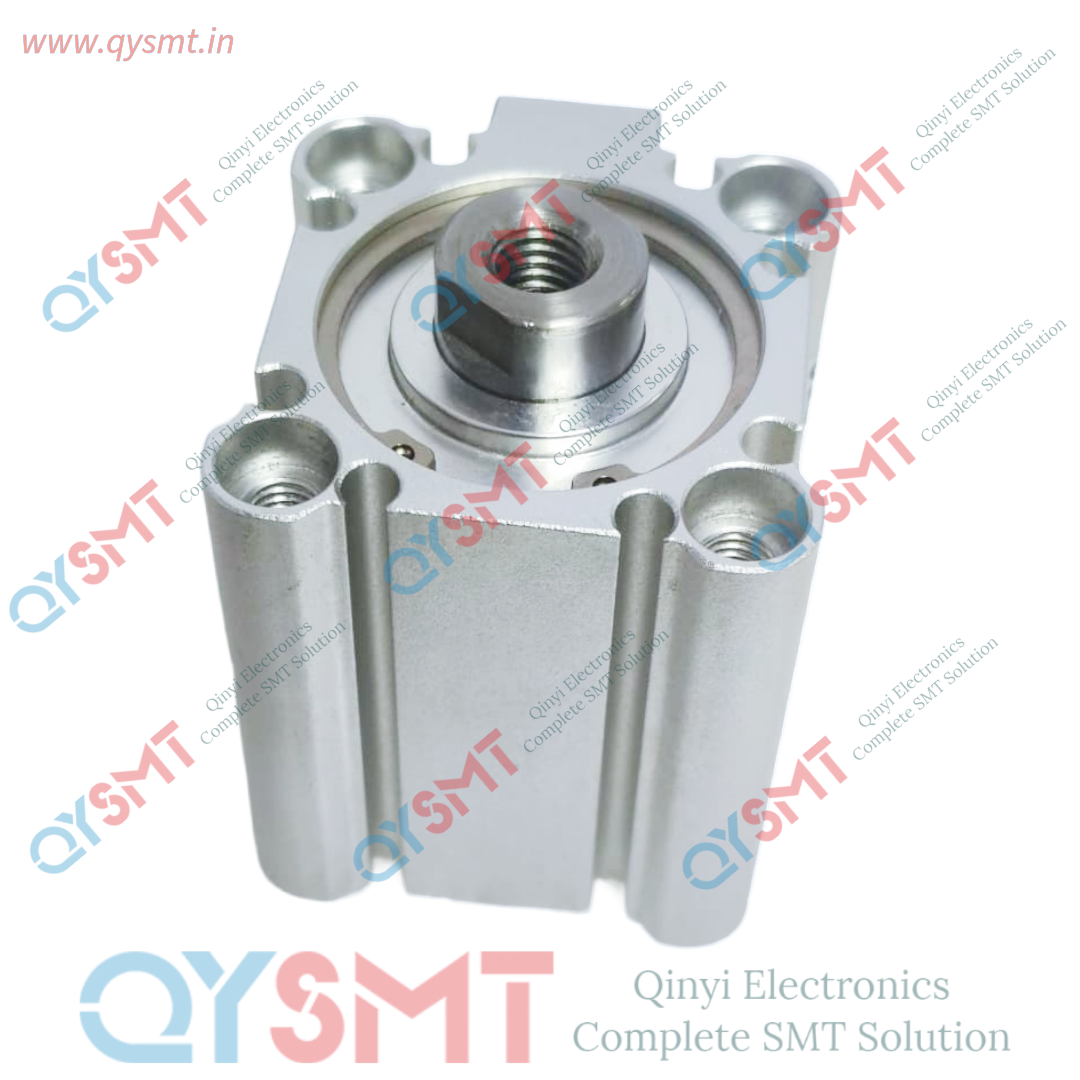

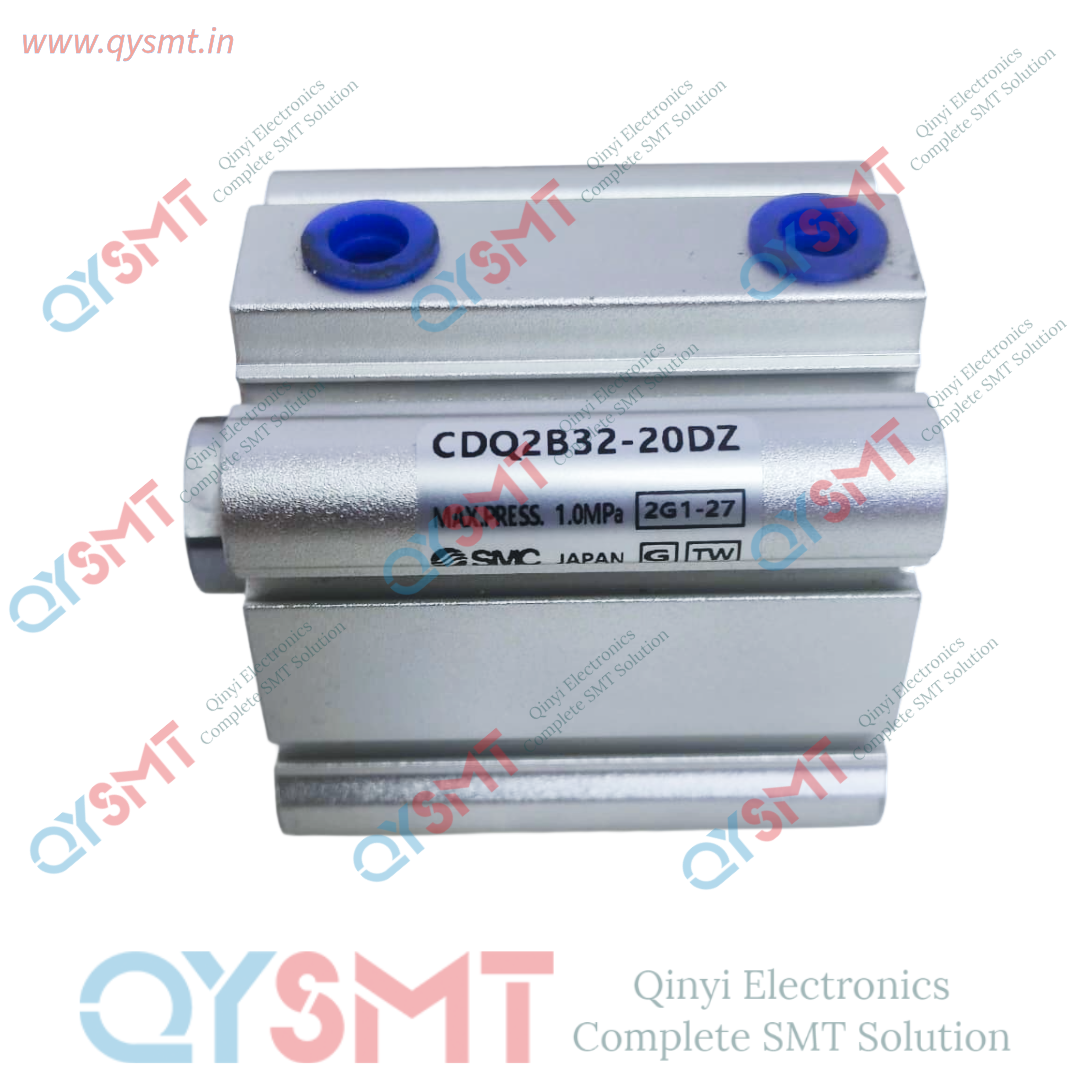

CDQ2B32-20DZ Pneumatic cylinder

CDQ2B32-20DZ Pneumatic cylinder
Part Number BreakdownUnderstanding the part number reveals the precise configuration of this component:

• C: Built-in magnet for magnetic auto switch sensing capability.
• D: Double acting (air drives the piston both out and back in).
• Q2: Series identification (CQ2 compact series).
• B: Mounting style (Through-hole mounting).
• 32: Piston bore diameter of 32 mm.
• 20: Piston stroke length of 20 mm.
• D: Action type (Double acting).
• Z: Redesigned body style featuring integrated auto switch mounting grooves on all 4 surfaces.

Core Technical SpecificationsOfficial technical guidelines from  and distribution listings provide the following hardware specifications:

• Fluid Type: Air.
• Operating Pressure Range: 0.05 MPa to 1.0 MPa (Maximum proof pressure up to 1.5 MPa).
• Ambient and Fluid Temperature: -10°C to +70°C (Without auto switch) or -10°C to +60°C (With auto switch attached).
• Cushion Type: Rubber bumper or none.
• Rod End Thread: Standard internal female thread.
• Port Thread Connection: Rc 1/8 pipe threads (Depending on regional configuration, G or NPT options exist).
• Body Material: Anodised Aluminium Alloy.
