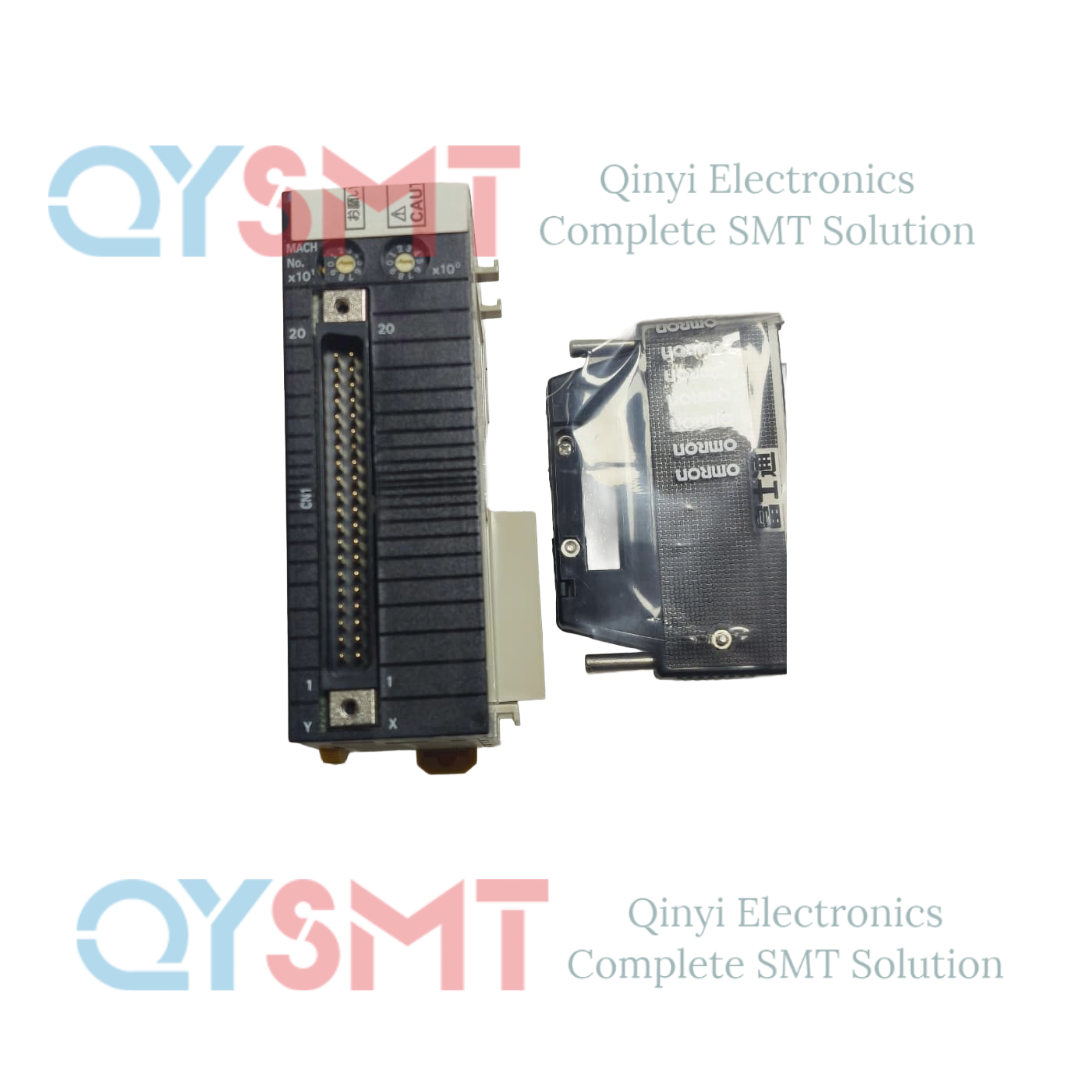

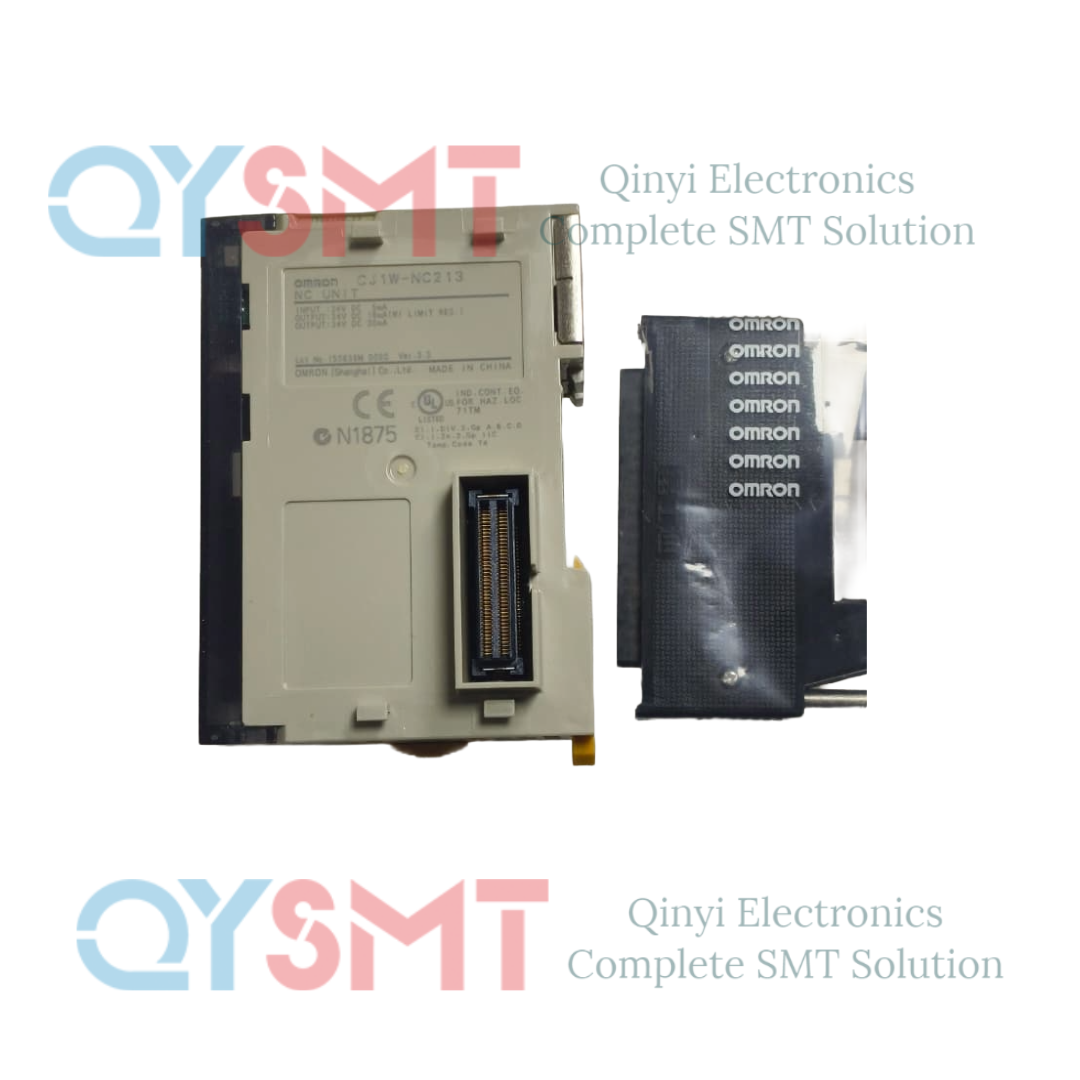

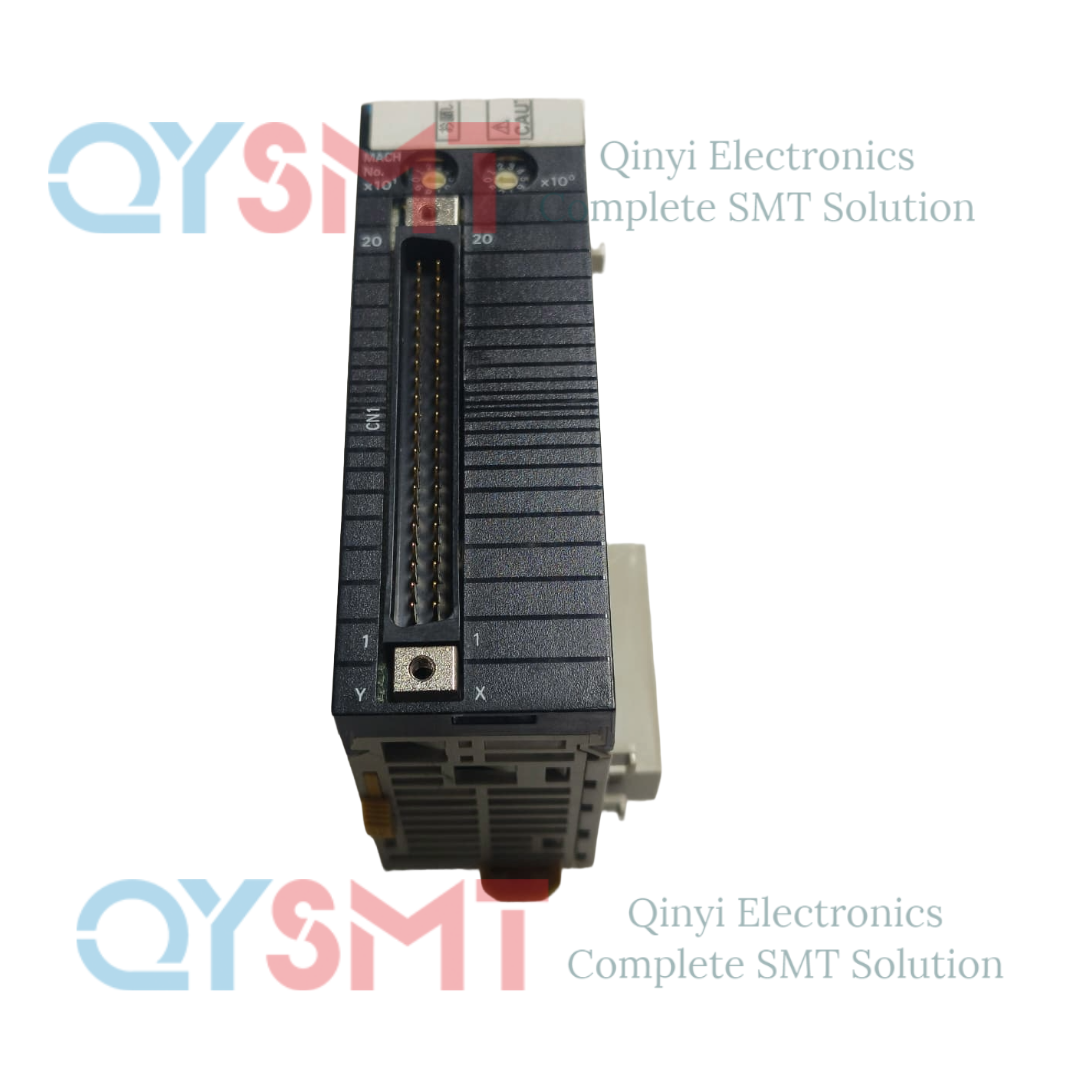

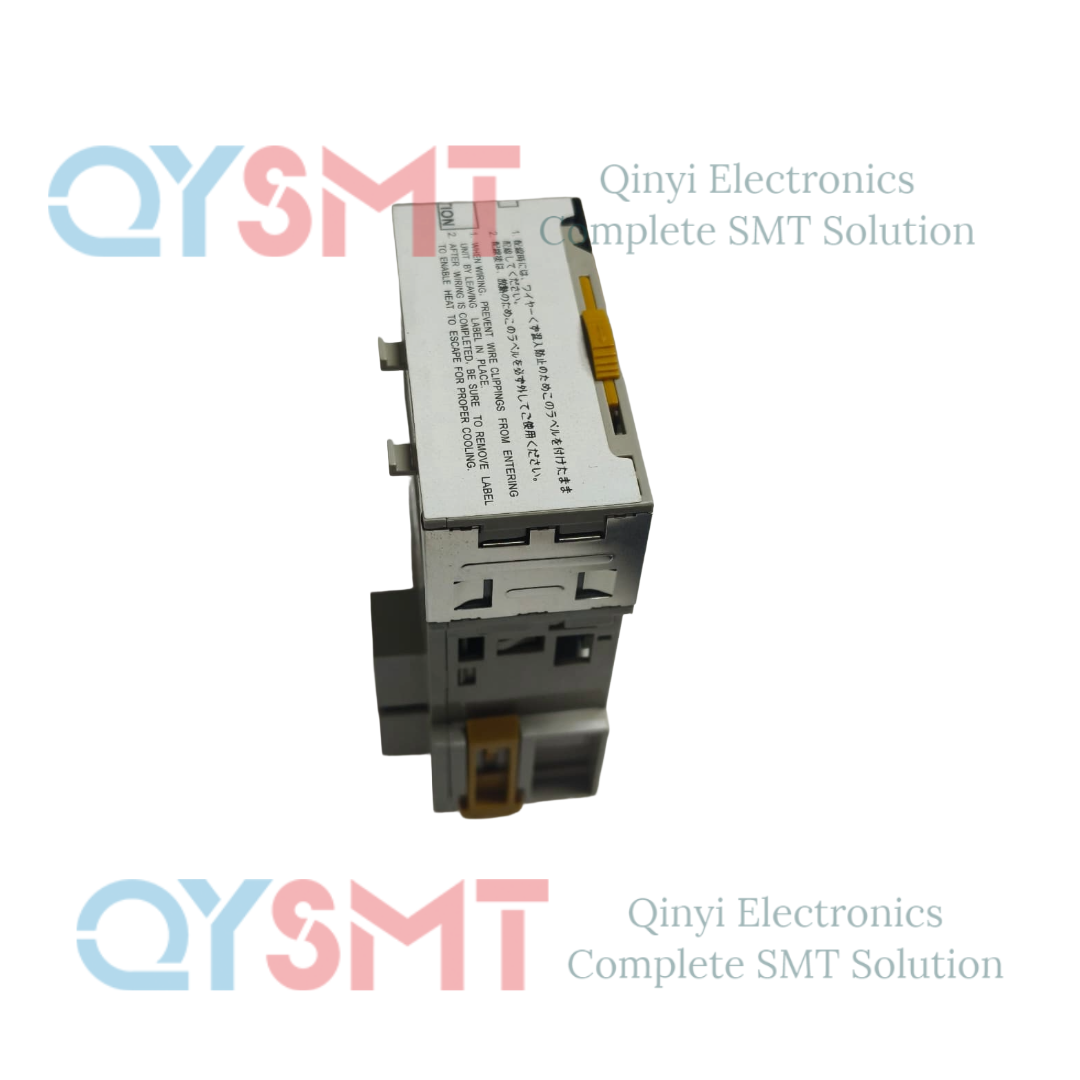

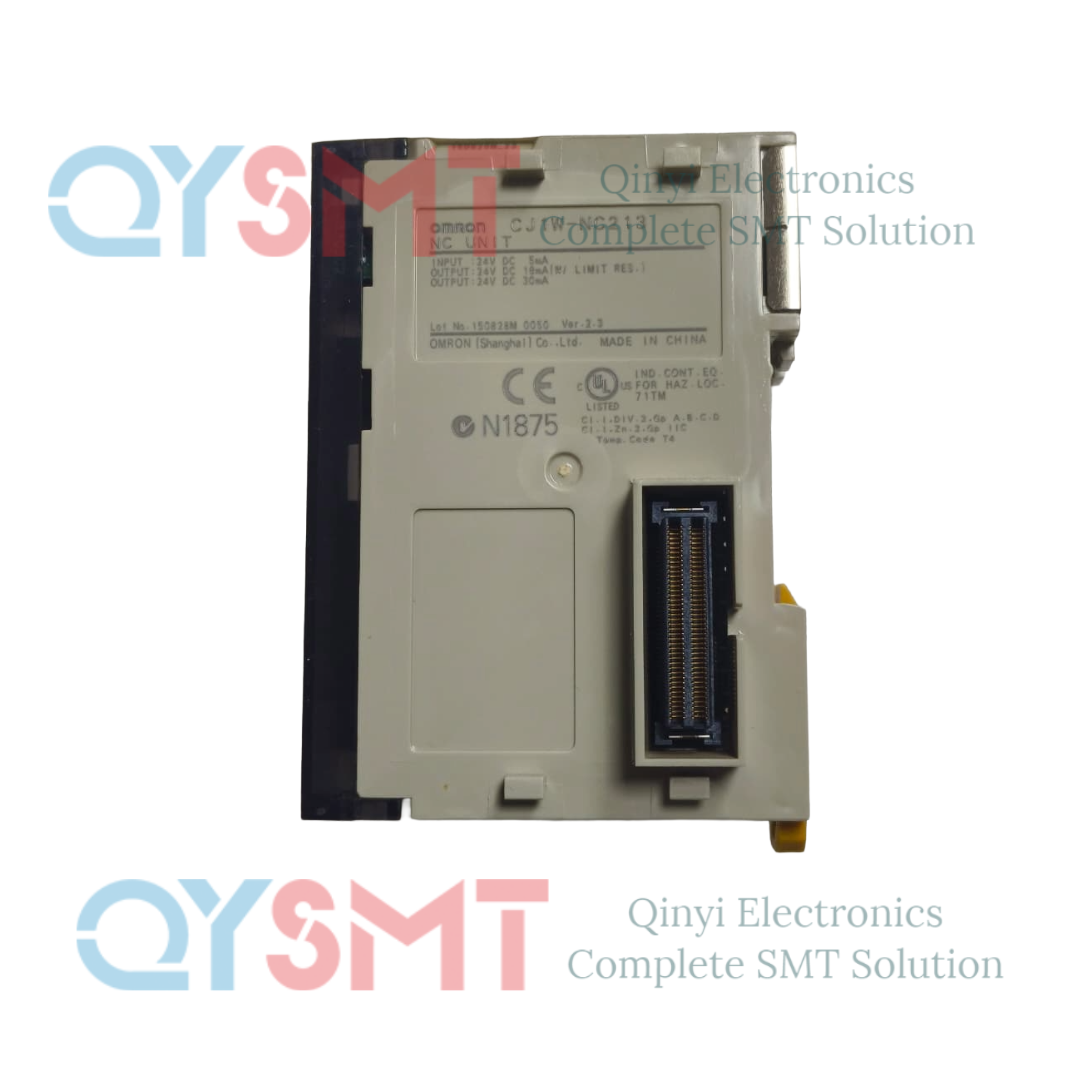

CJ1W-NC213 Omron CJ-series
| ttribute | Value |
|---|---|
| Control Axes | 2 axes |
| Control Method | Open-loop control by pulse train output |
| Output Type | NPN open collector pulse string output |
| Max. Output Frequency | 500 kHz (kpps) |
| Dimensions (W×H×D) | 31 × 90 × 65 mm |
| Weight | Max. 100 g |
| Power Supply Voltage | 5 V DC (internal unit); 24 V DC (external supply) |
| Current Consumption | Max. 250 mA at 5 V DC (internal) |
| Operating Temperature | 0 to 55°C |
| Position Data Range | -1,073,741,823 to +1,073,741,823 pulses |
Key Features
- Precise Positioning The unit provides high-speed, precise control for up to two axes, making it suitable for demanding motion control applications.
- Flexible Data Handling It supports up to 100 speed and position settings per axis, and position data can be saved to internal flash memory.
- Motion Control Capabilities The module supports various operation modes including linear and circular interpolation, JOG operation, home position correction, and automatic trapezoid or S-curve acceleration/deceleration.
- Connectivity It features a Fujitsu connector interface and is compatible with Omron CJ1/CJ1M series CPU units and various servo and stepping motor drivers.
