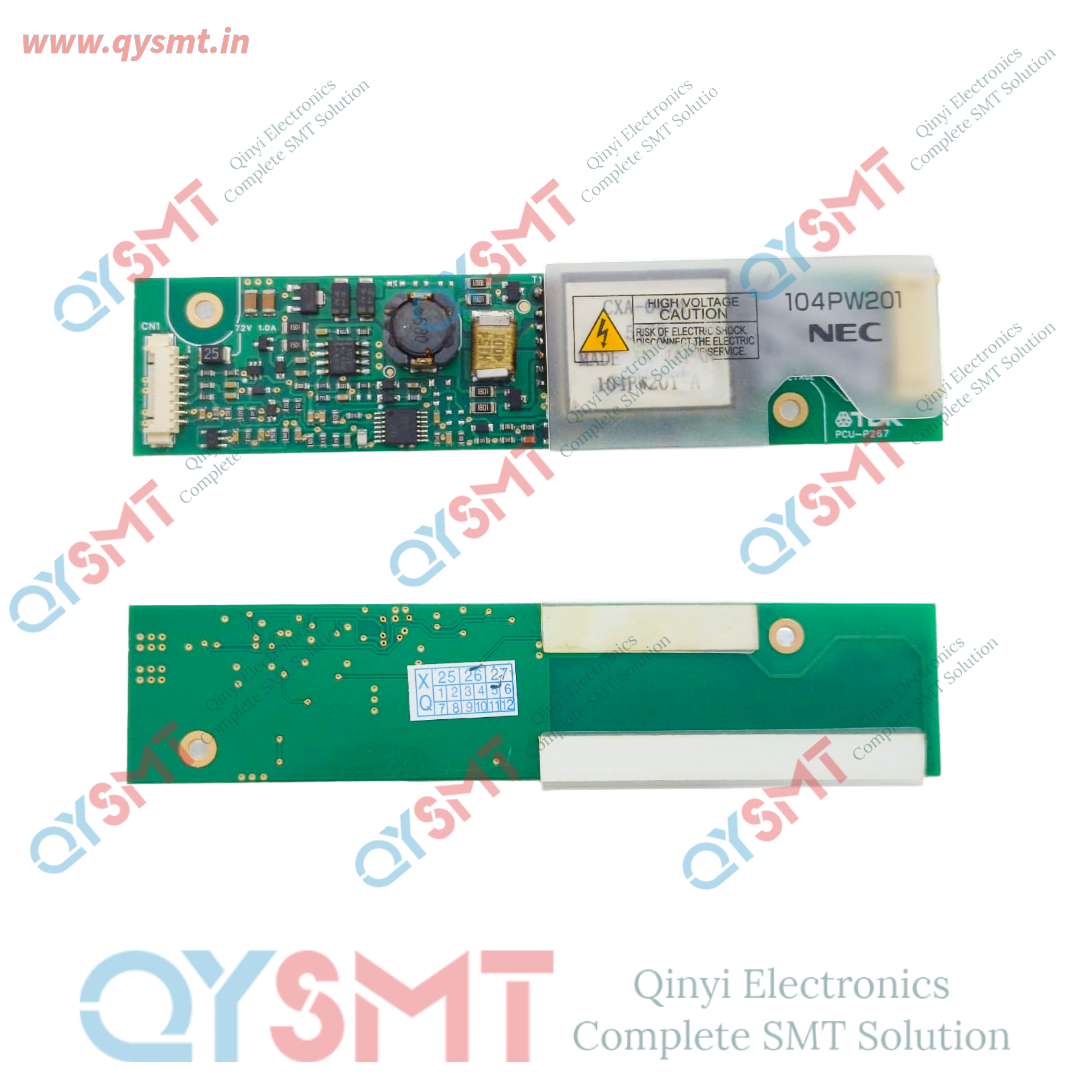

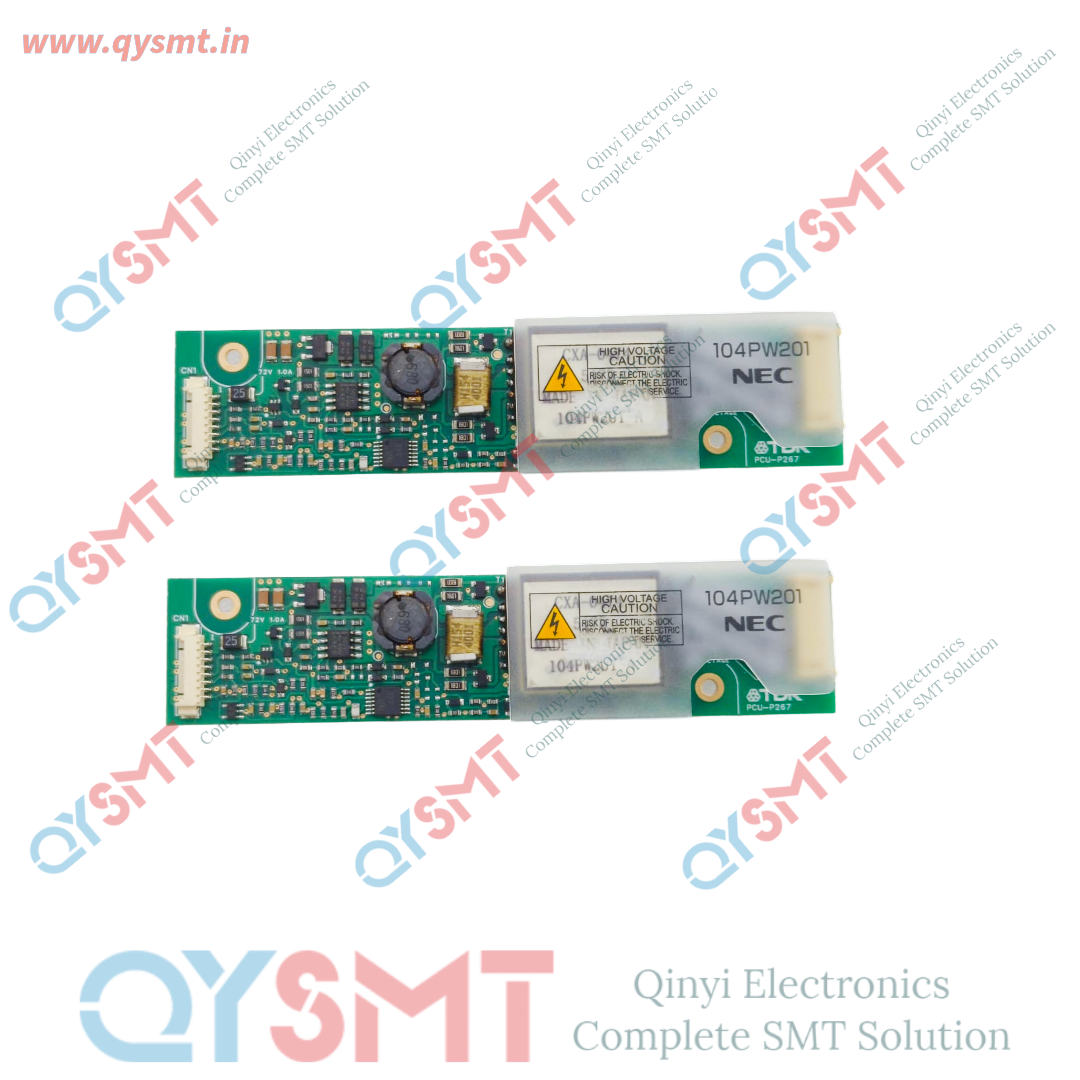

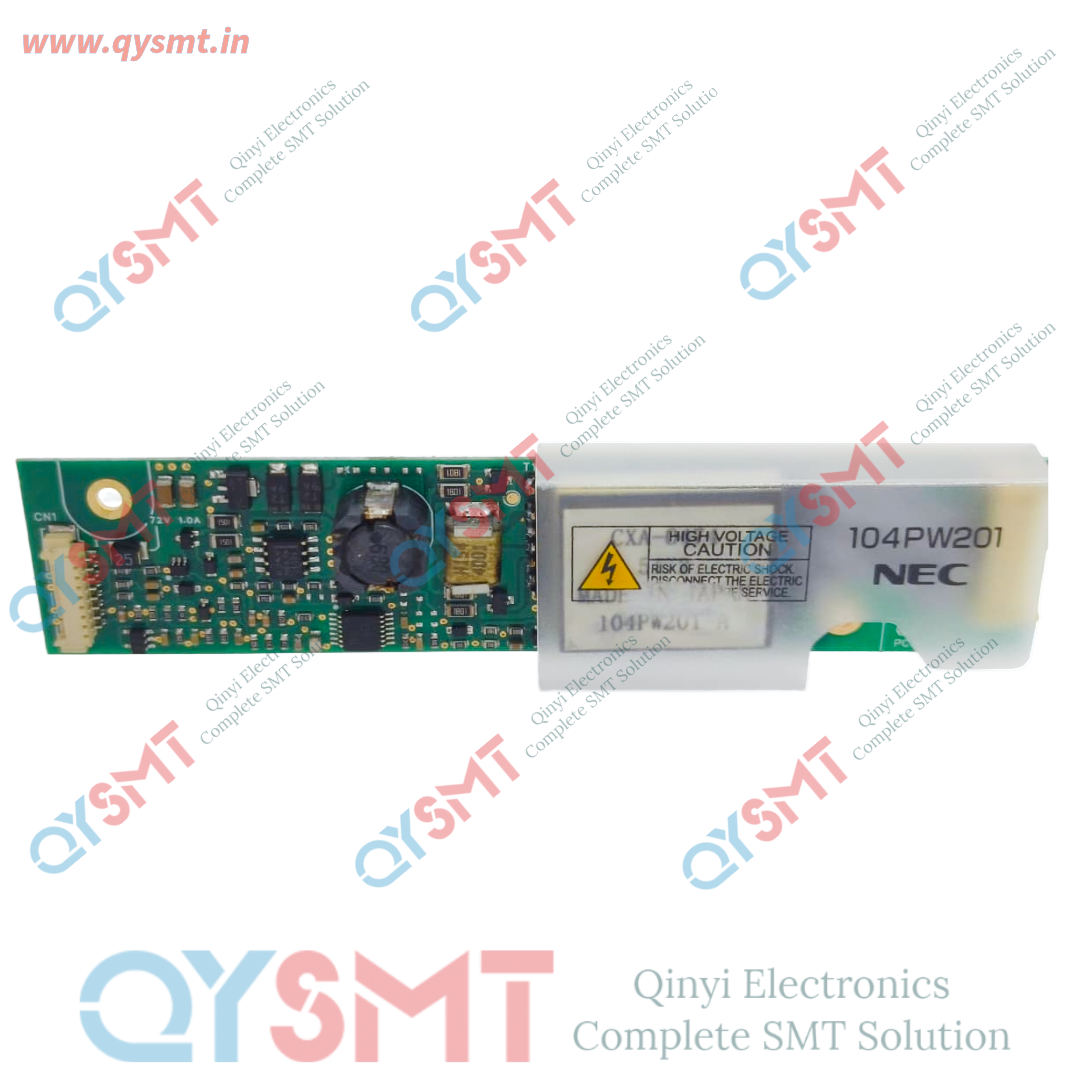

CXA-0474 PCU-P267 SMT PCB BOARD

Core Technical Specifications

• Manufacturer: TDK / TDK-Lambda
• Alternate Model Numbers: 104PW201, 104PW201-A
• Input Voltage: 12 V DC
• Output Power: 10 W to 20 W
• Inverter Architecture: Open Frame configuration
• Lamp Capacity: Designed to support up to 6 lamps
• Dimming Control: Analog dimming interface
• Operating Temperature Range: -10°C to 60°C
• Mounting Configuration: Panel Mount via standard Surface Mount Technology (SMT) or through-hole setup variants
• Built-in Safety Protections: Over-voltage protection, thermal shutdown, over-current protection, short-circuit containment, and open-lamp isolation

Hardware Compatibility & Applications

• Primary Application: Powers CCFL backlights for legacy TFT LCD monitors.
• Target Displays: Frequently paired with specialized high-grade panels such as the NEC NL6448BC33-64 LCD display.
• Common Use Environments: Industrial automation systems, medical diagnostic hardware, automated teller machines (ATMs), and legacy human-machine interfaces (HMIs)
