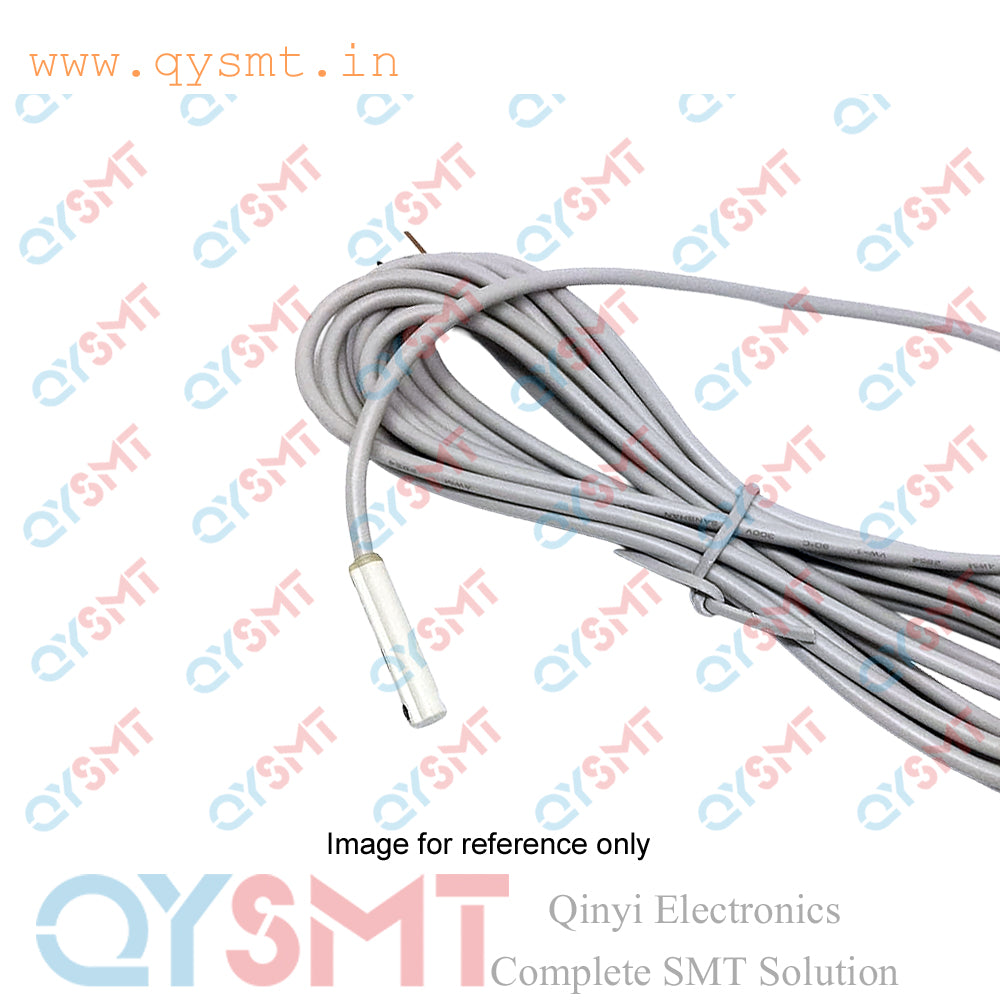

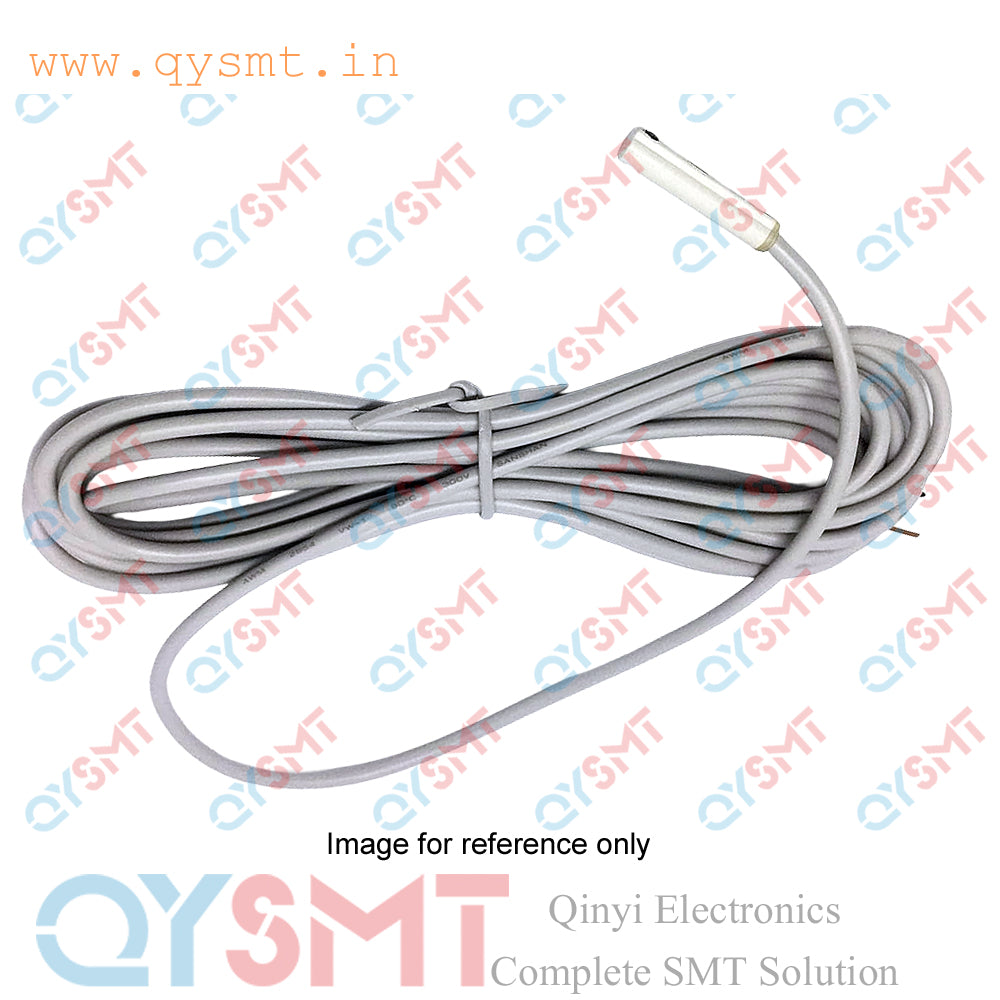

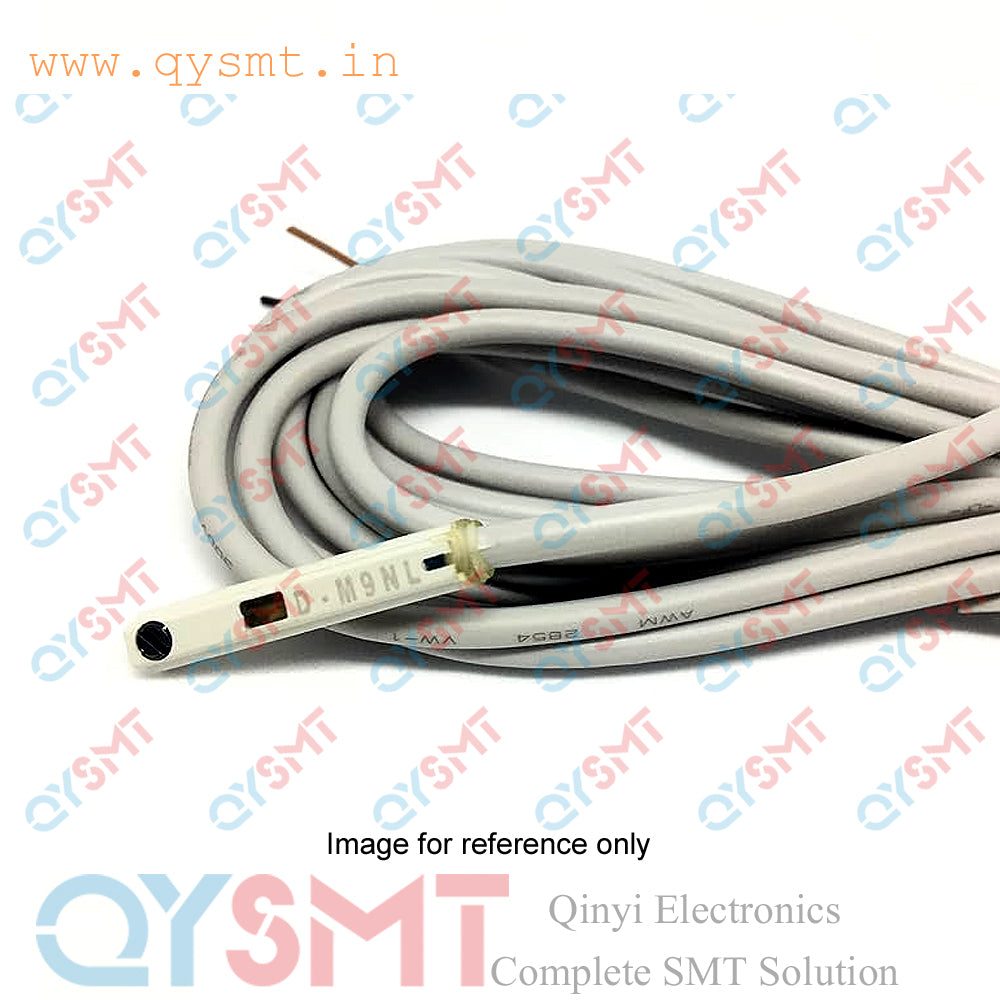

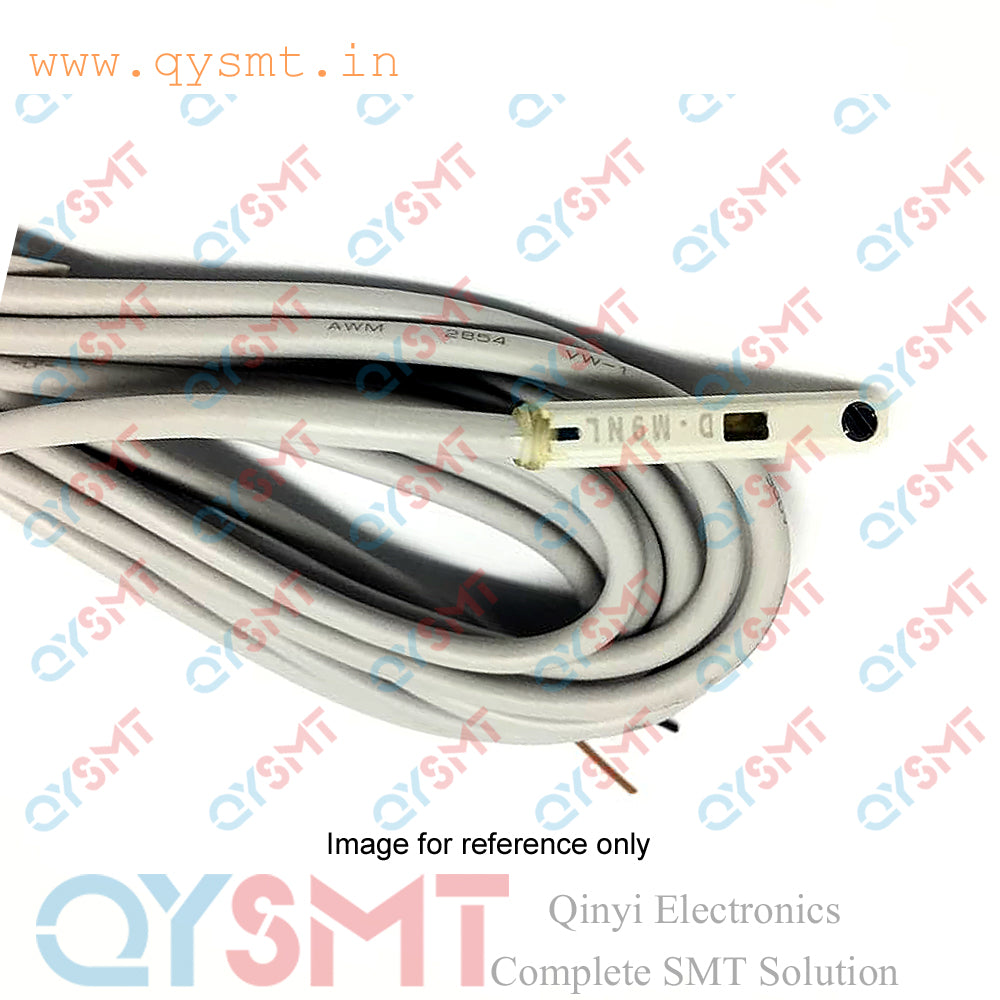

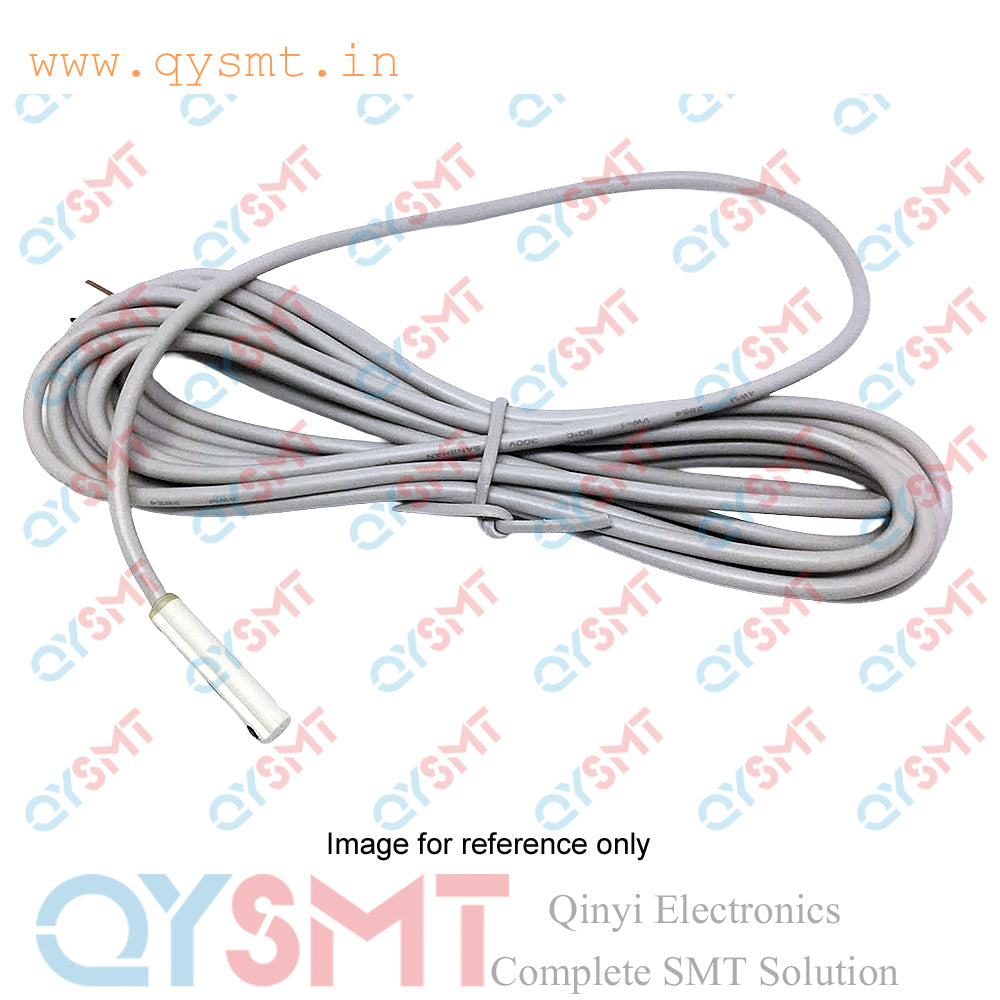

SMC D-M9NL Auto-switch Sensor

Position Sensor D-M9NL Magnetic sensor NPN 3-meter wire

The SMC D-M9NL is a 3-wire, NPN solid-state position sensor, also known as an auto-switch. It is used in industrial automation to detect the position of components, such as the piston in a pneumatic cylinder.

Specifications

• Sensor type: Solid-state (non-contact).
• Application: Pneumatic cylinder position sensing, CG1, CJ2, CM2, CQ2, MGP, MH, MX, NCA1, NCQ2.

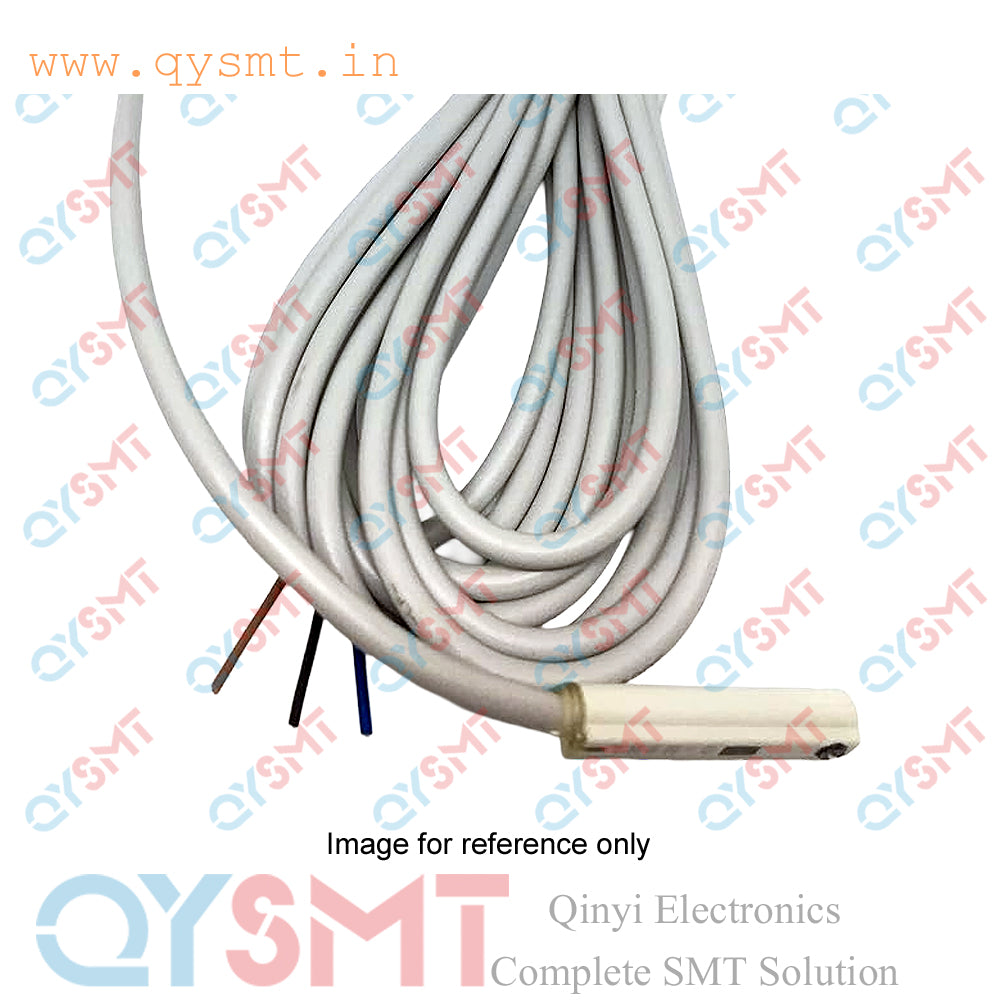

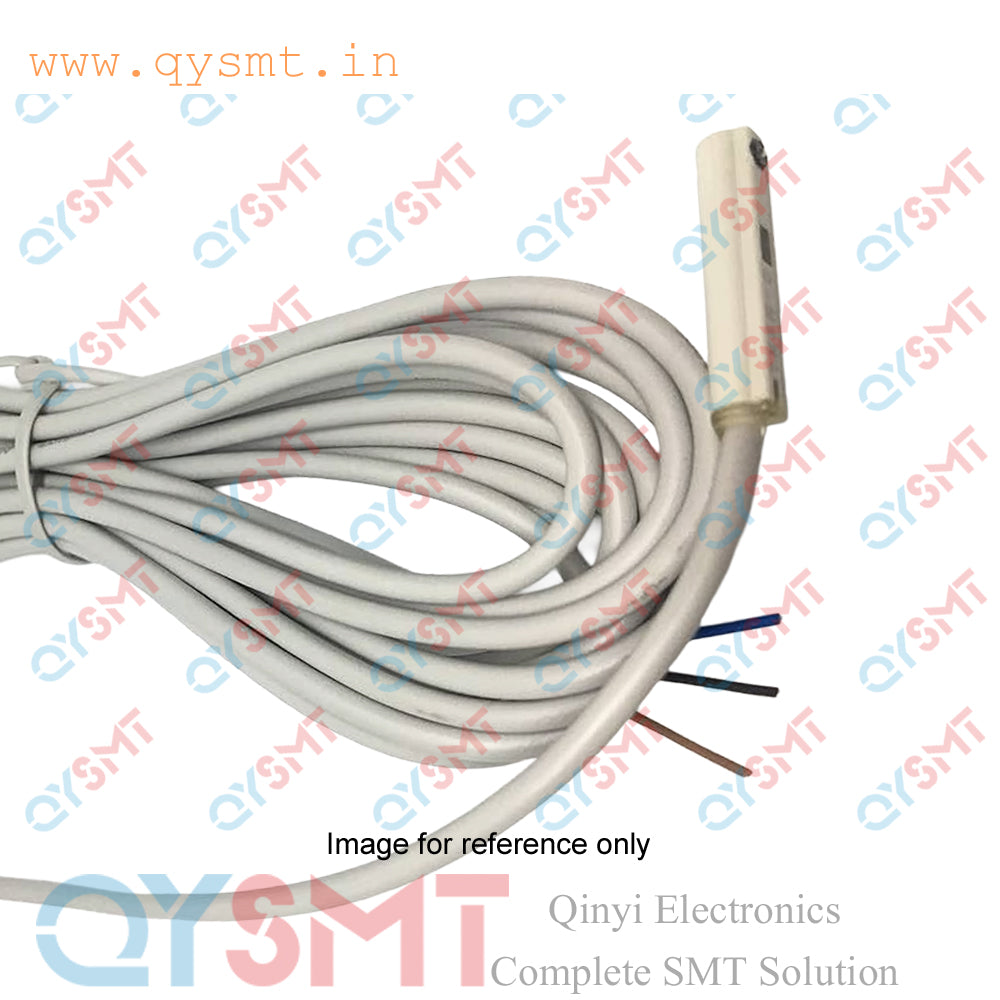

• Wiring type: 3-wire, NPN (Brown/+V, Blue/-V, Black/Output).
• Voltage: 4.5 to 28 VDC.
• Load current: 40 mA or less.
• Indicator: Red LED to signal when the switch is "ON".
• Lead wire length: 3 meters, for the "-L" variation.
• Mounting style: Direct mounting.

The D-M9NL sensor is designed to be compatible with various SMC pneumatic cylinders and actuators that have a built-in magnet.
