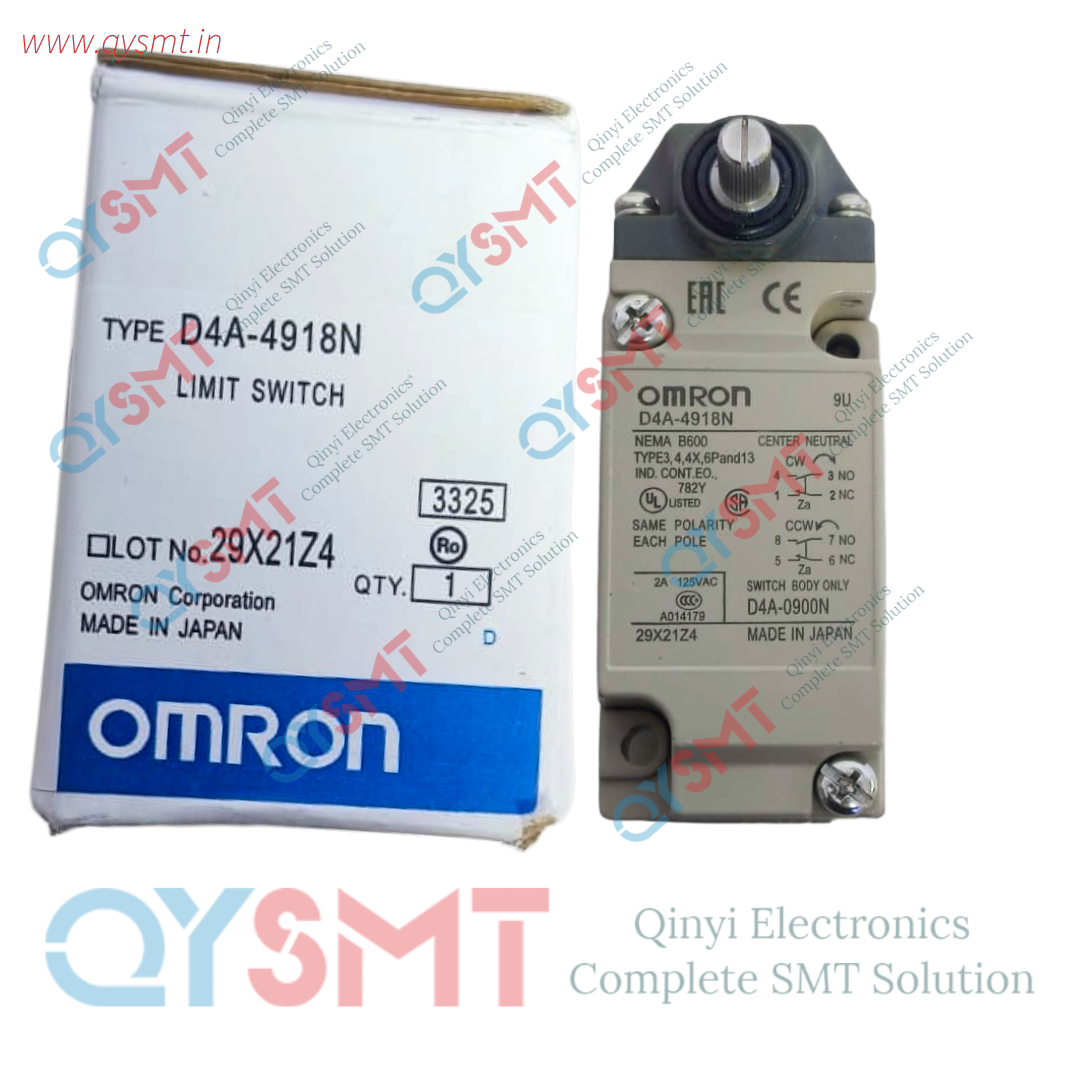

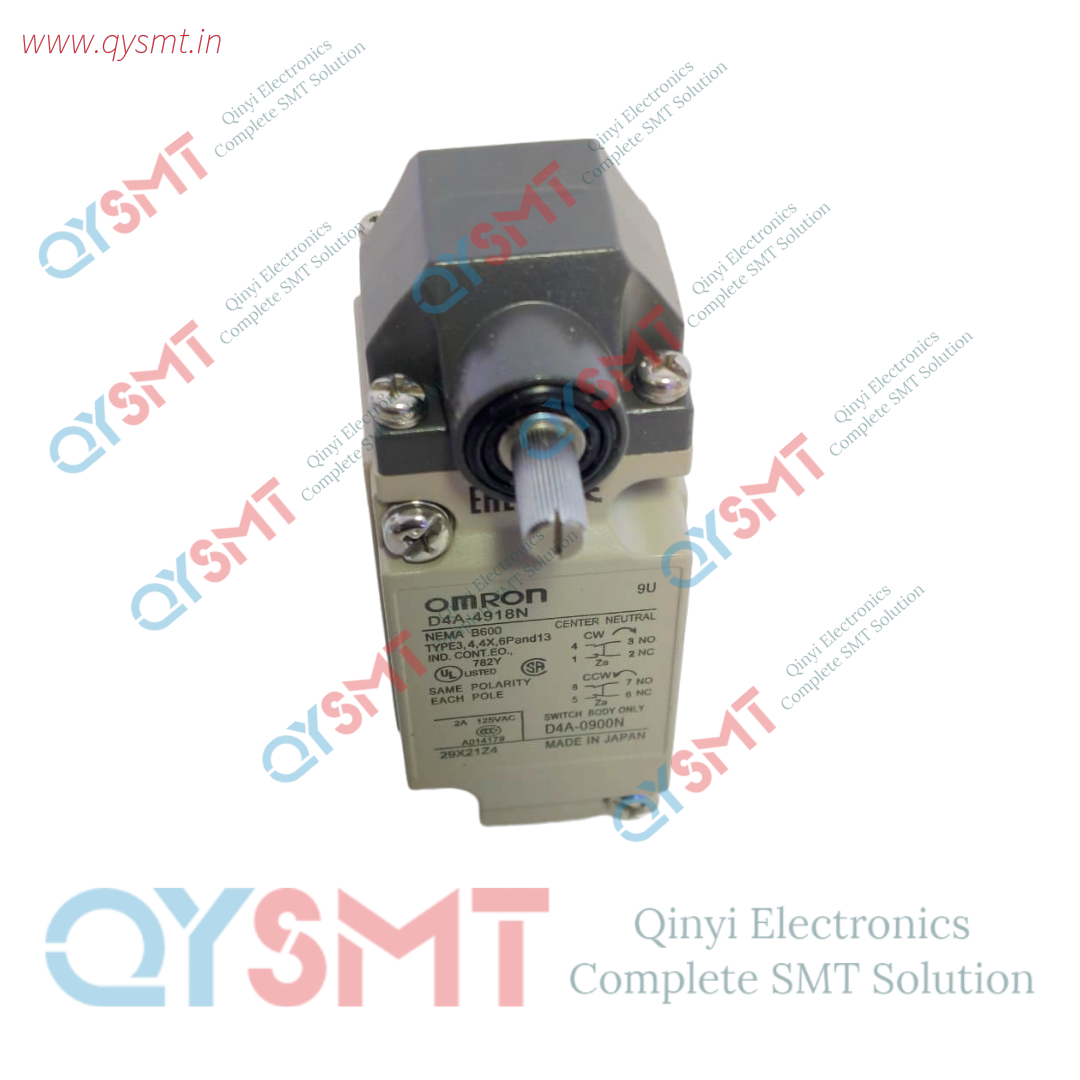

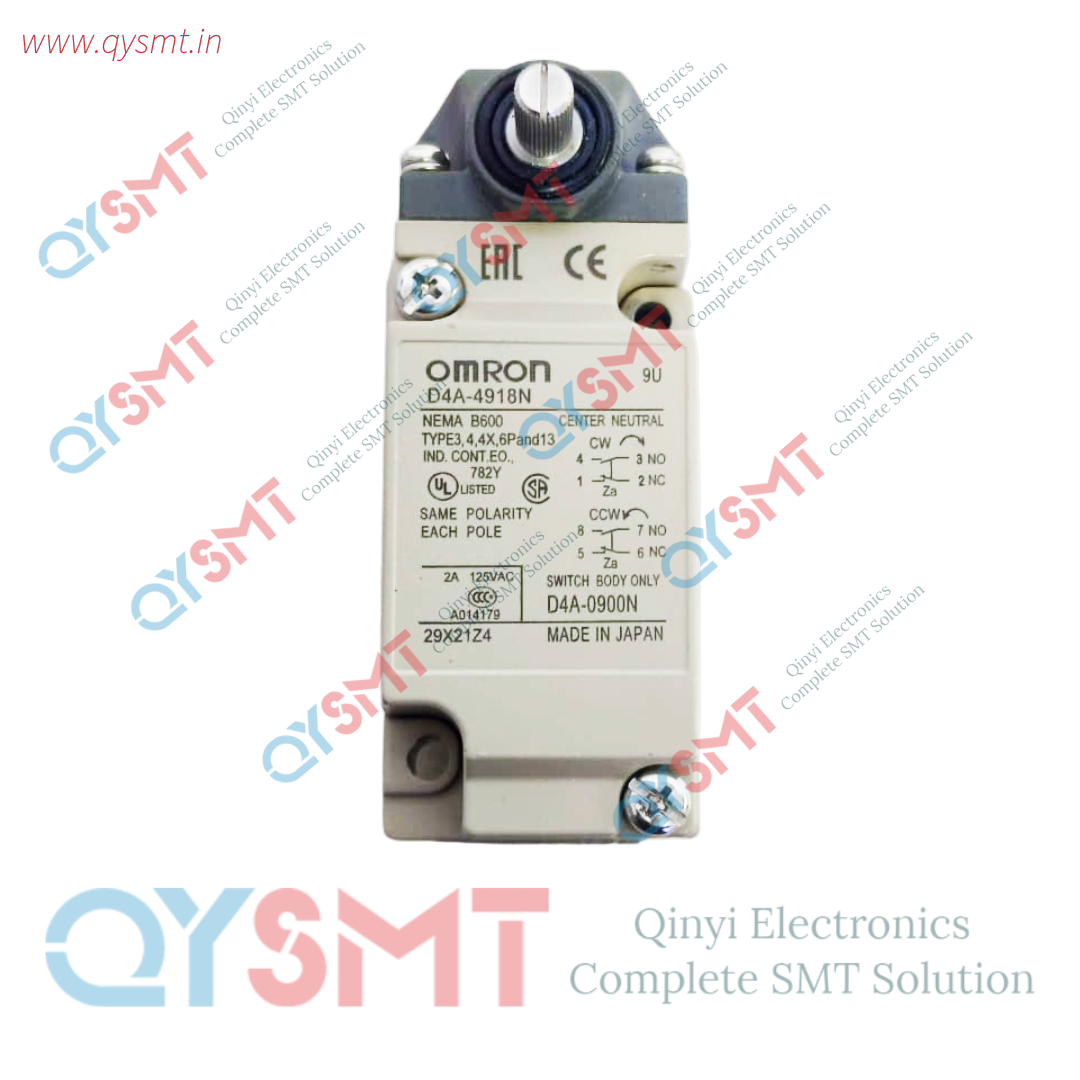

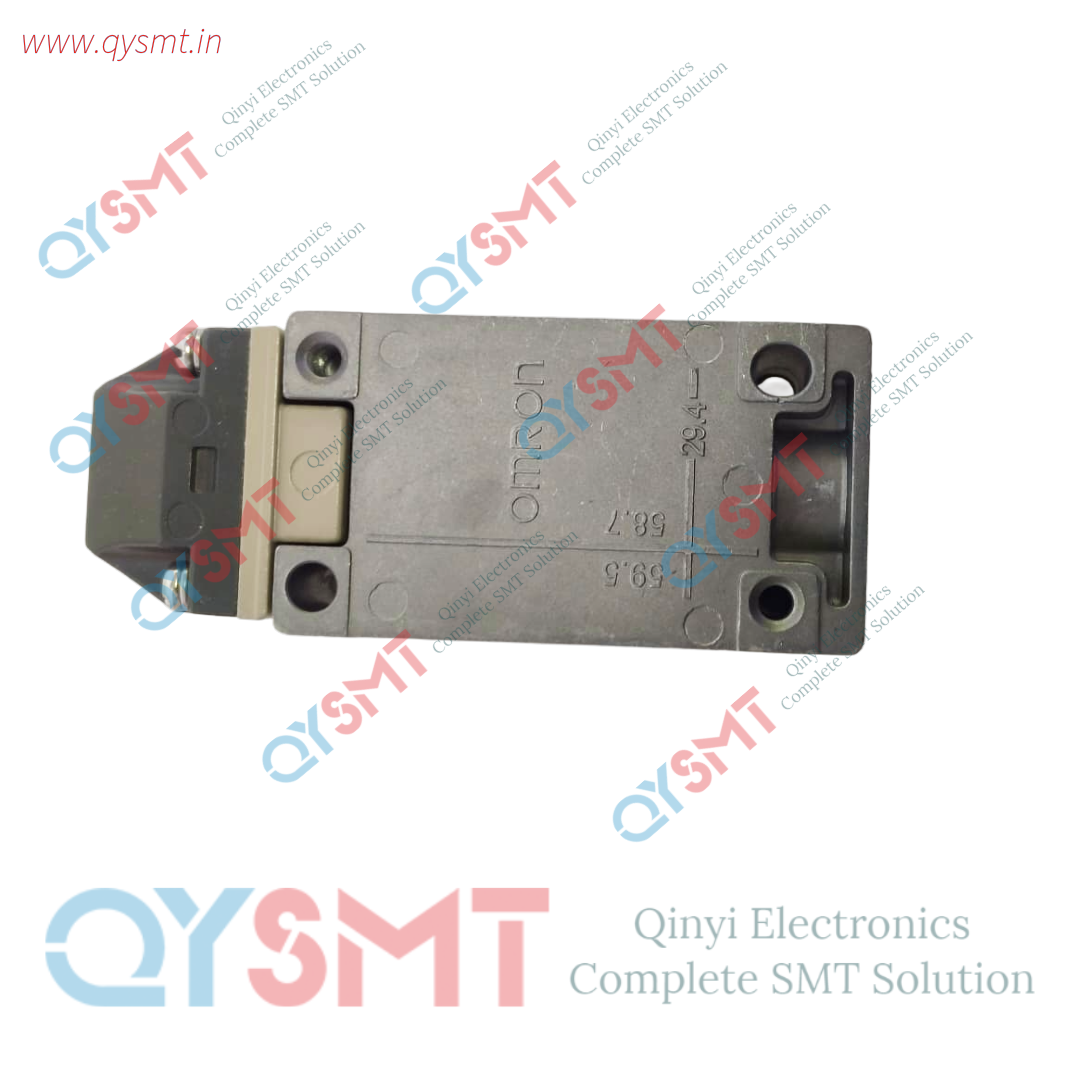

D4A-4918N Omron Automation & Safety.

D4A-4918N Omron Automation & Safety.
Key Technical SpecificationsThe D4A-4918N features a center neutral operation, meaning it can actuate in both clockwise and counter-clockwise directions from a central rest position. Omron Europe +1

• Contact Form: DPDT (Double Pole Double Throw) with a double-break mechanism.
• Electrical Ratings: 5A at 125 VAC (Resistive) / 3A at 30 VDC.
• Operating Characteristics:
  • Pretravel (PT):  maximum.
  • Overtravel (OT):  minimum.
  • Operating Force (OF): 0.39 N·m maximum.
• Environmental Protection: IP67 rated (dust-tight and waterproof), meeting NEMA 3, 4, 4X, 6P, 12, and 13 standards.
• Operating Temperature:  to  (standard/cold-resistant type).

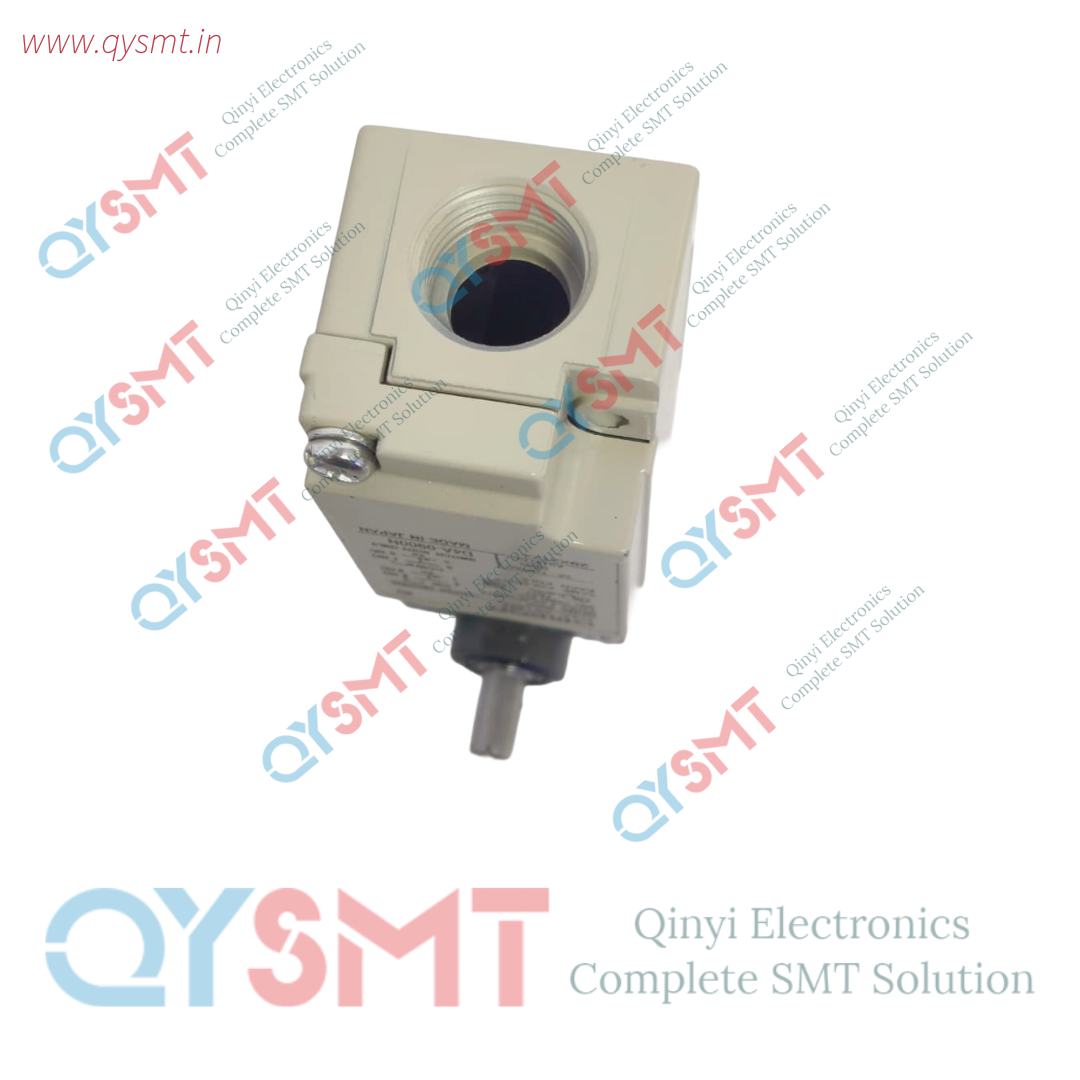

• Conduit Size: G1/2 conduit.
