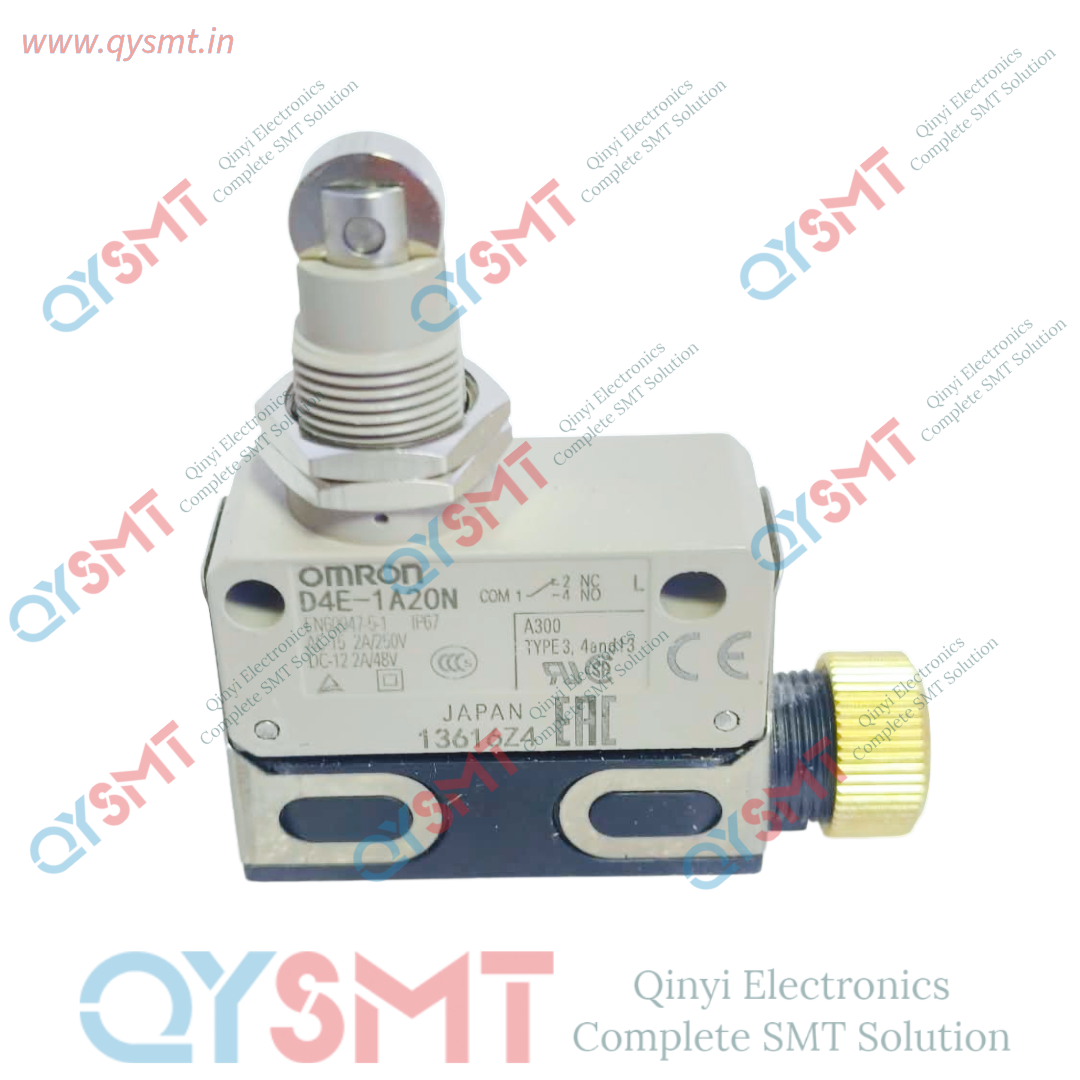

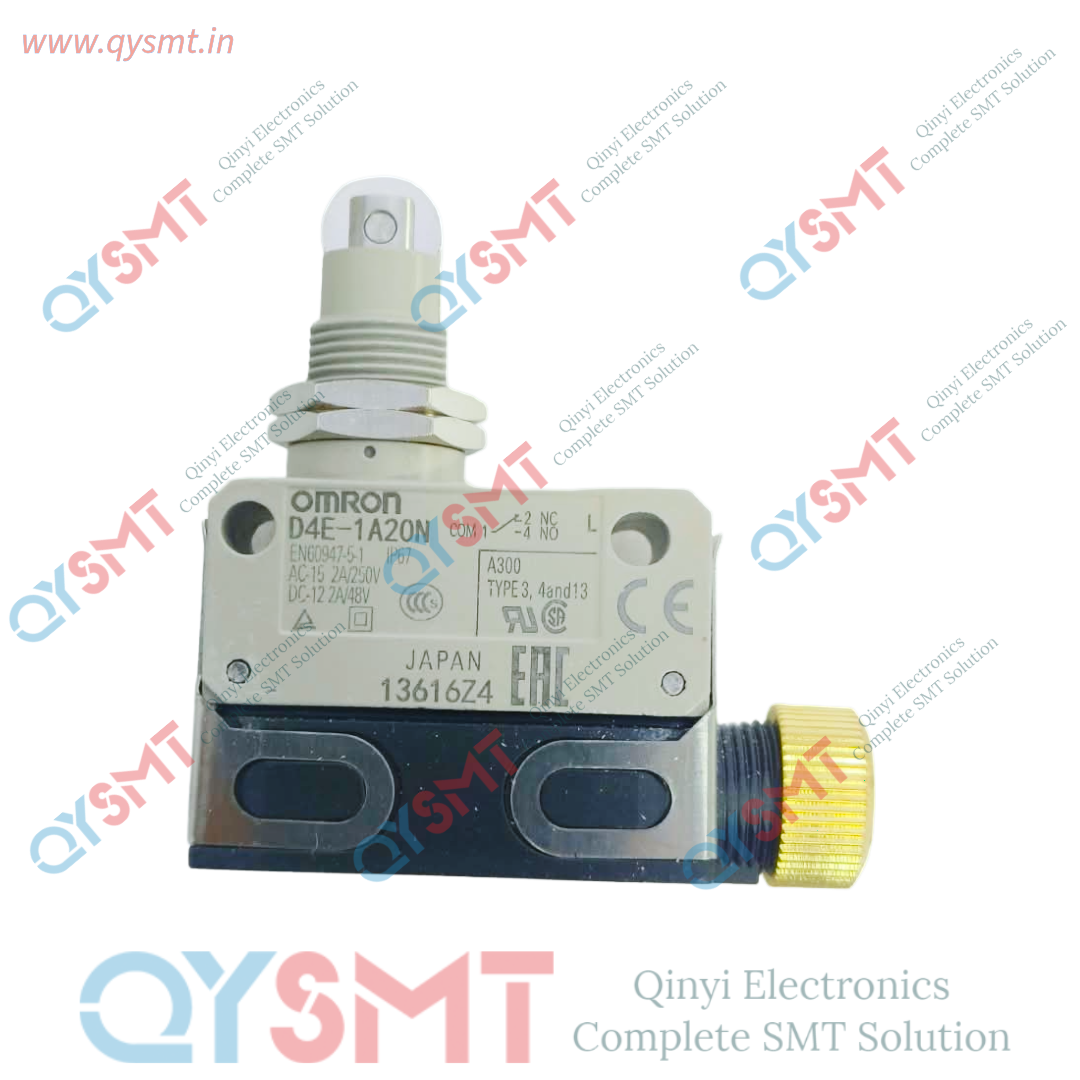

D4E-1A20N LIMIT SWITCH OMRON
Key Specifications

• Manufacturer: Omron Automation
• Actuator Type: Roller Plunger with metal roller (11 mm diameter)
• Contact Configuration: SPDT (1 NO + 1 NC)
• Switch Action: Snap action
• Current Rating: 5 A max (AC/DC)
• Voltage Rating: 125 VAC / 30 VDC
• Ingress Protection: IP67 (Dust-tight and waterproof)
• Body Material: Metal / Zinc alloy housing
• Dimensions: 32.9 mm (W) x 57 mm (L) x 18 mm (D)
• Operating Temperature: -10°C to 80°C
• Mechanical Life: 10,000,000 operations minimum
• Electrical Life: 500,000 operations minimum
