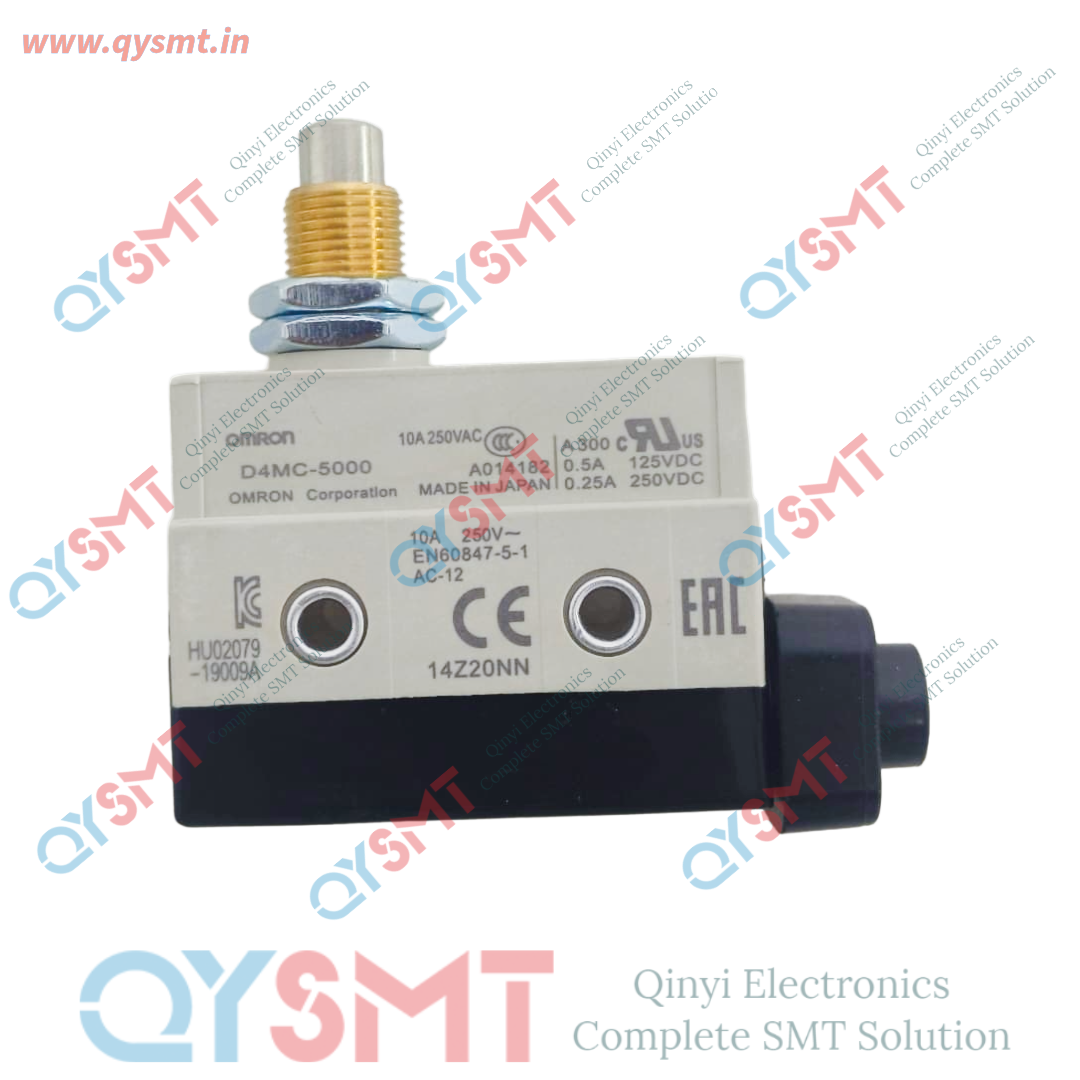

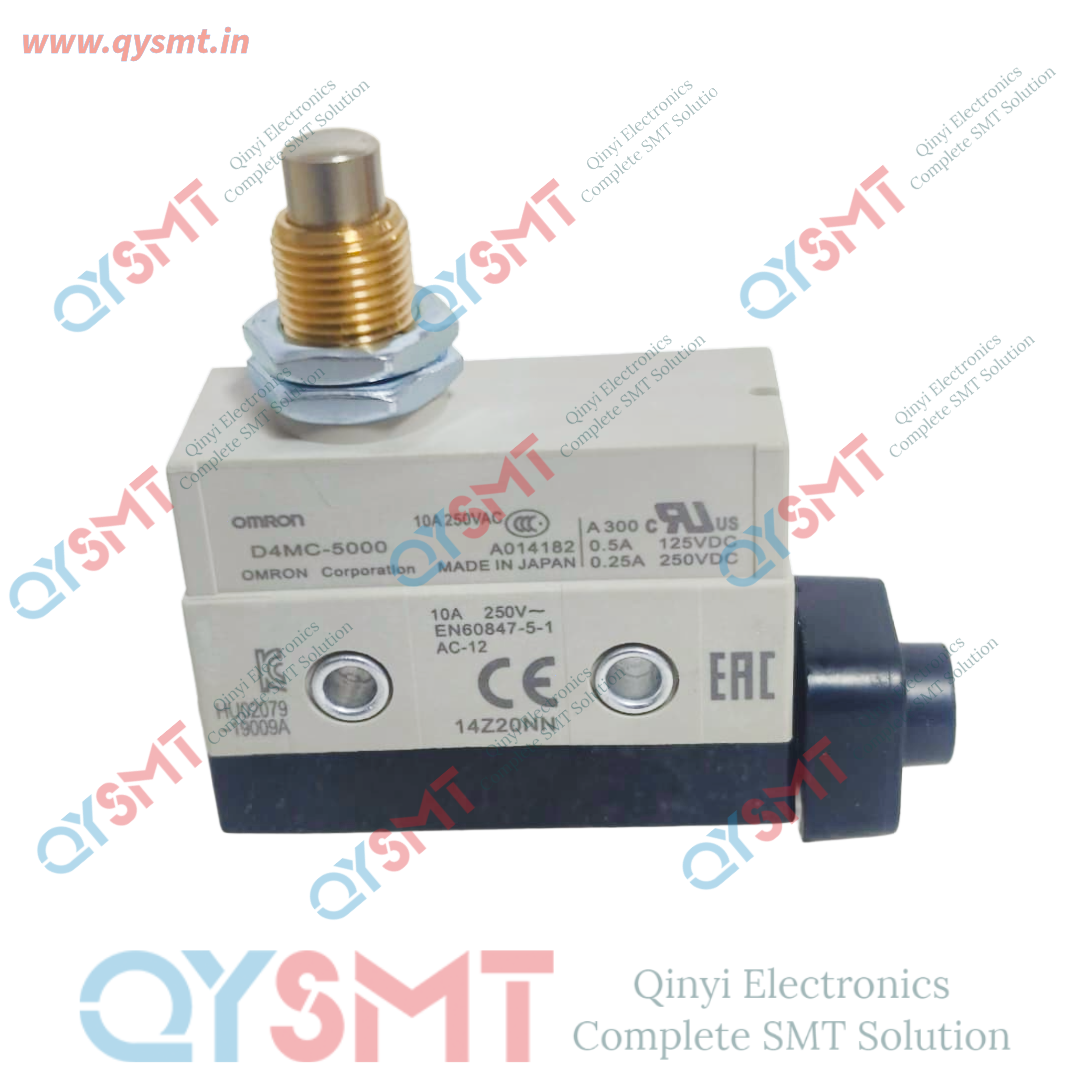

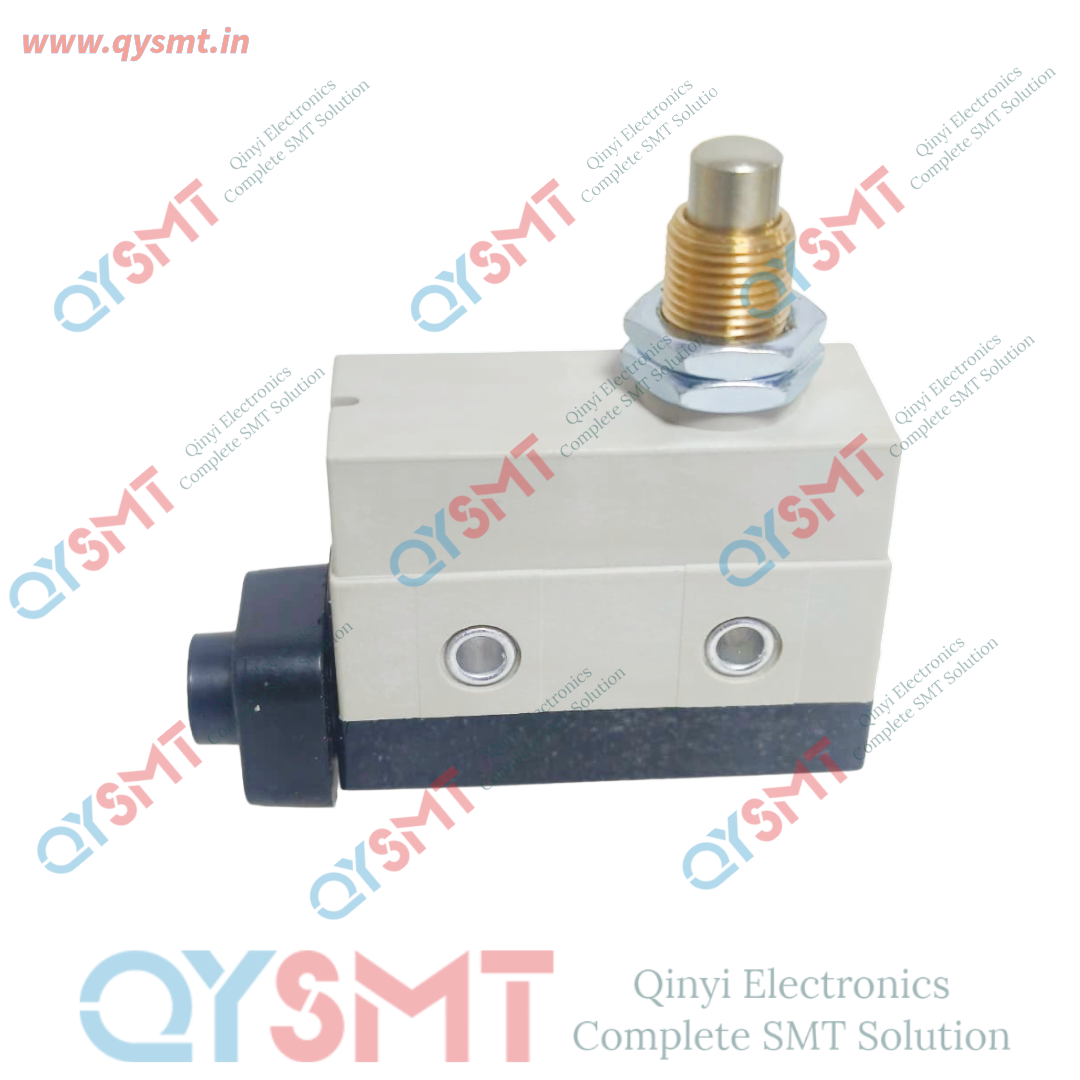

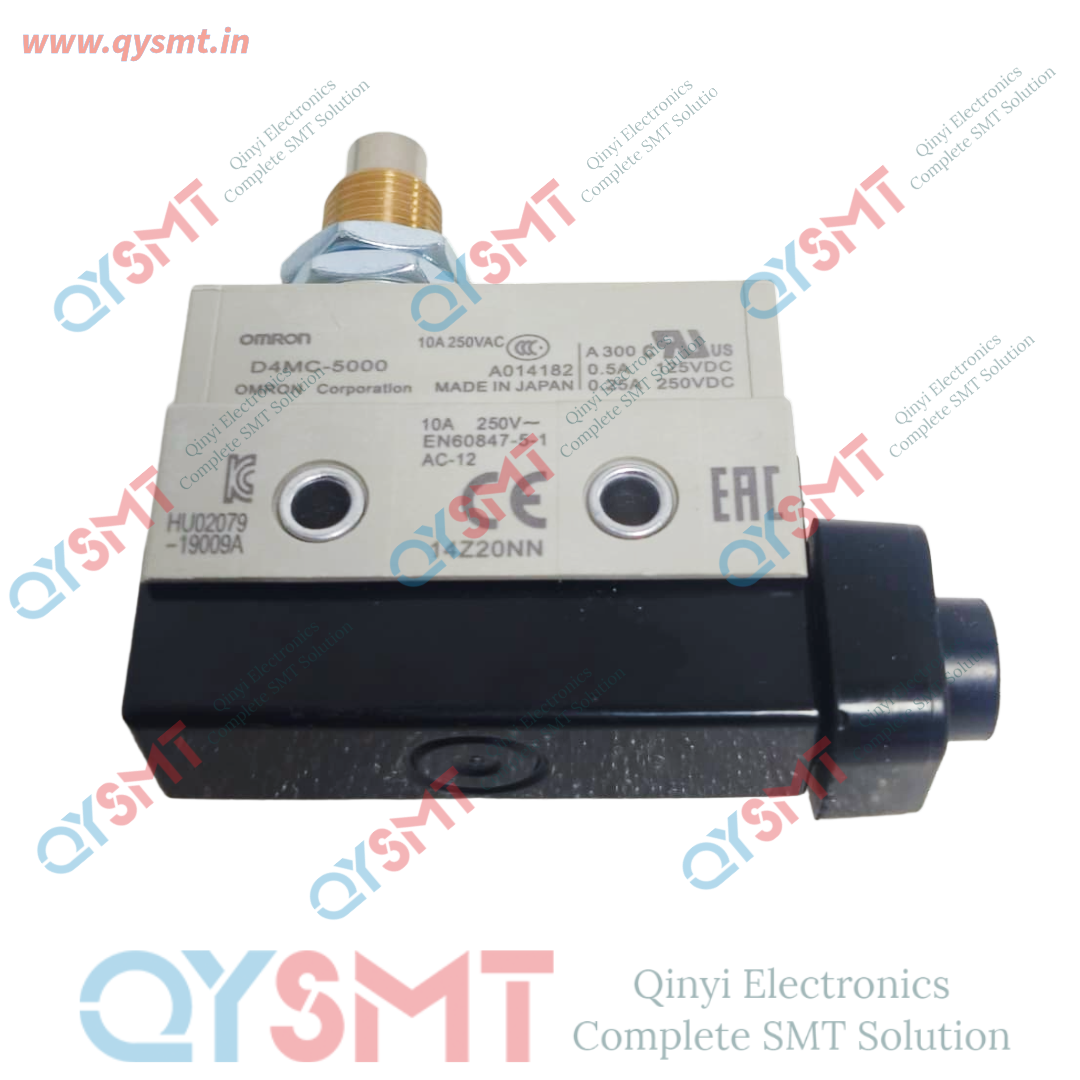

D4MC-5000 Omron Limit Switch

D4MC-5000 Omron Limit Switch
Technical Specifications

• Actuator Type: Panel mount plunger.
• Contact Configuration: Single Pole Double Throw (SPDT / 1NO + 1NC).
• Current Rating: 10 Amps.
• Voltage Rating: Max 250V AC / 30V DC.
• Ingress Protection: IP67 rated for dust and water resistance, making it suitable for harsh industrial environments.
• Mechanical Life: Minimum of 10 million operations.
• Operating Force (OF): Max 5.88 N.
• Release Force (RF): Min 0.98 N.

Key Features & Design“Omron limit switches are robust, electromechanical sensors encased in metal or resin to protect the internal basic switch from external forces, moisture, oil, dust, and dirt.”The unit relies on simple screw terminal connections for straightforward wiring and provides tight environmental sealing via its outer casing.
