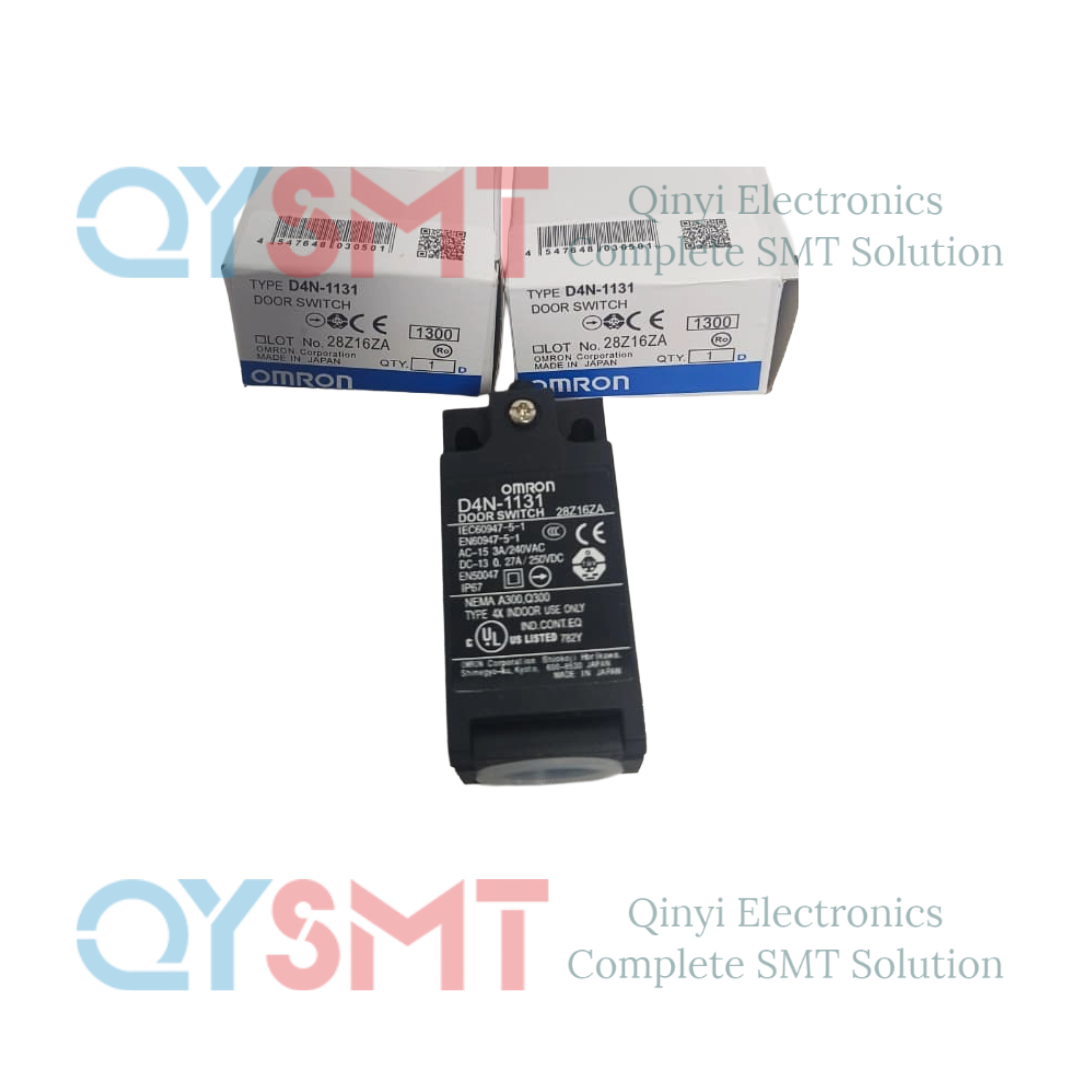

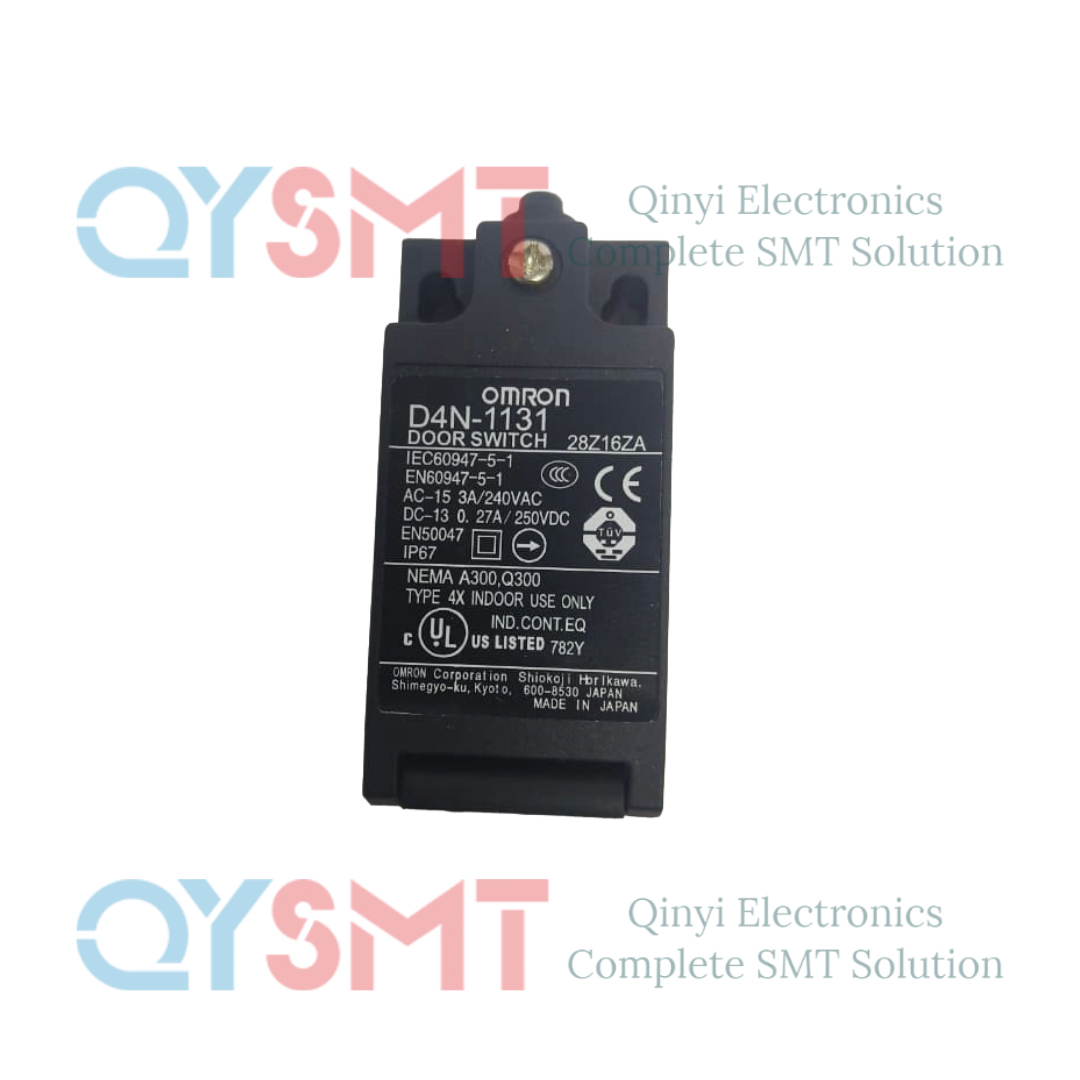

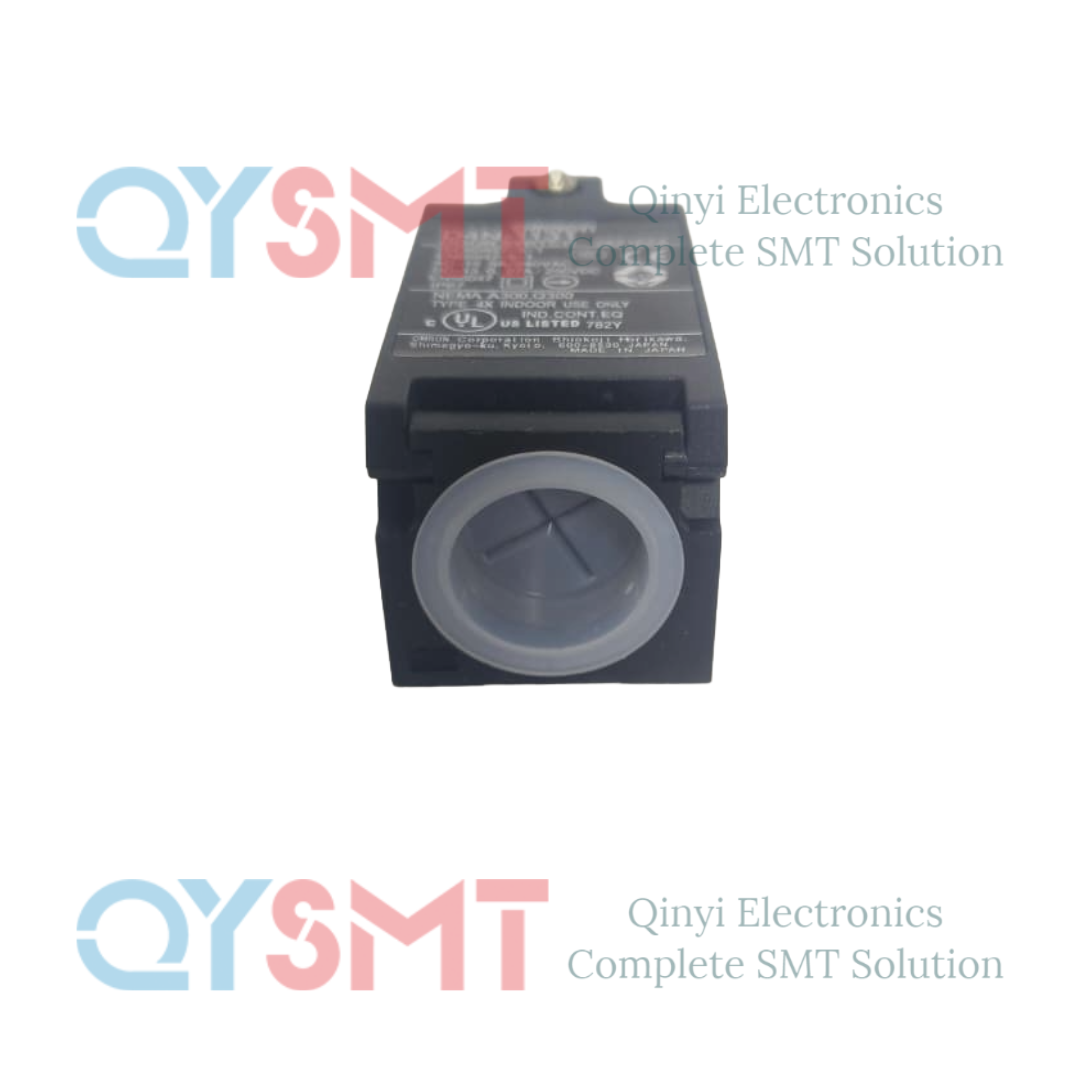

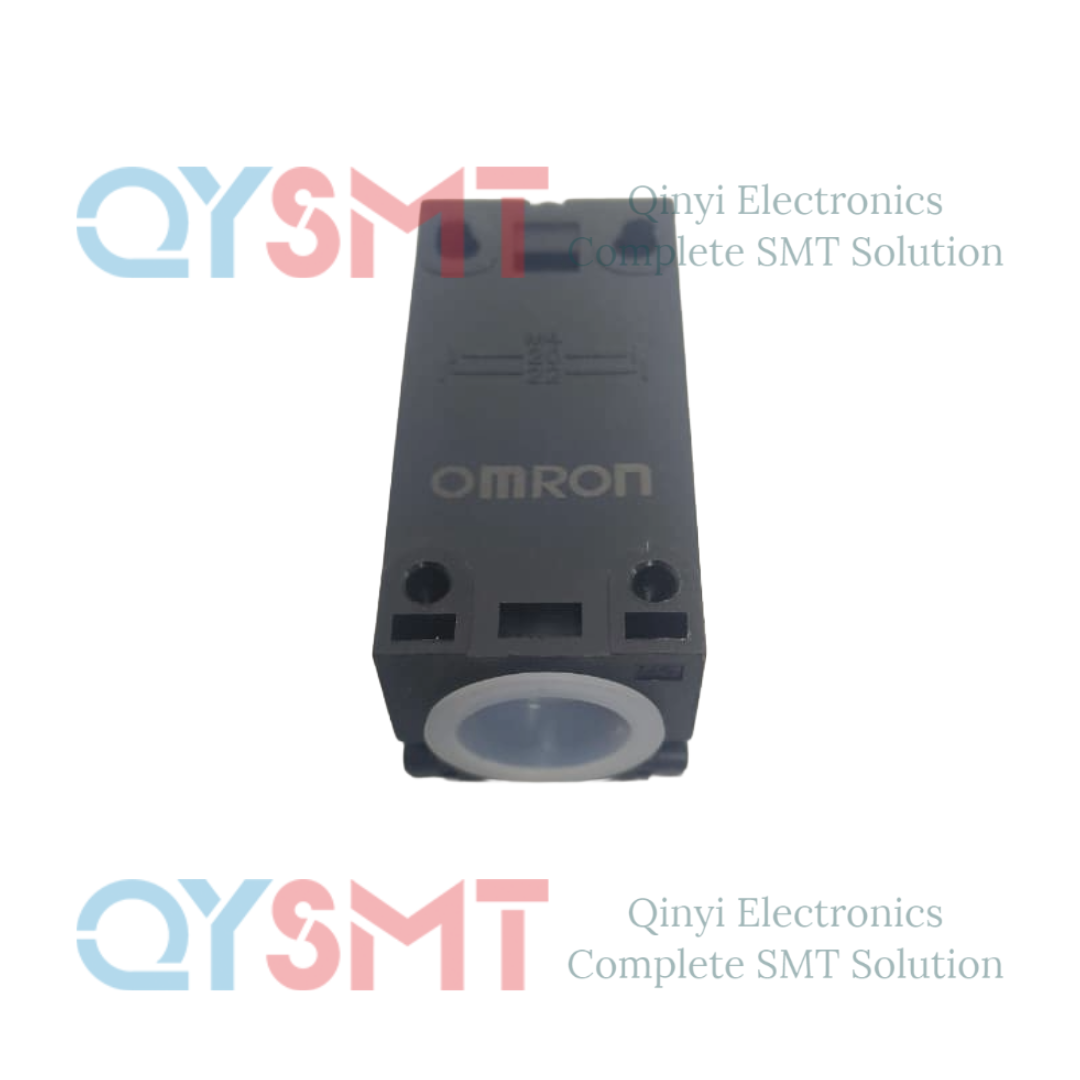

d4n-1131 Omron limit switch

d4n-1131 Omron  limit switch
According to various sources, the Omron D4N-1131 has the following specifications:

• Actuator Type: Pin plunger (round).
• Contact Configuration: 1 NO (Normally Open) / 1 NC (Normally Closed), snap action.
• Maximum Voltage Rating: 240V AC and 250V DC.
• Maximum Current Rating: 10A (AC).
• Degree of Protection: IP67 (dust-tight and protected against temporary immersion in water).
• Housing Material: Plastic.
• Connection: Pg13.5 conduit.
• Operating Temperature: Ranges from -30°C to 70°C.
• Mechanical Life: A minimum of 15,000,000 operations.
• Dimensions: Approximately 64 mm (H) x 31 mm (W) x 30 mm (D).

Online Purchasing OptionsYou can purchase the Omron D4N-1131 limit switch from several online retailers:
