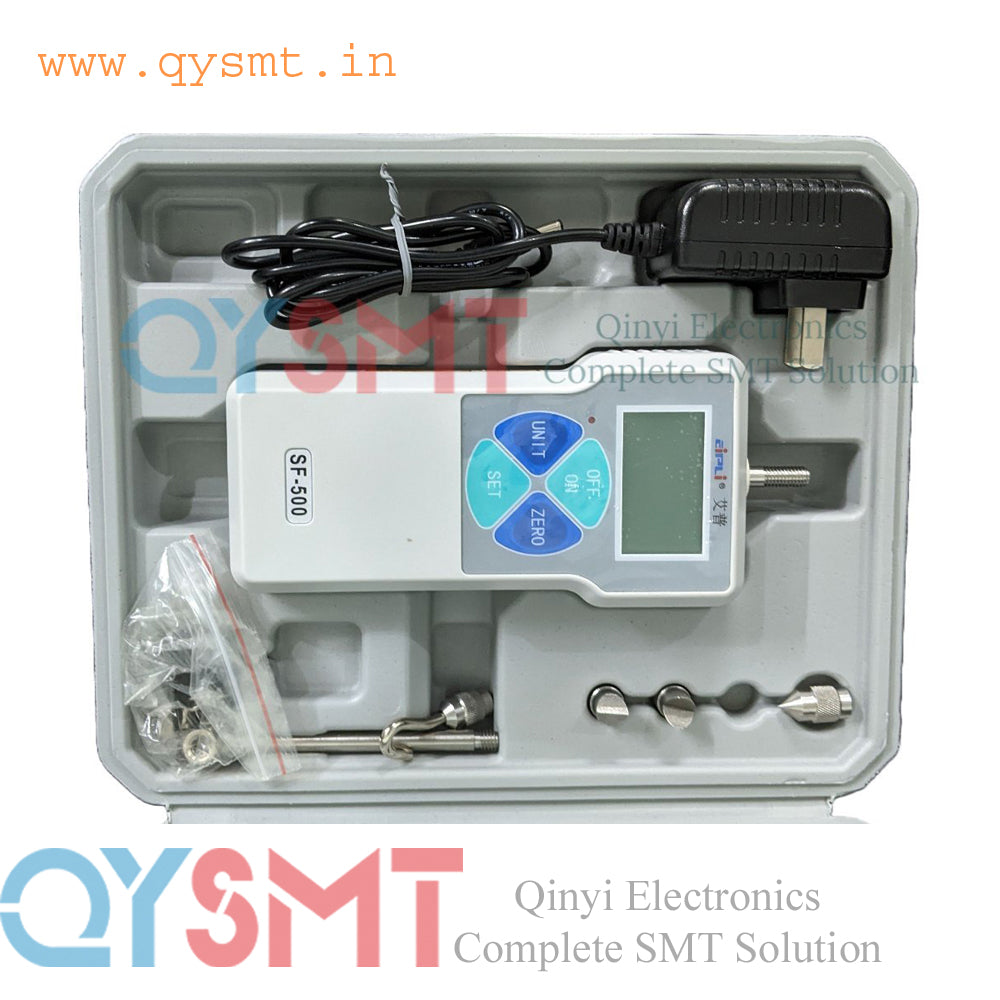

Digital Push Pull Force Gauge SF-500N, SF-50N, SF-1000N
Digital Push Pull Force Gauge SF-500N, SF-50N, SF-1000N
Digital and analog push pull force gauge is in ready stock.
The Digital Push Pull Force Gauges SF-50N, SF-500N, and SF-1000N are part of a series of portable dynamometers used for measuring tension and compression forces. The main difference between the models is their maximum load capacity.
| Feature |
SF-50N
|
SF-500N
|
SF-1000N
|
|---|---|---|---|
| Max Load Value | 50N / 5 kg / 11 lb | 500N / 50 kg / 110 lb | 1000N / 100 kg |

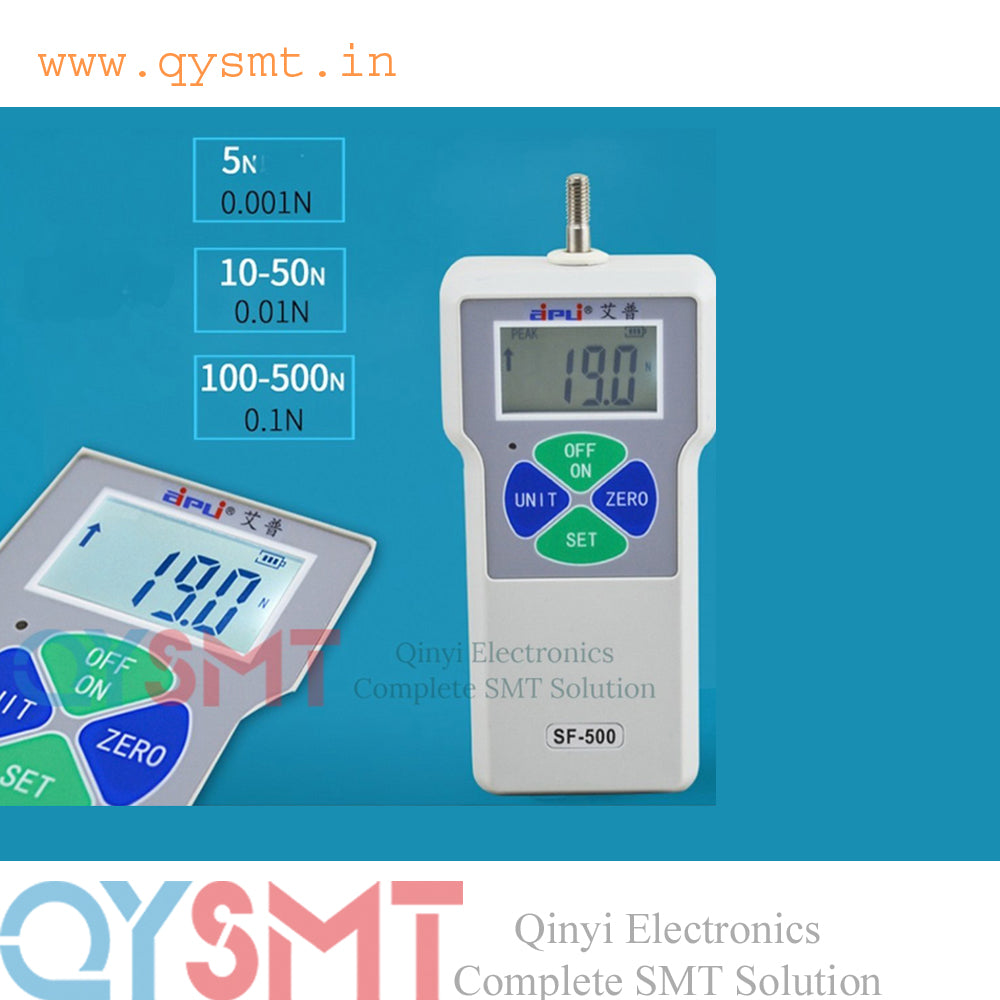

| Load Division Value | 0.01N / 0.001 kg / 0.001 lb | 0.1N / 0.01 kg / 0.01 lb | 0.1N / 0.01kg |
| Accuracy | ±0.5% | ±0.5% | ±0.5% |
| Display | Large LCD digital display | Large LCD digital display | LCD digital display |
| Units | N, kg, and lb (button-selectable) | N, kg, and lb (button-selectable) | N, kg, and lb (button-selectable) |
| Power | 3.7V lithium battery | 3.7V lithium battery | 3.7V lithium battery |
| Working Time | About 15 hours | About 15 hours | About 15 hours |
| Features | Overload protection, auto-shutdown, low battery reminder | Overload protection, auto-shutdown, low battery reminder | Overload protection, auto-shutdown, low battery reminder |
Common applications
Digital push-pull force gauges are widely used in a variety of industries for quality control and testing:
- Electronics: Testing the insertion and extraction force of connectors and parts.
- Hardware and manufacturing: Measuring the force required to break, press, or assemble parts.
- Automotive: Testing components for strength and durability.
- Textiles: Checking the tear and tension strength of fabrics.
- Research and development: Conducting destructive and non-destructive material testing in laboratory settings.
