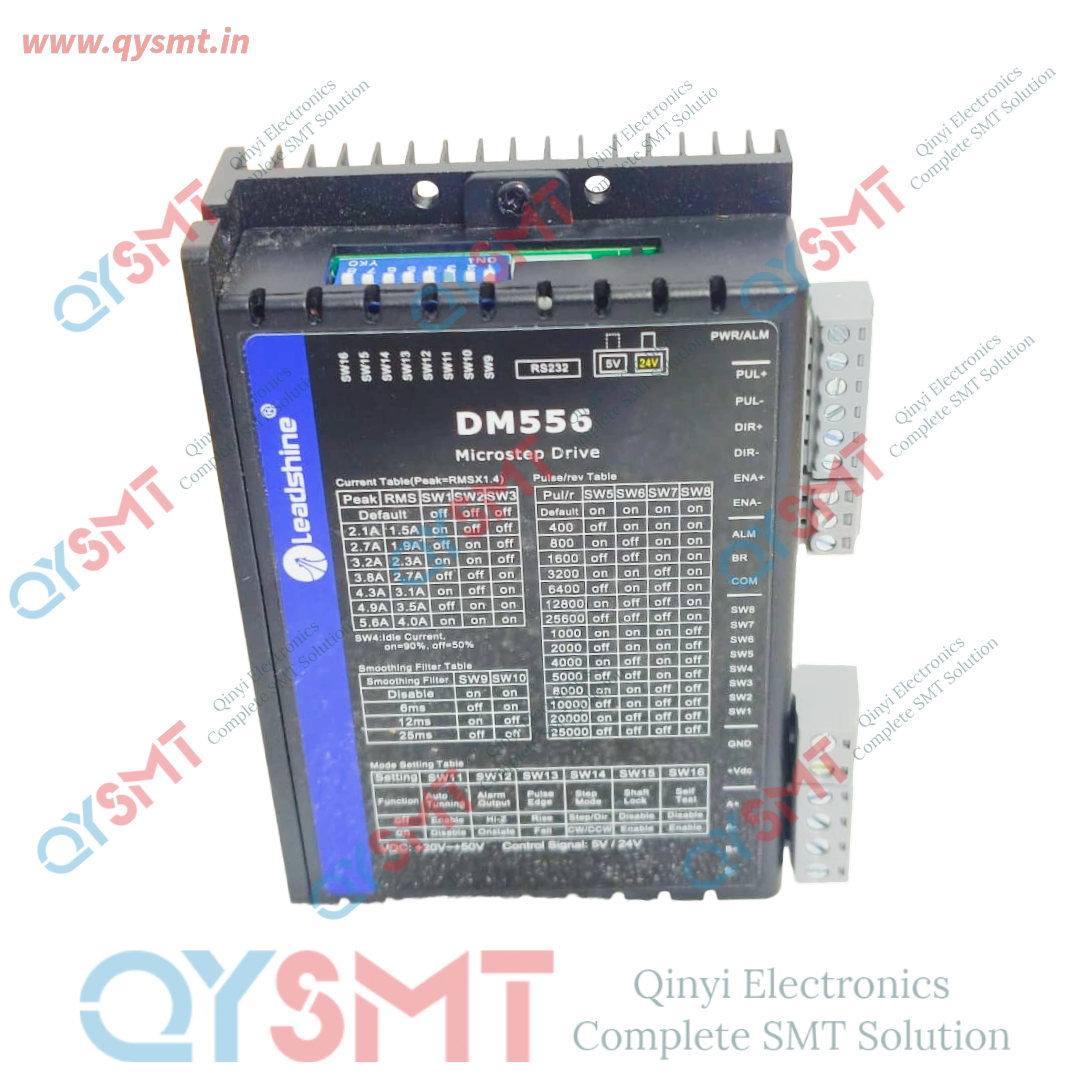

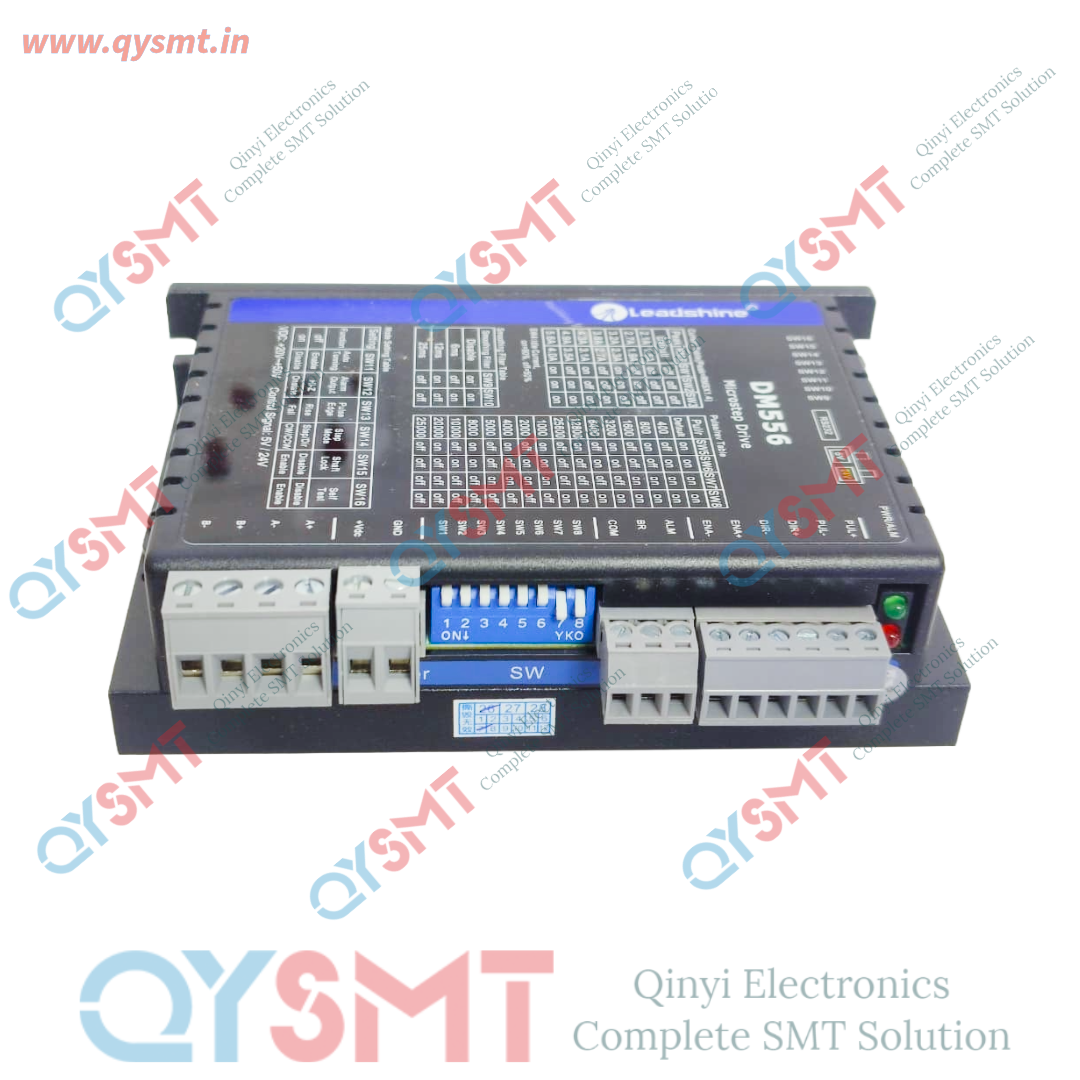

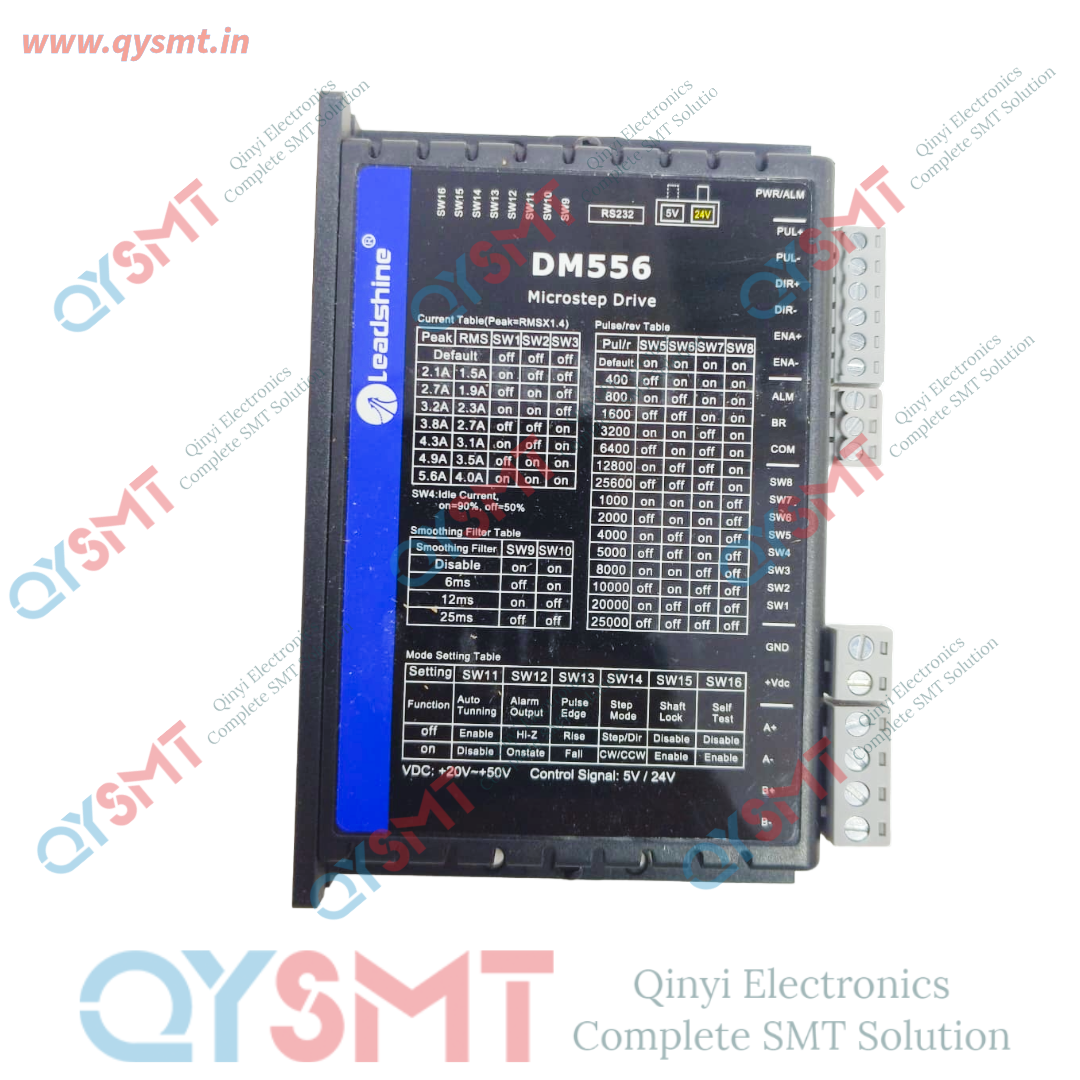

DM556( v3.0) leadshine drive

DM556( v3.0) leadshine drive
Technical Specifications

• Input Voltage: 20–50 VDC (Recommended 24–48 VDC)
• Output Current Range: 1.8A – 5.6A (Peak/Adjustable via DIP switches)
• Max Pulse Frequency: 200 kHz
• Microstep Resolutions: 16 settings ranging from 200 to 51,200 steps/rev
• Control Signal: Step & Direction (PUL/DIR)

Key Features

• Advanced DSP Control: Delivers optimal torque and nulls mid-range instability.
• Automatic Idle Current Reduction: Drops current to 50% or 90% at standstill to minimize heating.
• Protection Mechanisms: Built-in safeguards against overvoltage, undervoltage, and overcurrent.

For a visual walkthrough of connecting the power supply and motor coils to the driver:
