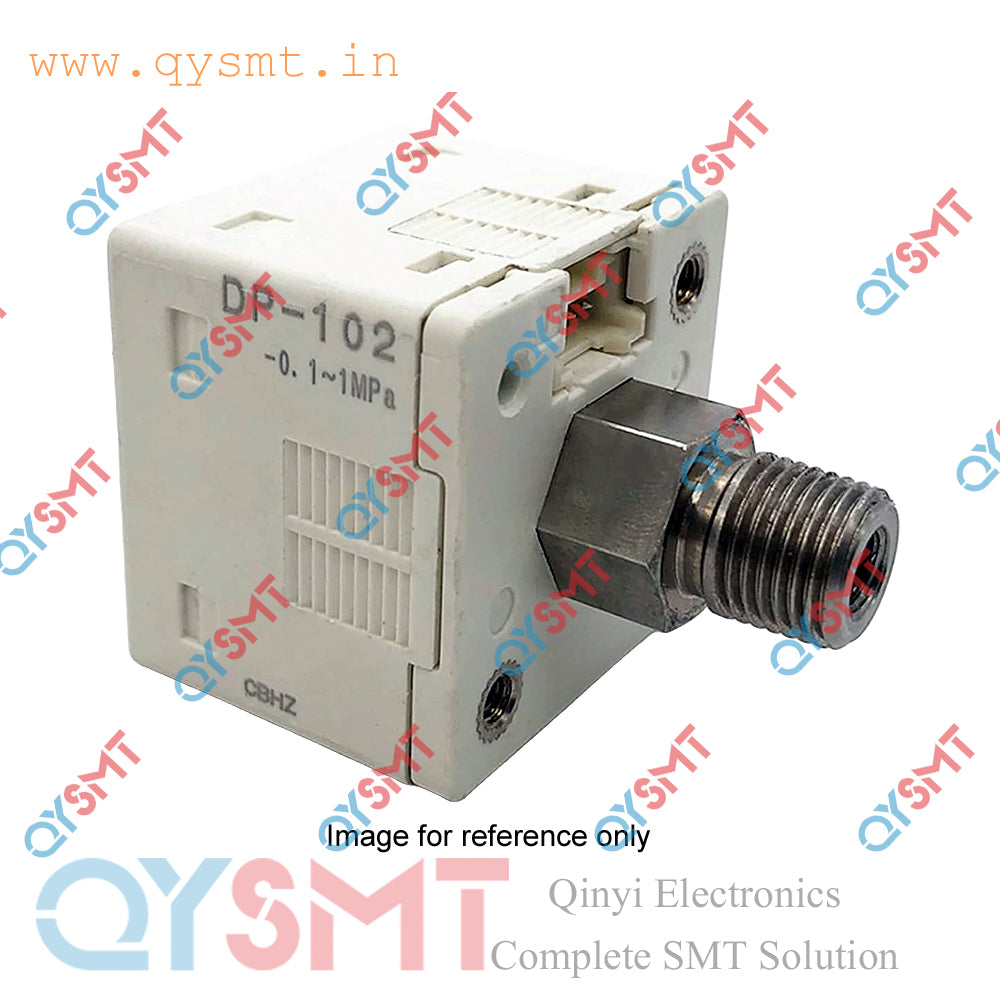

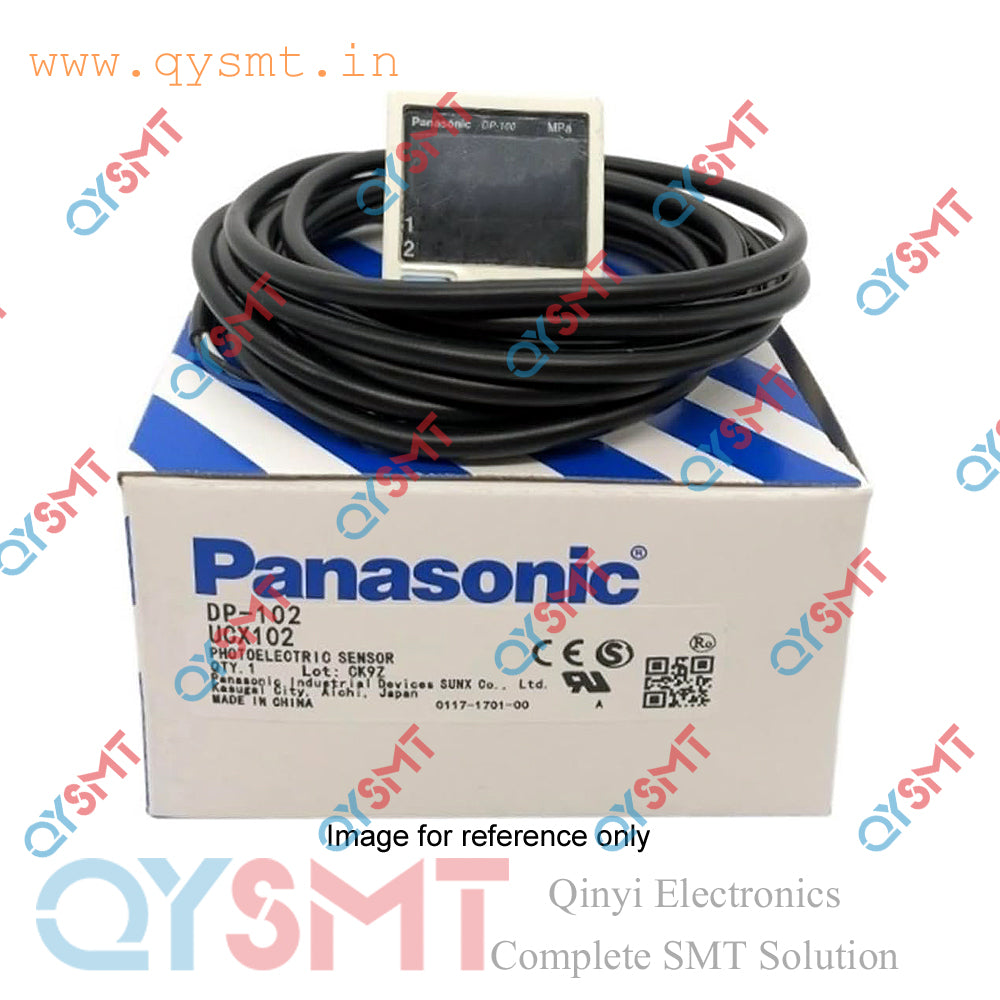

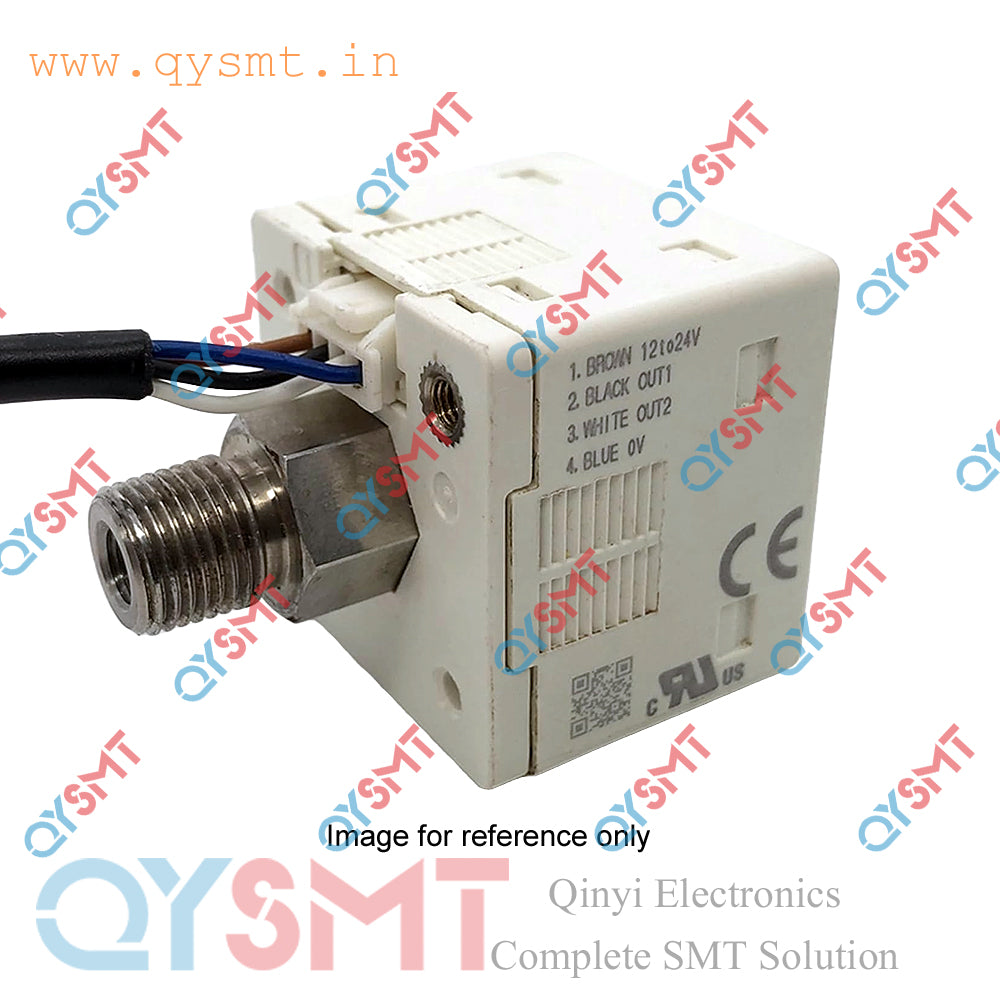

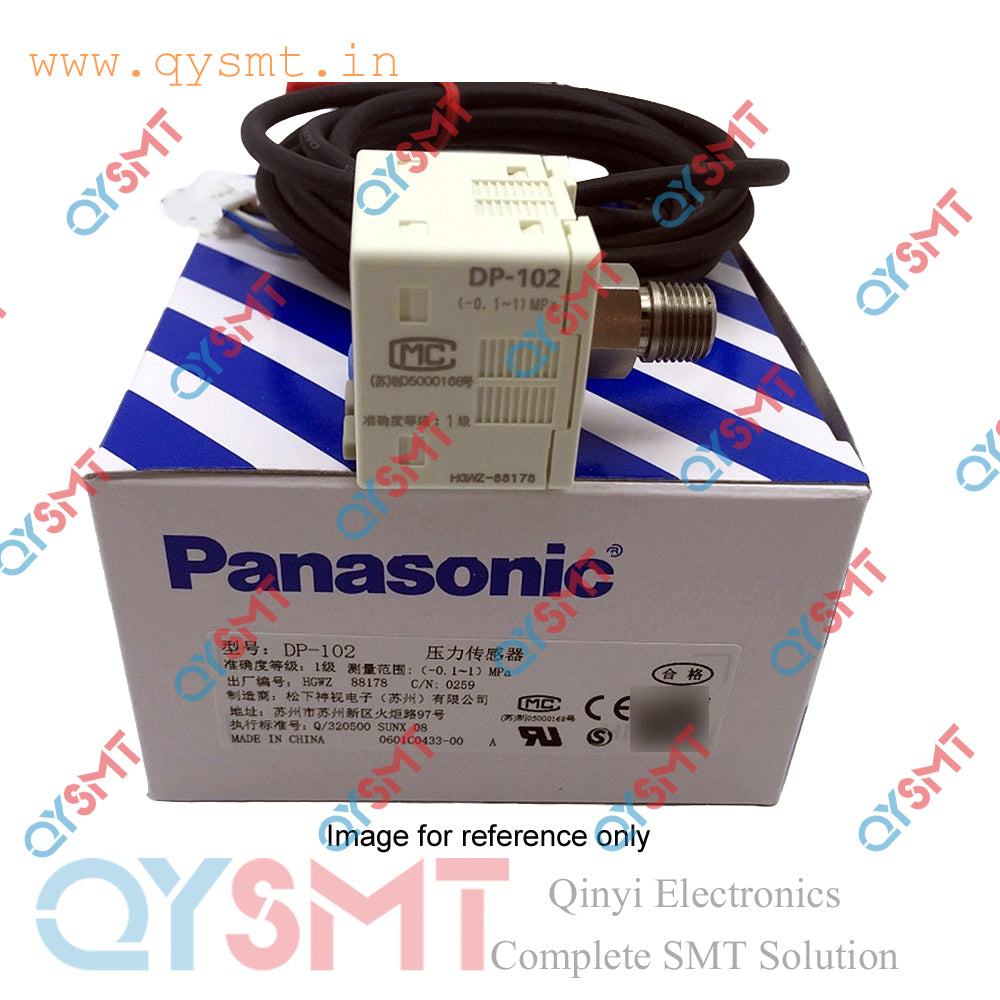

Panasonic DP-102 MPA Digital Pressure Sensor

Panasonic Sunx Digital Display DP-102 MPA Vacuum Negative Pressure, Gas Pressure Gauge Sensor 12 to 24 V DC, NPN open-collector transistor, NO / NC (selectable by key operation), 4 digits + 4 digits 3-color LCD Display, Orange LED Indicator, M5 female thread + R (PT) 1/8 male thread Pressure port

Specification/Additional Details

• Type : Gauge
• Suitable Media : Gas
• Part Number : DP-102 MPa
• Pressure Range : -0.100 to +1.000 MPa
• Brand : Panasonic
• Pressure withstandability : 1.5 MPa

• Supply voltage : 12 to 24 V DC +-10 % Ripple P-P 10 % or less

• Output : NPN open-collector transistor

• Output operation : NO / NC (selectable by key operation)

• Output modes : EASY mode / Hysteresis mode / Window comparator mode

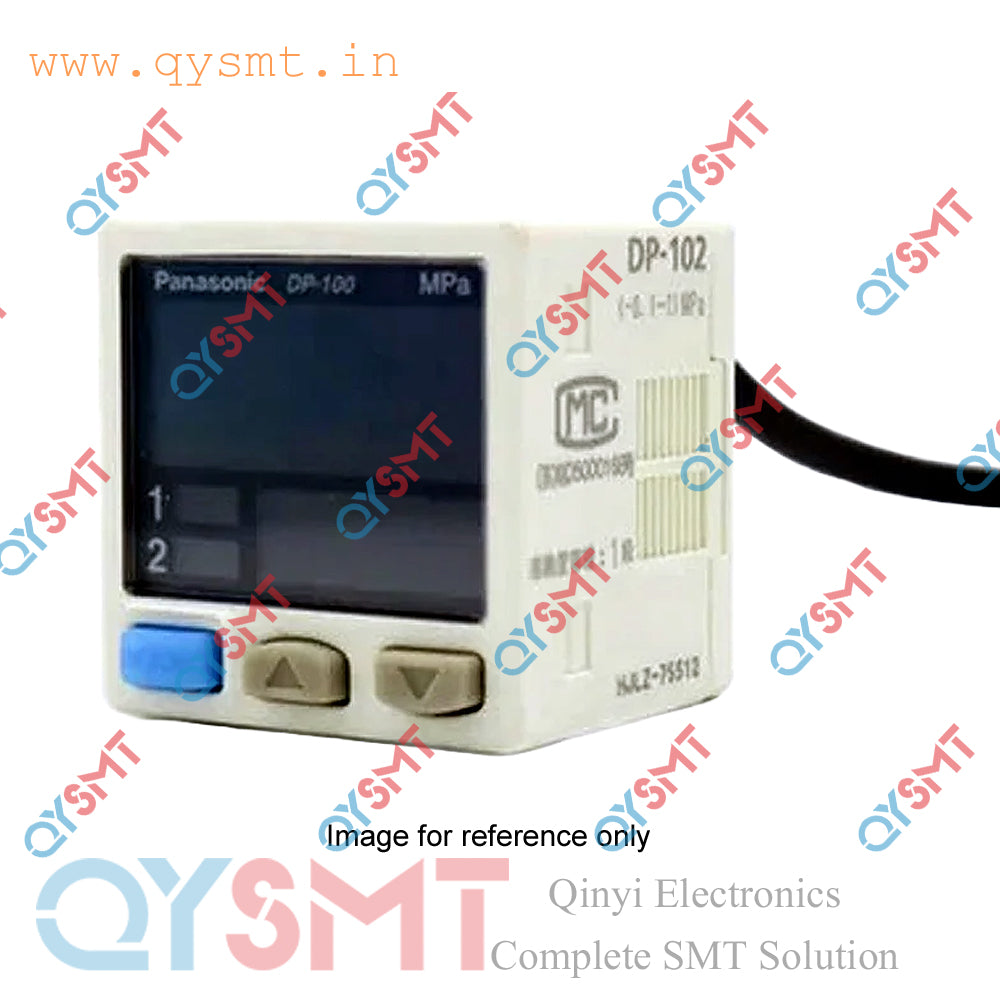

• Display : 4 digits + 4 digits 3-color LCD Display

• Indicator : Orange LED

• Protection Class : IP40 (IEC)

• Material : Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel
