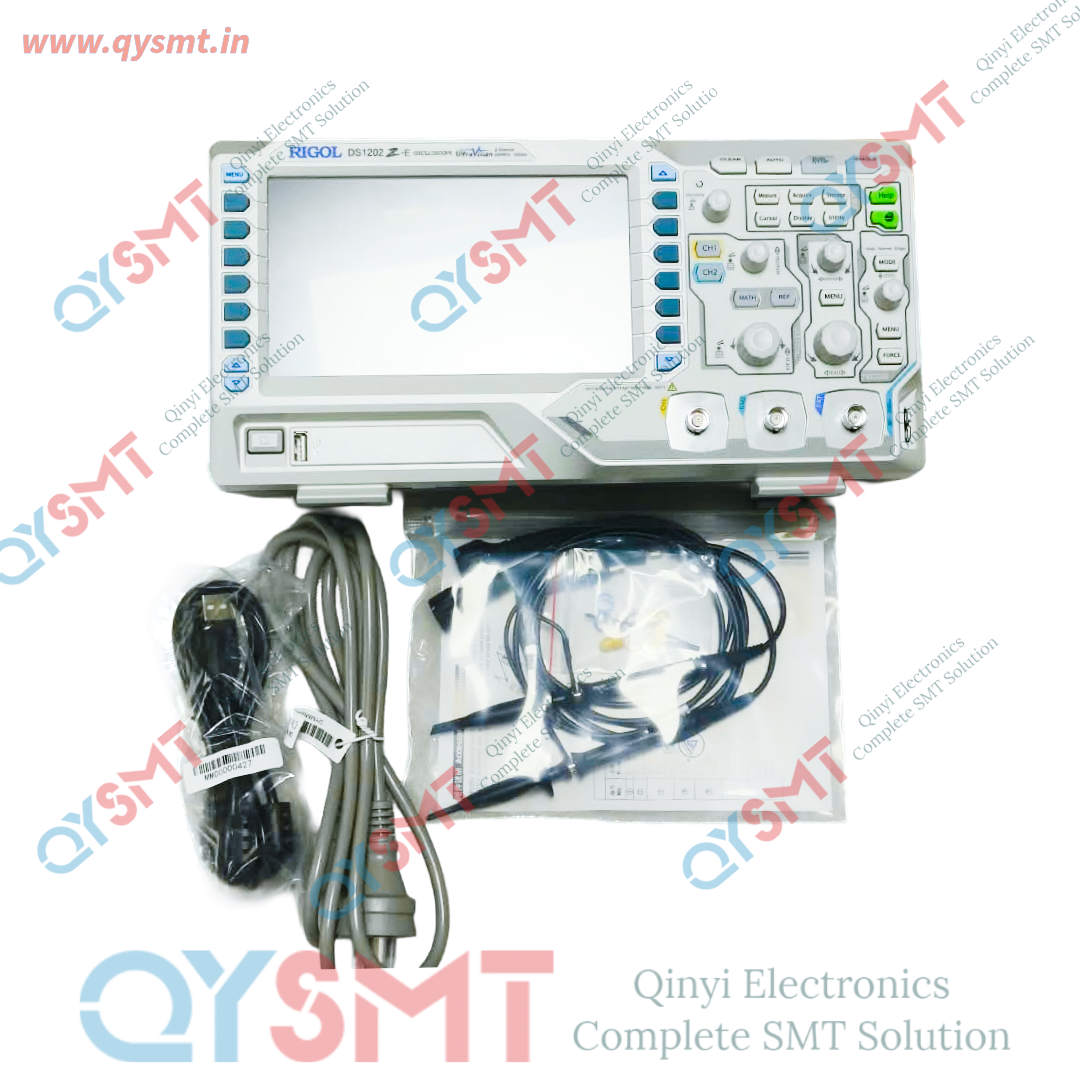

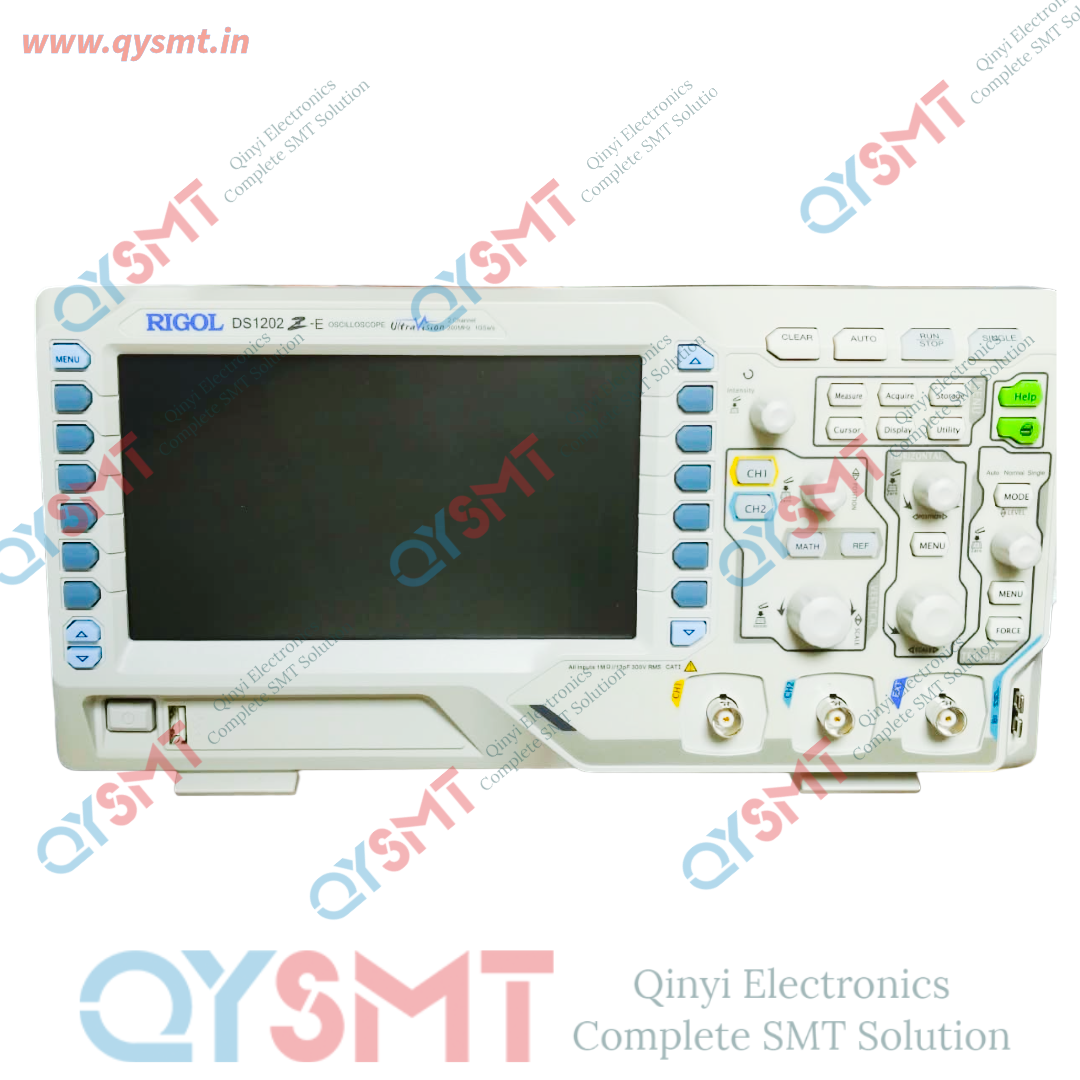

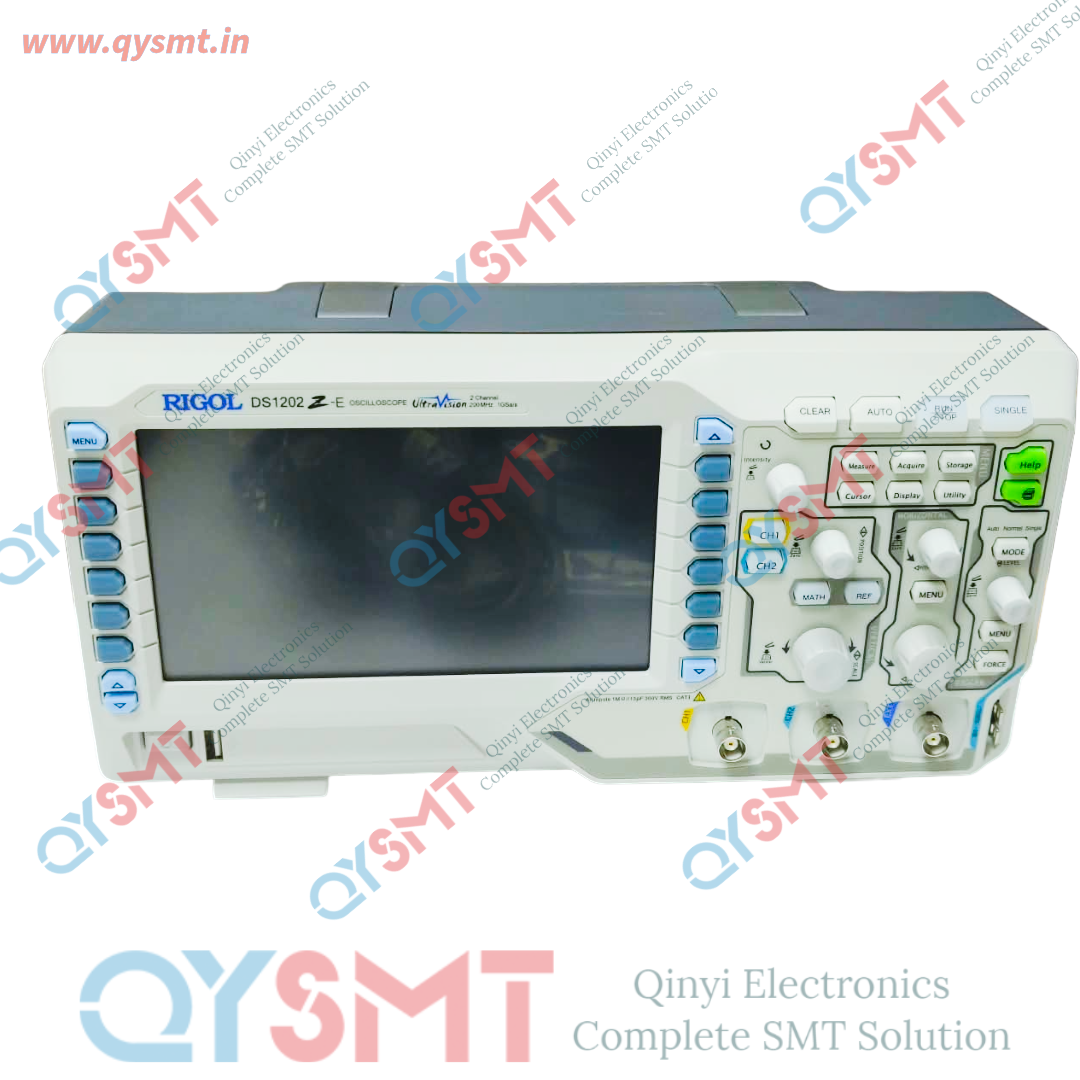

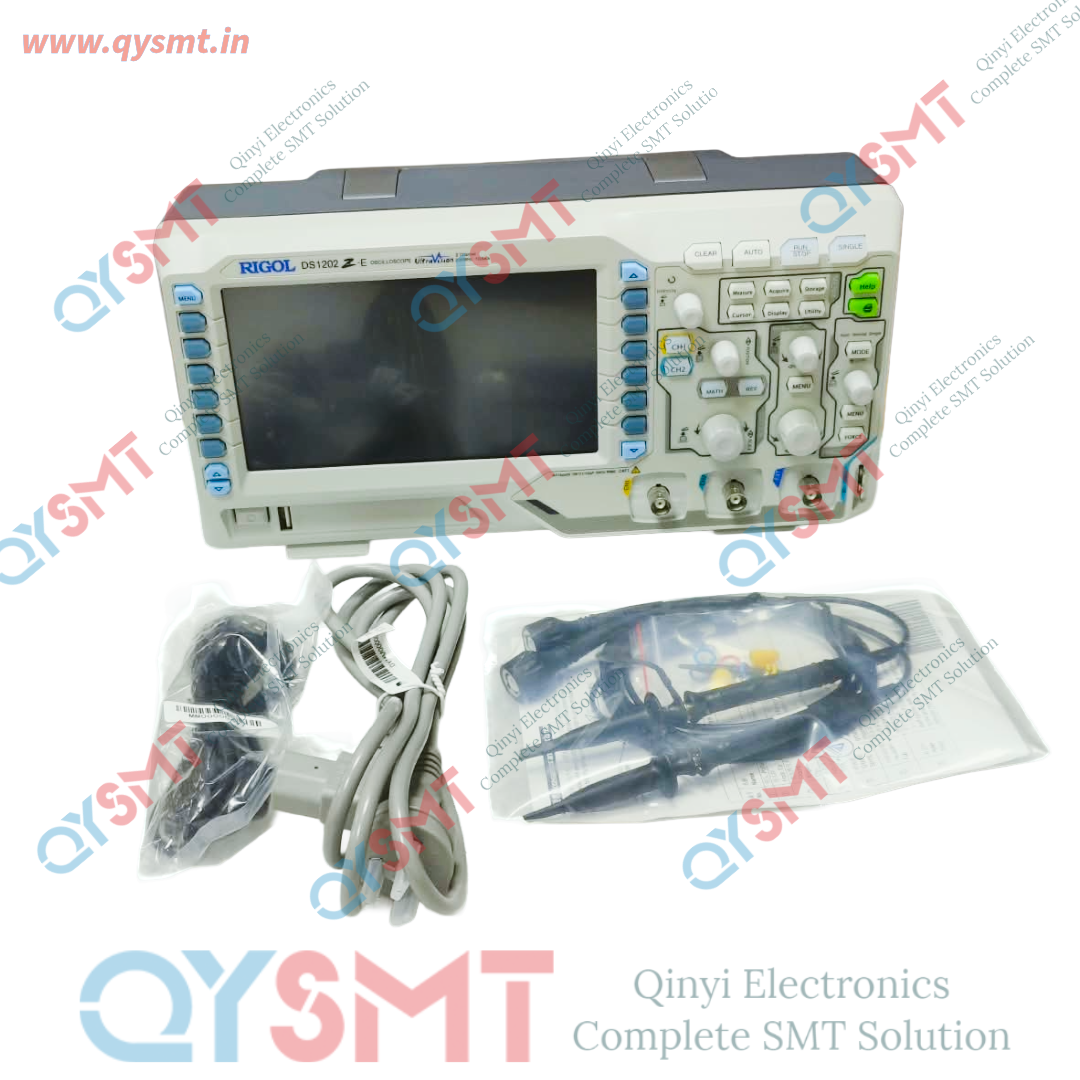

Front Control Panel Layout

• 7-Inch Color LCD Display: Uses intensity-graded technology to clearly reveal hidden waveform anomalies, signal depth, and noise.
• Dedicated Menu & Function Keys: Positioned directly to the right of the screen for quick navigation across multi-language configuration menus.
• Vertical Control Block: Features physical position and scaling knobs dedicated to managing the two analog input channels independently.
• Horizontal Control Block: Houses scaling and position knobs to adjust the timebase for capturing fast transient events.
• Trigger Control Block: Offers a guided system supporting 15 distinct trigger types for locking onto complex data streams.
• Lower Interface Strip:
  • Two BNC analog inputs for signal channels.
  • One external reference trigger input.
  • Built-in probe compensation terminals.
  • A USB Host port for quickly saving screenshots and waveform data directly to a flash drive.

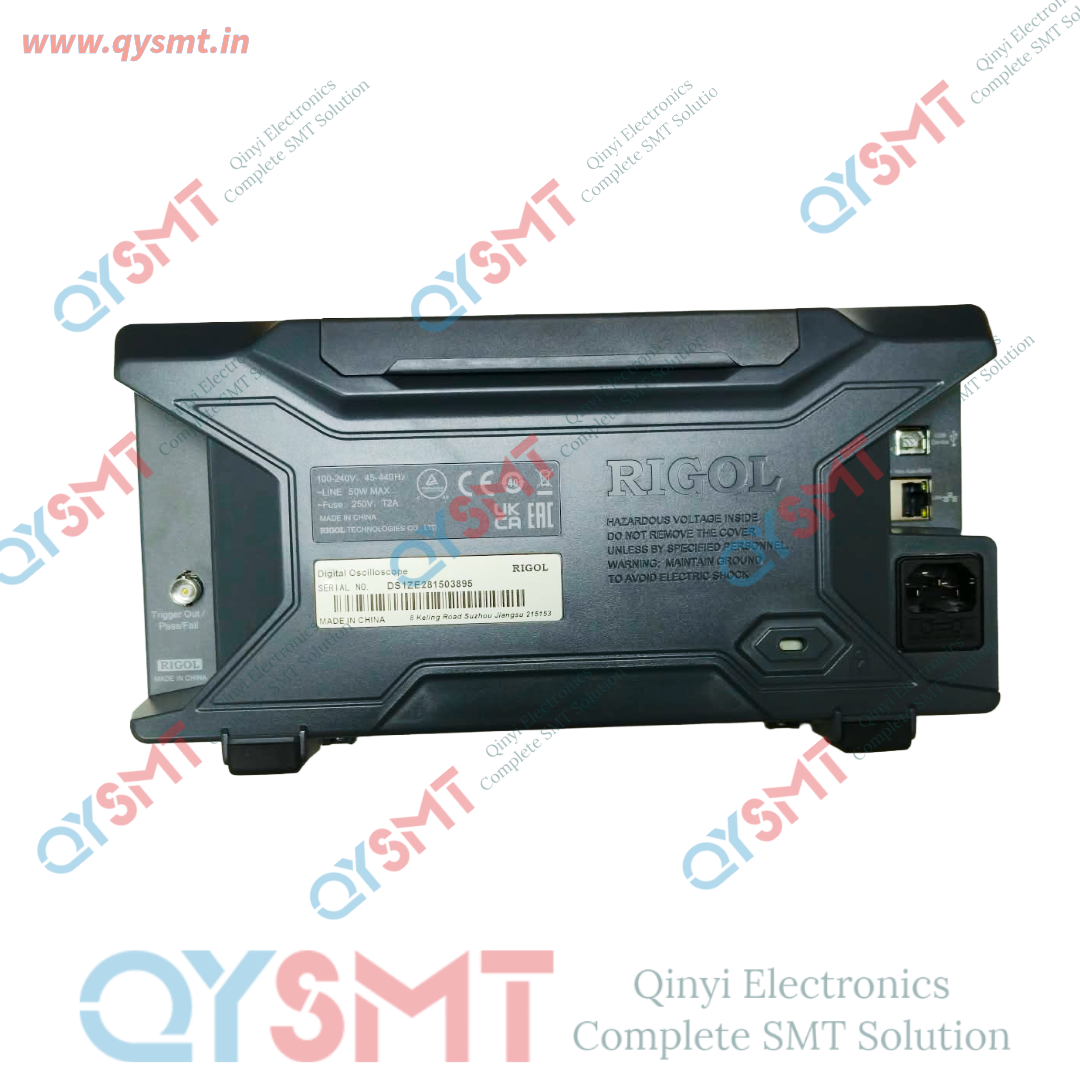

Rear Interface Panel

• USB Device Port: Allows for seamless PC connectivity to control the scope or log data via software.
• LAN / LXI Port: Enables network integration for remote lab control and automated data acquisition.
• AUX Out (Trigger Out / Pass-Fail): Provides a physical BNC connection to output hardware triggers or pass/fail pulses to external testing systems.
• Kensington Lock Slot: Provides physical security for university or shared laboratory environments.

Core Technical Specifications

• Bandwidth & Sampling: 200 MHz analog bandwidth with a real-time sample rate up to 1 GSa/s.
• Memory Depth: Deep 24 Mpts memory architecture allows for extensive recording window lengths.
• Waveform Capture Rate: Captures up to 30,000 waveforms per second to intercept rare glitches.
• Protocol Decoding: Includes standard, built-in hardware serial decoding and triggering for I²C, SPI, and RS232/UART buses.
