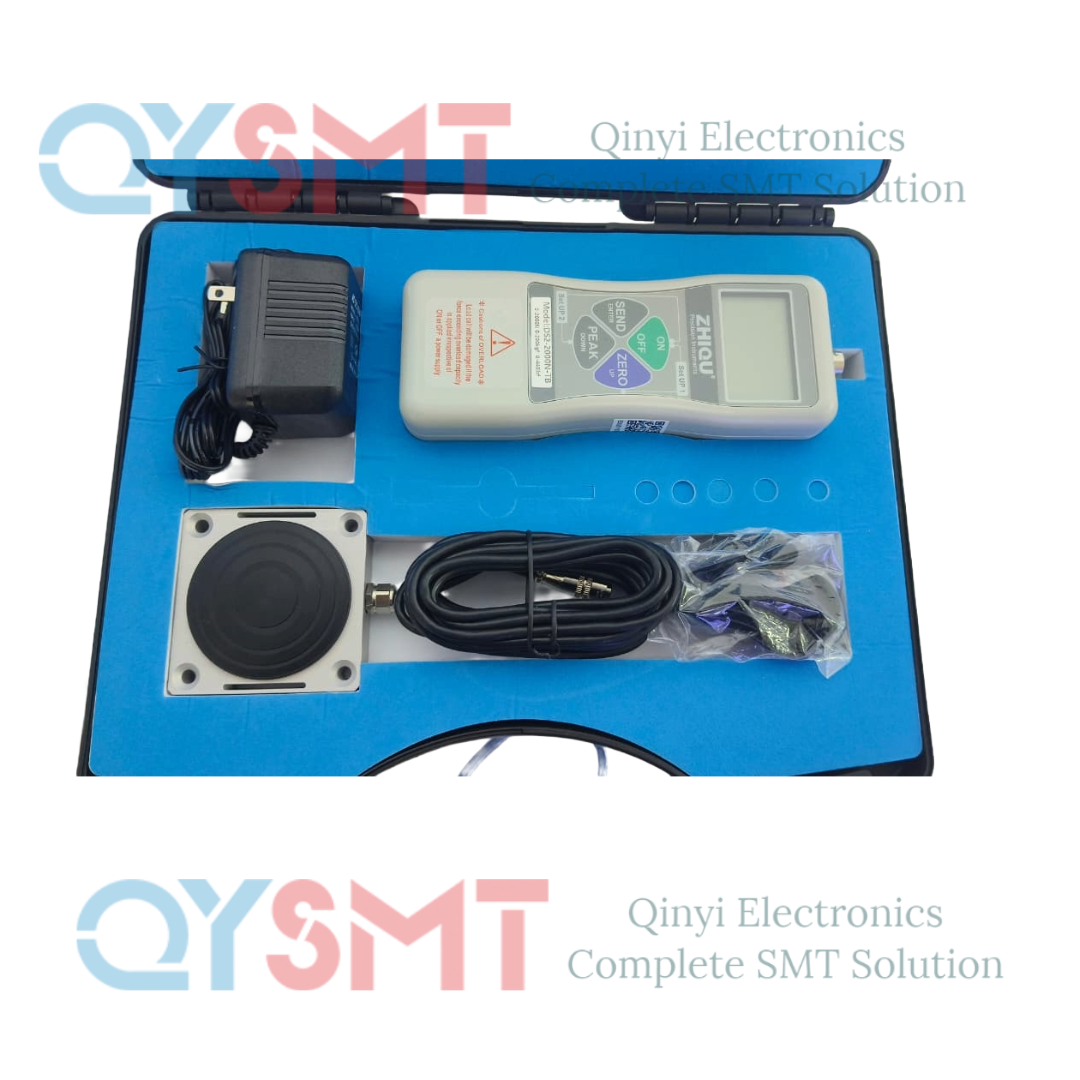

DS2-2000M-TB Push pull tester
- Maximum Load: The DS2 series has models with maximum loads up to 2000N (approximately 200 kgf or 440 lbf).
- Accuracy: The device offers high precision with an accuracy of ±0.2% Full Scale (F.S.) ±1 Least Significant Digit (LSD).
- Measurement Units: Users can select between N (Newtons), kgf (kilogram-force), and lbf (pound-force) units.
- Operating Modes: It supports both real-time measurement mode and peak hold function to capture the maximum force applied.
- Sampling Rate: The sampling rate can be set to either 30 or 1000 data per second (Hz).
- Overload Warning: The display flashes a warning indicator at 110% of full scale, and the device has an overload capacity of 200% F.S..
- Connectivity: It includes RS-232C, Digimatic, and analog outputs for data transfer to a computer or PLC systems.
- Power: It operates on internal rechargeable Ni-MH batteries or an AC adapter.
- Display: Features a 4-digit LCD display that can be reversed for easy reading in various orientations.
