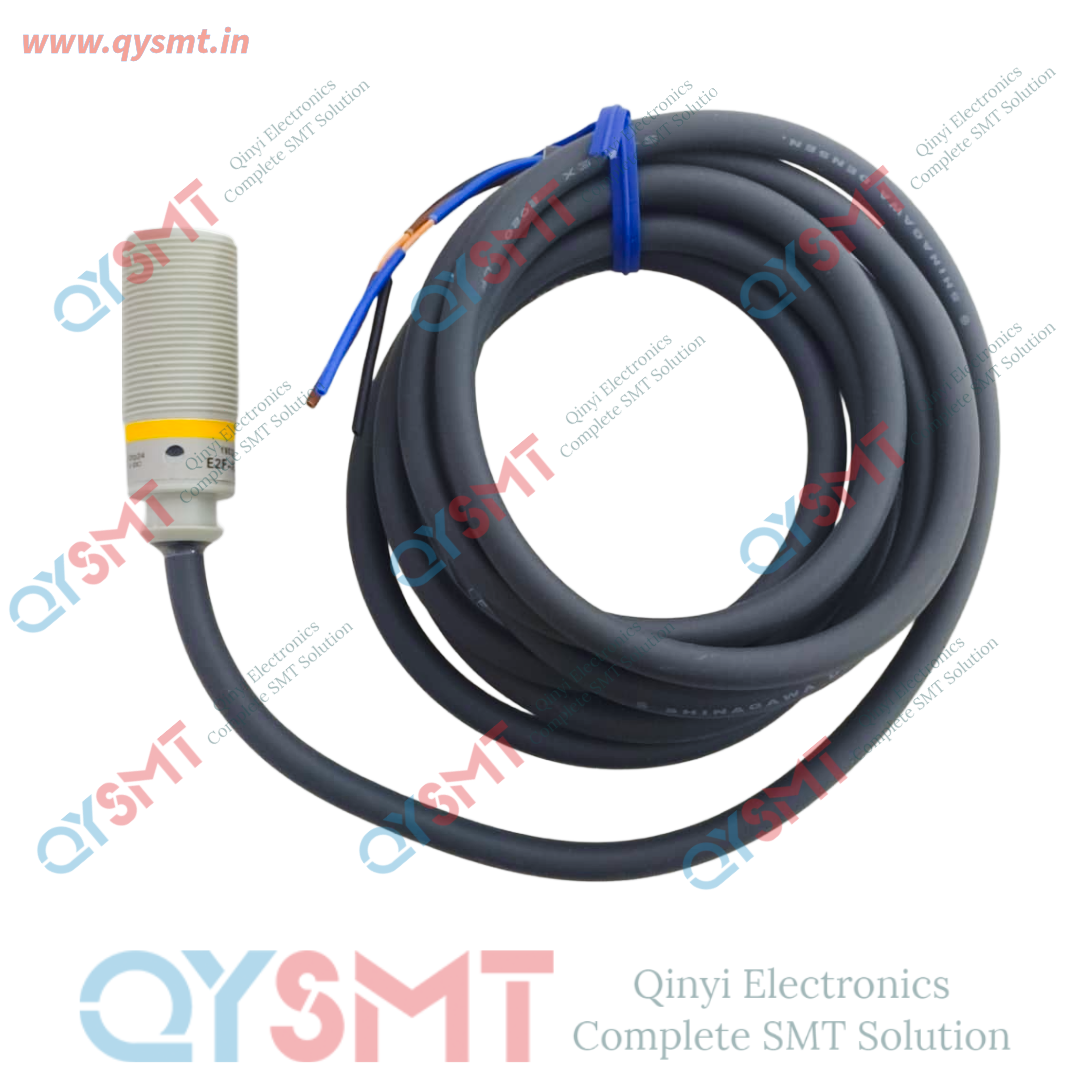

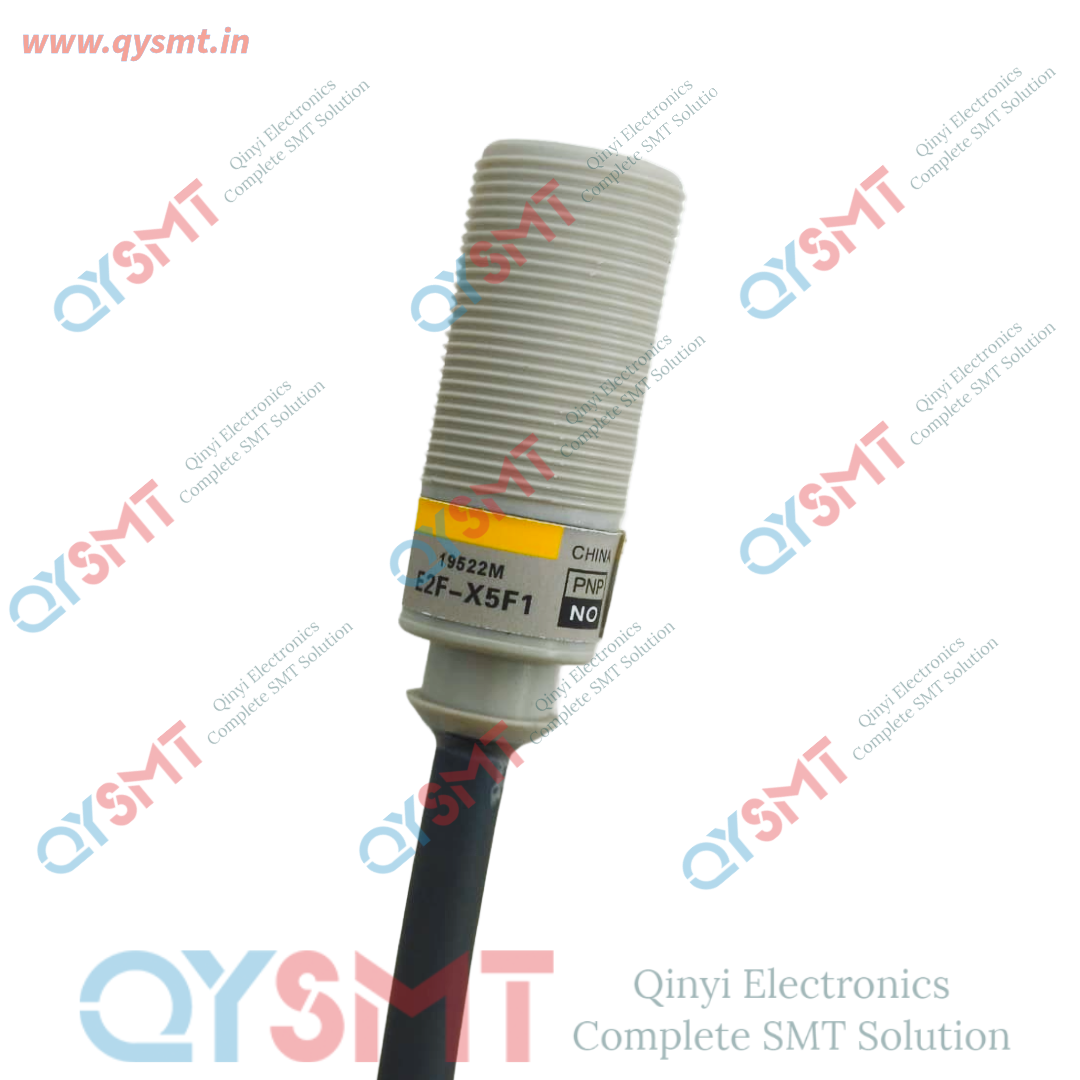

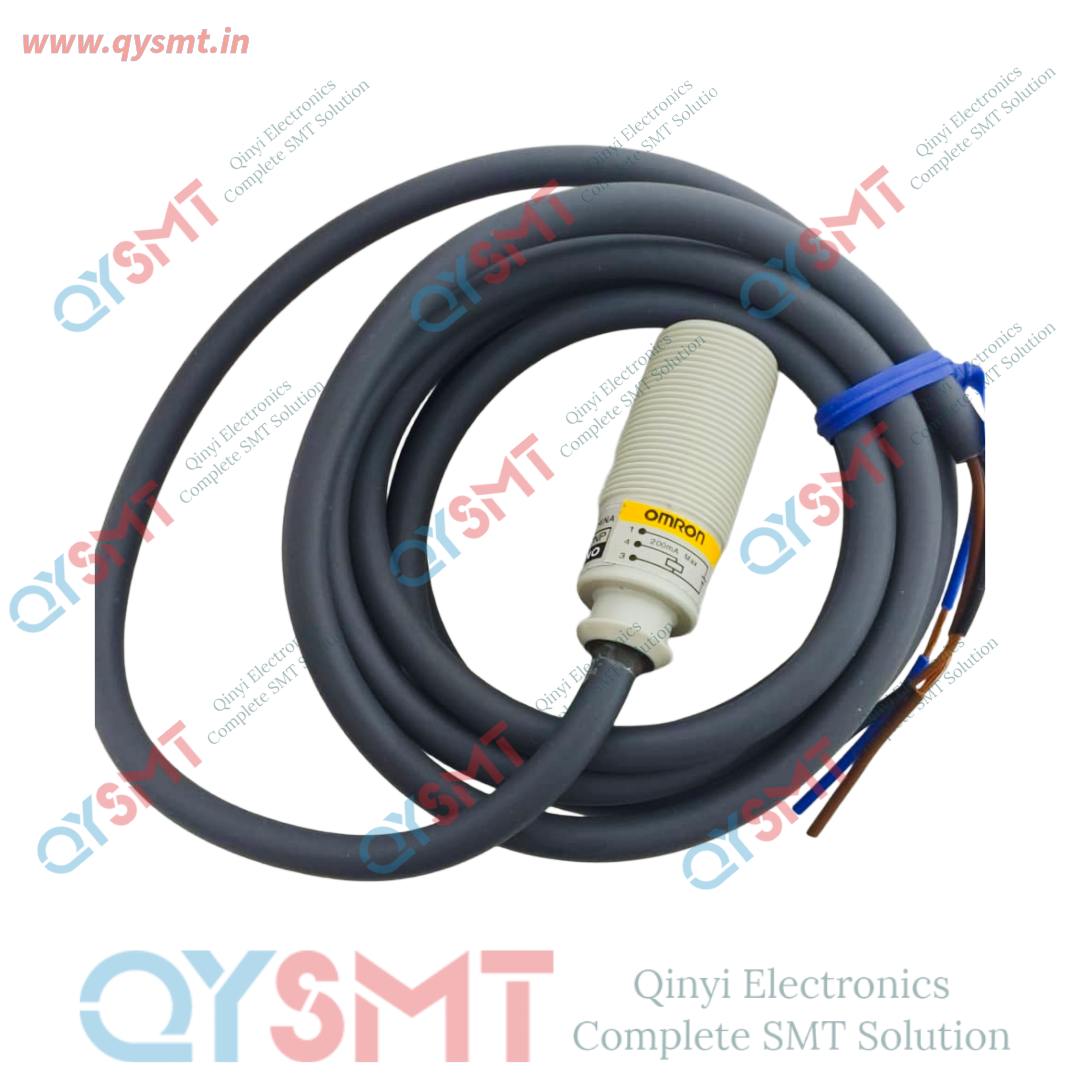

E2F-X5F1 Proximity sensor

E2F-X5F1 Proximity sensor
Technical SpecificationsThe standard variant breakdown highlights its electrical and physical properties:

• Sensing Distance: 5 mm max range for ferrous metals.
• Output Configuration: DC 3-wire, PNP with a Normally Open (NO) operation mode.
• Housing Diameter: M18 size threaded cylindrical barrel shape.
• Mounting Style: Shielded / Flush mount, allowing safe installation level with surrounding metal.
• Supply Voltage: 10 to 30 V DC (12–24V DC nominal).
• Ingress Protection: IP68 rating, offering superb water resistance. It withstands complete submersion up to 10 metres deep.
• Housing Material: Highly durable polyarylate resin case and sensing surface.
• Switching Frequency: Up to 600 Hz.

Model VariationsThis component usually differs by the length of its pre-wired cable, which is integrated directly into the product code:

• E2F-X5F1 2M: Features a 2-metre pre-wired cable.
• E2F-X5F1 5M: Features a longer 5-metre pre-wired cable.
• E2F-X5F1-M1TJ-0.3M: Features a short 0.3-metre cable attached to a smart click connector.
