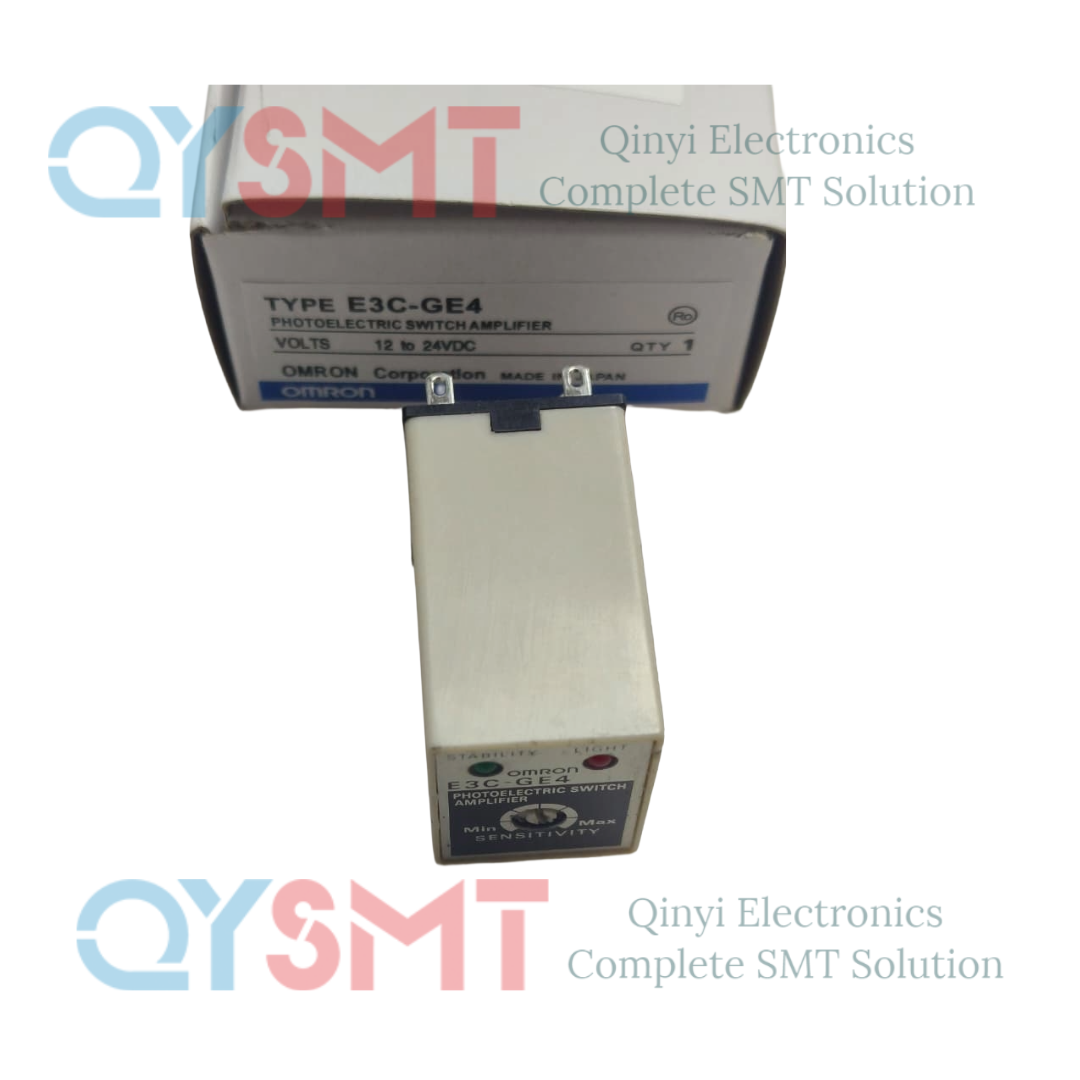

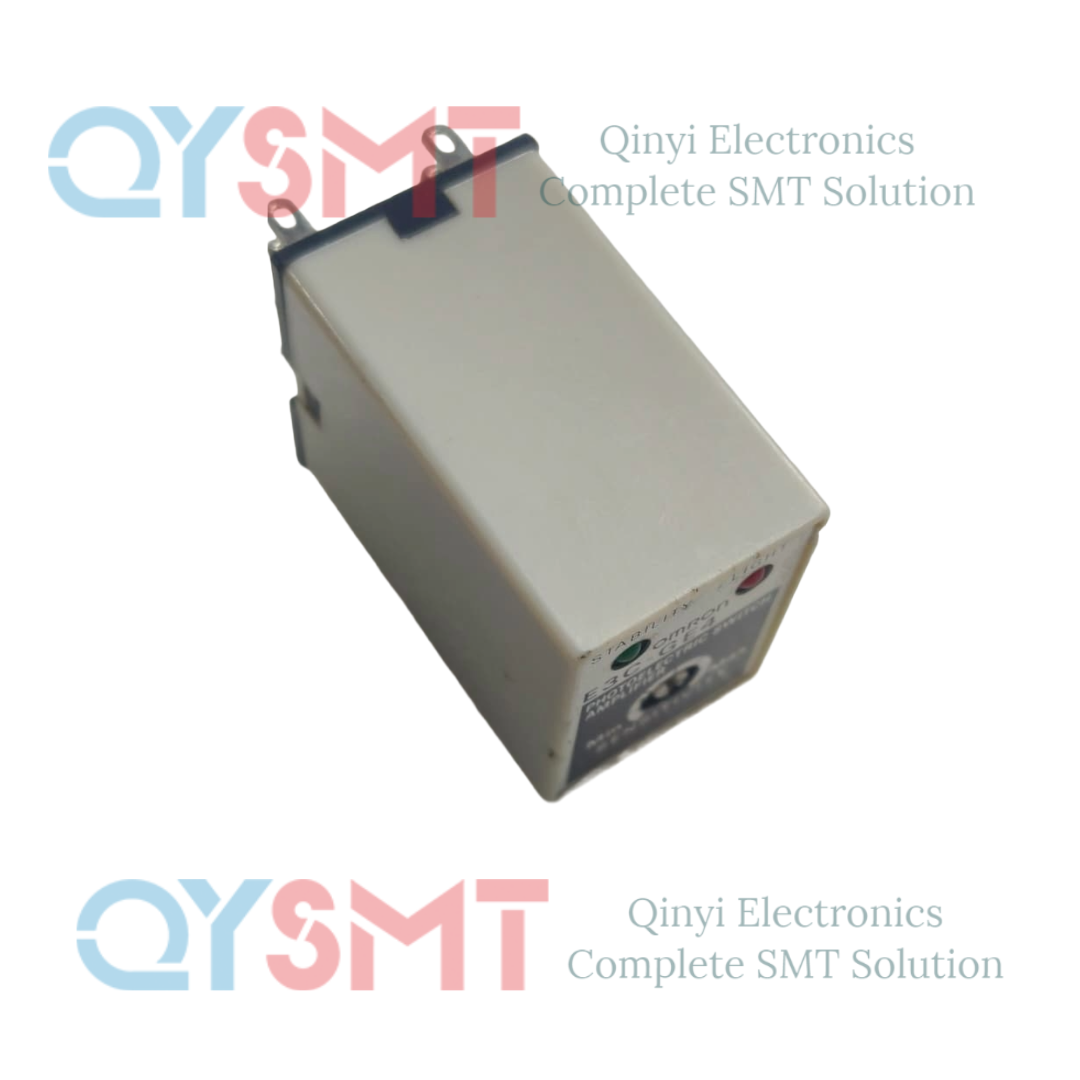

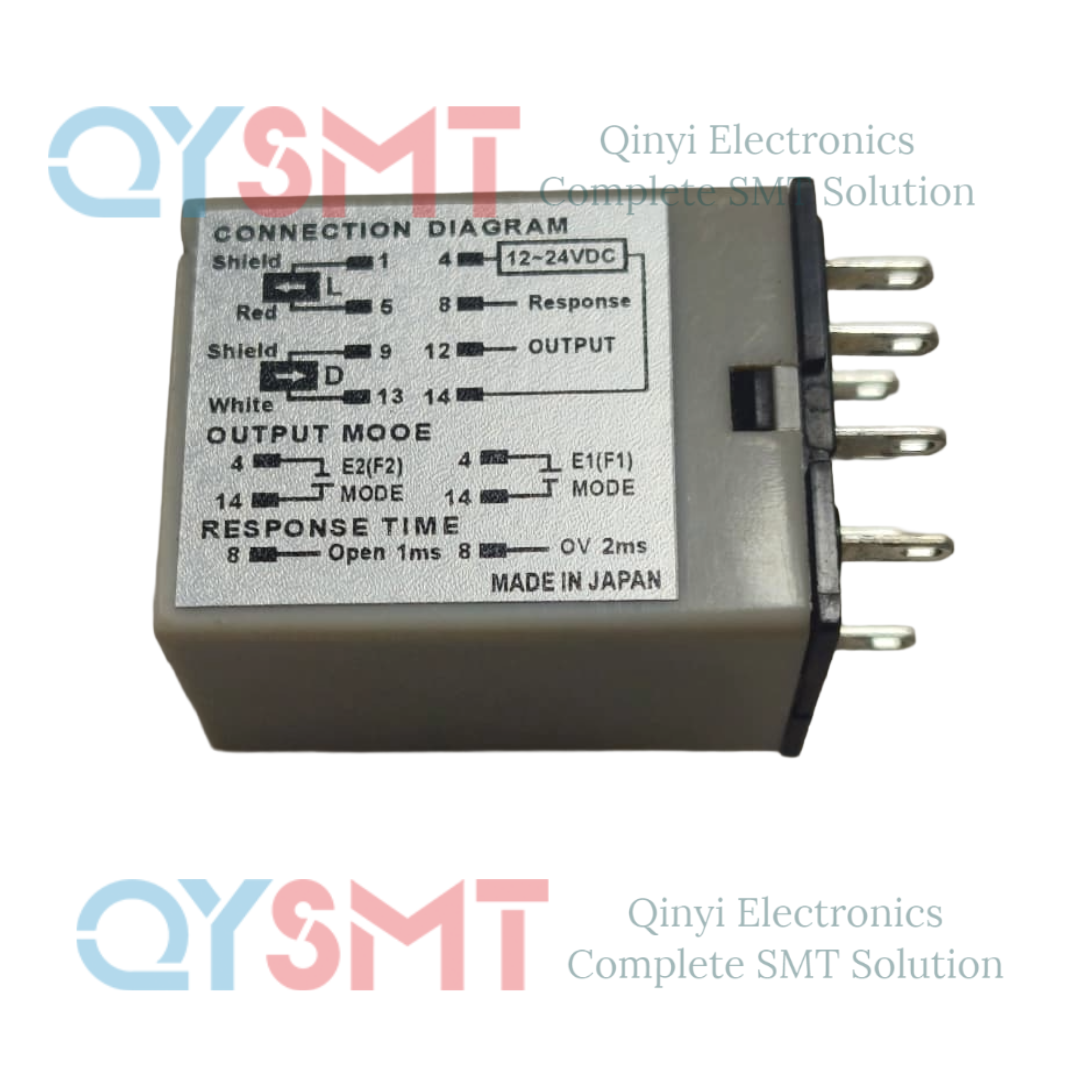

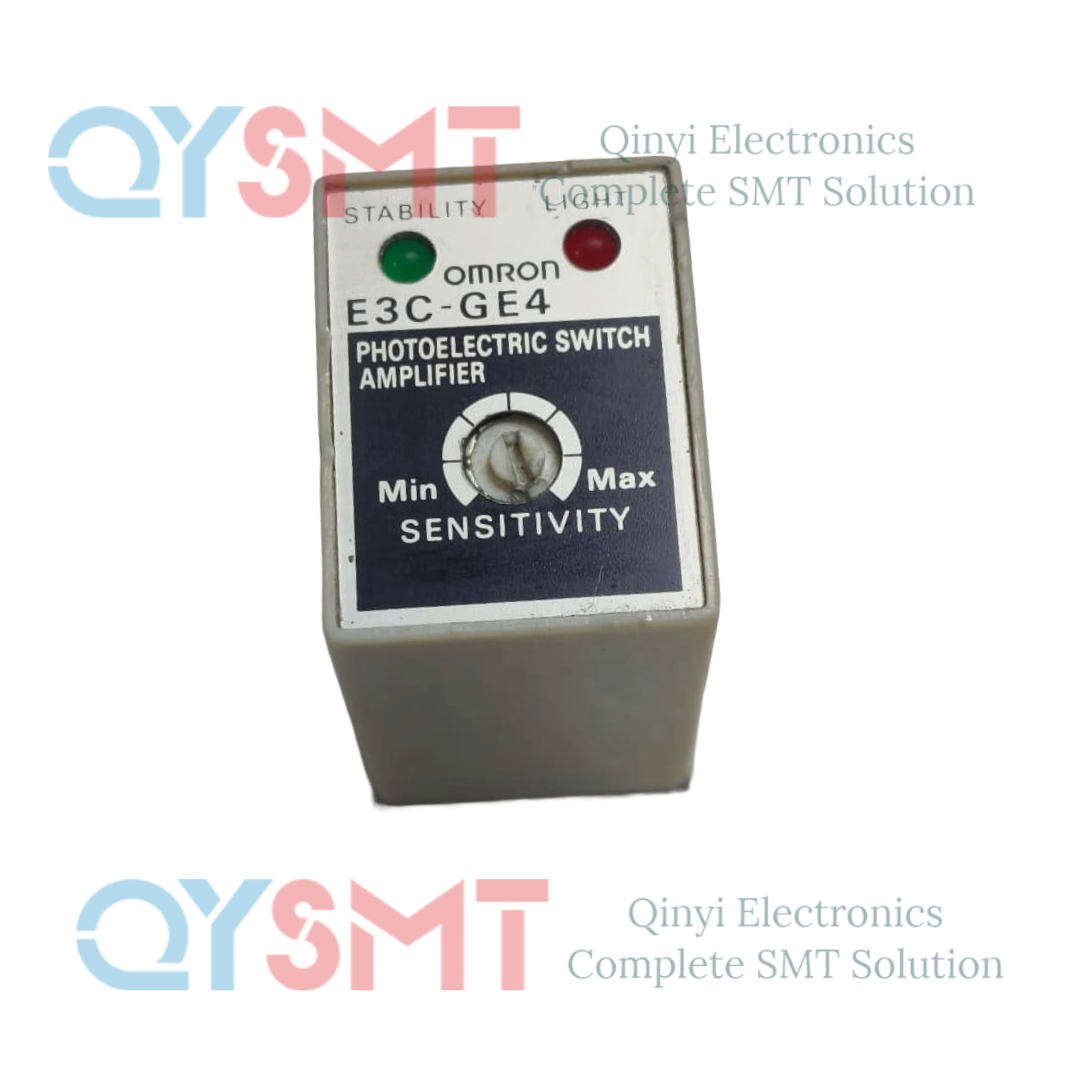

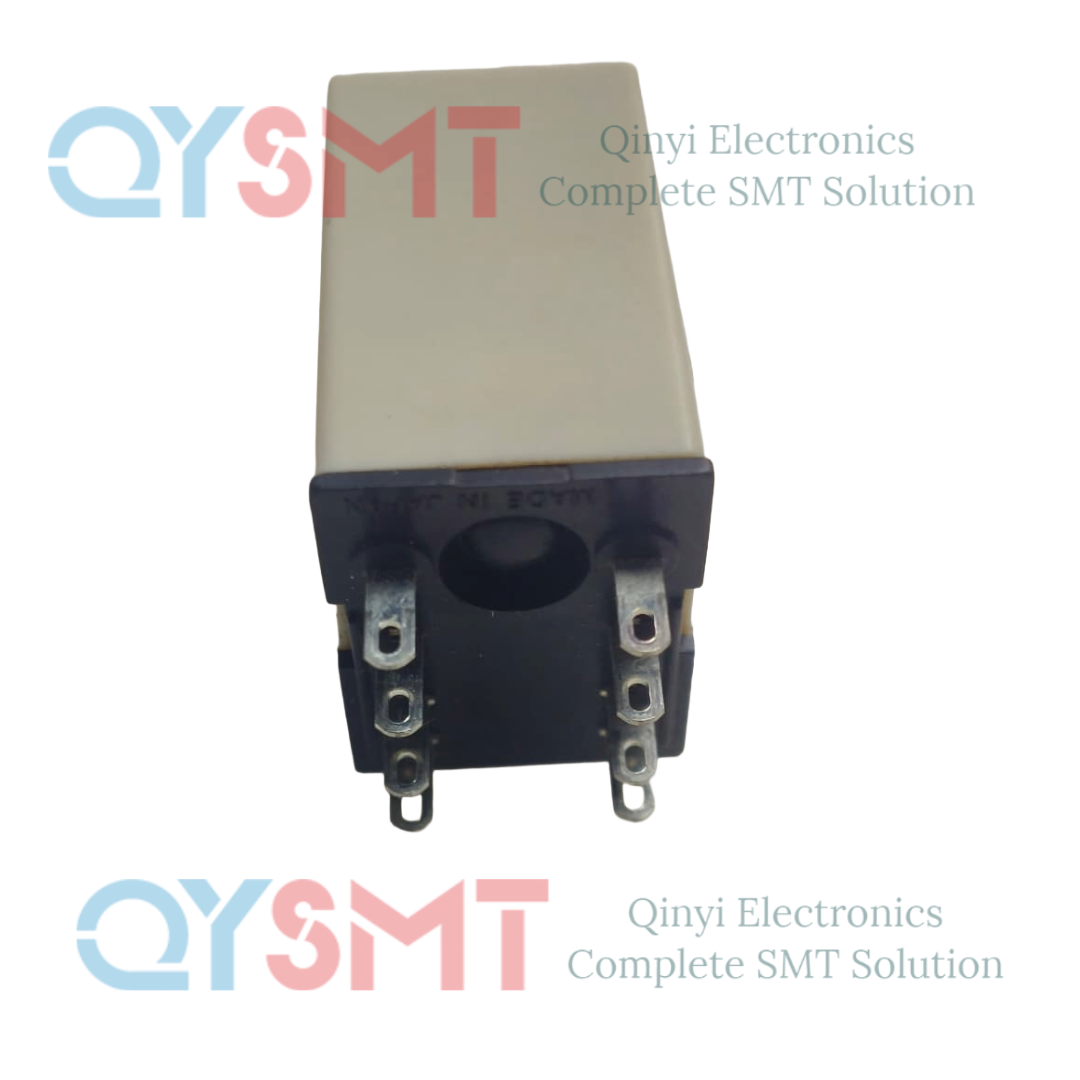

E3C-GE4 Omron E3C Series Compact Head Amplifier-separated Photoelectric Sensor Amplifier Unit

• E3C-GE4 Omron E3C Series Compact Head Amplifier-separated Photoelectric Sensor Amplifier Unit

• Device Type: Small-type photoelectric switch amplifier.
• Power Supply: 12 to 24 VDC (±10%).
• Output Type: NPN open collector output.
• Current Consumption: 50 mA maximum.
• Operating Temperature: -10°C to 55°C (no icing or condensation).
• Dimensions: Approximately 20.7 mm x 27.2 mm x 35.5 mm.
• Compatibility: Can be used with PYF08A or PY08 sockets for mounting.

Key Features

• Space-Saving Design: Designed for environments where space is limited, allowing for thin sensor heads to be mounted closely together.
• Built-in Protection: Includes interference protection to prevent mutual interference between multiple sensors.
• Easy Setup: Features an input indicator on the sensor unit to simplify alignment and sensitivity settings.
• Remote Sensing: As an "amplifier-separated" unit, the heavy electronic components (amplifier) are kept remote from the actual sensing head.
