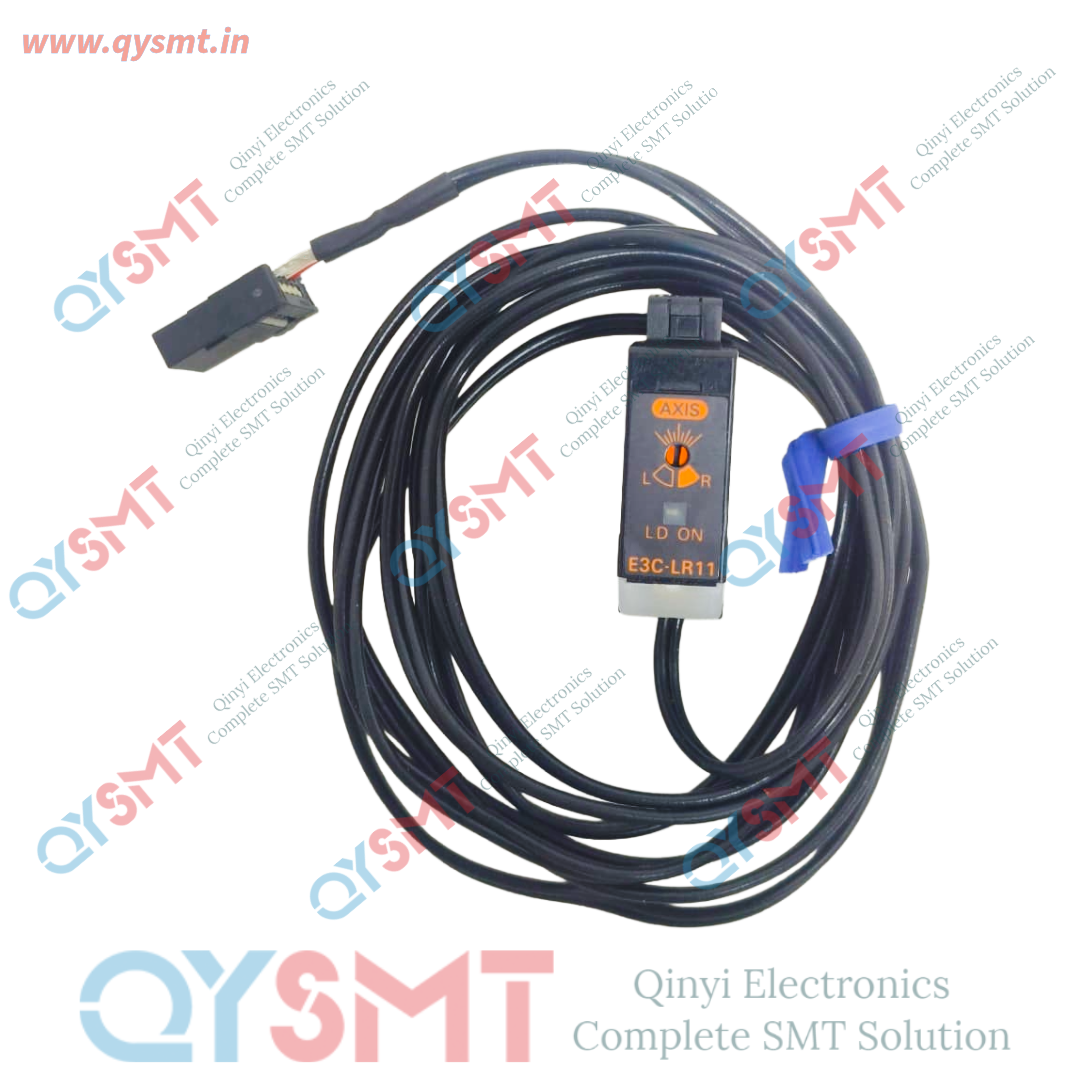

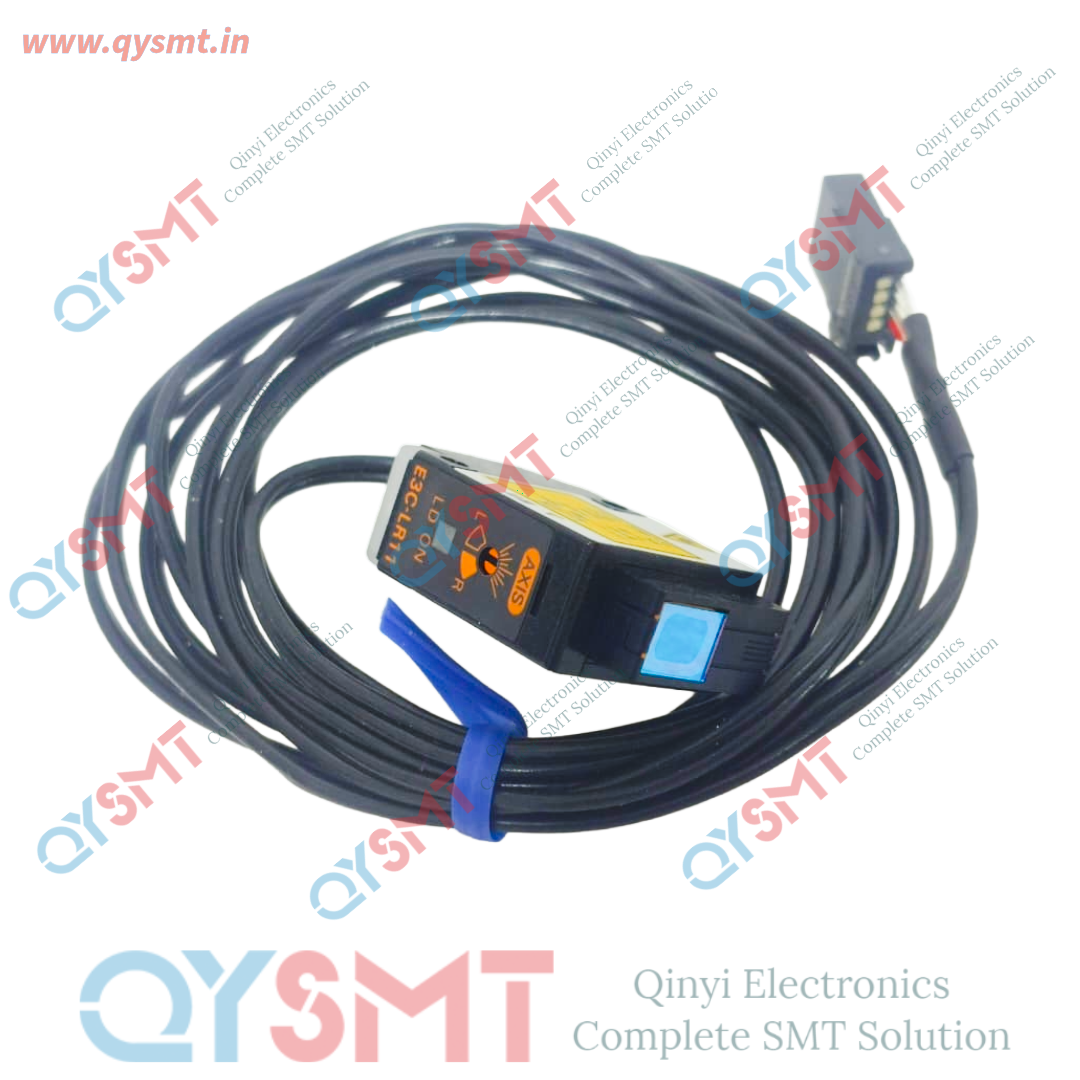

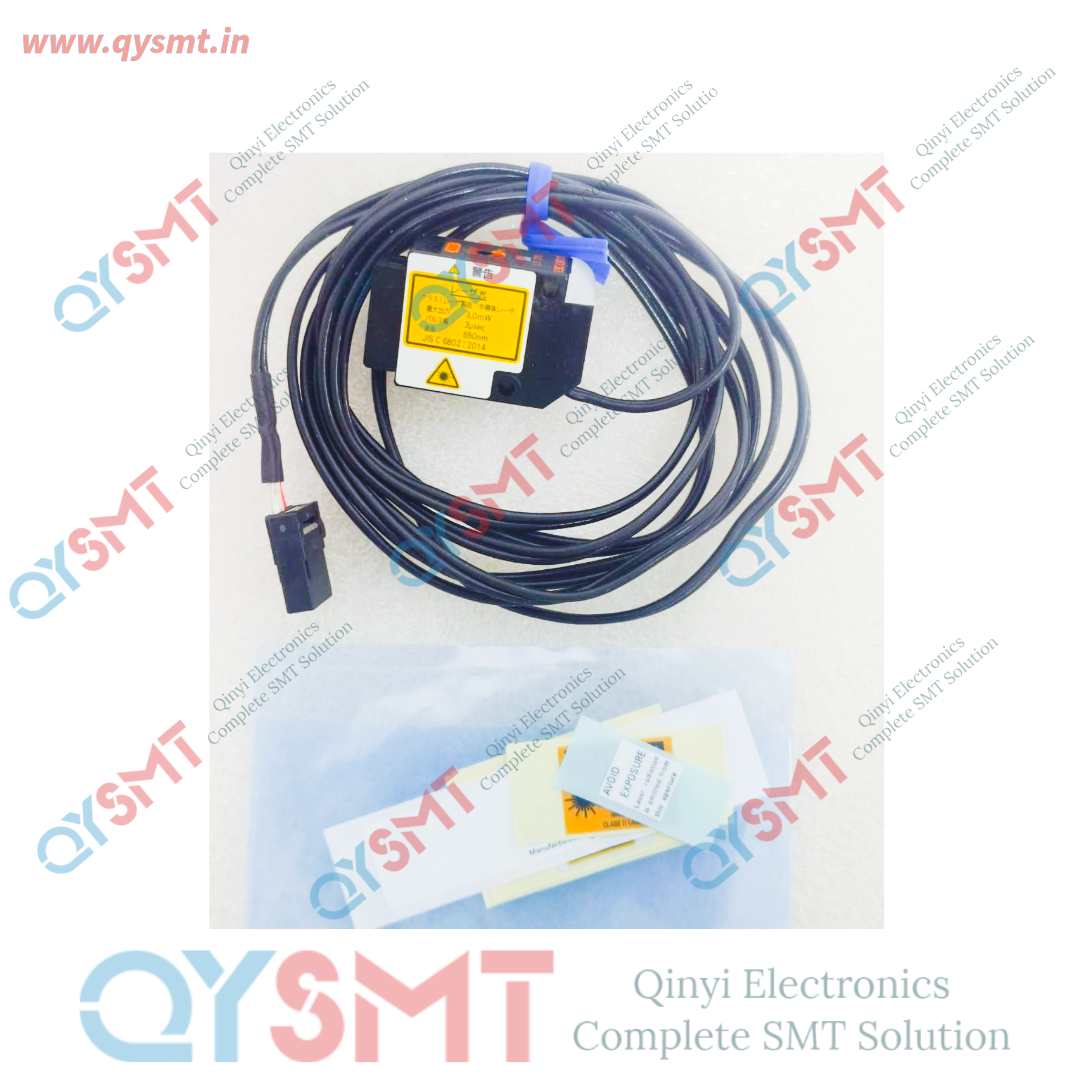

e3c-lr11 Photoelectric sensor

e3c-lr11 Photoelectric sensor
Key Technical Specifications

• Sensing Method: Coaxial Retro-reflective.
• Sensing Distance: Up to 7 metres when paired with a standard Omron reflector (such as the E39-R12).

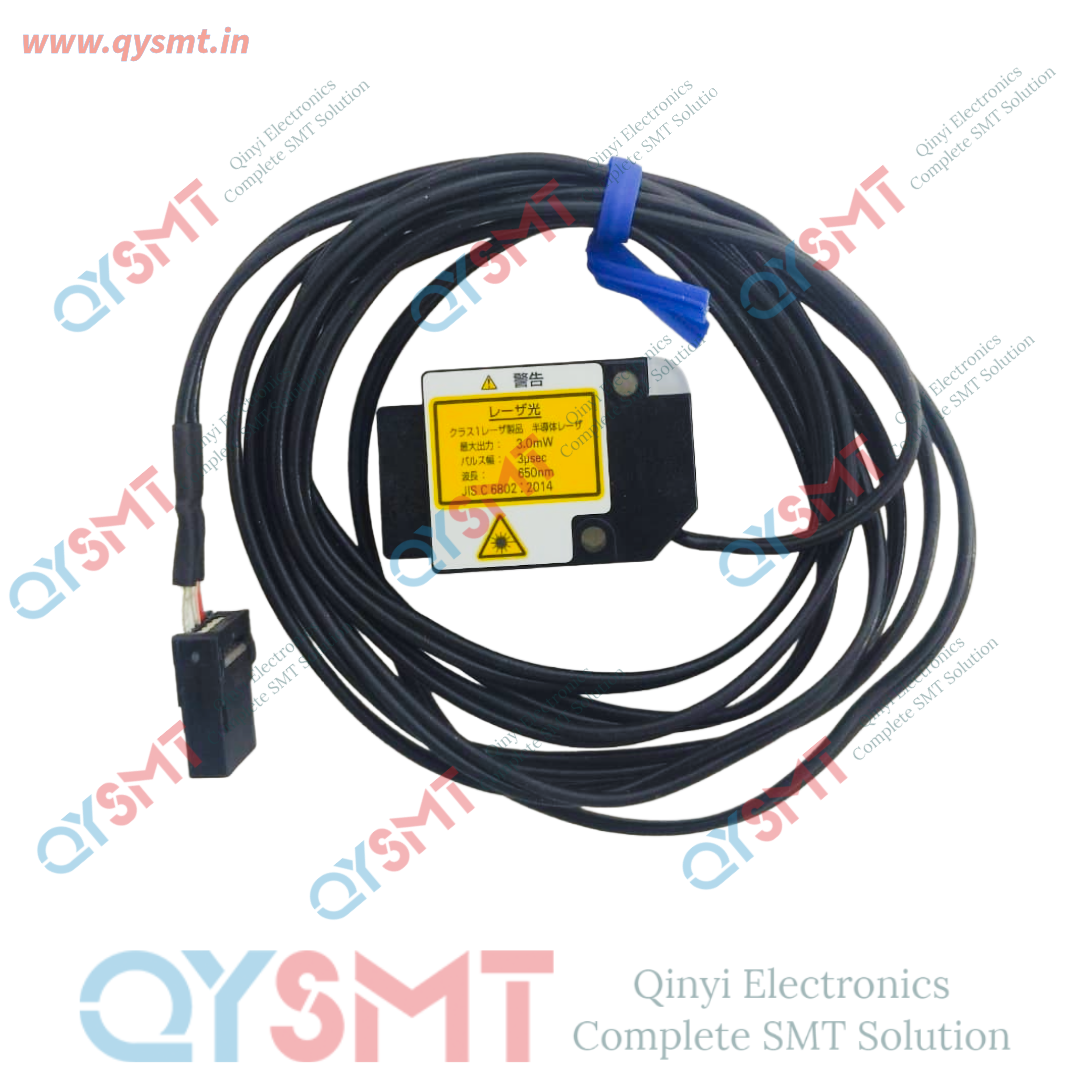

• Light Source: Red semiconductor laser diode (650 nm wavelength) with a maximum power output of 3 mW (JIS/IEC/FDA Class 2 laser).
• Beam Characteristics: Features a variable focal point mechanism. The beam spot diameter is adjustable, achieving a highly focused beam of 0.8 mm maximum at distances up to 1,000 mm.
• Connection Method: Pre-wired 2-metre cable with a dedicated connector designed for direct interface into the standalone amplifier.
• Enclosure Rating: IP40 dust protection rating.
• Material Composition: Features an ABS case and cover with a highly durable glass front surface filter.

Key Features & Operational Mechanisms

• <Quote>Features : Variable Laser Beam for Spot, Line, or Area Detection... Beam shape selectable from spot, line, and area types to match various applications.</Quote> as detailed by
• Coaxial Optical Axis: Because the emitted beam and the reflected beam share the exact same optical axis, the sensor completely eliminates blind zones at close range, ensuring highly stable object detection regardless of target orientation.
• Optical Axis Adjustment: Built-in axis adjustment mechanics allow the user to easily realign the laser path during system deployment.
