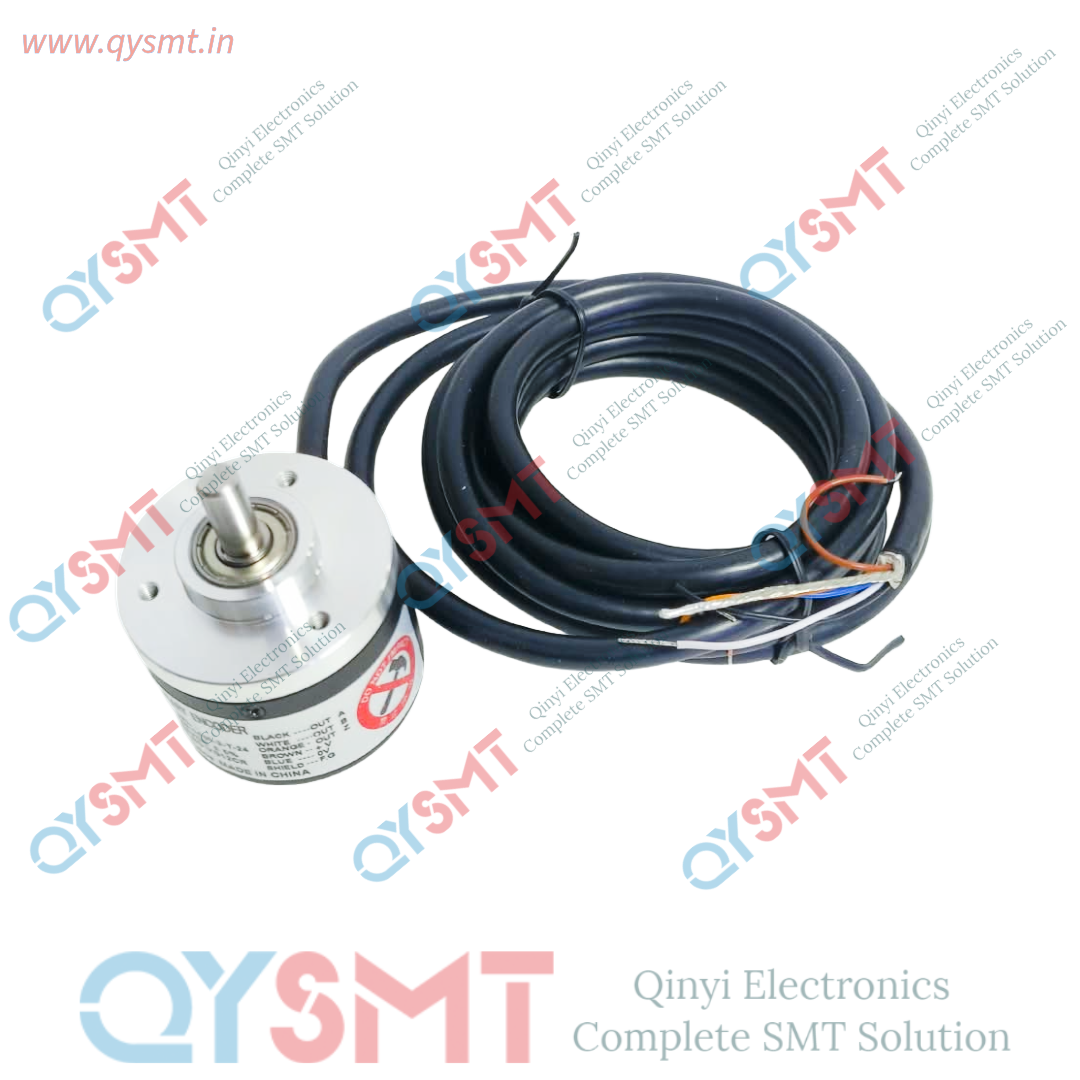

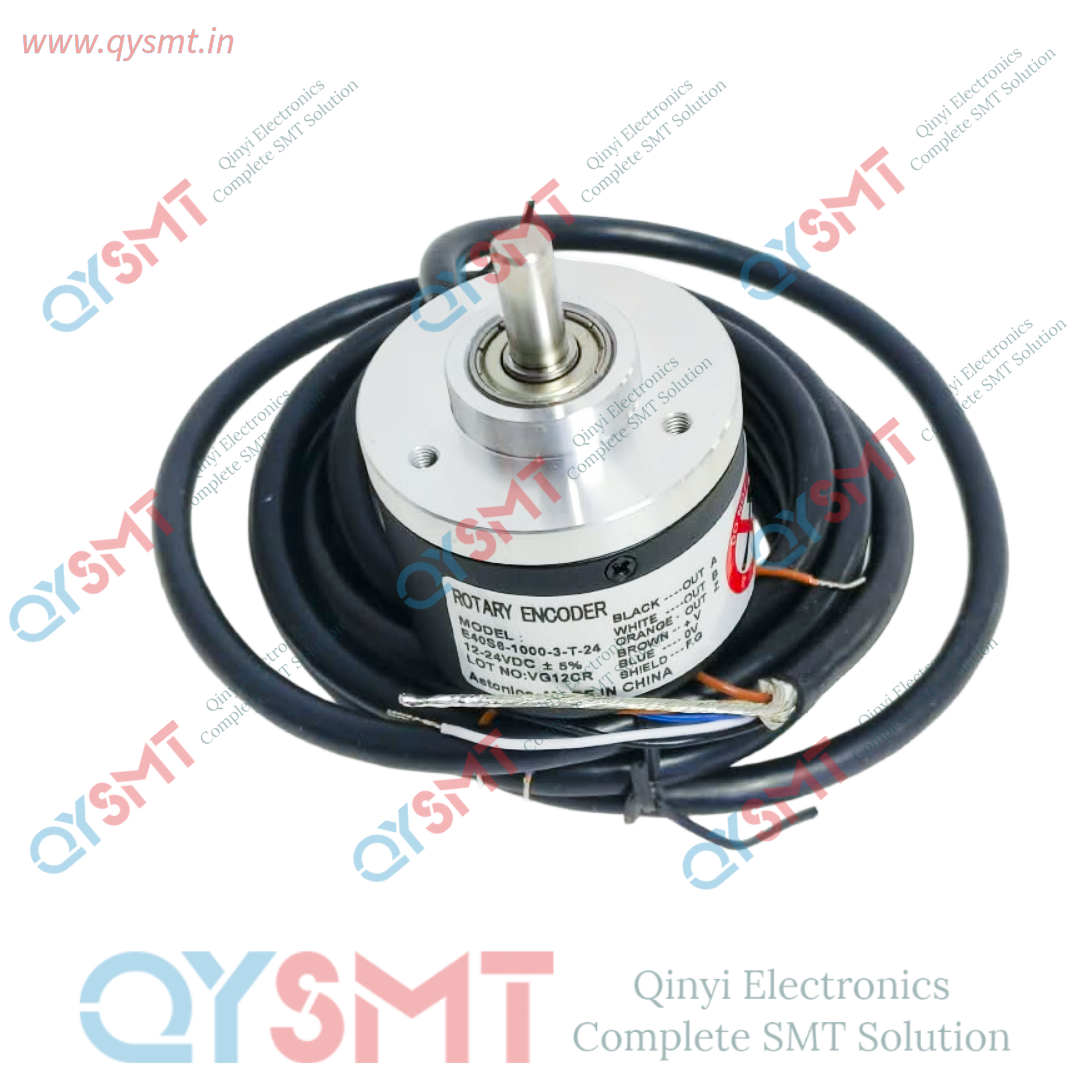

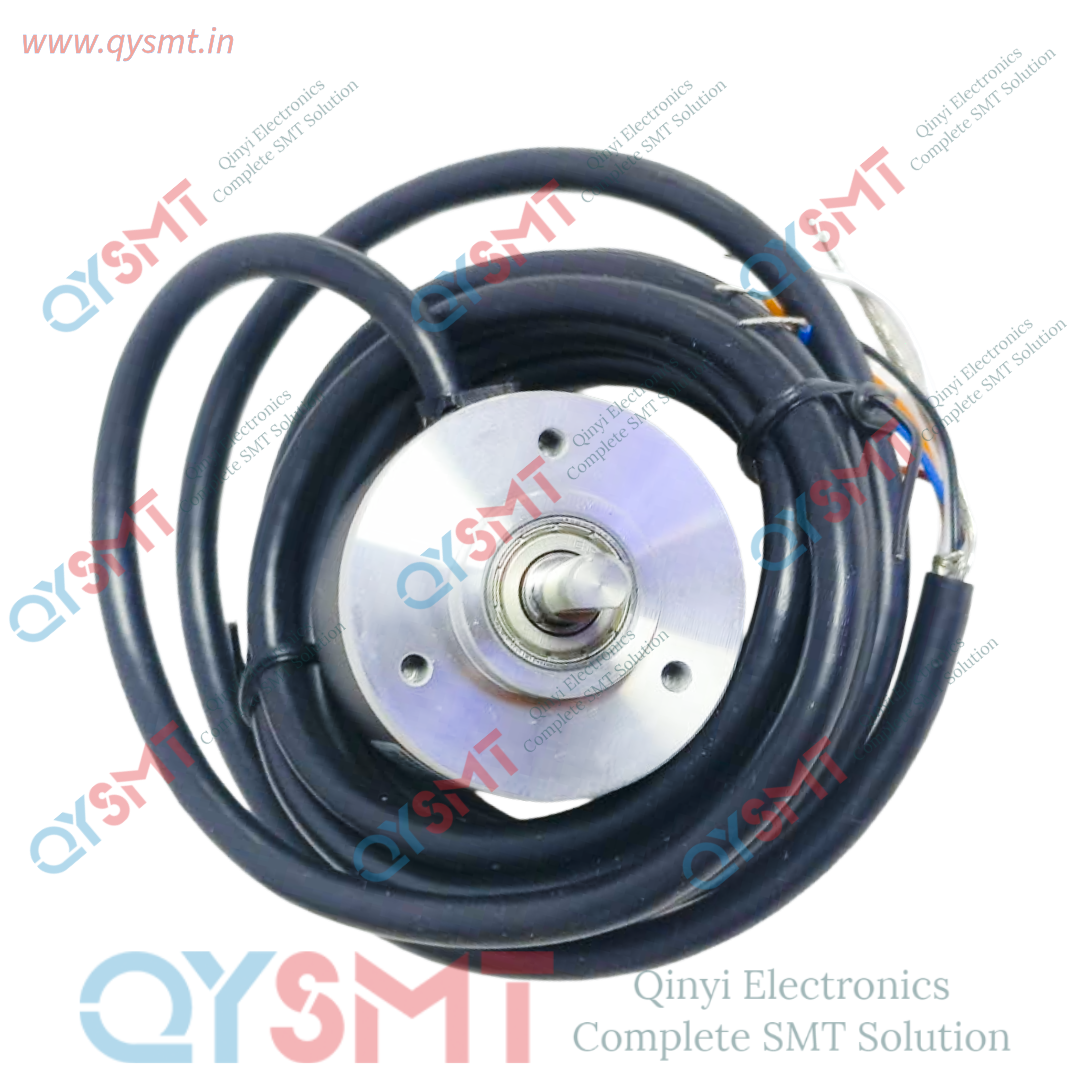

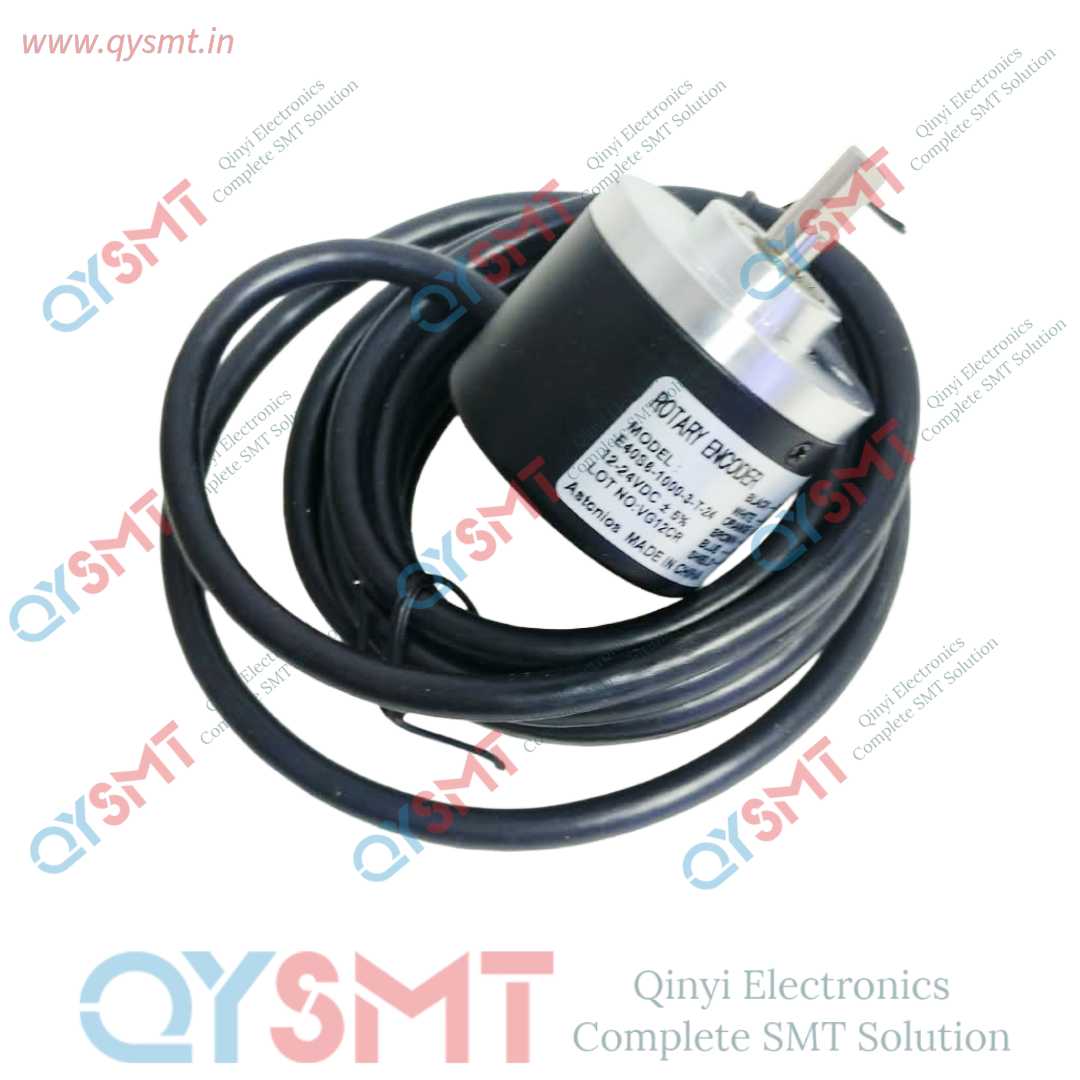

E40S6-1000-3-T-24 ROTARY ENCODER
Core Technical Specifications

• Resolution: 1000 Pulses per Revolution (P/R)
• Shaft Diameter: Ø6 mm (Flatted end)
• Control Output: Totem Pole (Push-Pull output, compatible with both NPN and PNP type loads)
• Output Phases: A, B, and Z (Z provides a once-per-revolution reference index pulse)
• Power Supply: 12–24V DC (±5% ripple)
• Maximum Response Frequency: 300 kHz
• Maximum Rotation Speed: 5,000 RPM
• Connection Type: Radial cable typ
• Ingress Protection: IP50 dust protection

Part Number Breakdown

• E40: 40 mm outer diameter housing size
• S6: Shaft type with a 6 mm shaft diameter
• 1000: 1000 pulses per revolution resolution
• 3: 3 output phases (A, B, Z)
• T: Totem pole control output
• 24: 12–24V DC operating voltage
