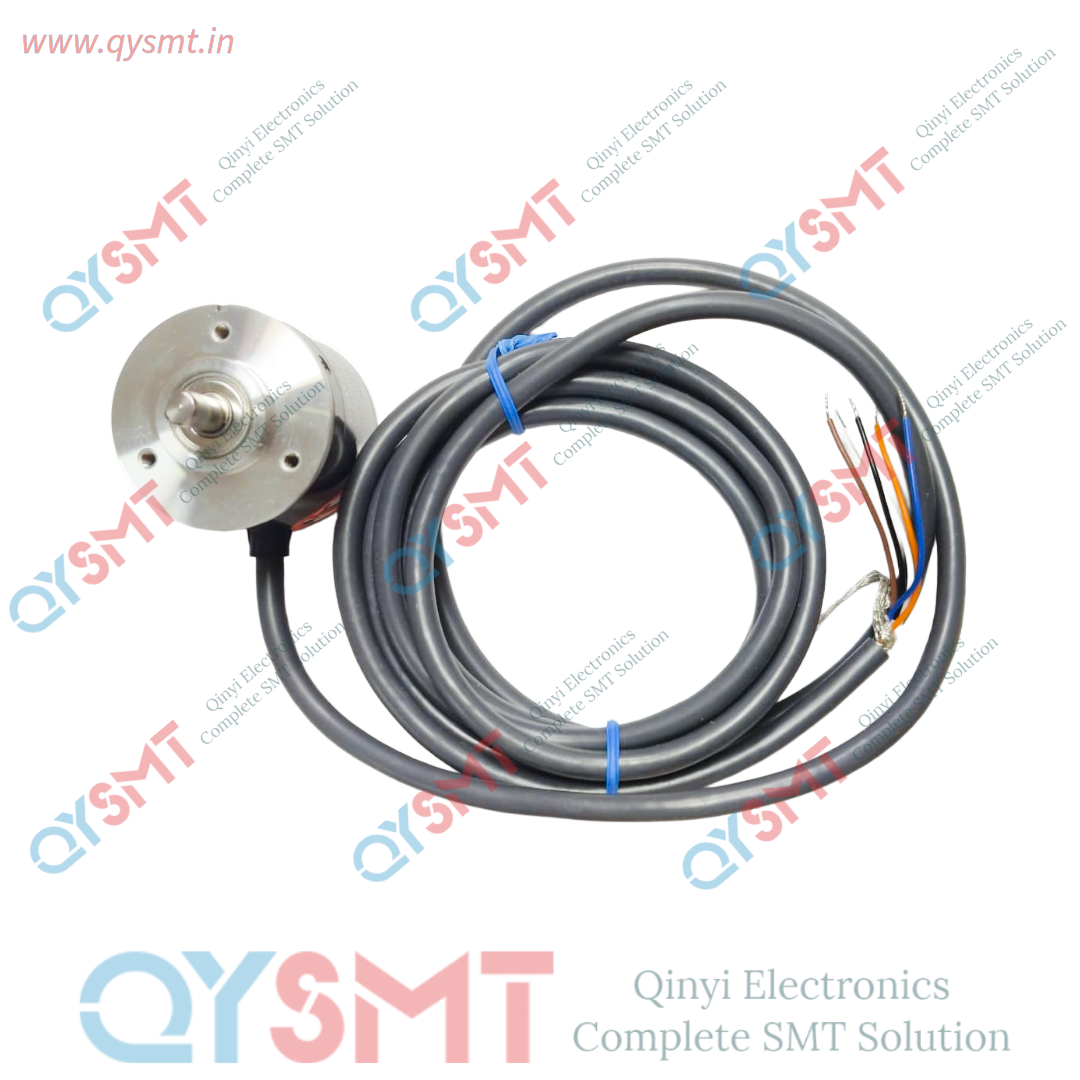

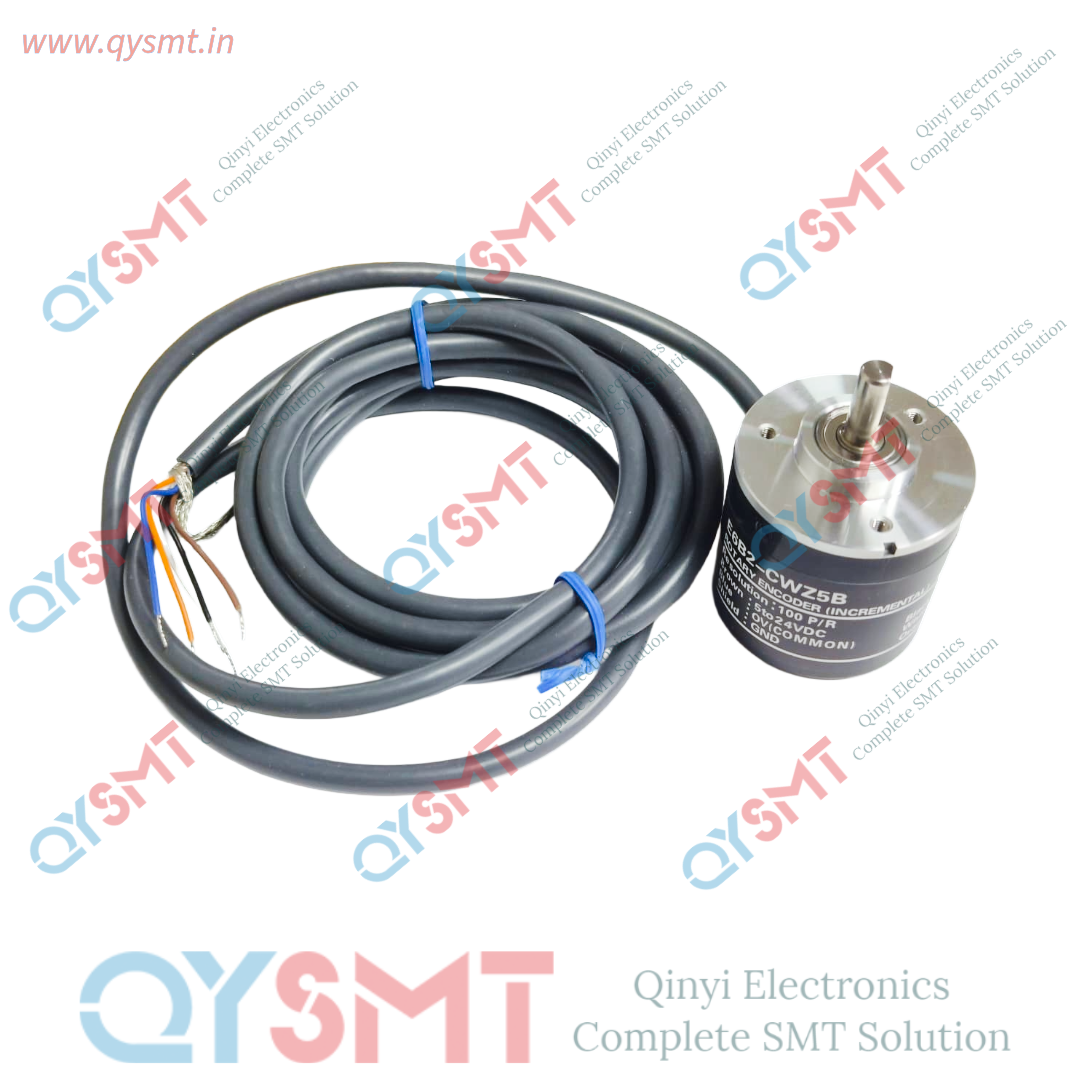

E6B2-CWZ5B100PR
Core Technical Specifications
The electrical, mechanical, and physical parameters of this component include:
- Encoder Type: Incremental
- Resolution: 100 Pulses/Rotation (P/R)
- Output Configuration: PNP Open Collector
- Output Channels/Phases: 3 channels (Phase A, Phase B, and Phase Z index signal)
- Supply Voltage: 12 to 24 VDC (-10% to +15%) with a maximum ripple of 5%
- Current Consumption: 100 mA maximum
- Maximum Mechanical Speed: 6,000 RPM
- Shaft Dimensions: 6 mm diameter solid shaft with a flatted D-type end
- Housing Size: 40 mm outer diameter
- Ingress Protection Rating: IP50
- Operating Temperature: -10°C to 70°C (with no icing or condensation)

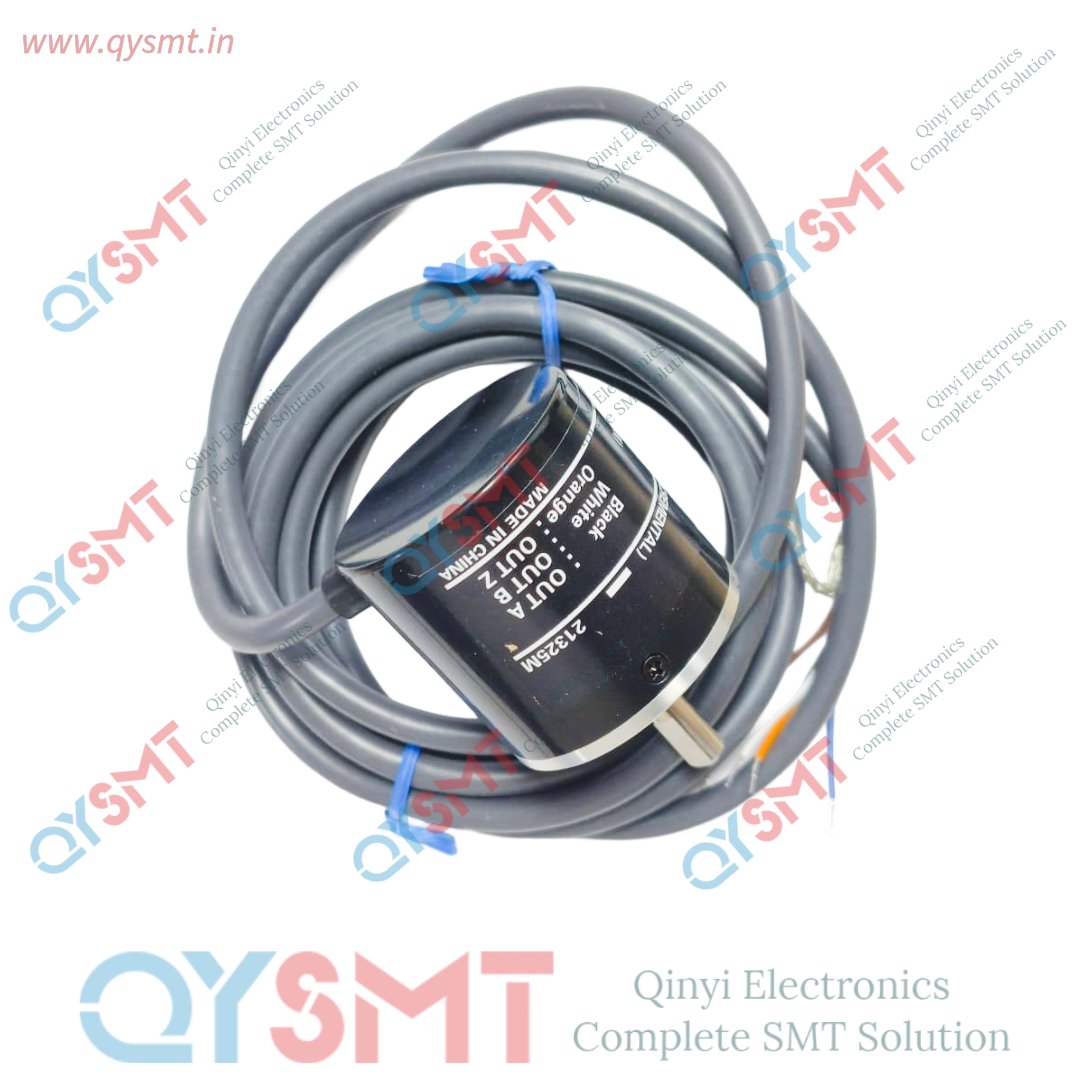

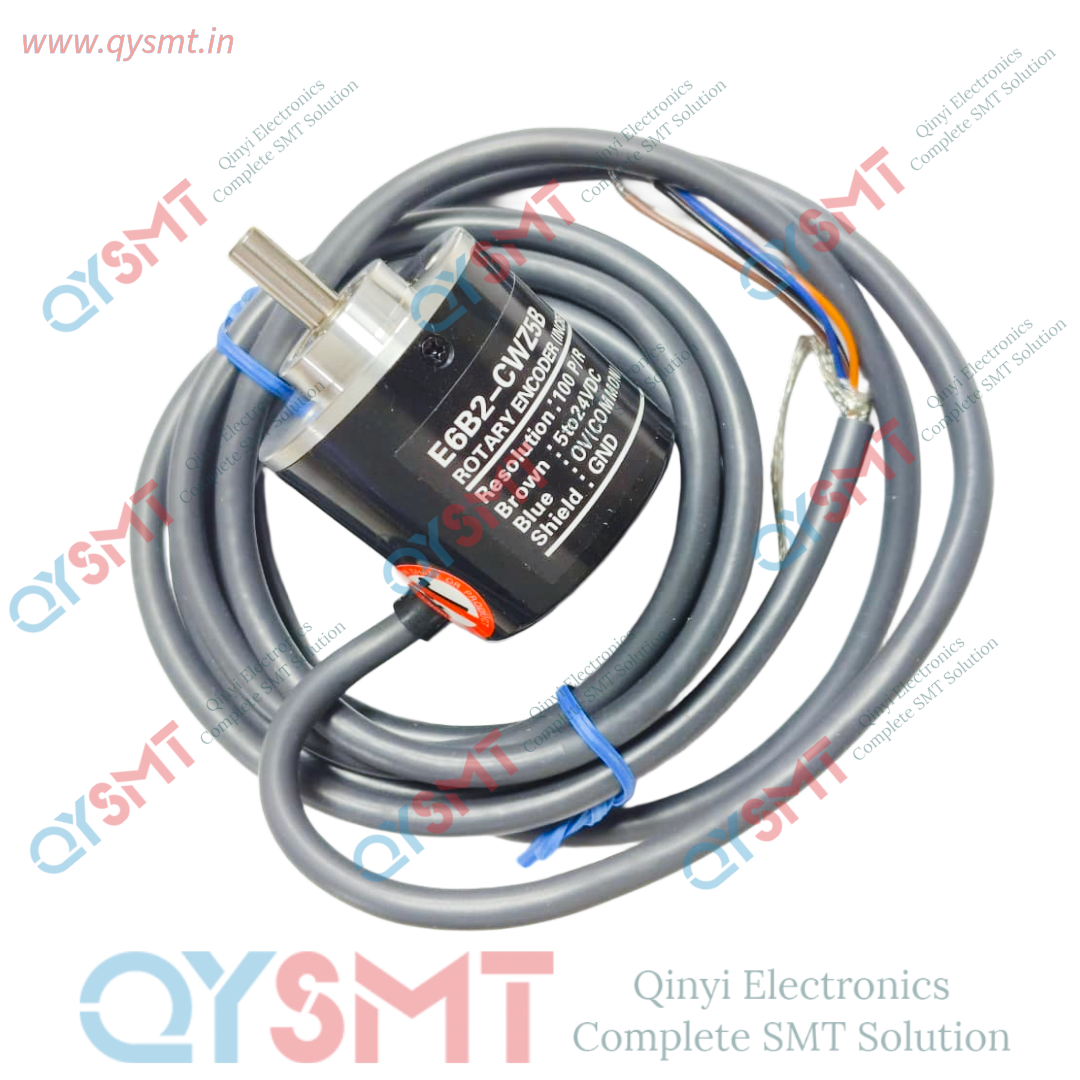

Cable and Wiring Pinout
The unit transfers pulses using a pre-wired cable interface. Standard Omron E6B2-C series wire colors route the signals as follows:
- Brown: Power Supply (+VDC, 12 to 24 V)
- Blue: 0V Common / Ground (GND)
- Black: Output Phase A pulse signal
- White: Output Phase B pulse signal
- Orange: Output Phase Z index signal
- Shielded Wire: Ground/Shield line
