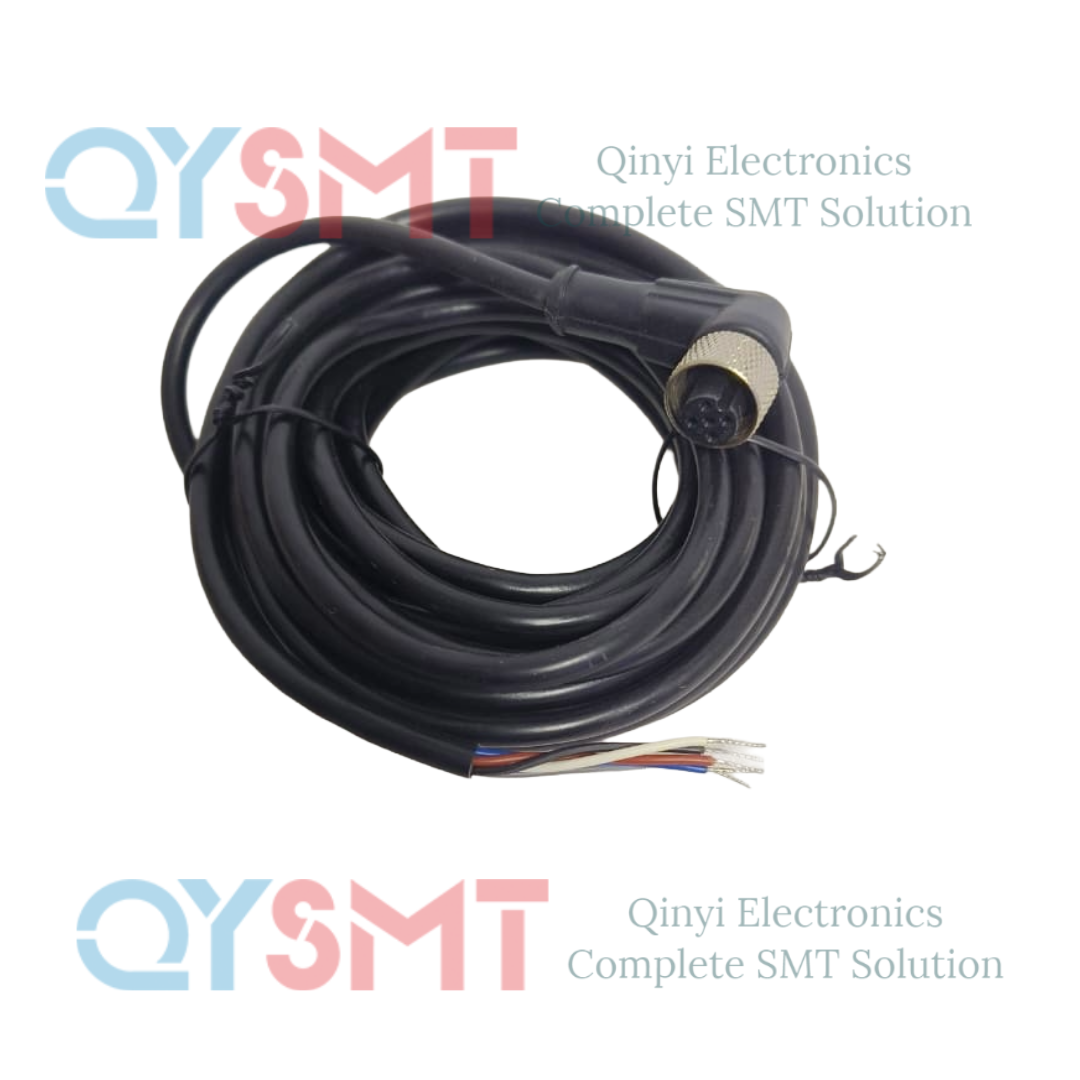

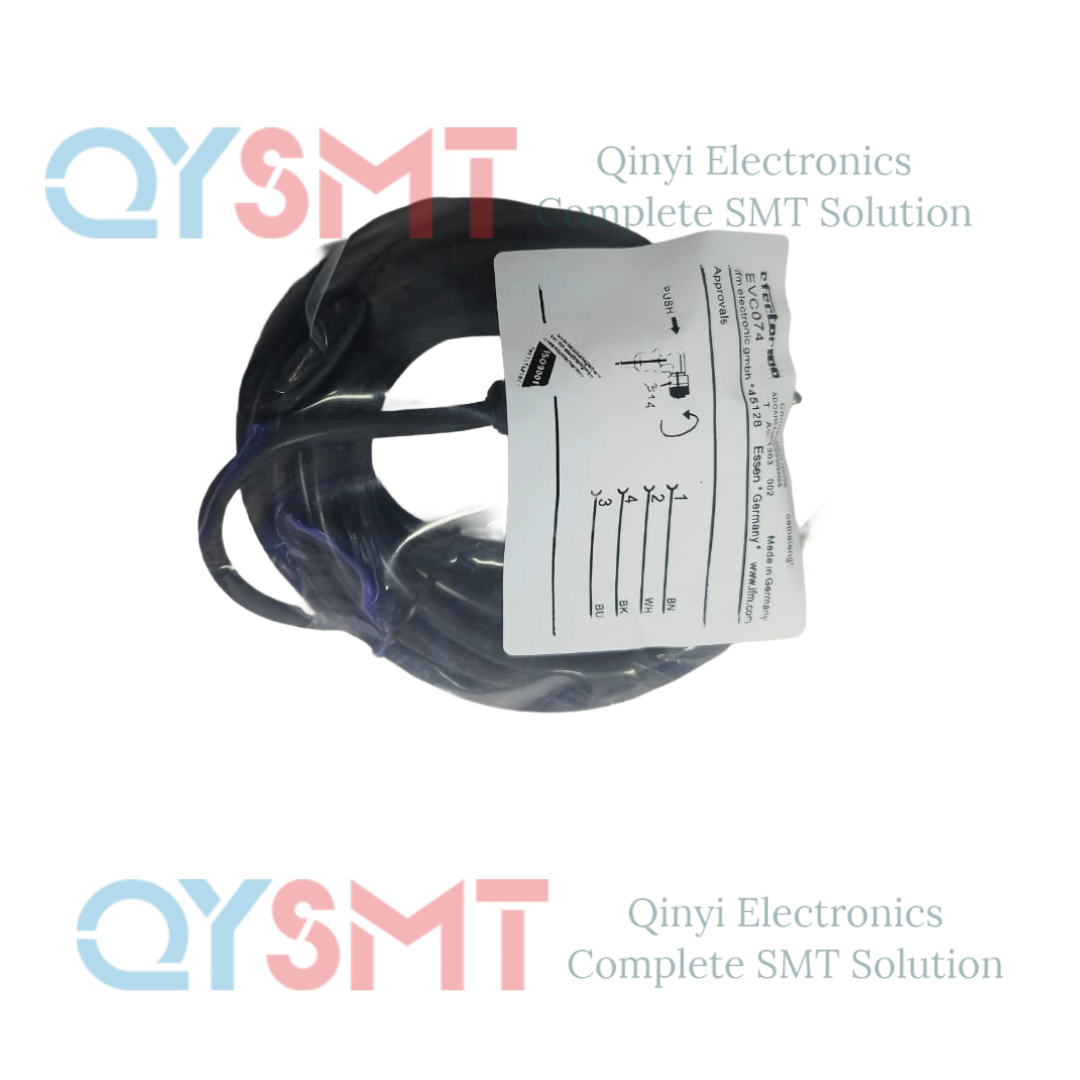

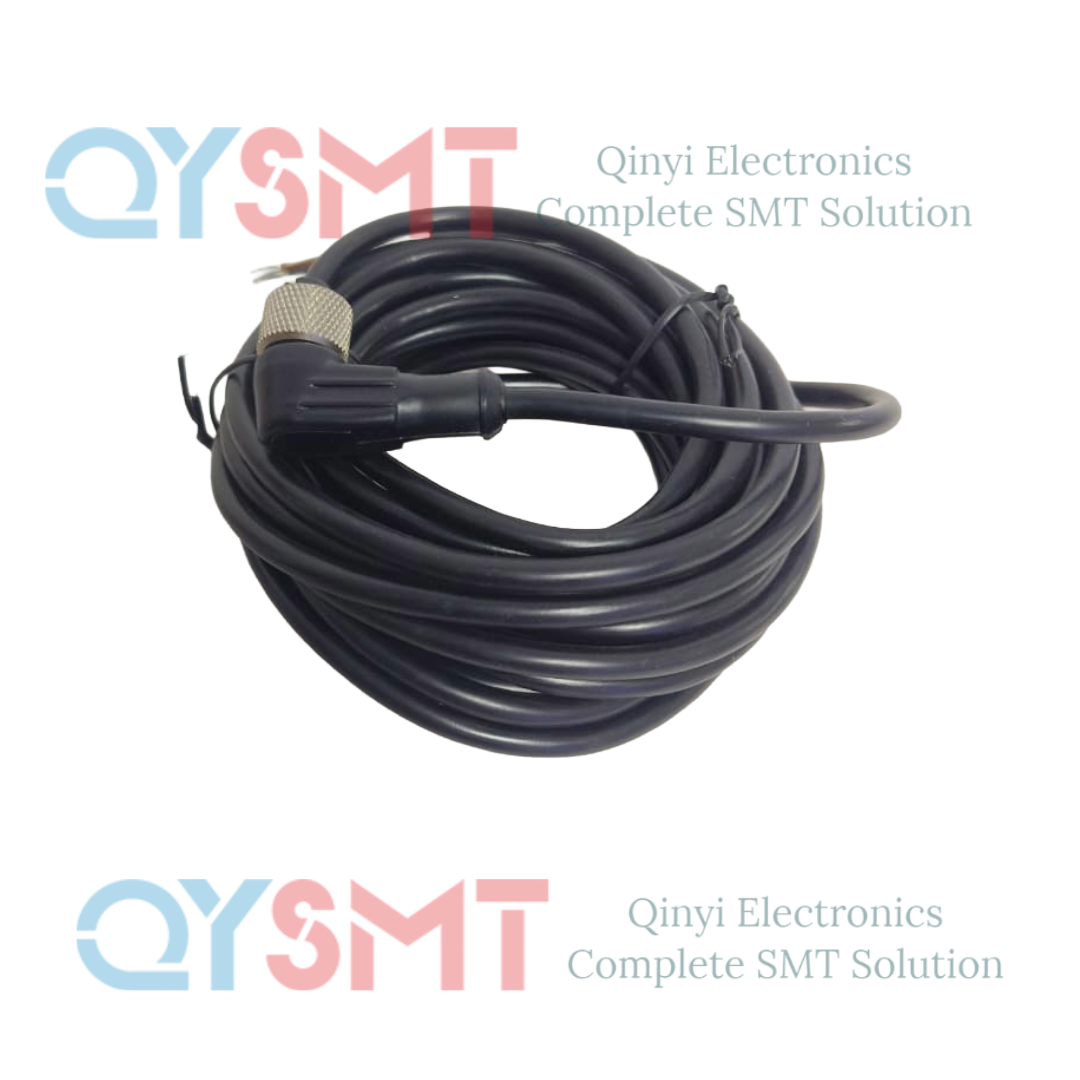

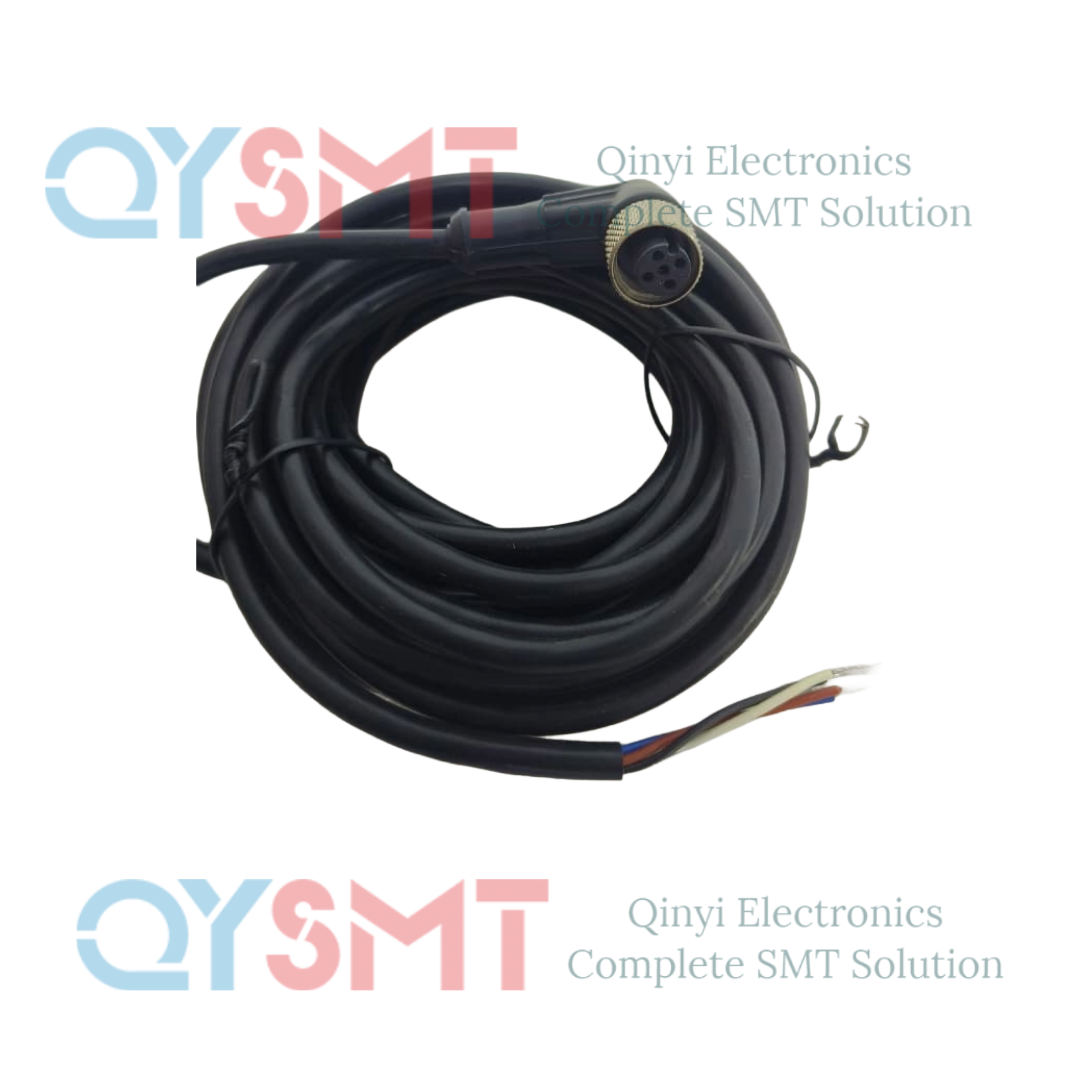

EVC074 IFM CABLE

EVC074 IFM CABLE
Key Specifications and Features

• Product Type: Single-ended cordset with an angled M12 female connector on one end and bare wire leads on the other.
• Length and Wire: It has a 5-meter (16.40 ft), 5-wire, unshielded round cable made of Polyurethane (PUR) material.
• Durability: The cordset is highly durable, featuring an ingress protection rating of IP65, IP67, IP68, and IP69K, making it dust-tight and waterproof. It is also resistant to oils and coolants and is suitable for drag chain applications.
• Electrical Properties: It has a maximum current load of 4 amperes and a voltage rating of 60 volts AC/DC.
• Materials: The contacts are gold-plated, and the coupling nut is nickel-plated brass, which makes it vibration and shock resistant.
• Safety Features: It is free from silicone and halogen elements. EVC074 IFM CABLE
  Key Specifications and Features
  • Product Type: Single-ended cordset with an angled M12 female connector on one end and bare wire leads on the other.
  • Length and Wire: It has a 5-meter (16.40 ft), 5-wire, unshielded round cable made of Polyurethane (PUR) material.
  • Durability: The cordset is highly durable, featuring an ingress protection rating of IP65, IP67, IP68, and IP69K, making it dust-tight and waterproof. It is also resistant to oils and coolants and is suitable for drag chain applications.
  • Electrical Properties: It has a maximum current load of 4 amperes and a voltage rating of 60 volts AC/DC.
  • Materials: The contacts are gold-plated, and the coupling nut is nickel-plated brass, which makes it vibration and shock resistant.
  • Safety Features: It is free from silicone and halogen elements.
