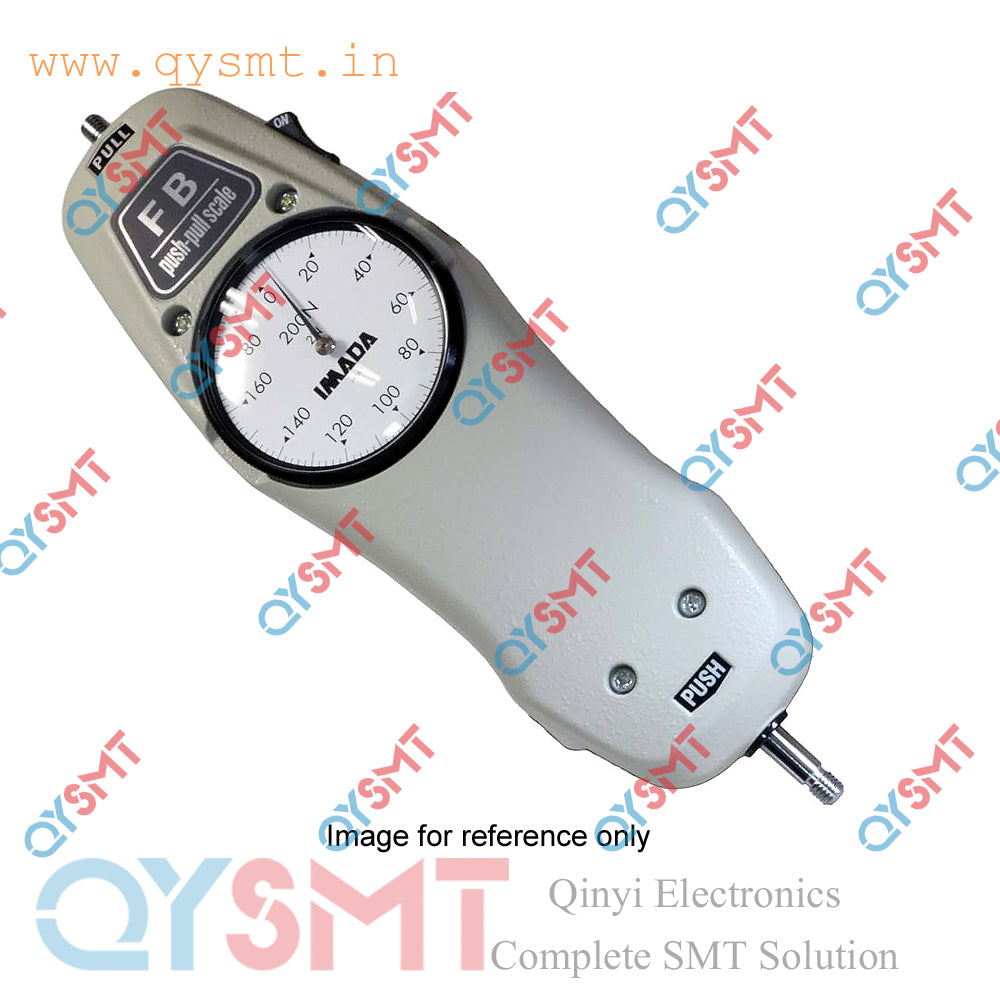

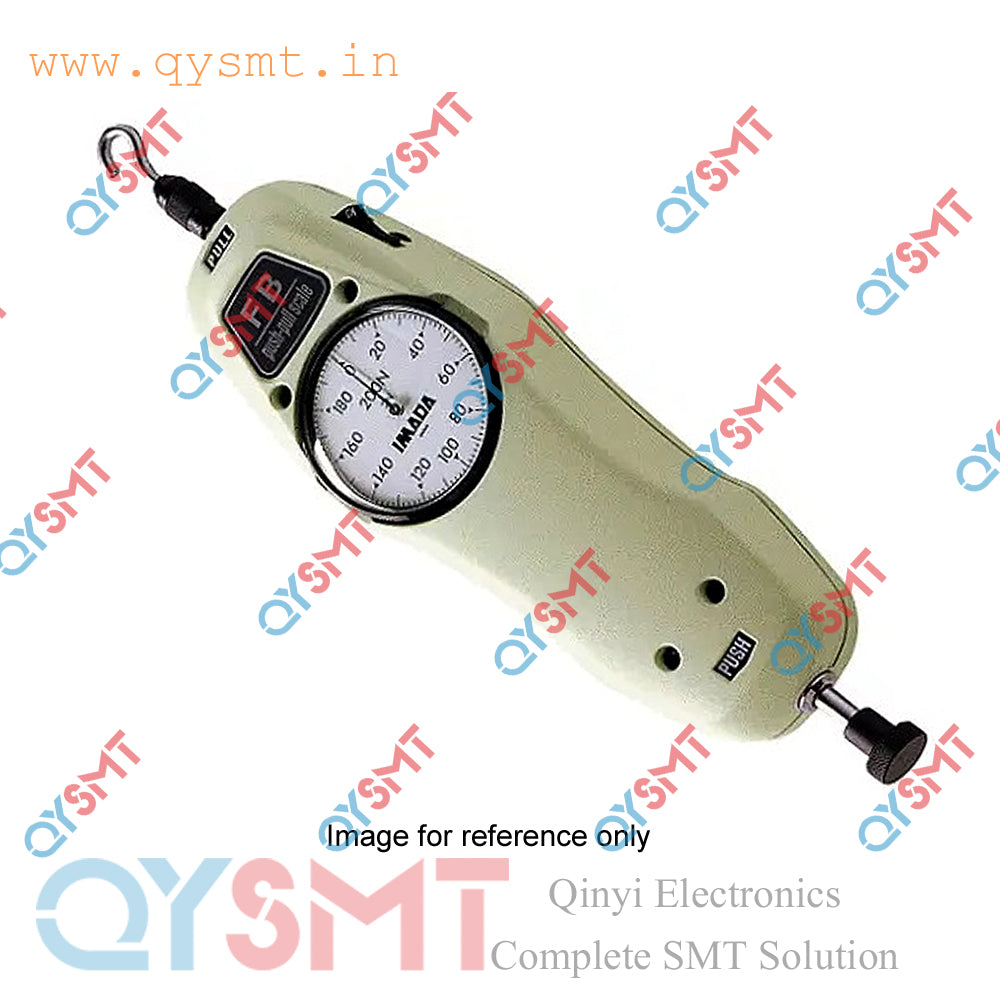

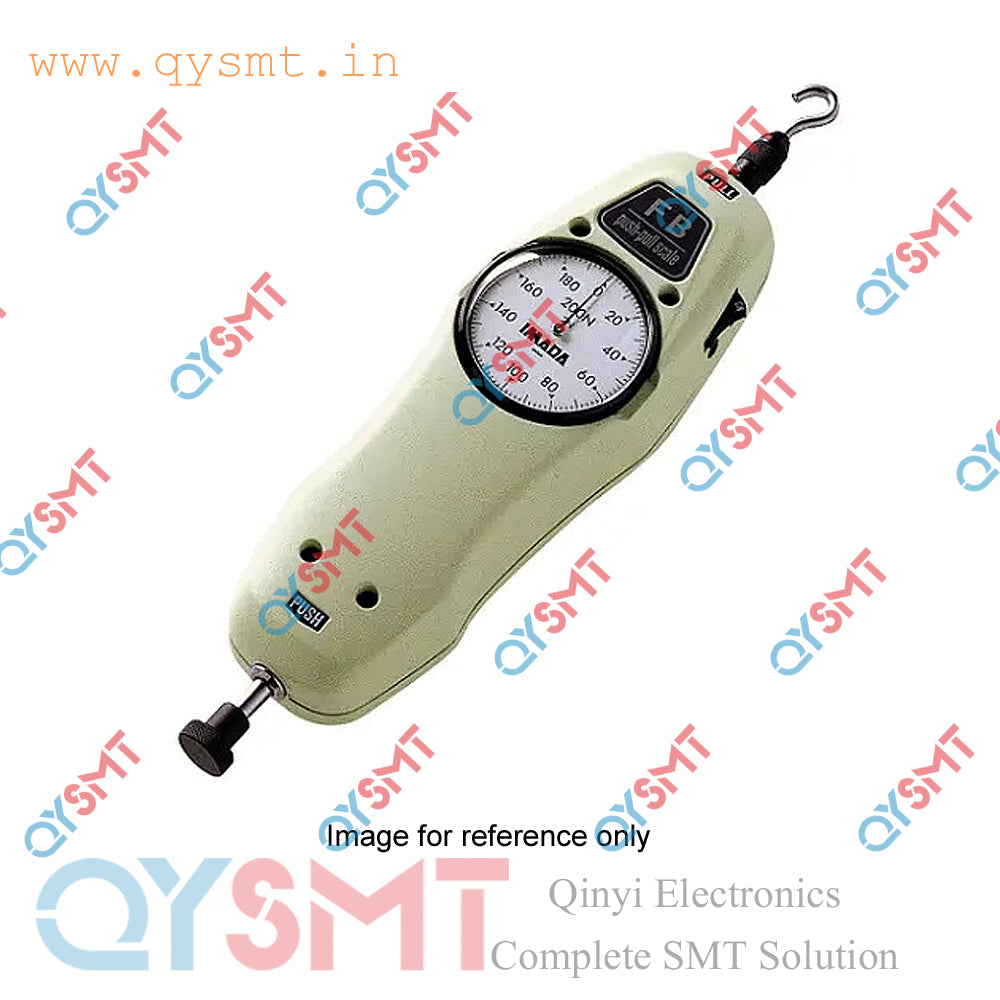

FB-200N Mechanical Force Gauge

IMADA Push Pull Tester FB-200N Mechanical Force Gauge Up to 200 N Capacity, Push-Pull Mechanical Force Gauge Series FB.

The IMADA FB-200N is a durable and reliable analog mechanical force gauge for basic push and pull force measurement. As part of the FB series, it is well-suited for a variety of industrial applications and retains a high degree of accuracy over extended periods.

Key features

• Capacity: 200 Newtons (N).
• Accuracy: ±0.3% of full scale (F.S.).
• Resolution: 2 N.
• Display: Analog dial for real-time and peak force readings.
• Peak mode: A switch allows you to capture and hold the peak force value during a measurement.
• Tare ring: You can zero the gauge to compensate for the weight of measuring attachments or changes in position.
• Construction: The gauge features heavy-duty metal construction for use in industrial settings.
• Intrinsically safe: It can be used in hazardous environments because it does not require batteries or an electrical charge.

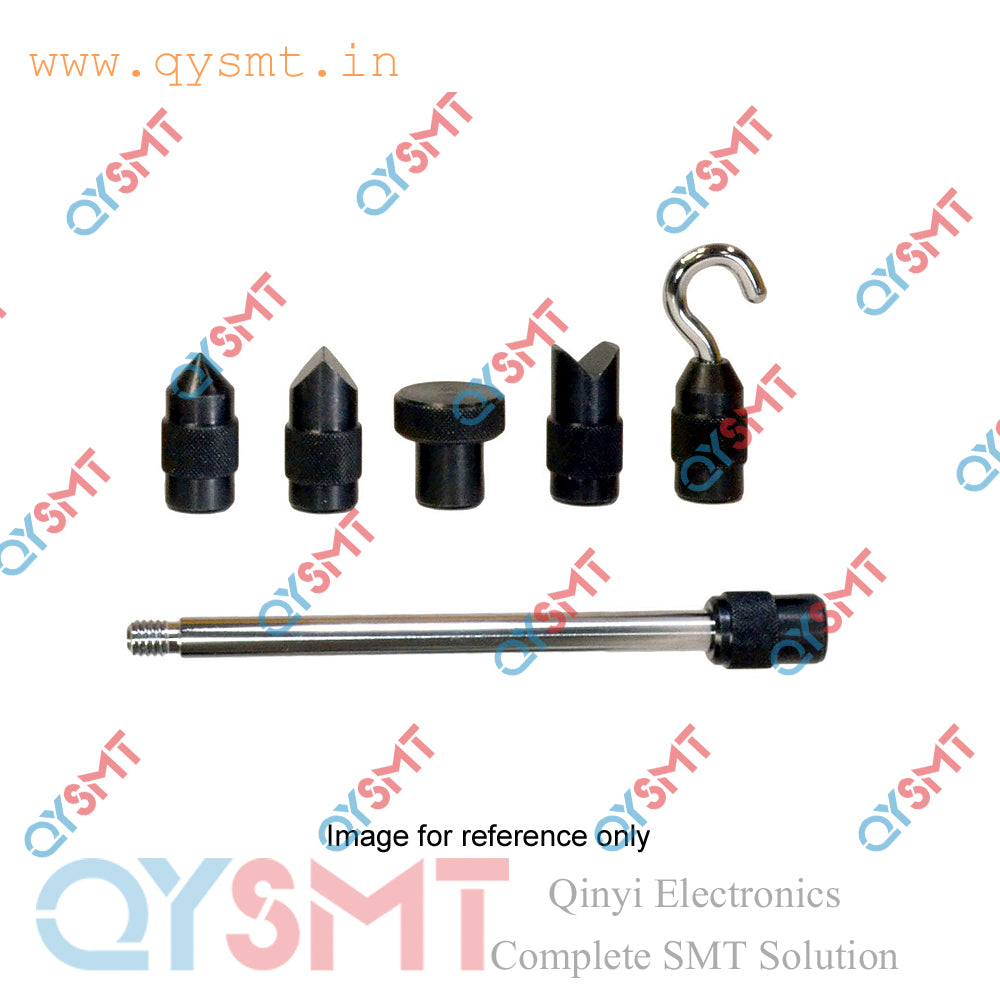

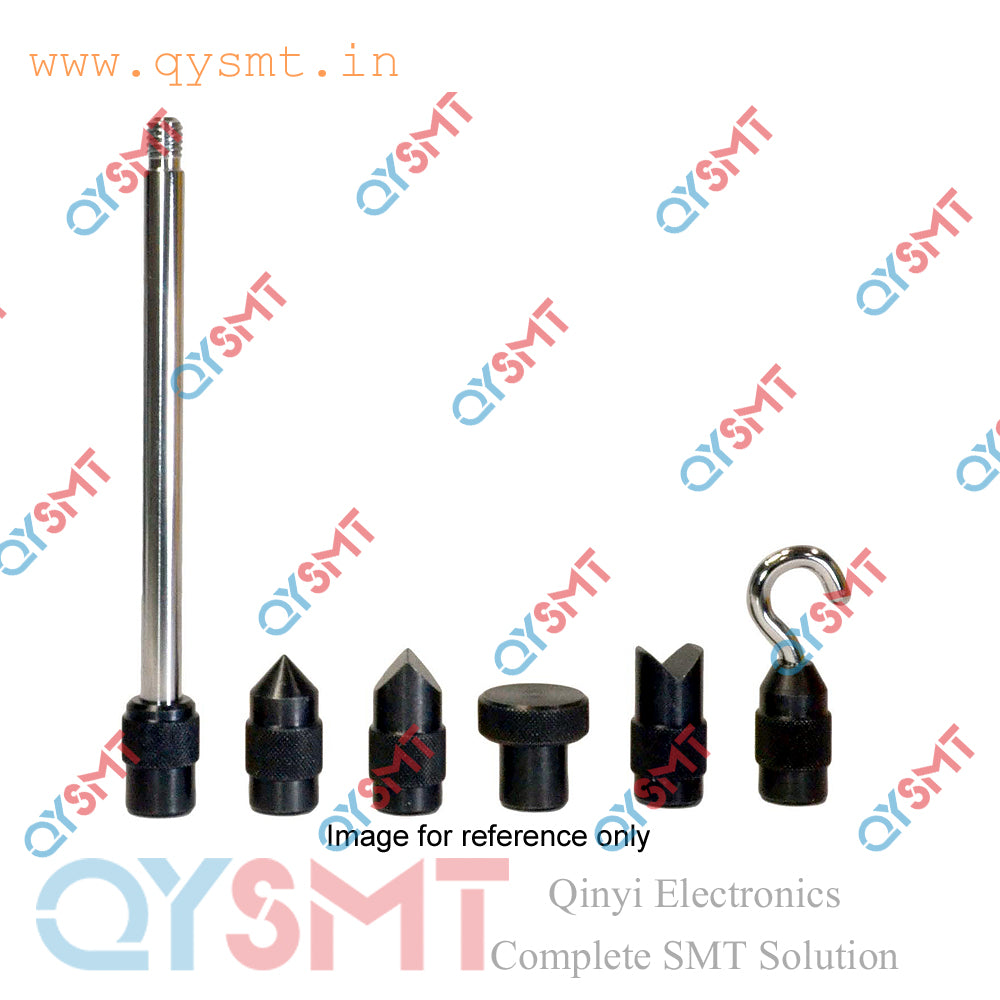

• Accessories: The standard kit includes a hard carrying case and a variety of measuring attachments (flat head, conical, chisel, notched, and small hook), along with an extension shaft.

Common applications

• Measuring the strength of materials.
• Evaluating the operating force of switches and other components.
• Performing peel strength tests.
• Measuring food texture.

Specification/Additional Details

• Brand : IMADA
• Measuring Range : 200N
• Model Name/Number : FB-200N
• Display Type : Analog
• Accuracy : within ±0.3%F.S
• Capacity : 200 N
• Usage/Application : Force measurement

• Stroke : 0.4 inches (10 mm)

• Operating Temperature : 0 - +40°C
