Imada FB-300N Mechanical Force Gauge

IMADA FB-300N Mechanical Force Gauge Up to 300 N Capacity,
Mechanical Force Gauge FB-300N Analog Push-pull Tester Imada.

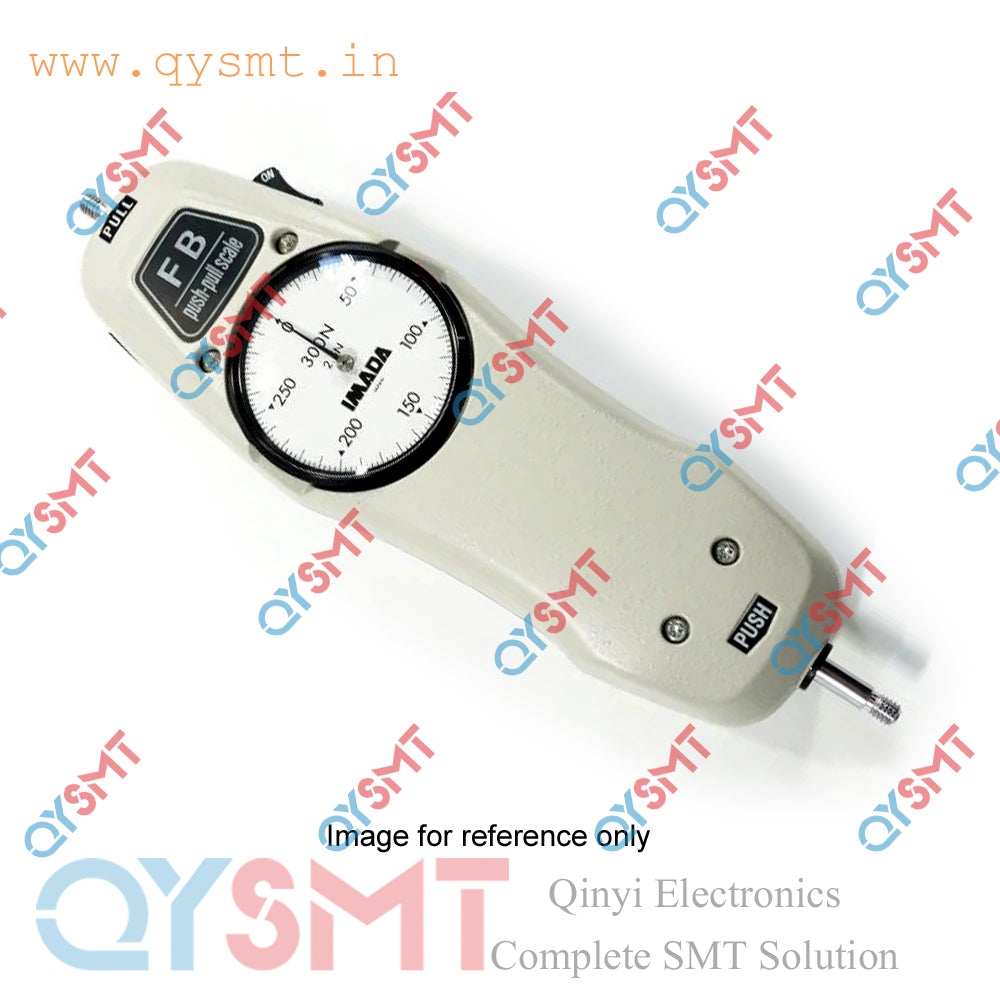

The Imada FB-300N is a durable, analog mechanical force gauge used for simple push-pull force measurements up to 300 Newtons. Its robust construction and reliable performance make it a suitable choice for various industrial and testing applications.

Key features

• Operational modes: Includes both "real time" mode for live force readings and "peak mode" to capture the maximum force applied during a test.
• Construction: Features a heavy-duty metal casing, making it rugged and virtually maintenance-free.
• Operation: Being a mechanical gauge, it requires no batteries or charging, is always ready for use, and is intrinsically safe for hazardous environments.

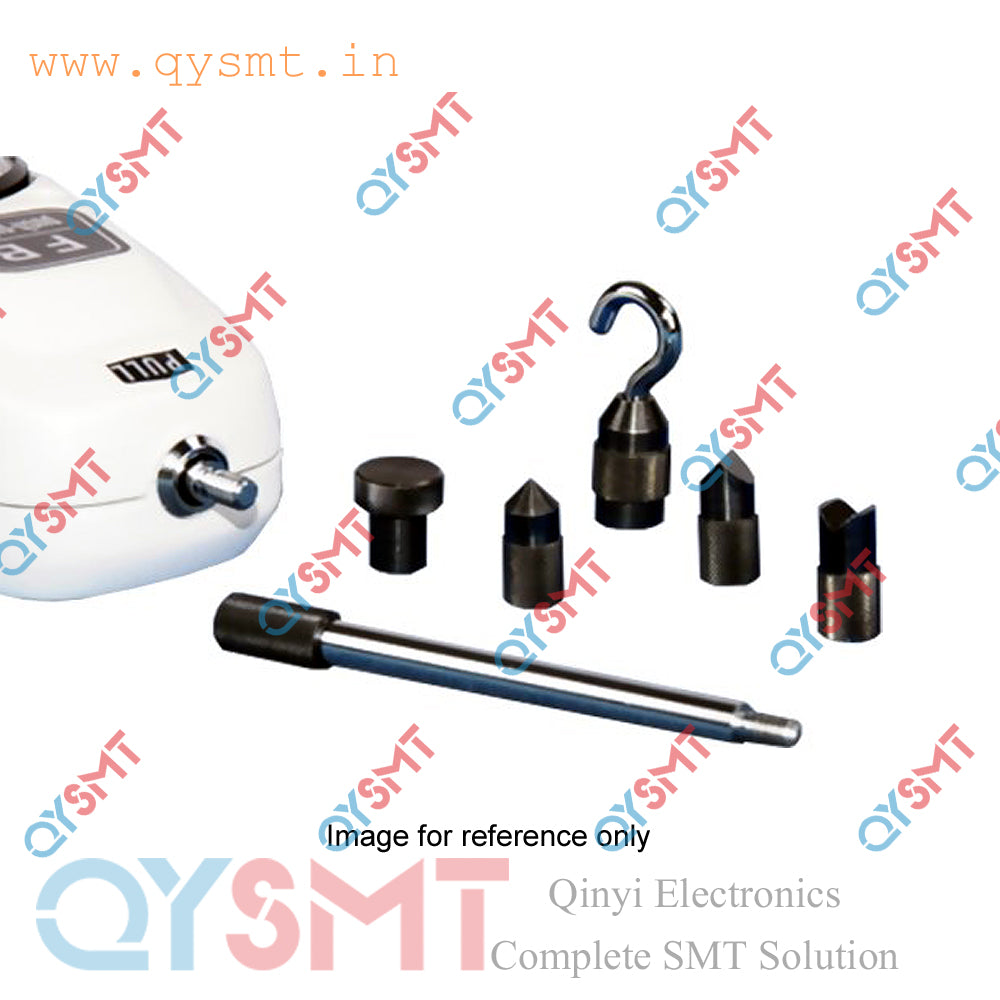

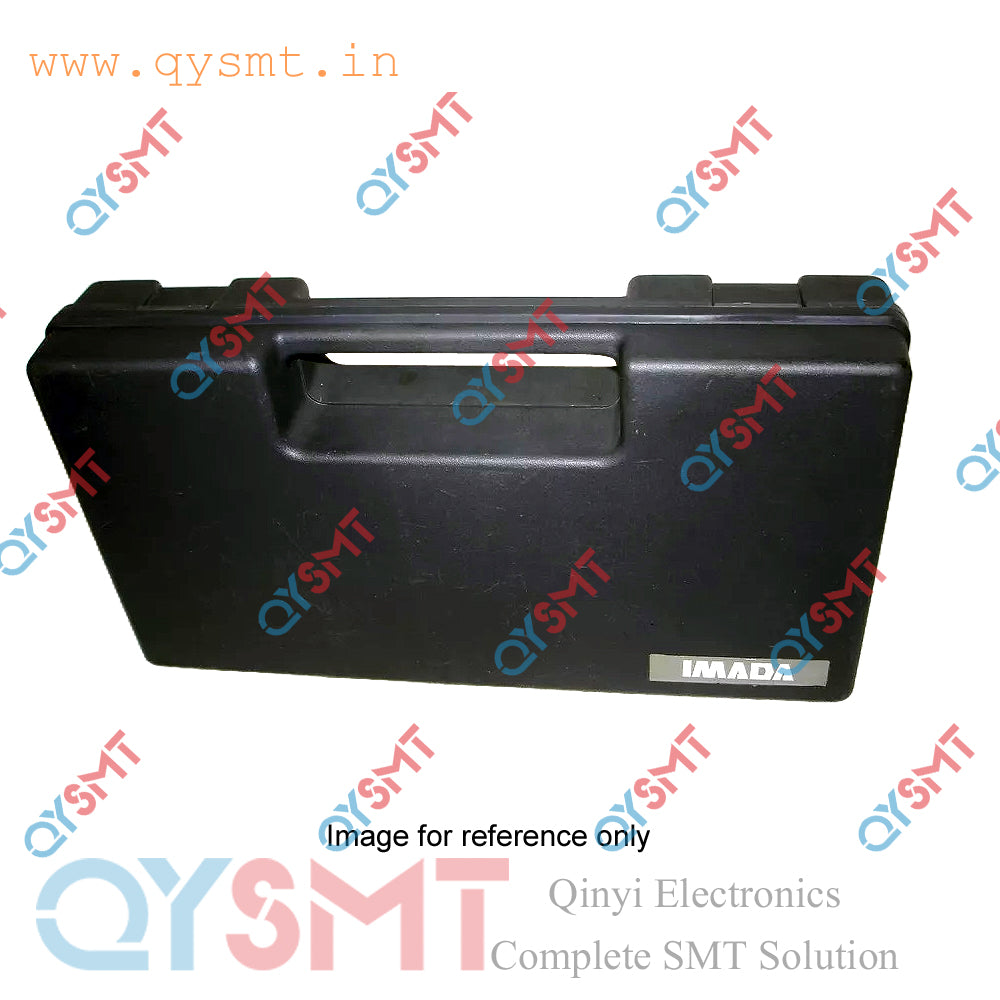

• Accessories: Typically comes as a complete kit, including five different measuring attachments (flat head, conical, chisel, notched, and small hook) and a hard carrying case.
• Zero-tare ring: A tare ring allows you to zero the gauge, compensating for the weight of measuring attachments.

Common applications

• Operating force measurement of parts and products, like switches or levers.
• Tensile and compression strength measurement of different materials.
• Testing the peel strength of adhesive packaging.
• Checking the opening and closing force of fire doors.

Specification/Additional Details

• Brand : IMADA
• Measuring Range : 300N
• Model Name/Number : FB-300N
• Display Type : Analog
• Accuracy : ±0.3% F.S.
• Capacity : 300 N
• Usage/Application : Push-pull Force Measurement

• Resolution : 2.5 N

• Stroke : 10mm

• Operating environment : 0~+40°C
