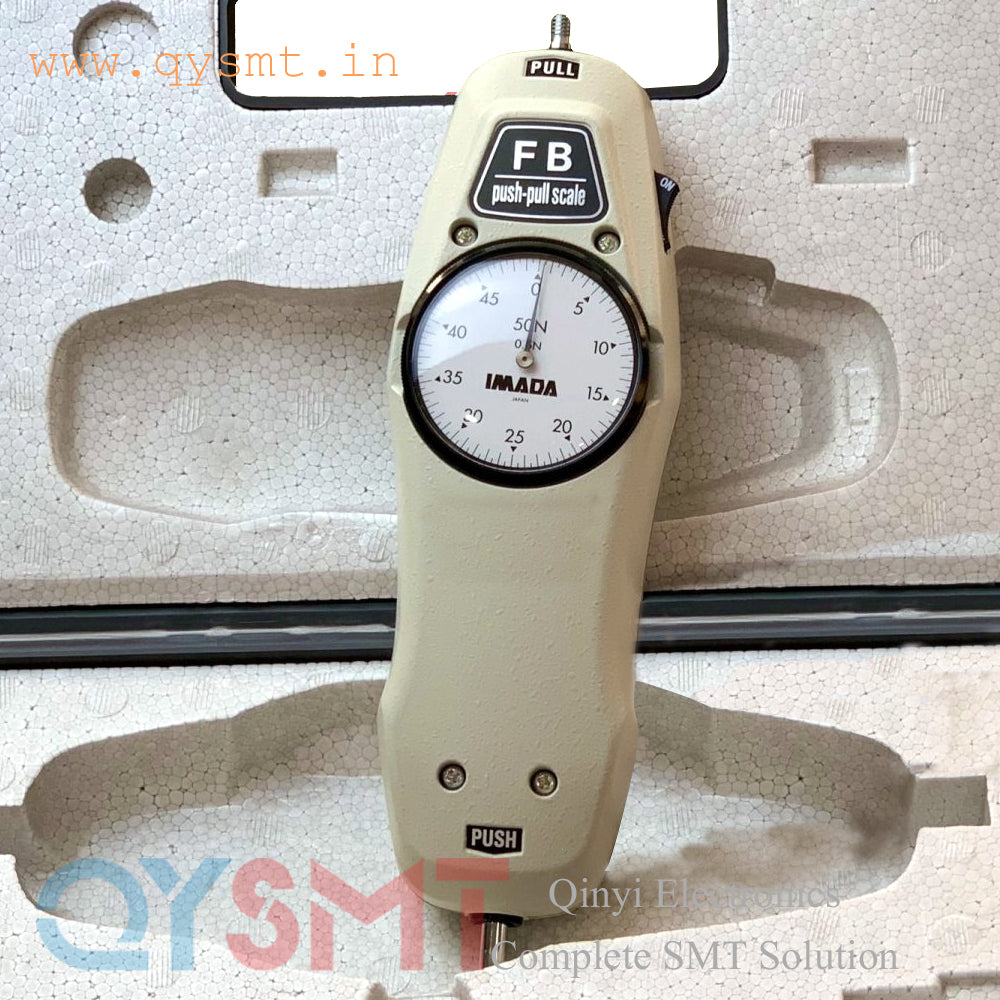

Imada FB-50N Mechanical Force Gauge

IMADA FB Mechanical Force Gauge 50 N Capacity FB-50N Analog Push-Pull Tester,
FB-50N Capacity 50N.

The IMADA FB-50N is a heavy-duty analog mechanical force gauge used to measure both push (compression) and pull (tension) forces. It is a rugged and economical instrument that is well-suited for industrial environments.

Features and benefits

• Peak-hold mode: A selector switch allows you to capture the maximum force reading applied during a test.
• Tare ring: This feature allows you to zero the gauge to compensate for the weight of attachments or a specific test position.
• Durable construction: Its sturdy metal body makes it a low-maintenance, long-lasting tool suitable for harsh settings.
• Versatility: The gauge is ideal for both handheld use and for mounting to a test stand for more precise, repeatable measurements.

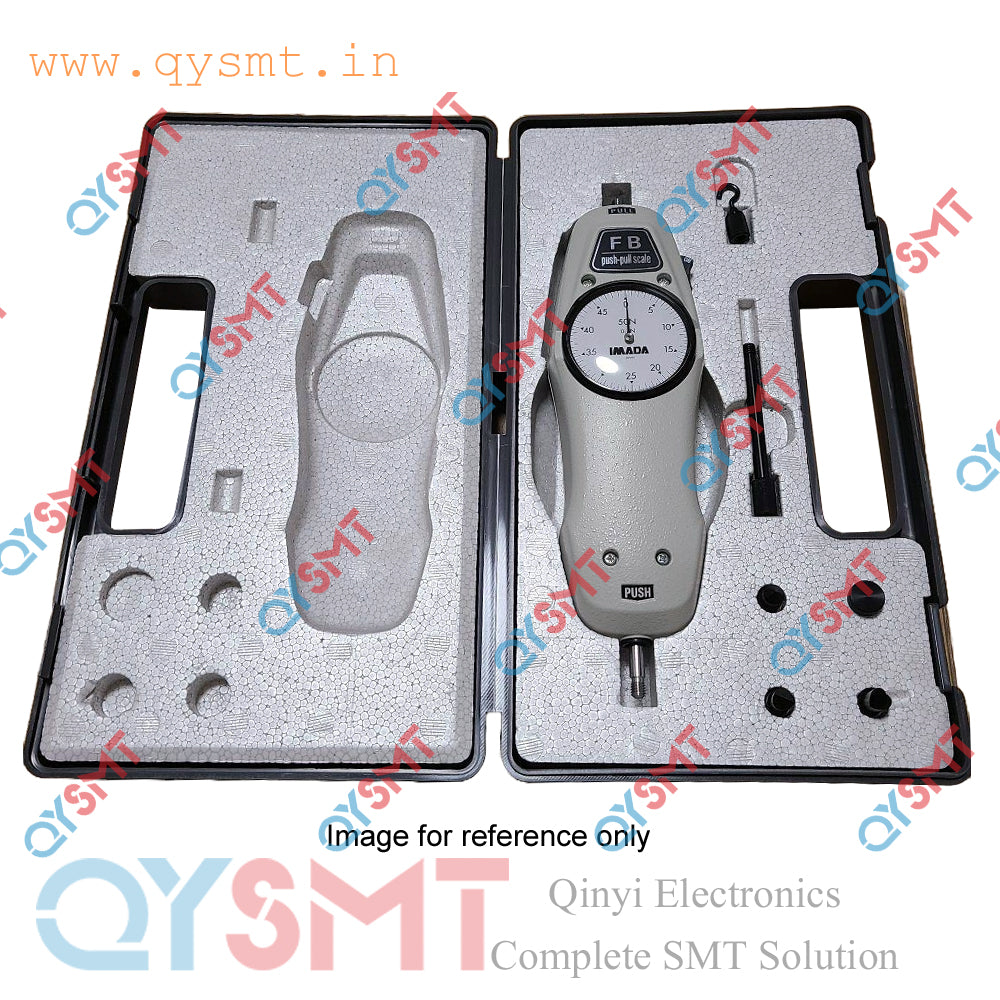

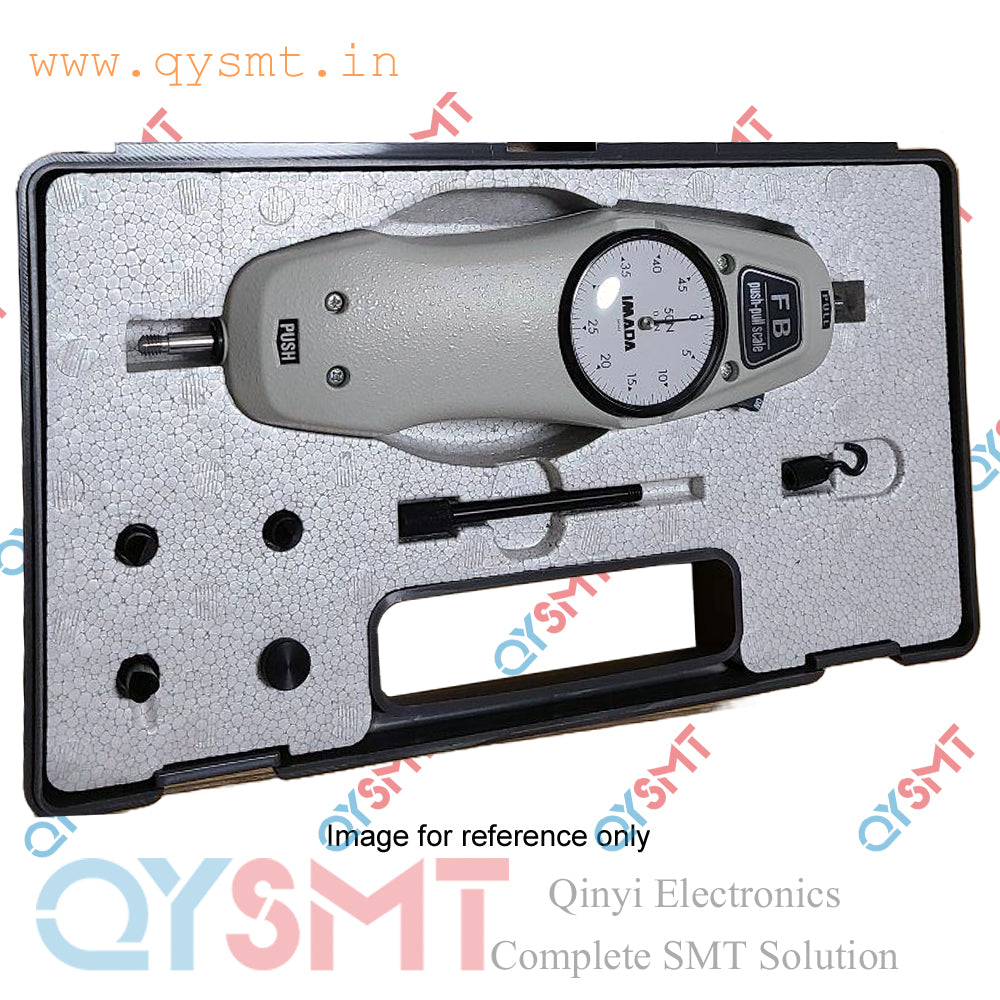

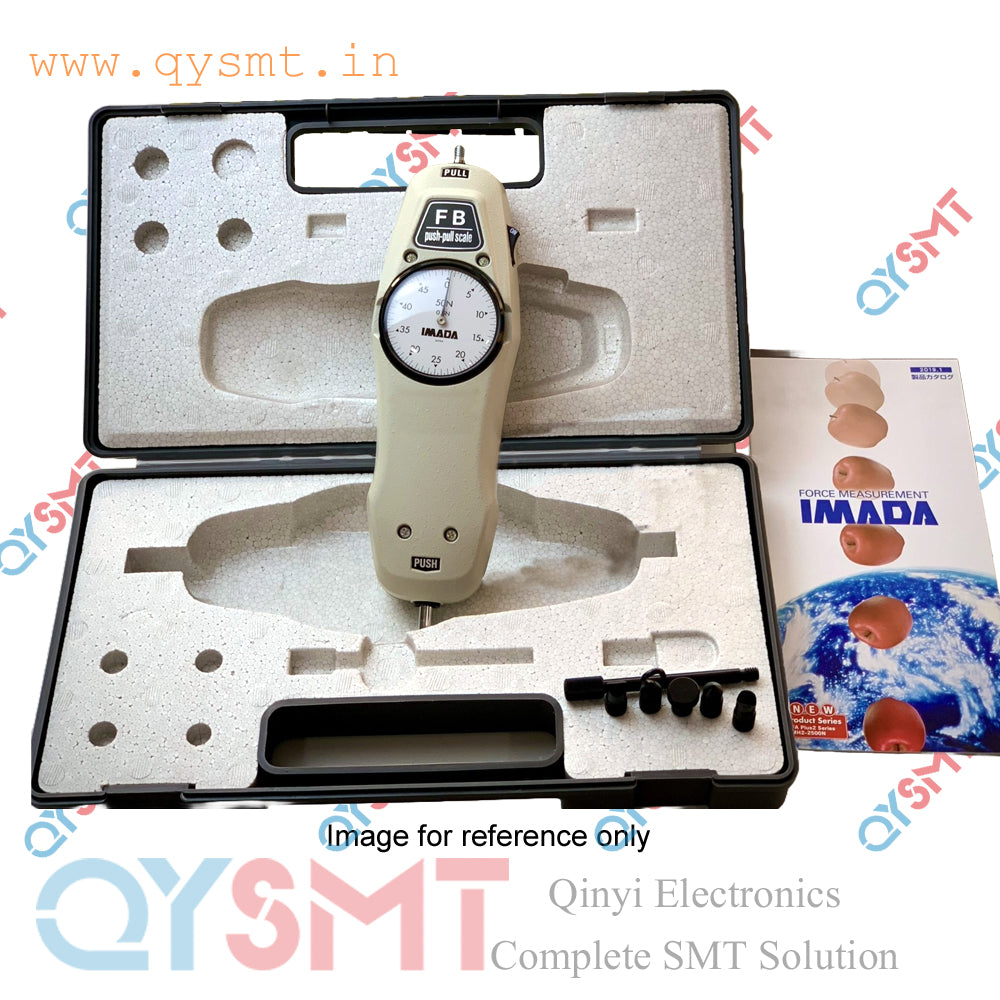

• Included accessories: The gauge typically comes as a complete kit, including a hard carrying case, an extension shaft, and a set of five measuring attachments (flat head, conical, chisel, notched, and small hook).

Specification/Additional Details

• Brand : Imada
• Measuring Range : 50N
• Model Name/Number : FB-50N
• Display Type : Analog
• Accuracy : 0.3%(Full Scale)
• Capacity : 50.00N
• Usage/Application : Force measuring

• Resolution : 0.5000N

• Feeler Length : 20.50mm

• Housing Material : Metal
