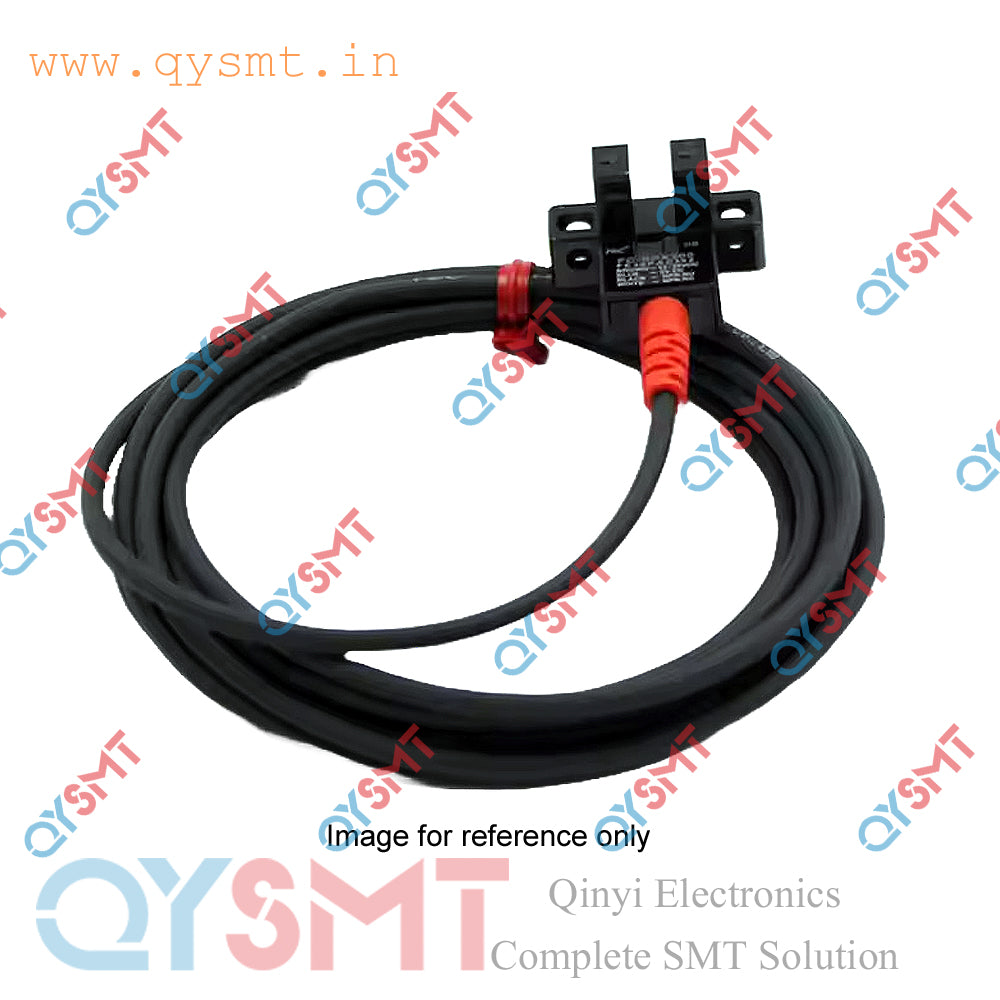

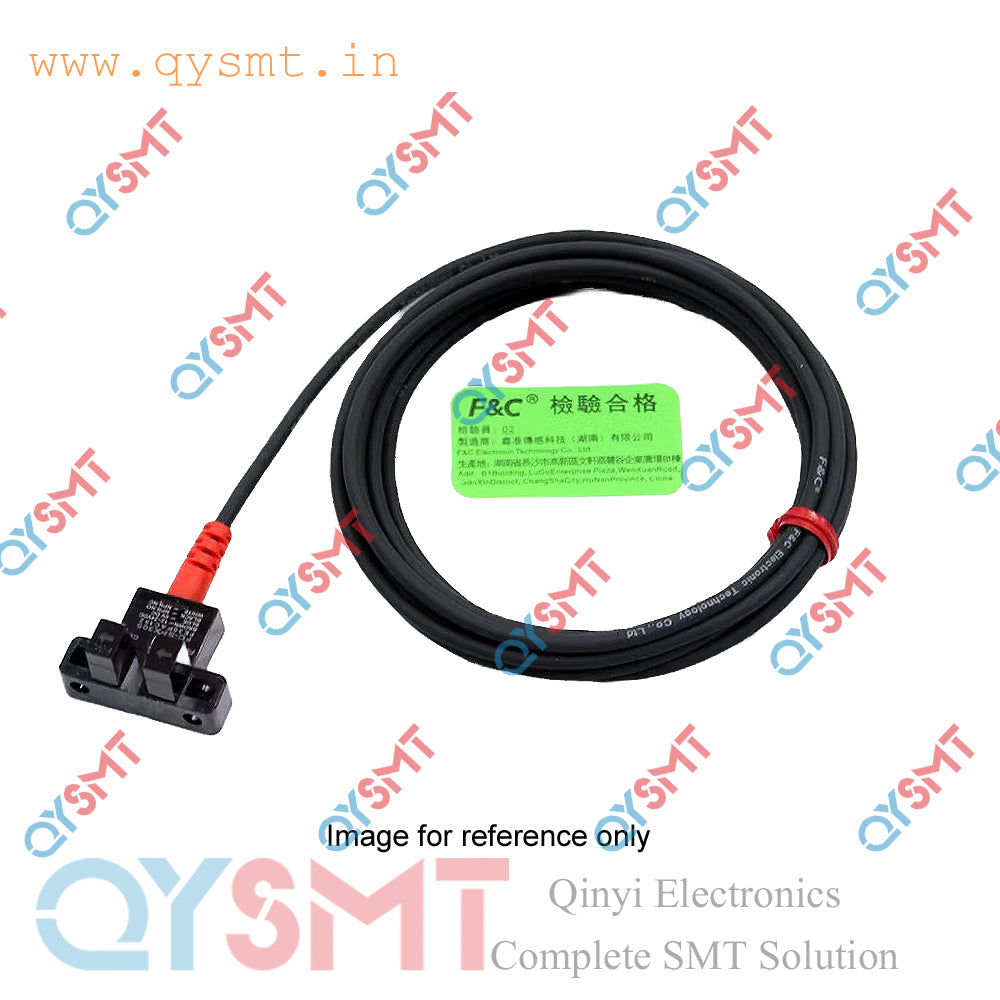

F&C FC-SPX305 Photoelectric Sensor

F&C Slot type Photoelectric Switch FC-SPX305 U type Photoelectric Sensor NPN NO NC 5V to 24V DC 5mm Range Slot/U type

Specification/Additional Details

• Sensor Type : Through-Beam
• Brand : F&C
• Model : FC-SPX305
• Type : Photoelectric Sensor
• Usage : Position Sensor
• Supply Voltage : 5V to 24V DC
• Sensing Range : 5mm
• Output : NPN/PNP

Key specifications

• Sensor type: Through-beam, which means it has an emitter and receiver built into a single U-shaped housing.
• Sensing range: 5mm
• Object detection: It can detect opaque objects as small as 1mm passing through its slot.
• Light source: Infrared light.
• Power supply: 5V to 24V DC.
• Output: It is available with either an NPN (sinking) or PNP (sourcing) output, often with both normally open (NO) and normally closed (NC) options.
• Response time: 0.5ms.
• Material: ABS plastic.
• Protection rating: IP65.
