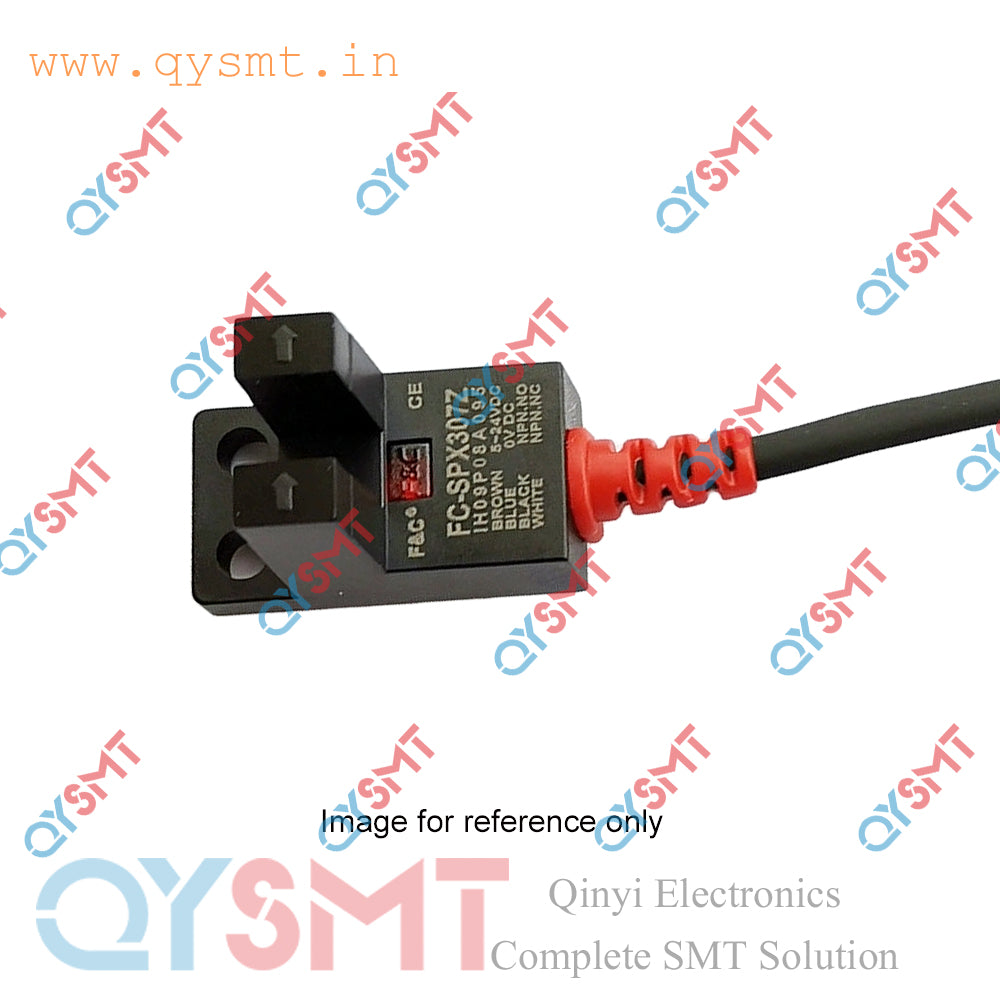

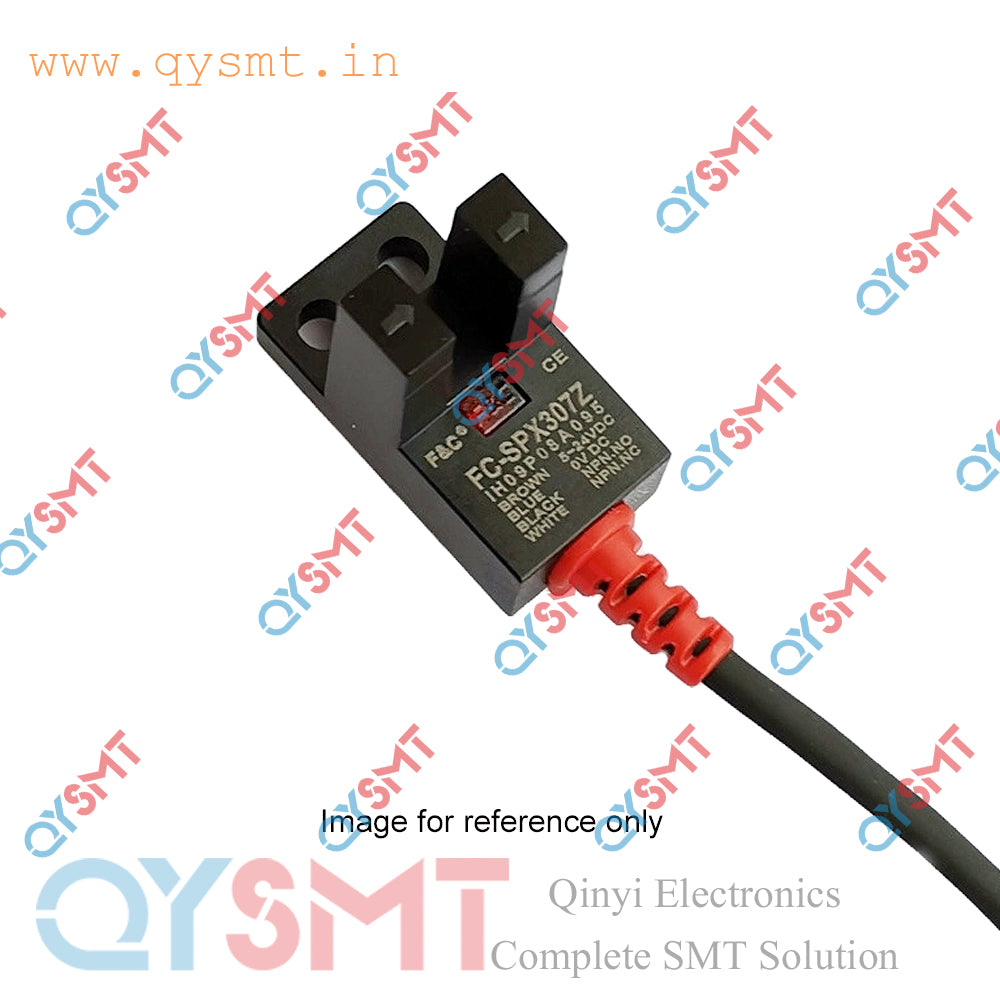

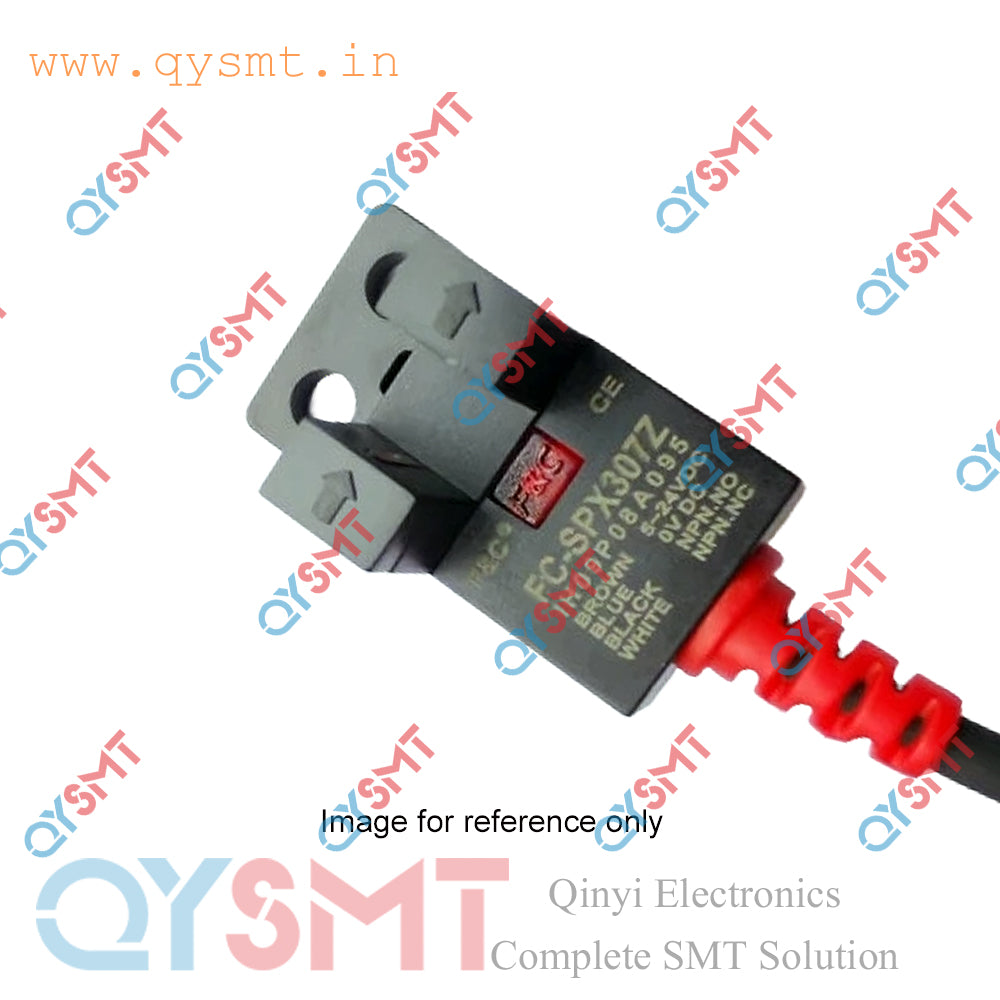

F&C Sensor FC-SPX307Z Photoelectric Sensor

FC Sensor FC-SPX307Z 5V to 24V DC 4-wires U Shape Photoelectric Switch Sensor,
F&C FC-SPX307Z Position Sensor Photoelectric Sensor 5mm Range

The FC-SPX307Z is a slot-type photoelectric sensor manufactured by F&C Sensors, used for position sensing and object detection in industrial automation. The "U" or "fork" shape of the sensor allows for a through-beam detection method.

Key specifications

• Manufacturer: F&C
• Sensor type: Photoelectric, fork or U-shaped
• Detection method: Through-beam
• Light source: Infrared modulated light, 940nm
• Sensing range (slot width): 5mm
• Output type: NPN, NPN.NO/NPN.NC (Normally Open/Normally Closed)
  • PNP output options are also available.
• Supply voltage: 5–24V DC
• Connection: 4-wire configuration.
• Response time: 0.5ms
• Protection rating: IP65
• Key features:
  • Built-in circuit protection for reverse polarity and short-circuits.
  • Designed to be resistant to interference from external ambient light.

Typical applications

The FC-SPX307Z is a versatile component for industrial automation, where it is used for tasks such as:

• Counting items on a production line
• Sensing the position of mechanical parts
• Detecting the presence or absence of objects
• Industrial automation controls
