Vacuum Sucking Pen FFQ939

Manual Vacuum Suction Pen FFQ 939 ESD Anti-static Pickup Tool, SMD Components IC Pick-up Tool FFQ 939 Vacuum Suction Pen, Vacuum Sucking Pen, Pick Up Pen, IC Chip Pick Up Tool FFQ 939

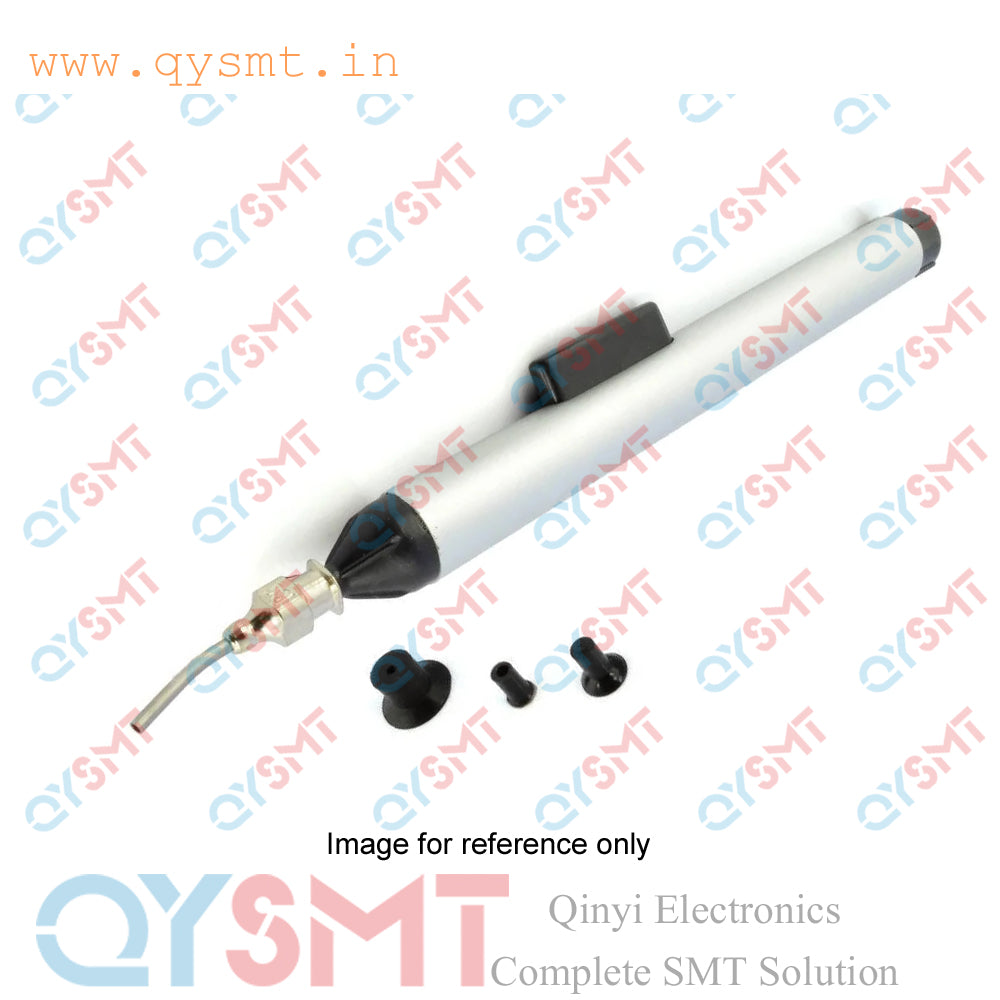

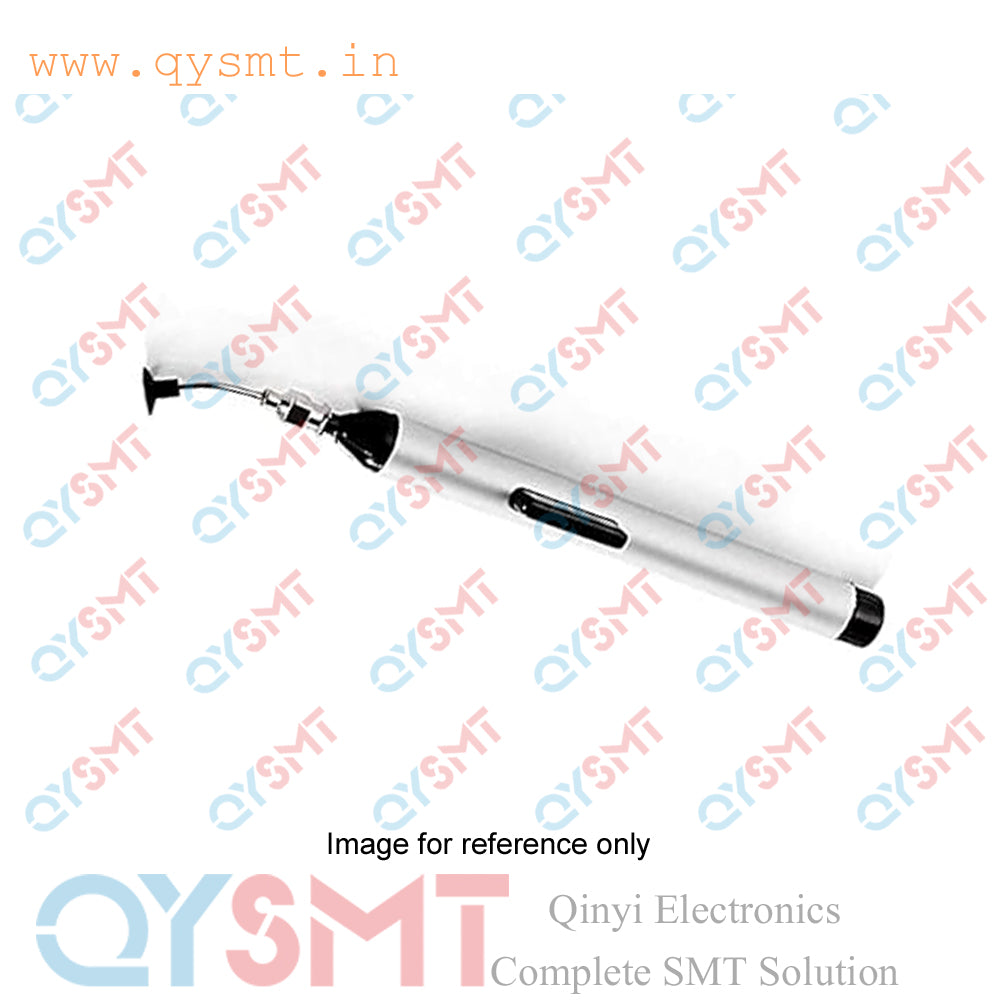

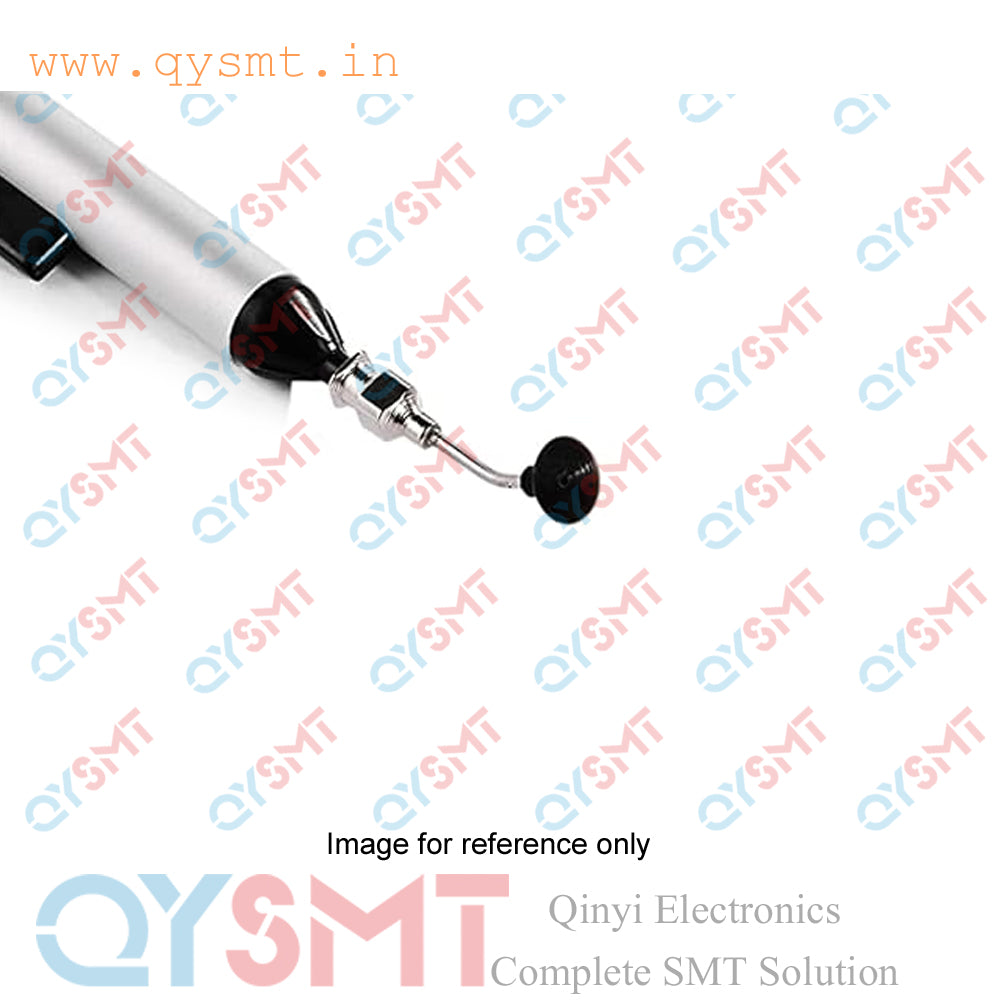

The FFQ 939 Vacuum Pen is a hand-held tool used for picking up and placing small, delicate surface-mount device (SMD) components during electronic assembly and rework. It is a manual, low-cost alternative to tweezers, designed to prevent damage to sensitive parts. The pen does not require a power source, as it creates a vacuum through a simple squeeze-and-release button mechanism.

How it works

1. Attach a suction cup: Select and install the appropriate suction header for the size and weight of the component you want to pick up.
2. Squeeze the pen: Press the button on the side of the pen to expel air from the internal vacuum unit.
3. Create suction: Place the suction cup flush against the component, then release the button to generate a vacuum and lift the component.
4. Release the component: Move the component to its new position and press the button again to release the suction, allowing the part to drop off.

Specifications

• Model No.: FFQ939
• Material: Plastic, steel, and silicon
• Weight: Approximately 20g
• Pen diameter: 11.5mm
• Length: 150mm

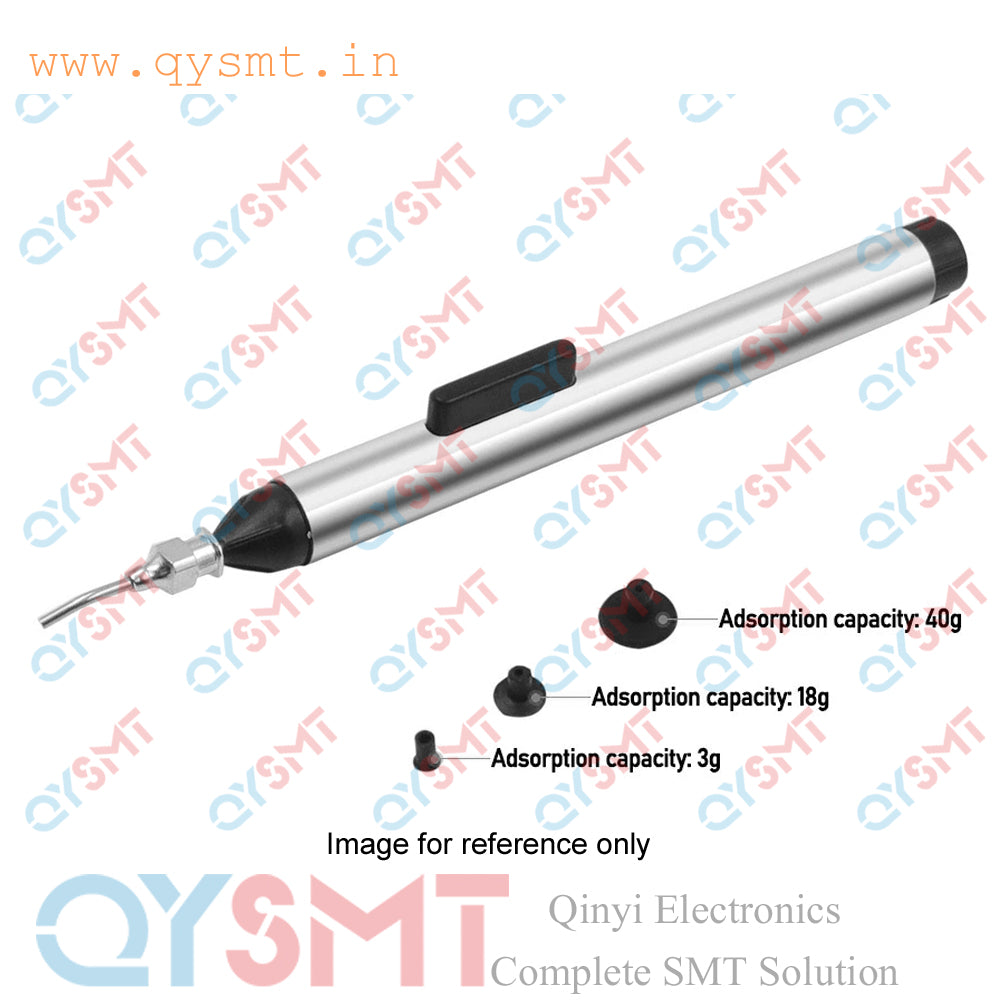

• Suction headers: Includes three interchangeable silicone suction cups:
  • Small: 3mm diameter, for components up to 3g
  • Medium: 7mm diameter, for components up to 18g
  • Large: 10mm diameter, for components up to 40g
