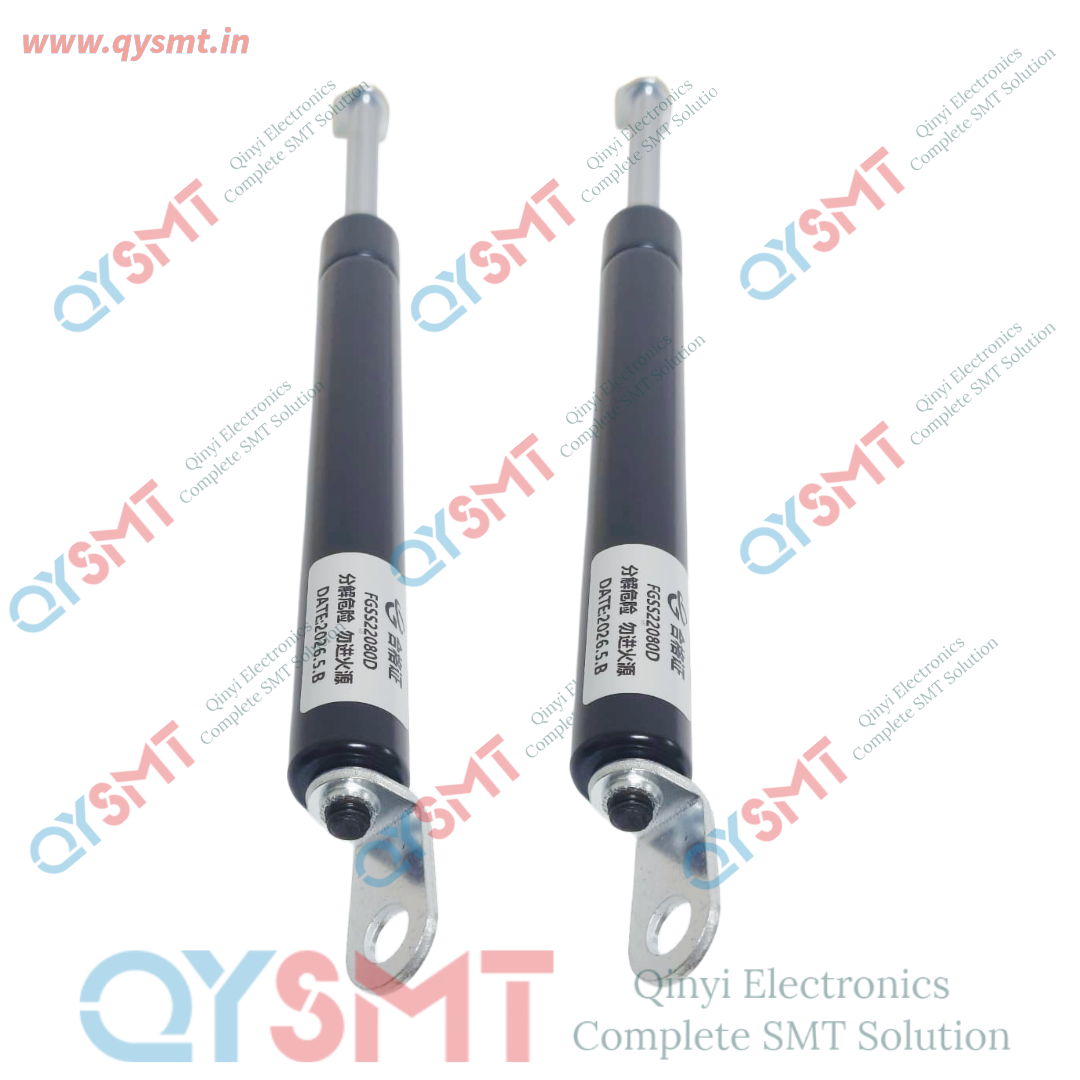

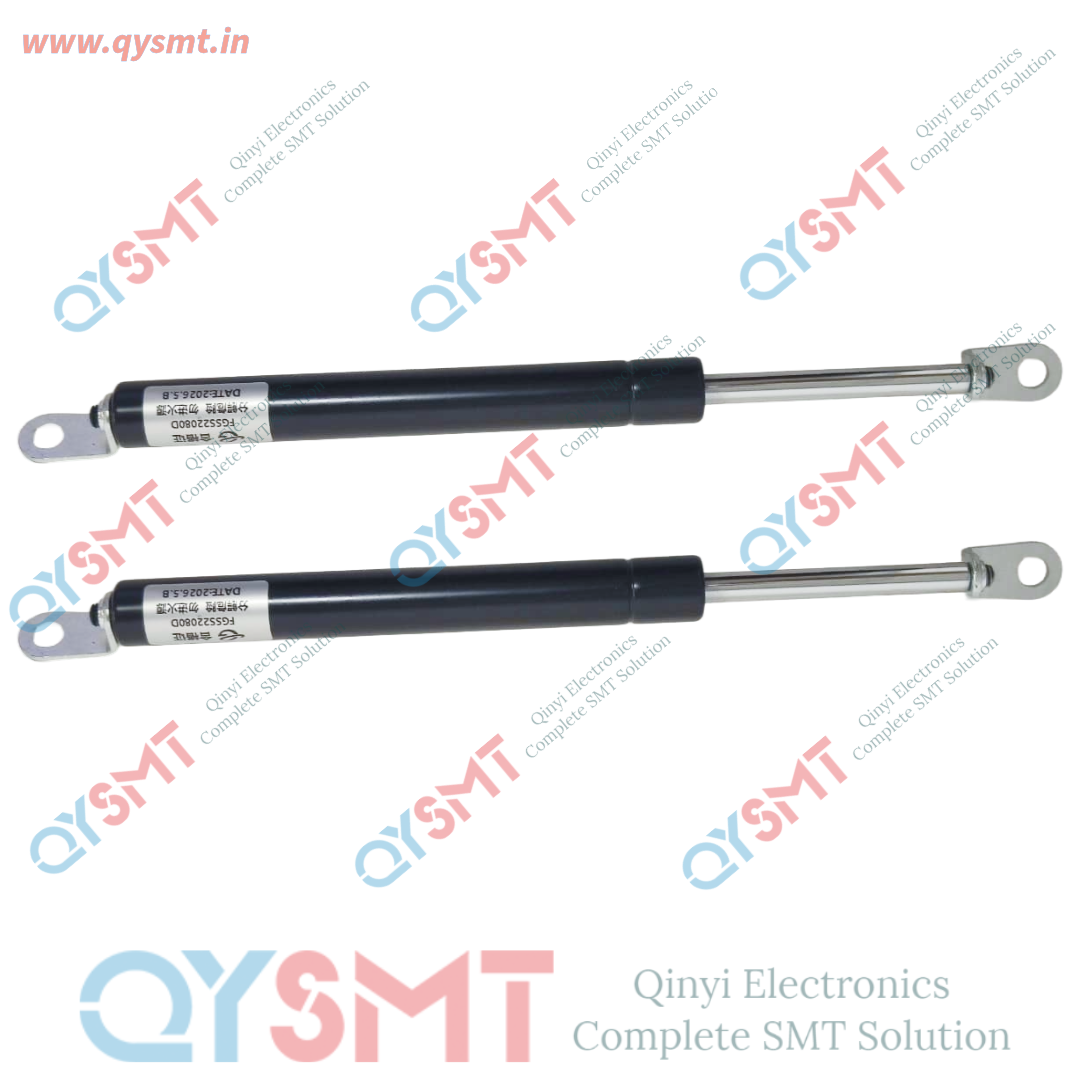

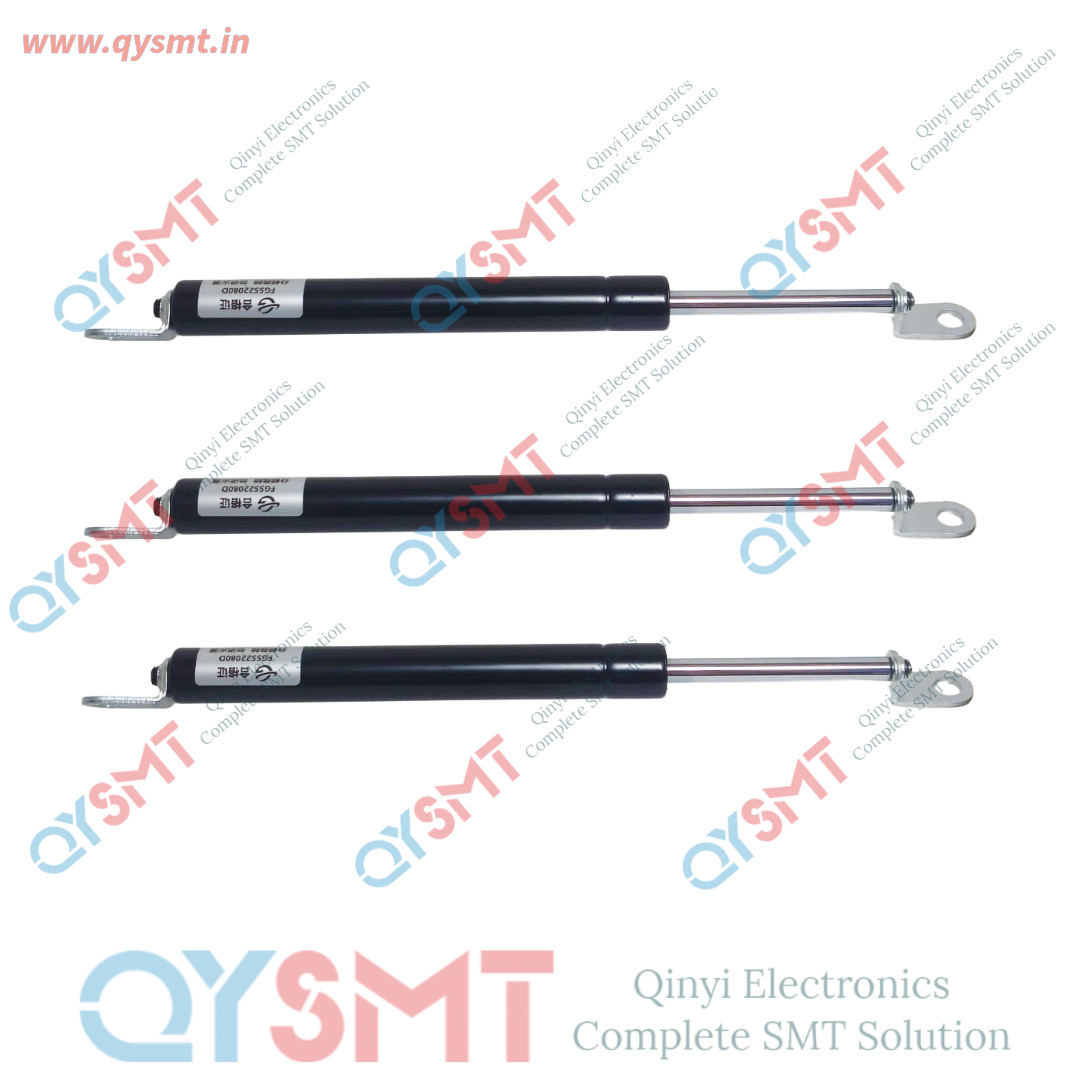

FGSS22080D Pneumatic cylinder

Key Specifications & DimensionsThe alphanumeric code reveals the specific physical and functional dimensions of your unit according to the

• Series (FGSS): Gas Spring, Swivel Mounting Type, Free Orientation.
• Cylinder Body Diameter (22): Outer diameter of the main black cylinder body is 22 mm. (Paired with a 10 mm rod diameter).
• Stroke Length (080): Total linear travel length of 80 mm.
• Gas Reaction Force (D): The suffix letter "D" represents the target gas charge, providing a high output force of 490 N (Newtons) at maximum length minus 10mm of stroke.
