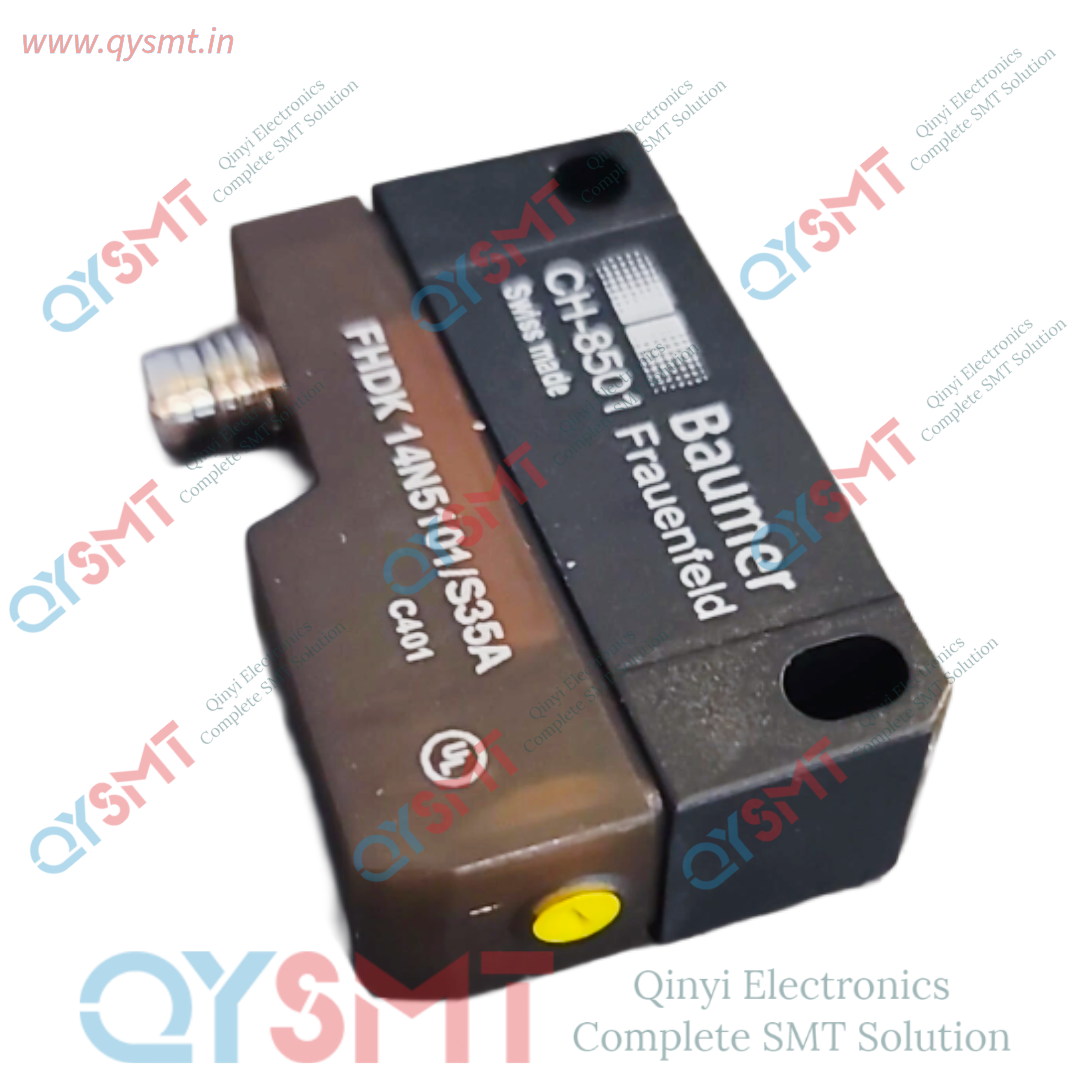

FHDK 14N5101S35A CH-8501 Proximity sensor

FHDK 14N5101/S35A CH-8501 Proximity sensor
Core Specifications

• Sensor Type: Diffuse Photoelectric (with background suppression)
• Sensing Range: 20 mm to 350 mm (mechanically adjustable via a 10-turn dial)
• Output Type: NPN (Light/Dark operate modes)
• Light Source: Pulsed red LED (660 nm)
• Response Time: < 1 ms
• Electrical Connection: 4-pin M8 connector
• Operating Voltage: 10V to 30V DC
• Ingress Protection: IP67 (dust-tight and water-resistant)
• Operating Temperature: -25°C to +65°C
• Housing Material: Durable plastic (ASA/MABS)
